TrePaul's Teaser thread

Looky what Shane and I built... Can you spot it?

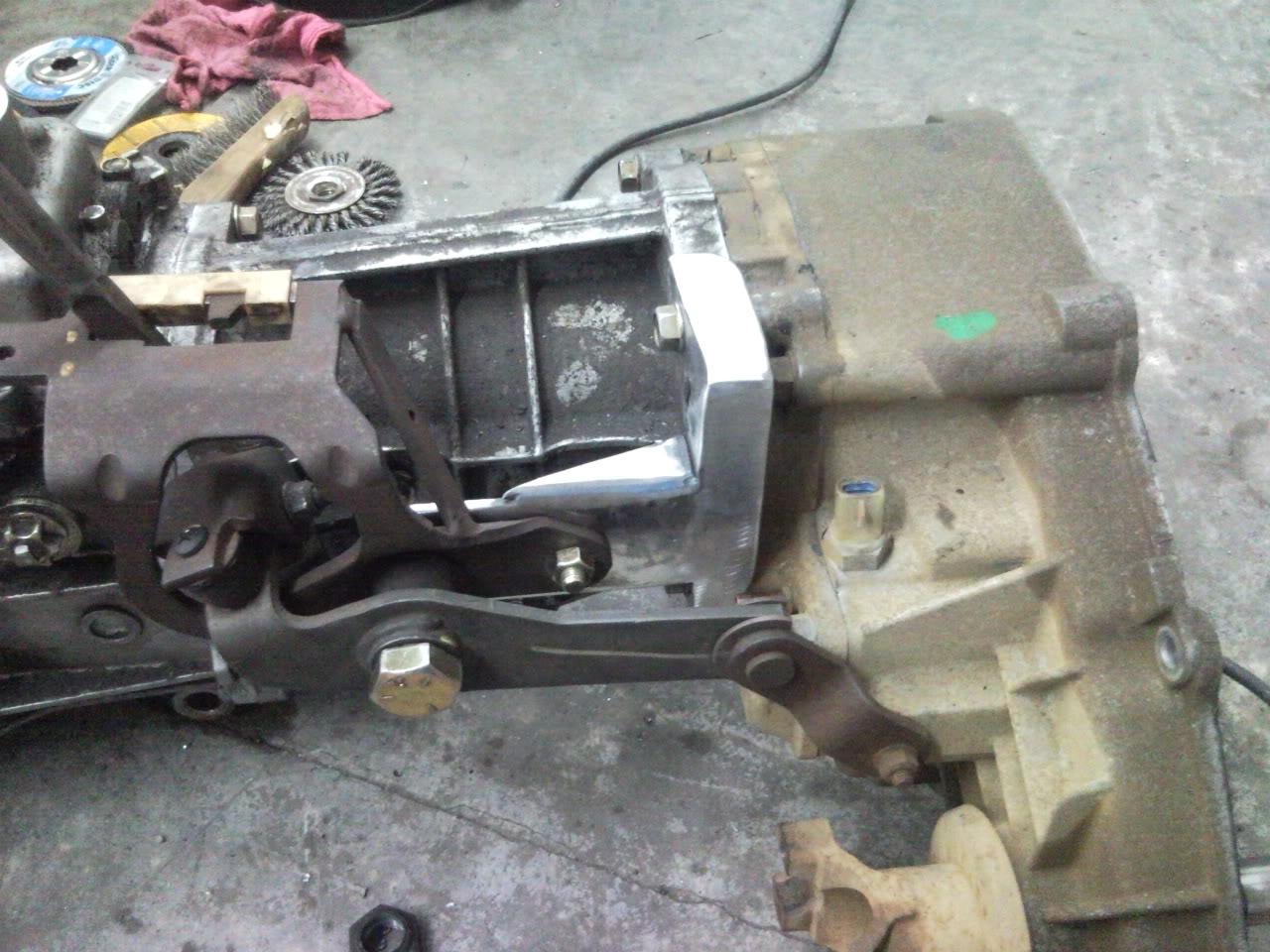

Name:  SNC00374.jpg
Views: 1
Size:  205.7 KB

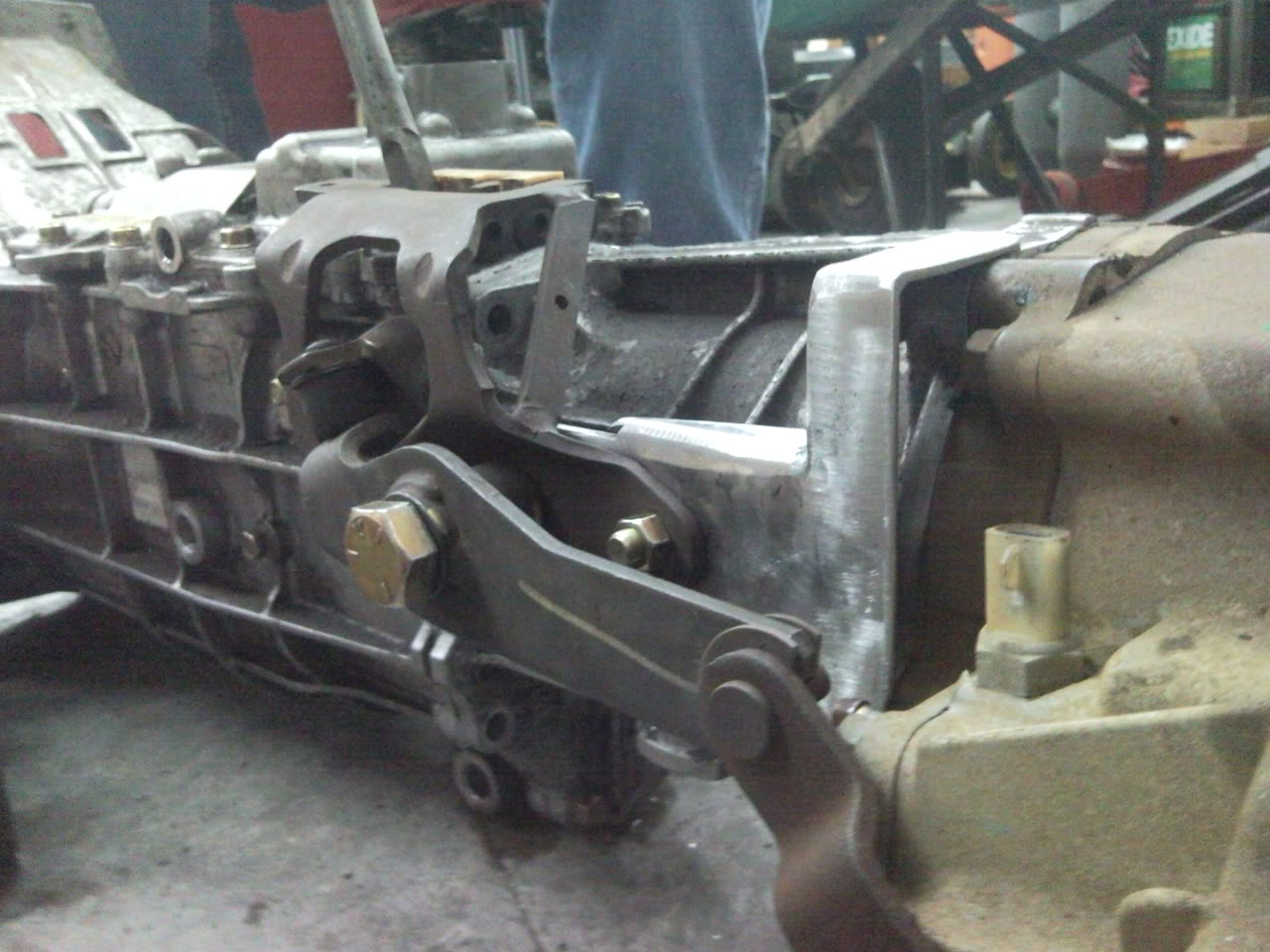

Name:  SNC00375.jpg
Views: 1
Size:  183.2 KB

Give you a hint... It goes with this:

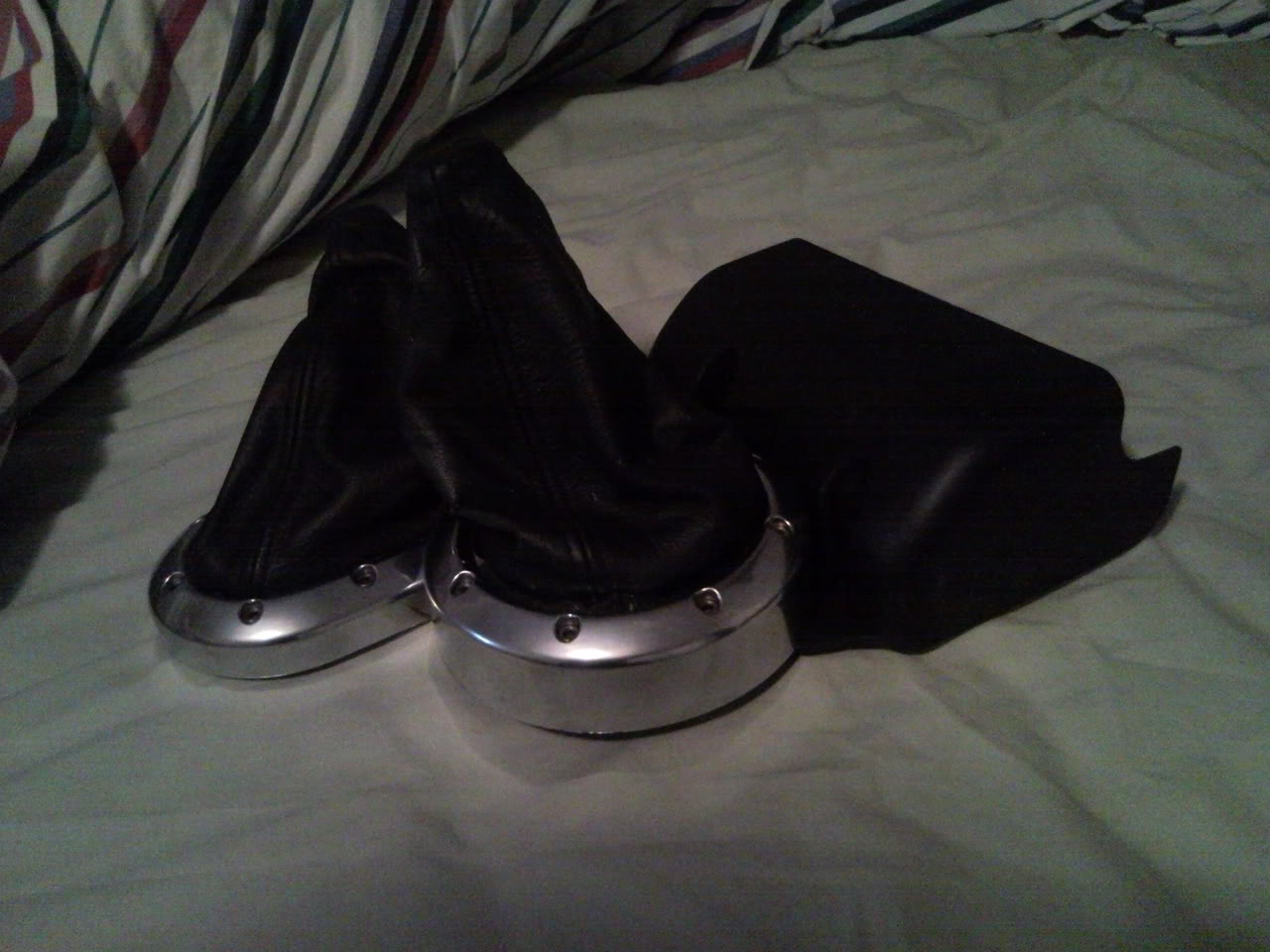

Name:  SNC00369.jpg
Views: 3
Size:  142.3 KB

Reply With Quote
  #2
Old 03-22-2010
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
You mean Shane, and I, and Grant built???


Someone paypal me $30 and i'll tell everything!!!!!!!
Reply With Quote
  #3
Old 03-22-2010
Casper98's Avatar
Member
iTrader: (1)

Join Date: Jun 2007
Location: Gresham OR
Posts: 1,789
an Adapter for a Manual Tcase?
Reply With Quote
  #4
Old 03-22-2010
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Yes Grant helped too lol
Reply With Quote
  #5
Old 03-22-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
That's a nice piece so you don't have to swap out the tail housing. I have seen a couple on trs looks good guys
Reply With Quote
  #6
Old 03-22-2010
Casper98's Avatar
Member
iTrader: (1)

Join Date: Jun 2007
Location: Gresham OR
Posts: 1,789
Zing!
Reply With Quote
  #7
Old 03-22-2010
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
tailhousing fool..

bahah
Reply With Quote
  #8
Old 03-22-2010
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Oooo pretty!
Reply With Quote
  #9
Old 03-22-2010
ranger's Avatar
Member

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
you texted me this hint at like 2am hhaha
Reply With Quote
  #10
Old 03-22-2010
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by ranger View Post
you texted me this hint at like 2am hhaha
lol! me too. i saw this morning at 8am i had a text that came in that late.
Reply With Quote
  #11
Old 03-22-2010
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Quote:
Originally Posted by HighRollerII View Post
tailhousing fool..

bahah
Yup! I'm not gonna pay $200 for something I can make for $2! lol Thanks for the template shane!

Quote:
Originally Posted by seed60 View Post
Oooo pretty!


Quote:
Originally Posted by ranger View Post
you texted me this hint at like 2am hhaha
I sent it at like 11pm last night, you shouldn't have got it that late lol

Quote:
Originally Posted by zabeard View Post
lol! me too. i saw this morning at 8am i had a text that came in that late.
Sounds about right for you to get it at 2am, not Donnie though haha
Reply With Quote
  #12
Old 03-22-2010
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
I like it though, nice work guys.

I have an iPhone and could barely tell what it was, maybe my eyes werent open all the way yet. I knew it was a tranny, tcase but i couldnt tell what you did to it.
Reply With Quote
  #13
Old 03-22-2010
sullys_ranger's Avatar
Member

Join Date: Mar 2006
Location: NewLexington, Ohio
Posts: 3,615
haha I got it at like 2 this morning too! looks sweet dude!
Reply With Quote
  #14
Old 03-22-2010
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
HAHA... Case will be here Wednesday morning first thing... Now I just need linkage... Can anyone help me out here?! Shane won't give up his extra expo linkage...
Reply With Quote
  #15
Old 03-22-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
Let me see if there is still a linkage at my local place
Reply With Quote
  #16
Old 03-22-2010
ranger's Avatar
Member

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
im not complaining i was at the bar drunk, i wasnt in the mood for drunk texting.. the were kicking everyone out, and i said **** you, let me finish my picture of stone pale ale..

I though it was some rack until i looked again this morning. haha

Trevor, my name is spelt : Donny

haha no ie nig
Reply With Quote
  #17
Old 03-22-2010
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
I call you IE not Y. So deal with it nig. lol

Yeah I just picked up the t-case linkage from a 1991 B2 with 1354m case in it and rubber floor plate from an older expo for $10.

Then went to the hardware store and picked up some grade 8 stuff for the bracket and some stainless for the t-case shifter arm. T-case will be here wednesday morning (Only paid $100 for a 1354m from a 94 expo), then I'm just gonna clean it up, pump some royal purple into it, paint up the bracket and mount it when i mount the new 1354m up, install the interior plastics to make me level II and boom!

The superlift driveline should work just fine once i take the adapter off to change it over to the CV cup style front output. I'm just gonna block off the speedo cable hole and figure out which wires control the 4wd indicators and probably wire them to a LED on the new bezel I get... I'll know what gear i'm in, but a light would be kinda cool to have others know too.
Reply With Quote
  #18
Old 03-22-2010
ranger_1999's Avatar
Member
iTrader: (3)

Join Date: Jan 2008
Location: spindale, NC
Posts: 1,444
Looks good man, the bezel looks nice and neat too....!
Reply With Quote
  #19
Old 03-22-2010
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Wonder who I got the l2 bezel from? lol
Reply With Quote
  #20
Old 03-22-2010
vansnxtweek's Avatar
Member

Join Date: Feb 2005
Location: USA
Posts: 2,666
So are twin sticks on the way Tre???
Reply With Quote
  #21
Old 03-22-2010
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
I'll be twin stick'd in 2 days Matt :)
Reply With Quote
  #22
Old 03-22-2010
ranger's Avatar
Member

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
im already twin sticked :)
Reply With Quote
  #23
Old 03-22-2010
Ranger_Envy's Avatar
Member
iTrader: (5)

Join Date: May 2009
Location: Newton, Ks
Posts: 845
Nice fab work on the bracket. Looks like it'll be a good, sturdy, setup.
Reply With Quote
  #24
Old 03-23-2010
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Just finished the linkage and adapters! It's ready to get painted and waiting on the case for Wednesday morning! Then it all goes in, including the level 2 shifter arm and ball! I'll get the pics up from tonight in a few hours!
Reply With Quote
  #25
Old 03-23-2010
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Alright here's the pics before the painting. Tapped the new linkage to 3/8-24 NFT, and going to paint it up today and run to the hardware store for some bolts for the shifter arm and linkage.

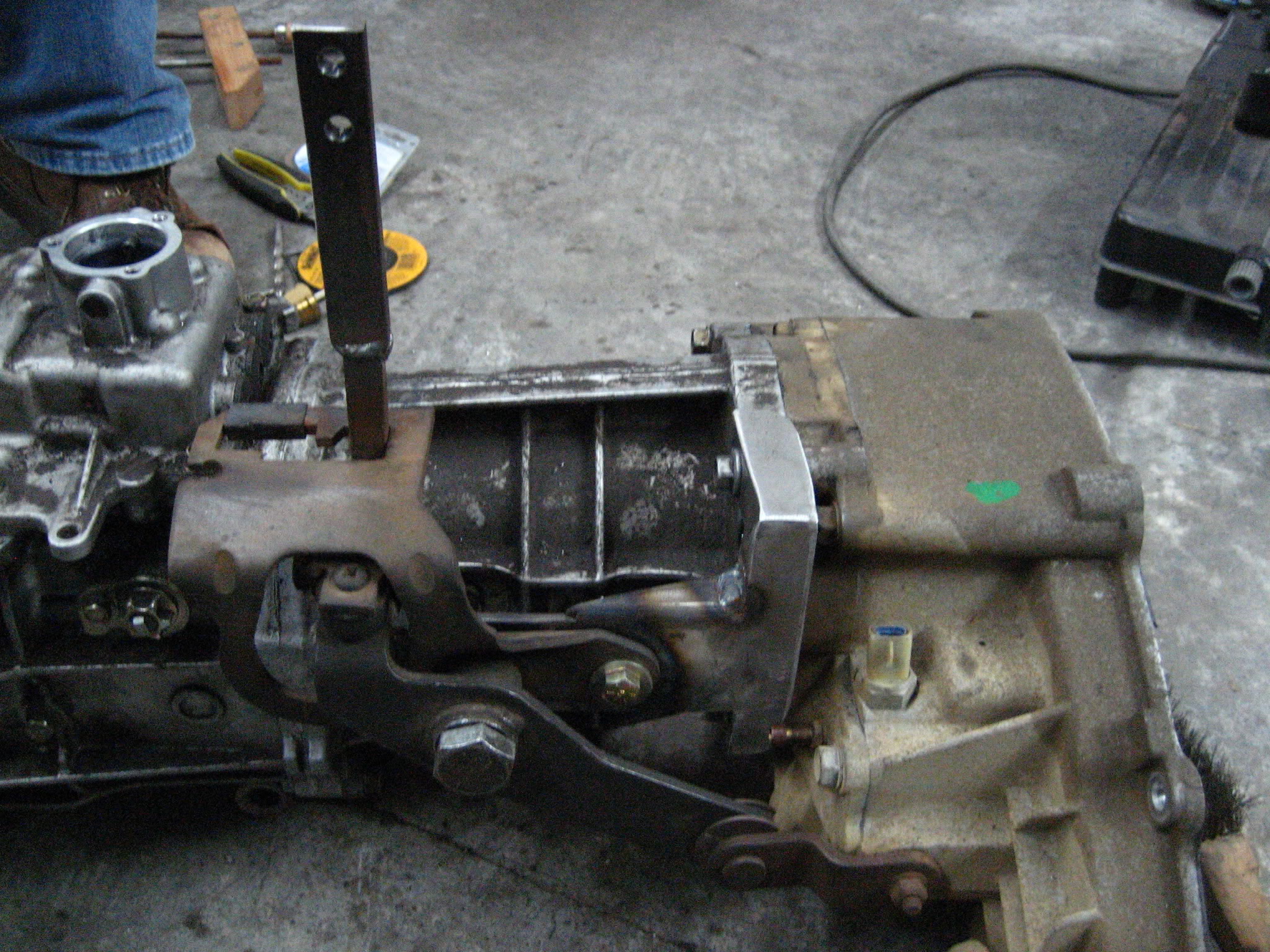

Name:  IMG_1778.jpg
Views: 1
Size:  699.3 KB

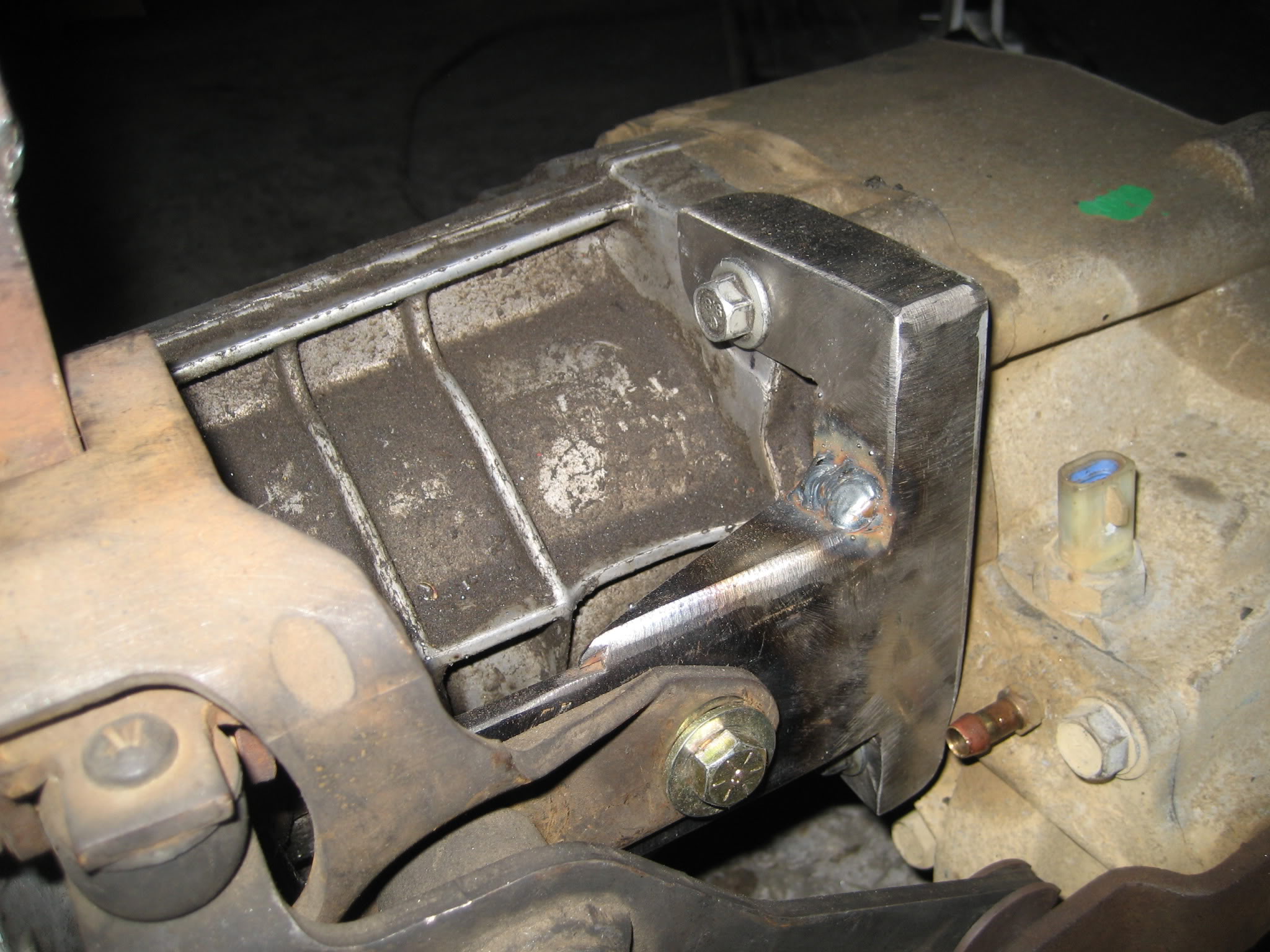

Name:  IMG_1775.jpg
Views: 1
Size:  393.3 KB

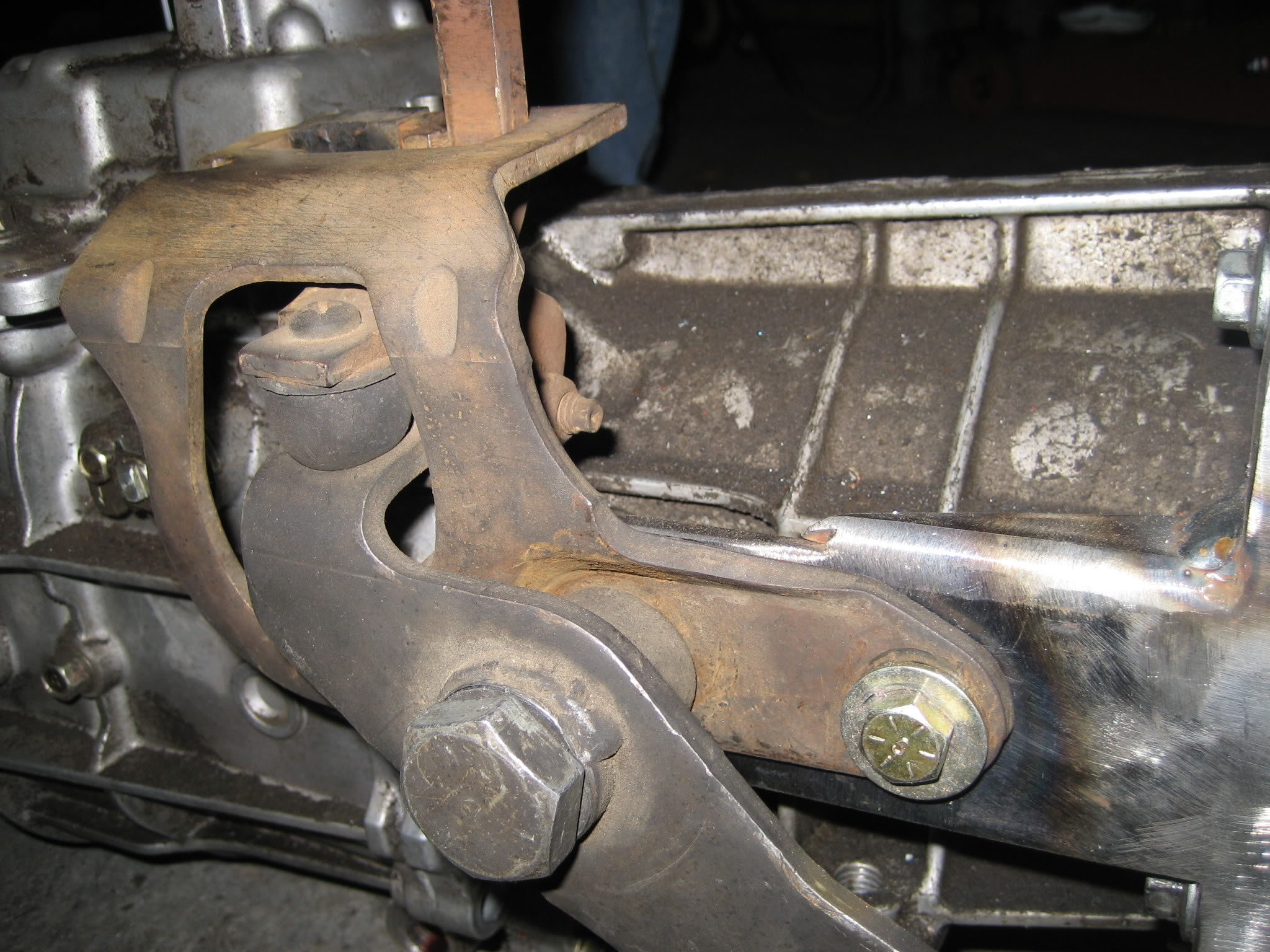

Name:  IMG_1774.jpg
Views: 1
Size:  459.4 KB

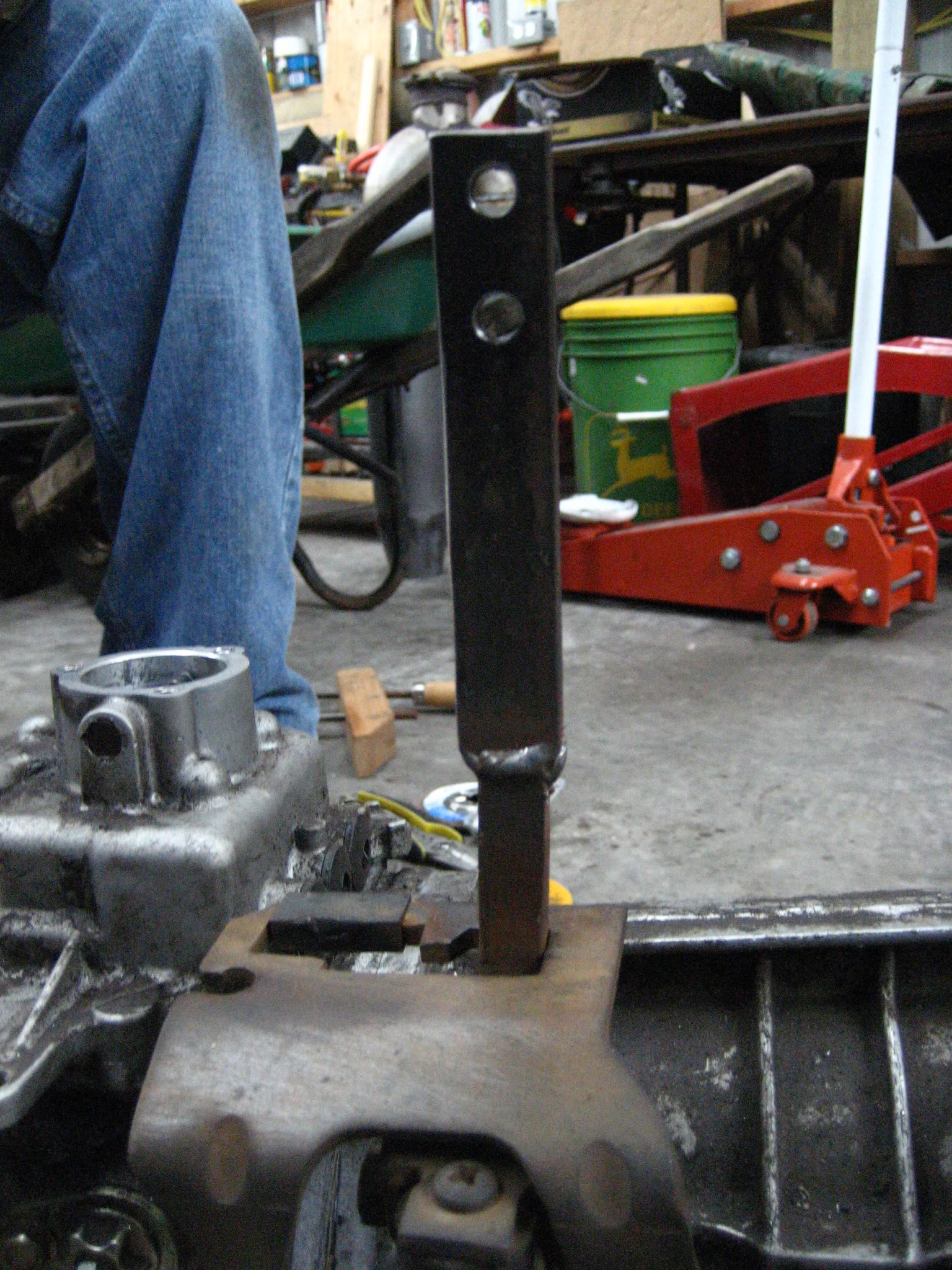

Name:  IMG_1777.jpg
Views: 1
Size:  663.5 KB

Worked out well. It shifts really smoothly and it's in the exact spot the correct tailhousing would put the linkage!
