built me a light bar...

It took me about 2 days to build it. The lights are procomp 9in driving lights. Tell me what ya think!

Name:  lightbar2.jpg
Views: 3
Size:  87.0 KB
Name:  lightbar1.jpg
Views: 4
Size:  90.5 KB

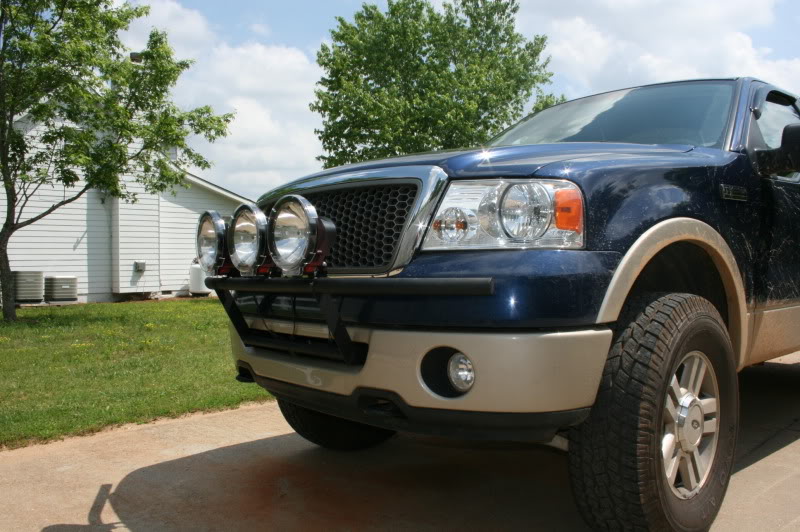

Name:  lightbar4.jpg
Views: 1
Size:  98.0 KB

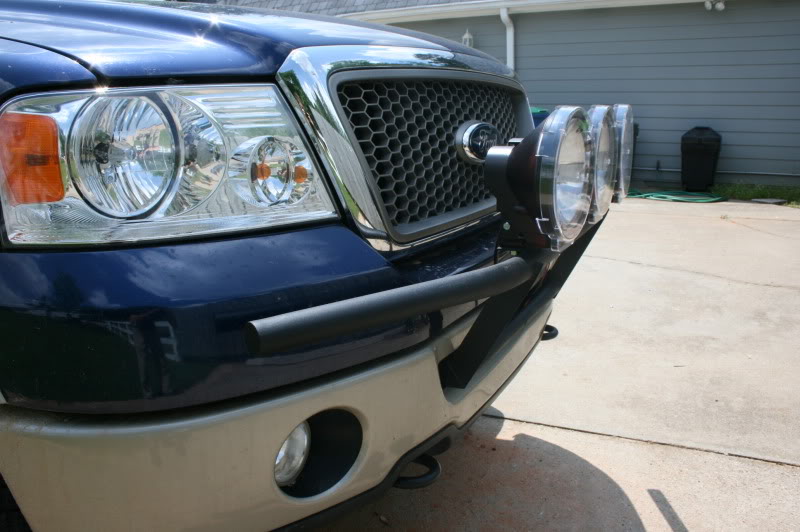

Name:  lightbar3.jpg
Views: 3
Size:  73.4 KB
Reply With Quote
  #2
Old 05-02-2011
j99ranger4x4's Avatar
Member
iTrader: (5)

Join Date: Sep 2008
Location: Delaware, OH
Posts: 1,381
looks good, what did u attach it to
Reply With Quote
  #3
Old 05-02-2011
Terrible One's Avatar
Member
Thread Starter

Join Date: May 2010
Location: suwanee, GA
Posts: 72
Thanks man. It's held on by two grade 8 bolts.
Name:  F-150015.jpg
Views: 2
Size:  21.4 KB
Reply With Quote
  #4
Old 05-02-2011
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
That looks great! Just as nice as the n-fab one and I'm sure it was a heck of a lot cheaper.
Reply With Quote
  #5
Old 05-02-2011
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
looks good. basic but functional
Reply With Quote
  #6
Old 05-02-2011
brianjwilson's Avatar
Member

Join Date: Nov 2006
Location: Hillsboro, Oregon
Posts: 3,650
Not bad at all. Although I would recommend running all of the wires in one split loom along the horizontal tube, then down the vertical bracket. It would look 10x cleaner than having all of the wires hanging out there.
Reply With Quote
  #7
Old 05-02-2011
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by brianjwilson View Post
Not bad at all. Although I would recommend running all of the wires in one split loom along the horizontal tube, then down the vertical bracket. It would look 10x cleaner than having all of the wires hanging out there.
X2 AND if you go in the woods at all wires may catch.

Bar and setup looks good,
Reply With Quote
  #8
Old 05-02-2011
Member

Join Date: Mar 2011
Location: Hampton, VA
Posts: 103
I dig! But agree, those wires would drive me nuts....
Reply With Quote
  #9
Old 05-02-2011
Dirty Ranger's Avatar
Member

Join Date: Jan 2011
Location: Ontario, Canada
Posts: 456
looks awesome ,
Reply With Quote
  #10
Old 05-02-2011
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Looks good But I would run the wires in through the grill so you can't see them. And like Brian said in one loom. Otherwise looks sweet!
Reply With Quote
  #11
Old 05-02-2011
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Looks great, i'm X2 on the wires, one loom, coming out from under the grill.
Reply With Quote
  #12
Old 05-03-2011
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
why did you use flatstock on the supports and not tubing throughout? it would have given a place to hide said wires. i didn't notice the wires at first and thought about tubing for supports but didn't mention it til now.
Reply With Quote
  #13
Old 05-03-2011
Terrible One's Avatar
Member
Thread Starter

Join Date: May 2010
Location: suwanee, GA
Posts: 72
Quote:
Originally Posted by 04blackedge View Post
That looks great! Just as nice as the n-fab one and I'm sure it was a heck of a lot cheaper.
Thanks! Yeah it took about 20-30 bucks worth of material.

Quote:
Originally Posted by brianjwilson View Post
Not bad at all. Although I would recommend running all of the wires in one split loom along the horizontal tube, then down the vertical bracket. It would look 10x cleaner than having all of the wires hanging out there.
That's exactly what i plan on doing. Due to my impatient *** and lack of time that day, i wired em up like that instead of waiting and doing it right ha.
Reply With Quote
  #14
Old 05-03-2011
Terrible One's Avatar
Member
Thread Starter

Join Date: May 2010
Location: suwanee, GA
Posts: 72
Quote:
Originally Posted by morris View Post
why did you use flatstock on the supports and not tubing throughout? it would have given a place to hide said wires. i didn't notice the wires at first and thought about tubing for supports but didn't mention it til now.
I used flat stock because i had a lot of it at my house so i though why not. I also thought it would make it a little unique lol. It's pretty stiff too, especially with only 2 bolts holding it on.
Reply With Quote
  #15
Old 05-03-2011
Member

Join Date: Apr 2011
Location: erie,pa
Posts: 99
May I suggest grade 5 at most for the bolts? Simply put, grade 8 bolts are harder than any part on your truck, if you get in to a fender bender they won't bend much and most likely will tear the **** out of whatever that bar is mounted to.


Great bar and fab work, did you use a tube bender?
Reply With Quote
  #16
Old 11-07-2011
Member

Join Date: Dec 2010
Location: Monticello,Kentucky
Posts: 88
loks like you did a very nice job for your time and parts, everyong can find things to do differently but be proud you did it yourself.
Reply With Quote
  #17
Old 02-19-2012
Member

Join Date: Feb 2012
Location: vienna ga
Posts: 3
that looks great i been wanting to builod a bumper for my 94 f150 for a while but havent got to it yet and not tryin to be a smart a## but those do look like grade 5 bolts to me
