Alright.. Lets See Where Your CB"S Are Mounted

I have searched and searched could not find this thread.. I wanna know where your cb's are mounted.. So lets see them
Reply With Quote
  #2
Old 01-20-2010
Vonhanson's Avatar
Member
iTrader: (5)

Join Date: Sep 2009
Location: Glencoe, Minnesota
Posts: 1,609
Reply With Quote
  #3
Old 01-20-2010
t5cents's Avatar
Member
iTrader: (6)

Join Date: Nov 2008
Location: Eureka, CA
Posts: 1,521
Name:  IMGP3480.jpg
Views: 2
Size:  93.9 KB

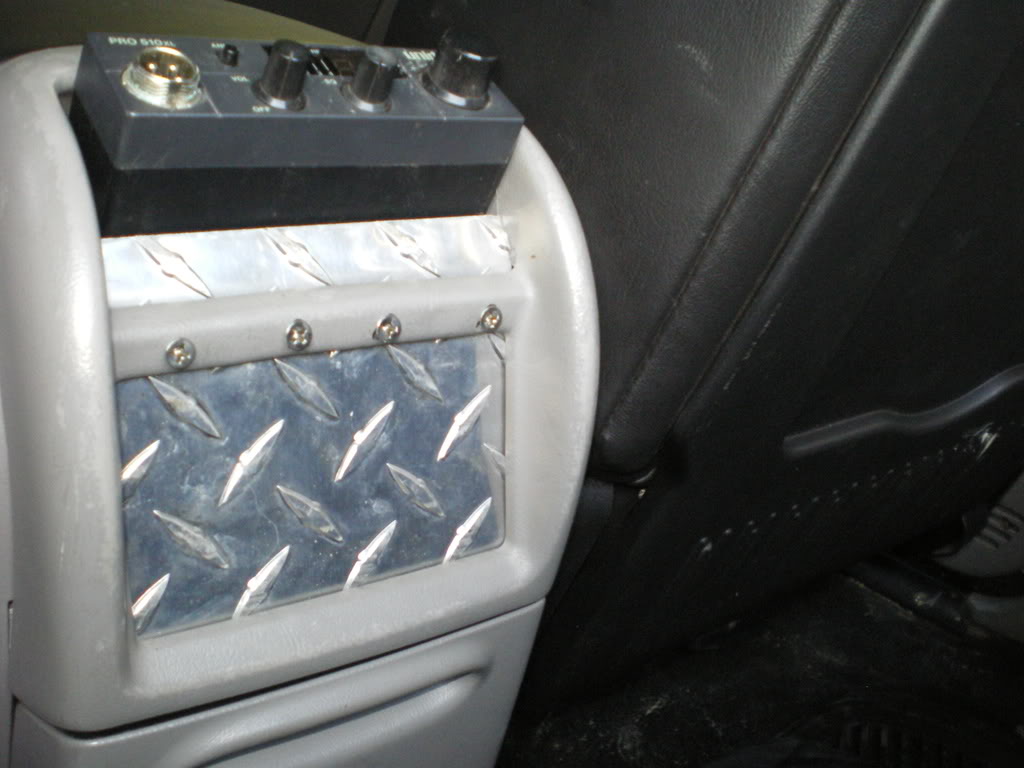

Name:  IMGP3481.jpg
Views: 3
Size:  79.9 KB
Reply With Quote
  #4
Old 01-20-2010
19Ranger96's Avatar
Member
iTrader: (1)

Join Date: Oct 2009
Location: The couv...Not canada eh
Posts: 68


I have mine clipped on right behind my steering wheel on the right hand side. nice and convienient and i can remove it if i want. I also have a quick disconnect on my antenna which resides on my bed rail right above one of the stake pockets.
Reply With Quote
  #5
Old 01-21-2010
rolsmojave3's Avatar
Level III Supporter

Join Date: Jun 2006
Location: Wisconsin
Posts: 2,852
I had a shorty counsle and mounted it to the back of it, put the mic by the seat belt latch and it worked pretty good. There was even a plug in the floor to run the antenna's cable.
Reply With Quote
  #6
Old 01-21-2010
steveo1271's Avatar
Member

Join Date: Oct 2009
Location: lexington,sc
Posts: 780
i don't really know how to upload a pic of my cb,but i mounted mine where you would put the ohc's
Reply With Quote
  #7
Old 01-21-2010
BamaRanger09's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2009
Location: Huntsville,Al
Posts: 446
LOOKING good.. I Am thinking about mounting mine where my Aux Port is..
Reply With Quote
  #8
Old 01-21-2010
vista4.0's Avatar
Member
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
Quote:
Originally Posted by BamaRanger09 View Post
LOOKING good.. I Am thinking about mounting mine where my Aux Port is..
when i get mine im modding that cubby hole by the aux input to fit mine in.
Reply With Quote
  #9
Old 01-21-2010
BamaRanger09's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2009
Location: Huntsville,Al
Posts: 446
Quote:
Originally Posted by vista4.0 View Post
when i get mine im modding that cubby hole by the aux input to fit mine in.
I just tried to do that.. the only problem with that is.. when u put your speaker in there.. u wont be ablle to here it.. and also the cb i have is to long to fit all they way in there.. so i decide not to do it like that.. I will post pics later....
Reply With Quote
  #10
Old 01-21-2010
Member

Join Date: Aug 2009
Location: Miamisburg
Posts: 18
I'll Bite...

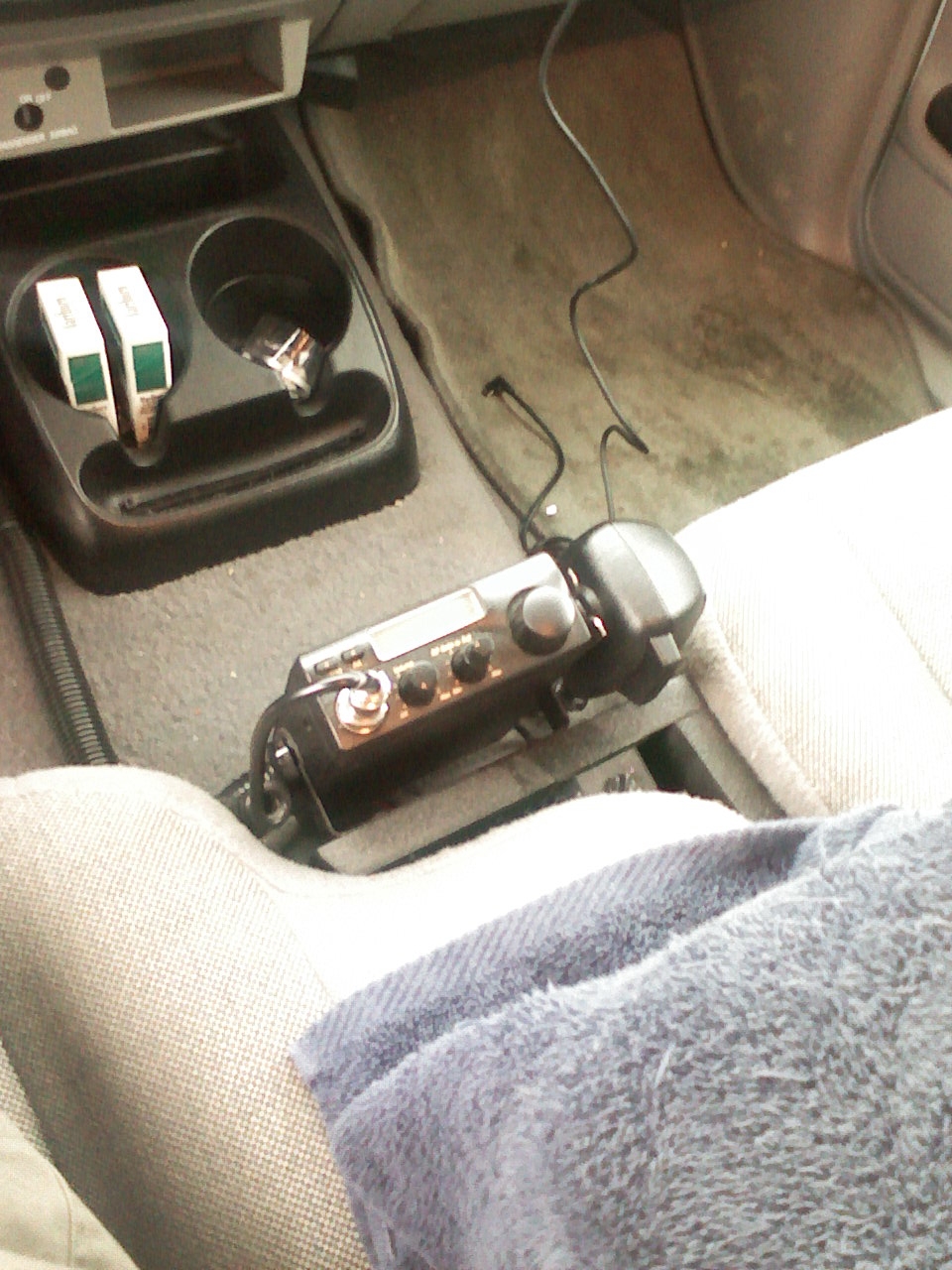

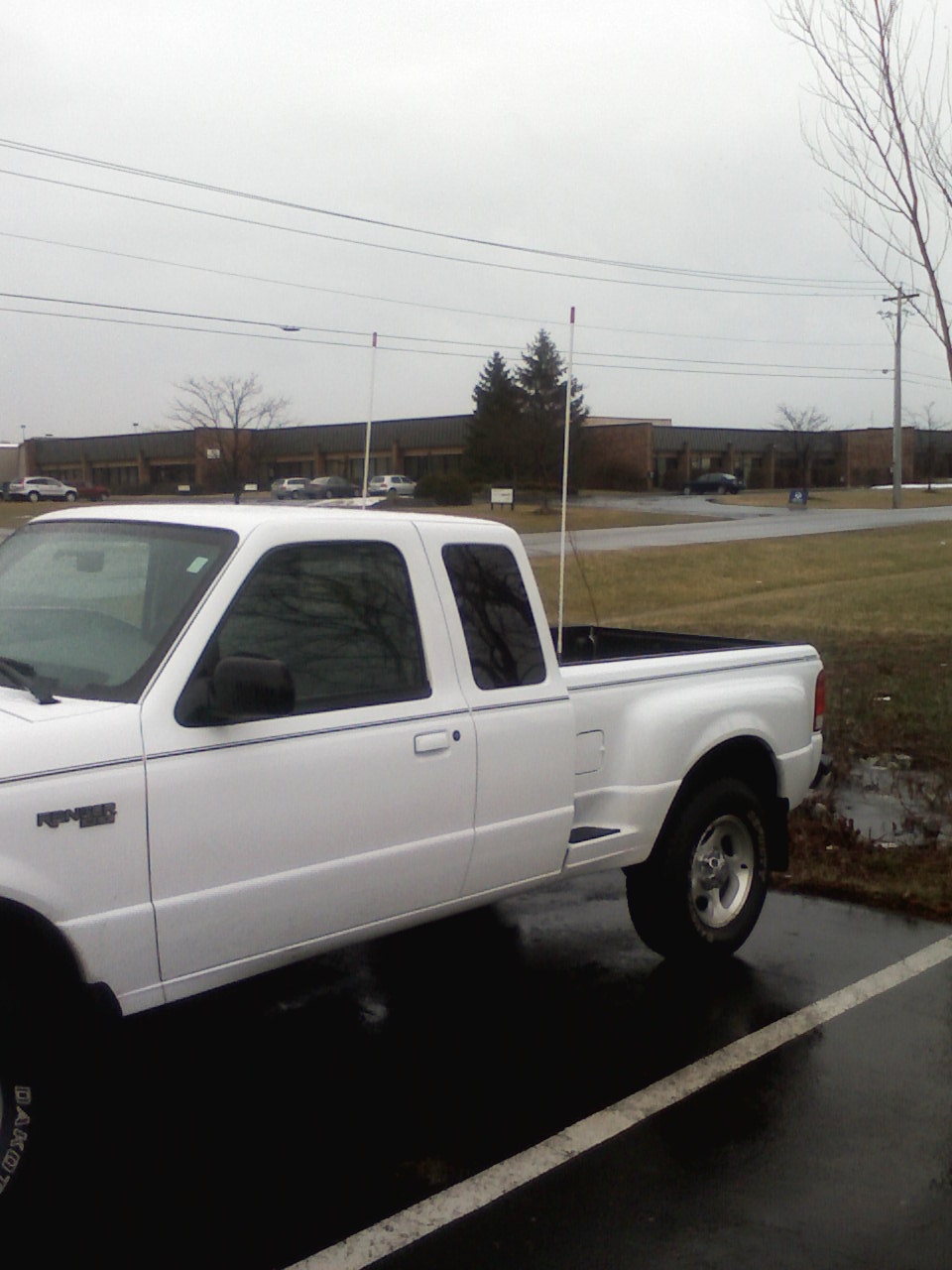

I didn't feel like putting holes in anything so I built a small L shaped bracket that squeezed between the seats and mounted the radio to that. I spliced the power from the 12v outlet on the dash and fed it through the split loom tubing and soldered a DC quick connect plug on it so I could take the radio out if needed. Its been working great for months now and I get a hell of a range with the two 4' Firestiks. I know they are not properly placed but they calibrated fine and I've got a confirmed ranged of over 9 miles (thats all I've tested so far) and it was clear as day. I also ran the power cables for my amp through that tubing. Worked like a charm and I didnt destroy anything in the process
Attached Thumbnails

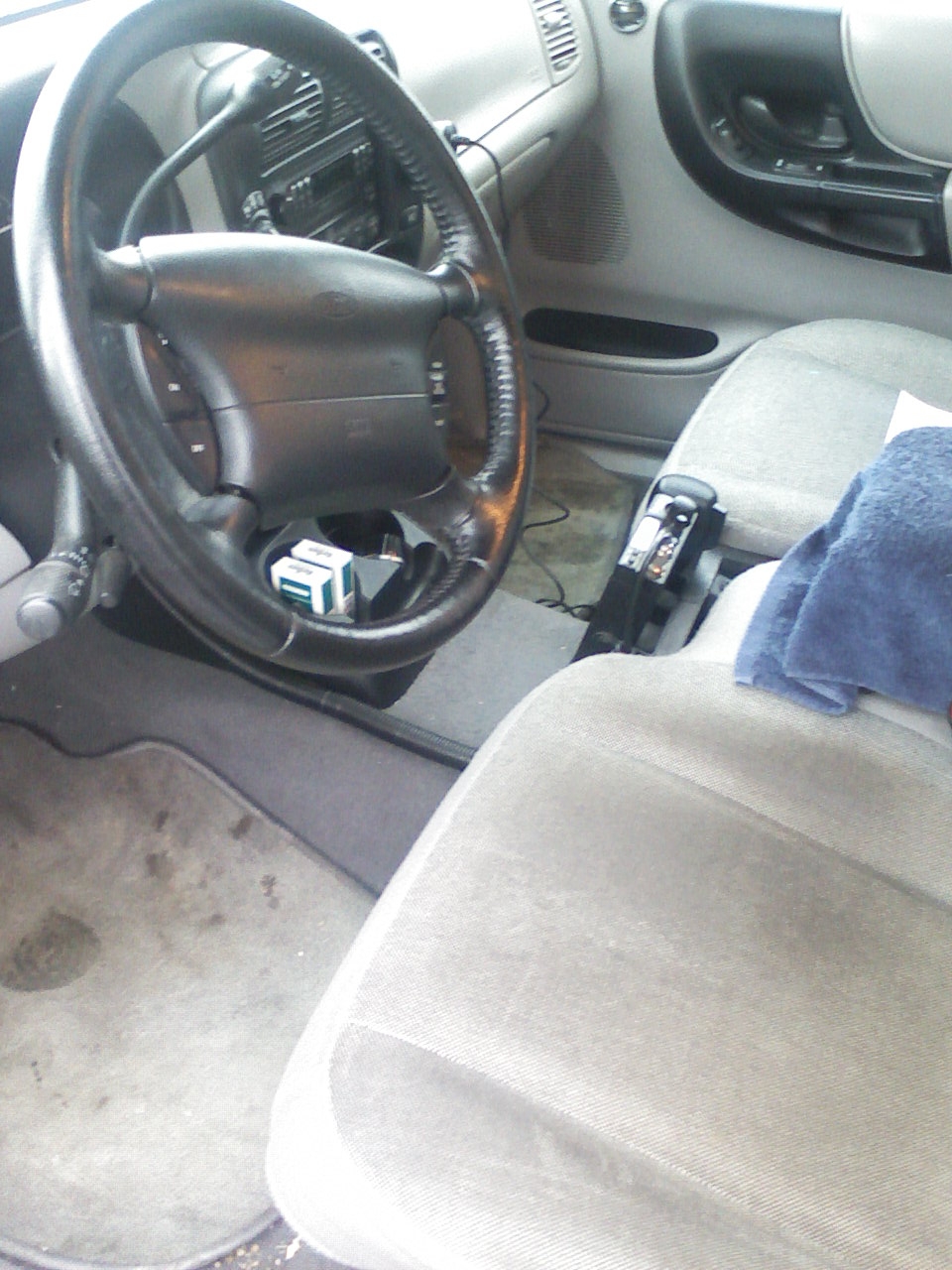

Alright.. Lets See Where Your CB"S Are Mounted-cb-2.jpg   Alright.. Lets See Where Your CB"S Are Mounted-cb-1.jpg   Alright.. Lets See Where Your CB"S Are Mounted-cb-antenna.jpg
Reply With Quote
  #11
Old 01-21-2010
fordedge18's Avatar
Member

Join Date: Apr 2009
Location: Nevada, MO
Posts: 37
Got mine mounted on my dash in the middle with doudle sided foam tape and its been there for over a year now.
Reply With Quote
  #12
Old 01-22-2010
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
i thought about cb's the other day. i was driving home from a trip and though it'd be great to get a smokie report since i needed to make some time.

they make a hand held one right? plug it into your cig lighter and use it like a walkie talkie.... know what i mean?
Reply With Quote
  #13
Old 01-23-2010
marc83's Avatar
Member

Join Date: Sep 2009
Location: Tyler,TX
Posts: 407
Here is my CB setup...

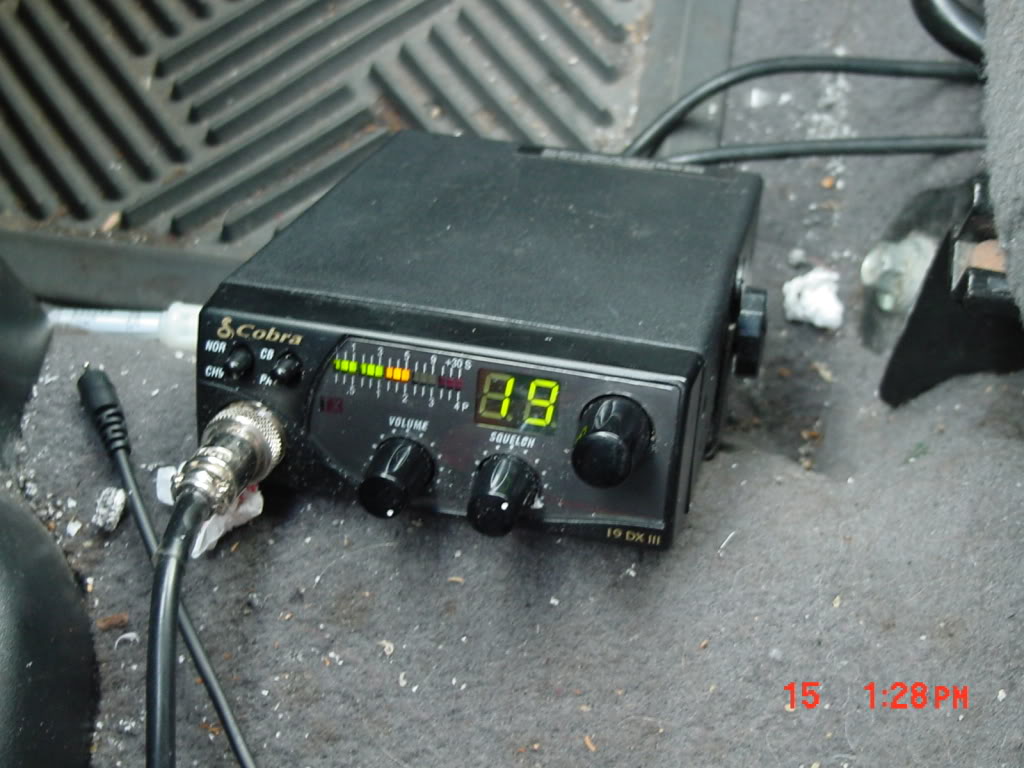

Name:  FordRangerCBRadio.jpg
Views: 10
Size:  109.2 KB

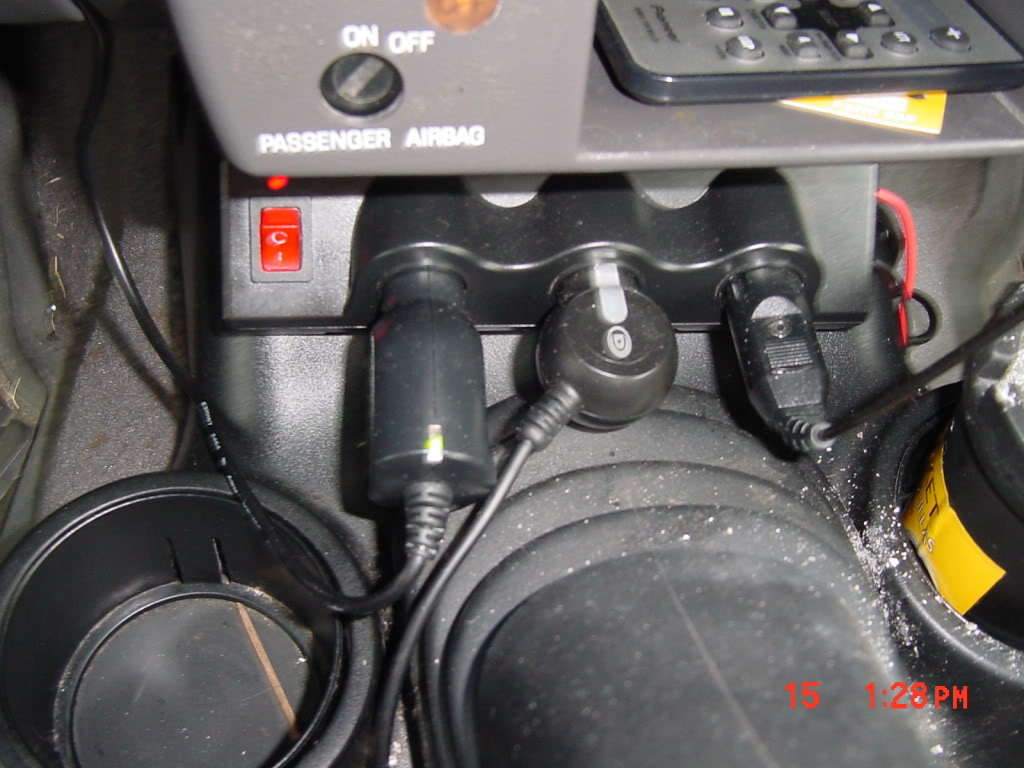

Name:  FordRnagerCigeritelighterextension.jpg
Views: 2
Size:  106.5 KB

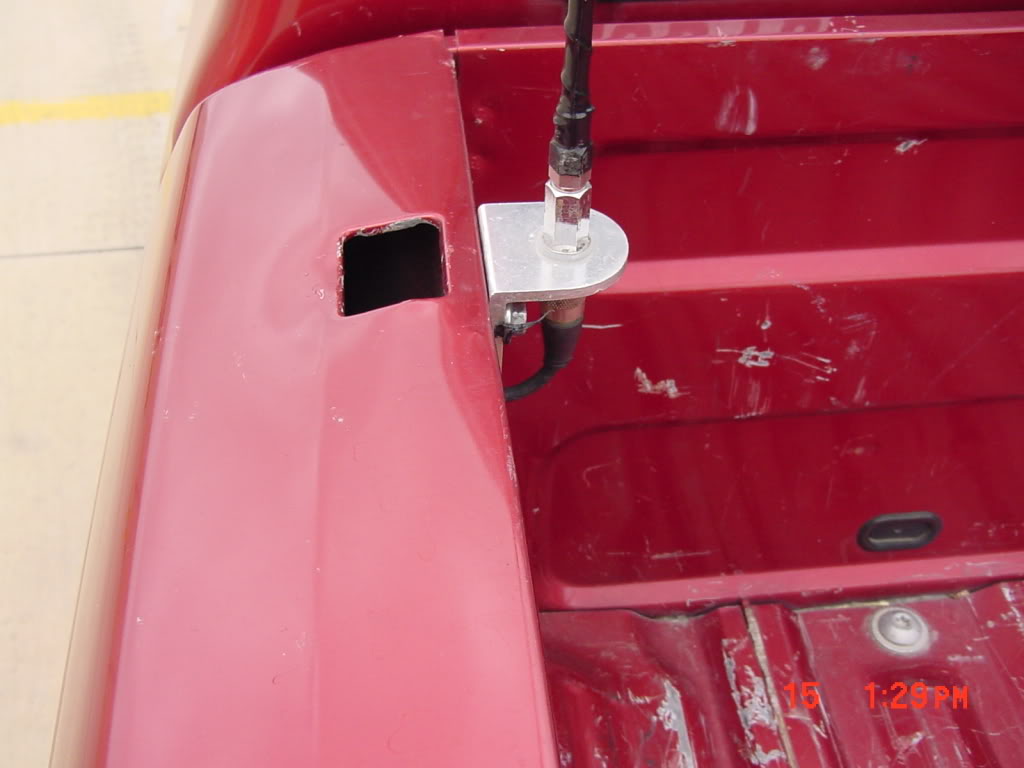

Name:  FordRangerCBAntennaMount.jpg
Views: 3
Size:  66.5 KB
Reply With Quote
  #14
Old 01-23-2010
cchsbuzz19's Avatar
Member
iTrader: (5)

Join Date: Jul 2007
Location: North Canton, Ohio
Posts: 2,417
Here's mine:

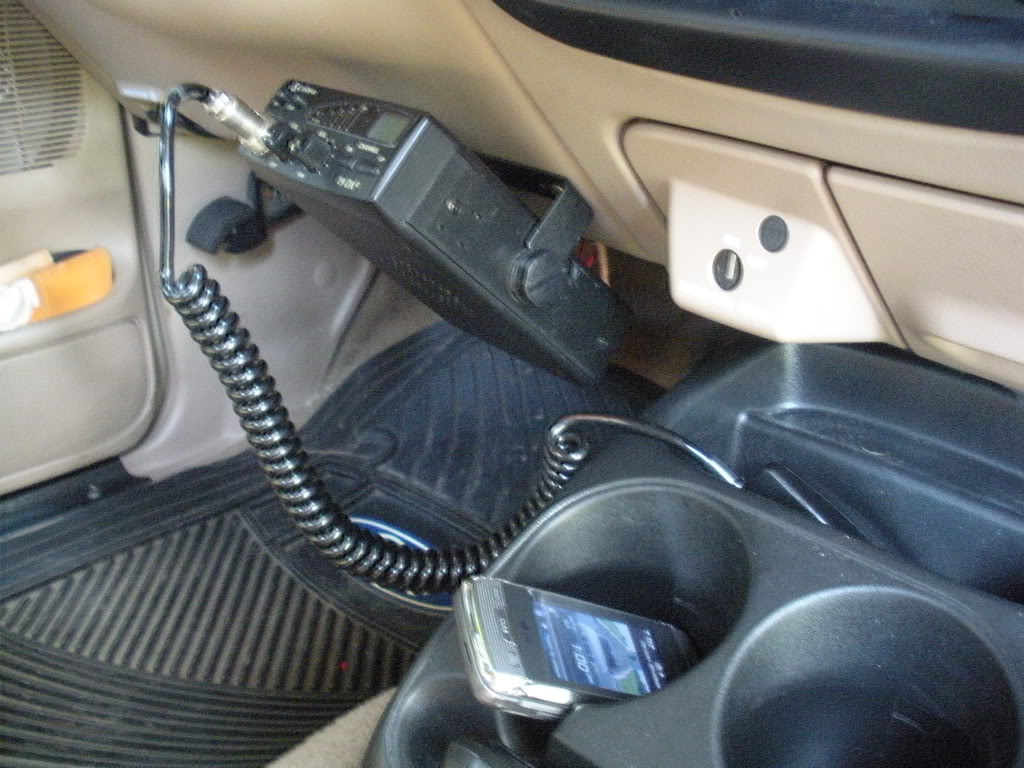

Name:  DSCN1519.jpg
Views: 2
Size:  198.0 KB

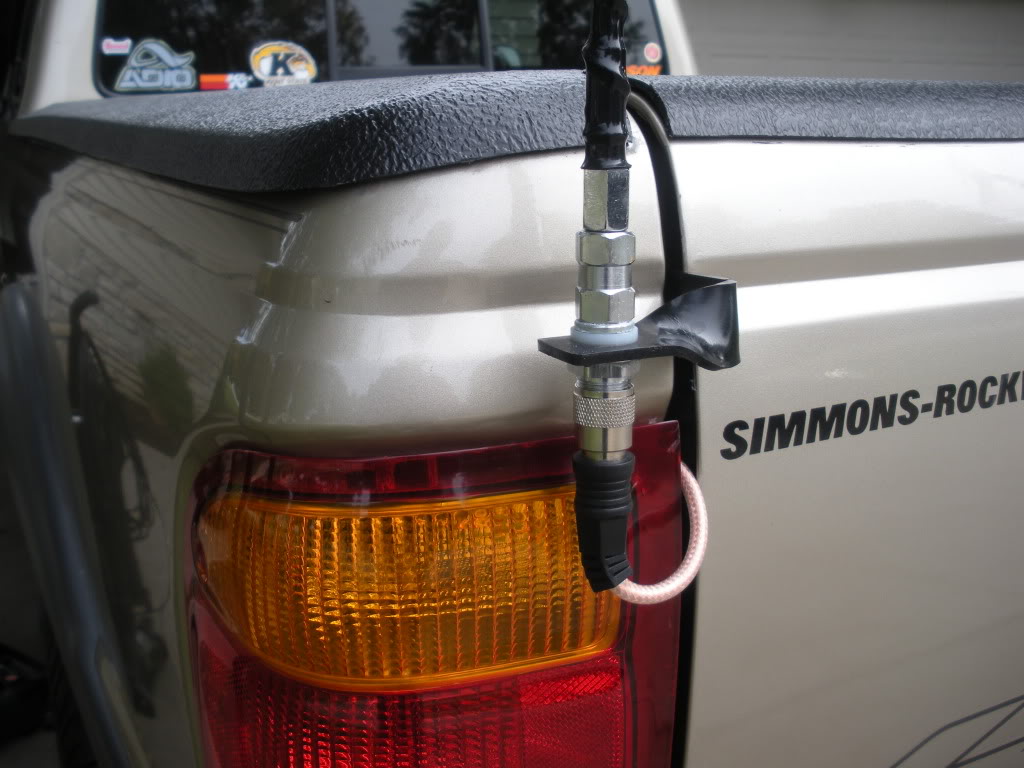

Name:  DSCN1521.jpg
Views: 2
Size:  143.6 KB
Reply With Quote
