B3000 lift blocks? PICS help

I am not sure if these blocks on my axle are lift blocks or if they are just stock blocks. I want to buy a lift kit for my truck but i want to be sure that i dont already have one. Any Help???


Name:  DSC00888.jpg
Views: 144

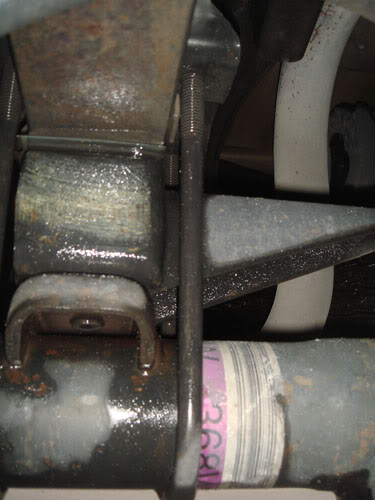

Size:  33.8 KBName:  DSC00889.jpg
Views: 41
Size:  30.7 KB

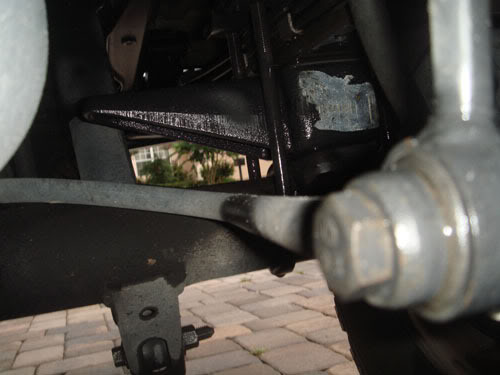

Name:  DSC00887.jpg
Views: 38
Size:  26.9 KBName:  DSC00890.jpg
Views: 44
Size:  31.5 KB

Thanks
Reply With Quote
  #2
Old 07-11-2008
Pless215's Avatar
Member

Join Date: Mar 2008
Location: Dewy Rose, GA
Posts: 473
if your truck is a 4x4 then i believe it has 2" lift blocks from the factory
Reply With Quote
  #3
Old 07-11-2008
ejk3000's Avatar
Member
Thread Starter

Join Date: Apr 2008
Location: Windermere, FL
Posts: 18
Its a 2wd Dual Sport 2001
Reply With Quote
  #4
Old 07-11-2008
leadfoot's Avatar
Member

Join Date: Oct 2007
Location: MA
Posts: 894
Factory
Reply With Quote
  #5
Old 07-11-2008
ejk3000's Avatar
Member
Thread Starter

Join Date: Apr 2008
Location: Windermere, FL
Posts: 18
So when i put my new kit on i am guessing those go away.
Reply With Quote
  #6
Old 07-11-2008
EdGe_wannabe's Avatar
Member

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
Yea, those are factory. What kit of lift are you looking at? Depends...

Brenton
Reply With Quote
  #7
Old 07-11-2008
ejk3000's Avatar
Member
Thread Starter

Join Date: Apr 2008
Location: Windermere, FL
Posts: 18
Its just a standard 3" lift kit. I cant find the exact link....
Reply With Quote
  #8
Old 07-11-2008
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Body lift they stay. you only lift the bed and cab up off the frame

Suspension lift they would go away
Reply With Quote
  #9
Old 07-11-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Quote:
Originally Posted by STL515273 View Post
Body lift they stay. you only lift the bed and cab up off the frame

Suspension lift they would go away
It depends what lift he's going with. If he's going with a spindle lift that has nothing to do with the rear suspension.
Reply With Quote
  #10
Old 07-11-2008
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
Quote:
Originally Posted by ejk3000 View Post
Its just a standard 3" lift kit. I cant find the exact link....
Its probably a body lift but...

if the 3" kit is spindles for the front, then you get lift blocks. i know with my superlift (which is for a 4x4), the rear blocks are added on top of the stock blocks to net in a 3.5" (approximate) rear lift. if you take the stock blocks out, you loose however much lift they gave you. All the lifts Ive seen assume that you keep the stock blocks installed to get the advertised amount of lift. Clear as mud?

After all that, i would stay away from lift blocks. Get an Add-A-Leaf (which will give you a couple inches and costs about $80) and a Belltech Chevy Drop shackle (another 1.5" and also costs $80 or so)

-or-

Get new leaf springs. such as the skyjacker softride leafs. They are a little expensive, but give you the best ride. Also, they are advertised as fitting a 1997 or older ranger, but they fit all the way up to 2008 (which i have)
Reply With Quote
  #11
Old 07-11-2008
ejk3000's Avatar
Member
Thread Starter

Join Date: Apr 2008
Location: Windermere, FL
Posts: 18
I cant find the kit I was originally going to get. Anyone have any suggestions???
Reply With Quote
  #12
Old 07-11-2008
Silver's Avatar
Member

Join Date: Jun 2006
Location: edenton,nc
Posts: 2,708
the ? every one is asking is it a body lift or suspension lift
Reply With Quote
  #13
Old 07-11-2008
BBBB51's Avatar
Member

Join Date: Oct 2006
Location: Alb. N.M.
Posts: 213
If u wants looks and maybe bigger tires just go with the body lift. IF put on correctly they come out very nice , My .02 cents, its what i have on my truck.They are much cheaper than a suspension lift.
Reply With Quote
  #14
Old 07-11-2008
ejk3000's Avatar
Member
Thread Starter

Join Date: Apr 2008
Location: Windermere, FL
Posts: 18
Im not sure. ITs the key in the front for the torsion and blocks in the back.
Reply With Quote
  #15
Old 07-11-2008
EdGe_wannabe's Avatar
Member

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
No, do NOT get that. Get either the Performance Accessories body lift or get the 3.5" Fabtech suspension lift or get both.

Brenton
Reply With Quote
  #16
Old 07-11-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Quote:
Originally Posted by ejk3000 View Post
Im not sure. ITs the key in the front for the torsion and blocks in the back.
Yeah like Brenton said that is bad news. Don't waste your money on it just go straight to a BL or spindle lift.
Reply With Quote
  #17
Old 07-11-2008
ejk3000's Avatar
Member
Thread Starter

Join Date: Apr 2008
Location: Windermere, FL
Posts: 18
Im looking for something cheap... Kinda low on funds. What would be the problem with the kit I was talking about?(Torsion key and lift blocks)
Reply With Quote
  #18
Old 07-11-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
It puts your components at such extreme angles that it wears them down super fast. Do a search, its not worth putting the money in to it. Just save up a lot more.
Reply With Quote
  #19
Old 07-11-2008
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
Quote:
Originally Posted by ejk3000 View Post
Im looking for something cheap... Kinda low on funds. What would be the problem with the kit I was talking about?(Torsion key and lift blocks)
you want cheap, get a body lift. And do some reading in the suspension section on here!
Reply With Quote
  #20
Old 07-11-2008
ejk3000's Avatar
Member
Thread Starter

Join Date: Apr 2008
Location: Windermere, FL
Posts: 18
Yeah sorry for posting in general discussion I still getting the hang of this stuff and getting in to it. Thanks for all your help guys. Best forum ive ever been on!
Reply With Quote
  #21
Old 07-12-2008
CBFranger's Avatar
Member

Join Date: May 2008
Location: Tampa Bay Area
Posts: 1,029
Thoes blocks are dual sport blocks. I have them on my 2000 TL edition mazda.
Reply With Quote
  #22
Old 07-12-2008
rmbbaseball's Avatar
Member

Join Date: Nov 2007
Location: UCF, Florida
Posts: 102
Evan, I never knew you were on these forums. I drive the yellow ranger at school. hahaha funny to see you here. You could get a 3 inch spindle lift. thats what i have sitting in my room waiting to go on my truck. It wasnt that expensive.
Reply With Quote
  #23
Old 07-12-2008
ejk3000's Avatar
Member
Thread Starter

Join Date: Apr 2008
Location: Windermere, FL
Posts: 18
Quote:
Originally Posted by rmbbaseball View Post
Evan, I never knew you were on these forums. I drive the yellow ranger at school. hahaha funny to see you here. You could get a 3 inch spindle lift. thats what i have sitting in my room waiting to go on my truck. It wasnt that expensive.
oh hey man what's up?? This is Ryan right? Yeah I have been on here for a couple of months but I never come on. I'm looking to do some stuff to my truck so I'm looking for advice. About how much did you pay for the spindle?
Reply With Quote
  #24
Old 07-12-2008
rmbbaseball's Avatar
Member

Join Date: Nov 2007
Location: UCF, Florida
Posts: 102
Yeah this is Ryan. I ended up buying my spindle lift from a member on here for 200. But you can find them online for about 350ish which isnt too bad.
Reply With Quote
  #25
Old 07-12-2008
ejk3000's Avatar
Member
Thread Starter

Join Date: Apr 2008
Location: Windermere, FL
Posts: 18
Oh alright man cool. thanks alot
