Bed Liner Mystery (to me)

My '03 XLT has a Ford Bedliner because it says Ford on it so it must be a Ford bedliner. Well there are lots of indentations and grooves and flat spots. I can see a couple are for 2 X 4's --what are all the rest for? Is there a diagram someplace?

I tried Google and can't get a search combination that coughs up anything except prices/ how to install etc.
Reply With Quote
  #2
Old 10-31-2010
djfllmn's Avatar
Moderator

Join Date: Mar 2009
Location: York, PA
Posts: 5,796
can you put a pic up of the bedliner
Reply With Quote
  #3
Old 10-31-2010
klc317's Avatar
Member

Join Date: Sep 2006
Location: Cincinnati, OH
Posts: 950
They just put those in there so you can divide the bed up with pieces of wood and such and make "platforms" so to speak to haul stuff. It's still just a water trap/rust creator. When I got my Line-X done I needed rid of my bedliner quickly so I put an ad on Craigslist for a free Ranger bedliner, come & get it. Some guy showed up the next day with this old dilapidated '94. The bed was in such bad shape already the bedliner actually probably helped hold it together...haha
Reply With Quote
  #4
Old 10-31-2010
djfllmn's Avatar
Moderator

Join Date: Mar 2009
Location: York, PA
Posts: 5,796
id get rid of the drop in for a spray in...hate to see what your bed looks like under the liner
Reply With Quote
  #5
Old 10-31-2010
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
The drop in liner won't do anything bad to the inside of his bed since he's in CA. Probably dirty under there but rusty? Doubtful.
Reply With Quote
  #6
Old 10-31-2010
Masteratarms93's Avatar
Member
iTrader: (8)

Join Date: Mar 2010
Location: Goose Creek SC
Posts: 4,685
the ford factory ones are actually the best ones. i pulled them off early 90s rangers at the JY where the bed was completely solid and untouched underneath.

drop in liner always get a bad name because of the cheap aftermarket ones that ruin your bed. like the protecta one i had that trapped leaves and stuff under it and ruined my bed.

obviously a spray it much better though so there is no chance or damage. when i got rid of my protecta one i put it in the for free section of craigslist and someone picked it up the next day.
Reply With Quote
  #7
Old 10-31-2010
djfllmn's Avatar
Moderator

Join Date: Mar 2009
Location: York, PA
Posts: 5,796
well im used to the PA weather and i know my grandpas 98 ranger looks pretty crappy under the liner...damn napa bed liners
Reply With Quote
  #8
Old 10-31-2010
rolsmojave3's Avatar
Level III Supporter

Join Date: Jun 2006
Location: Wisconsin
Posts: 2,852
Mine always has stuff under, but I take it out and clean the box out, still looks like new.
Reply With Quote
  #9
Old 10-31-2010
Member
Thread Starter

Join Date: Mar 2010
Location: Redding, Ca
Posts: 76
I agree with the above comments except the drop in will protect the side walls when your young son carts a loose transmission around and it slides over in a turn and the main shaft hits. Maybe a spray-on with a drop in on top would cover all the bases?

I'll be lifting it for a look before too long. I once bot a P/U with a homemade wooden liner - not good.

Anyway from the pics you can see the "V" grooves, flat spot on the floor(2 of em), tail gate pattern. The 2x4 fits perfectly in that pocket - the only thing/pocket that snugly fits anything. The transverse distance between the "V" grooves is 42" to 48" and they slant toward the center of the bed. Can't imagine what for. Why would anyone want to cut something to fit that?

Designer must have had something specific in mind.
Attached Thumbnails

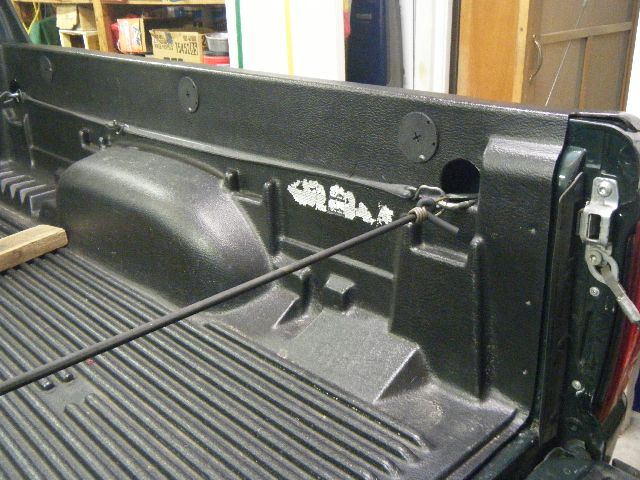

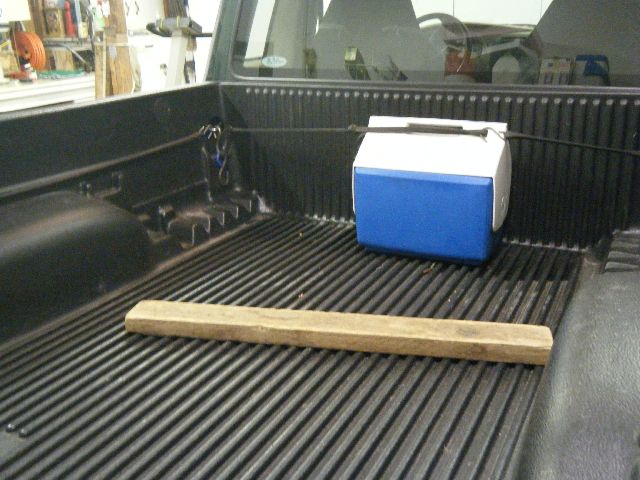

Bed Liner Mystery (to me)-lioner-board.jpg   Bed Liner Mystery (to me)-liner-tailgate-2.jpg   Bed Liner Mystery (to me)-liner-flat-spot.jpg   Bed Liner Mystery (to me)-liner-corner.jpg   Bed Liner Mystery (to me)-liner-back-corner.jpg

Reply With Quote
  #10
Old 10-31-2010
Masteratarms93's Avatar
Member
iTrader: (8)

Join Date: Mar 2010
Location: Goose Creek SC
Posts: 4,685
Hey thats the same liner I have.
Reply With Quote
  #11
Old 10-31-2010
Chris98's Avatar
Member
iTrader: (3)

Join Date: Feb 2010
Location: Thornton, CO
Posts: 705
I have a factory drop in liner. The ones that go under the rails. I pulled the liner just to see what was under there and not a single area of rust or moisture. Just a **** load of scratches where the liner lays and very little dirt.

My bed liner is very similar to yours besides the V grooves, I don't know what you would put in those.
Reply With Quote
  #12
Old 11-01-2010
03crewcabranger's Avatar
Member

Join Date: Feb 2010
Location: Mty, Mx
Posts: 1,031
My tailgate liner also has 4 of those cup holder thingies. Pretty cool for when I have a bbq in the middle of nowhere. lol. I spray-lined the bed and continue using the bedliner, since I live in a rust-free zone. It works better for me that way.
Reply With Quote
  #13
Old 11-01-2010
black05edge's Avatar
Member
iTrader: (1)

Join Date: Sep 2009
Location: Brantford
Posts: 162
Are the flat spots shown in picture 3 above not where the bed bolts can be put through to hold the liner down tight
Reply With Quote
  #14
Old 11-01-2010
djfllmn's Avatar
Moderator

Join Date: Mar 2009
Location: York, PA
Posts: 5,796
^i guess thats a possibility never though about that
Reply With Quote
  #15
Old 11-01-2010
Member
Thread Starter

Join Date: Mar 2010
Location: Redding, Ca
Posts: 76
# 2 Son was over today and thot the wedge shaped grooves at the front were for if you had a toolbox then rain water would wash out the grooves and not get dammed up at the bottom corner of and along the side of the box.

We concluded the tailgate was designed for tailgate parties. There's a plain cup holder plus a holder for a cup with a handle attached near the bottom of the cup and a lipstick holder. Also a flat spot for hot sandwiches that you can pick up with a spatula.

I tested the cup holder with 2 cups and they did not fit. He suggested I merely buy a different cup. Damn kids sure know how to spend money.
Reply With Quote
  #16
Old 11-01-2010
04RangerDave's Avatar
JDM> RANGER

iTrader: (3)

Join Date: Jul 2010
Location: RI
Posts: 5,030
i like the spray in bed liners.. i have a rubber maid container back there and it doesnt slid around at all. i had a drop in bed liner and everything would slide toward the tail gate and hear a loud boom when it hit it.
Reply With Quote
  #17
Old 11-01-2010
Member
iTrader: (2)

Join Date: Mar 2010
Location: C
Posts: 661
I was thinking about this the other day, like hmm i wonder wtf.
Reply With Quote
  #18
Old 11-02-2010
steveo1271's Avatar
Member

Join Date: Oct 2009
Location: lexington,sc
Posts: 780
i know those cup holder spots holds beer cans pretty nice lol
Reply With Quote
  #19
Old 11-05-2010
Member
Thread Starter

Join Date: Mar 2010
Location: Redding, Ca
Posts: 76
Lifted the bed liner floor up and looked with a flashlight. Just dust and small scratches - no water damage.

Ahhh California.
Reply With Quote
  #20
Old 11-05-2010
djfllmn's Avatar
Moderator

Join Date: Mar 2009
Location: York, PA
Posts: 5,796
thats good
Reply With Quote
  #21
Old 11-05-2010
95Rangerjunkie's Avatar
Member

Join Date: Feb 2008
Location: Orange, VA
Posts: 163
Quote:
Originally Posted by Chris98 View Post
I have a factory drop in liner. The ones that go under the rails. I pulled the liner just to see what was under there and not a single area of rust or moisture. Just a **** load of scratches where the liner lays and very little dirt.
Same here. Personally, I wouldn't touch a spray-in liner if they used liquid gold. I can see why so many people prefer them though, but I'm fine with my original factory drop-in.
Reply With Quote
  #22
Old 10-20-2017
NewShockerGuy's Avatar
Member

Join Date: Sep 2011
Location: NOVA
Posts: 599
My bedliner is very similar. I have a steppy bed so it's a little narrower. I always used 2x6" for the vertical slats to divide the bed into 3 parts and just today I noticed the two slats that you showed with 2x4's to stack plywood. Though not sure why they are on my bed since I can't haul a standard size piece of plywood I definitely could have used the 2x4 slats for projects. Old *** thread but I was searching all over google before finding this on what exactly the indentations were for.

-Nigel
Reply With Quote
