CB Where did you mount it?

I just want everyone who has a CB to take a pic of where they mounted the CB and theyre antenna to see what everyone has. Need some ideas guys. Help me out
Reply With Quote
  #2
Old 02-28-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
haha...we got LOTS of threads on this...but i'll ***** mine out...


Cobra 29 Black Chrome peak and tuned, 99+ superduty hood mount, 4' firestik2 with black tip cap.

Name:  PC220292.jpg
Views: 50
Size:  124.2 KB

Name:  P9040254.jpg
Views: 34
Size:  71.6 KB

Name:  P6140017.jpg
Views: 29
Size:  57.4 KB

Last edited by Fx4wannabe01; 02-28-2009 at 08:25 PM.
Reply With Quote
  #3
Old 02-28-2009
Member
Thread Starter

Join Date: Feb 2009
Location: Chelsea,AL
Posts: 562
A lot of poeple have their own threads though i want a compilation of CB greatness
Reply With Quote
  #4
Old 02-28-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
we got those. lol. i edited my first post in here...added pics.
Reply With Quote
  #5
Old 02-28-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Here's my old setup...

Cobra 19dx iv mounted to the ashtray...

Name:  P9260014.jpg
Views: 176
Size:  83.7 KB

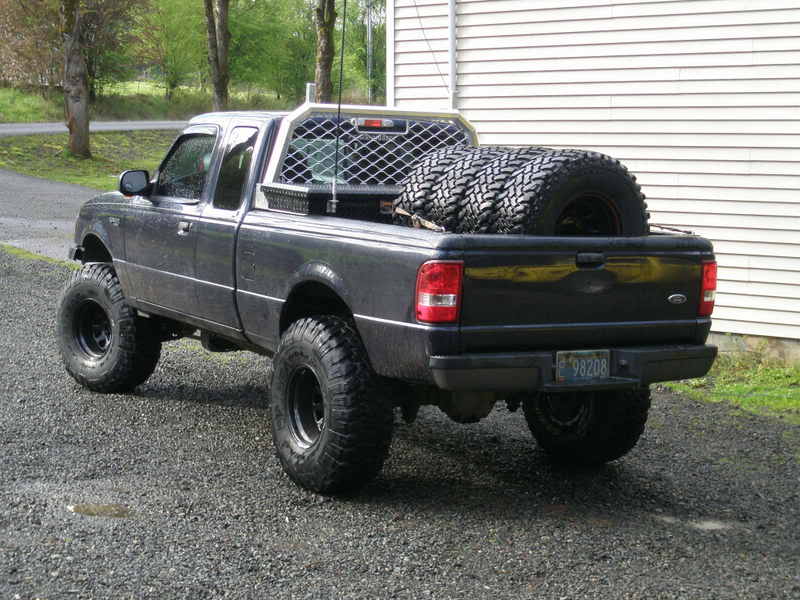

antenna mounted to toolbox using half a mirror mount...worked 'okay' but not good by any means...

Name:  P4300076.jpg
Views: 108
Size:  73.6 KB
Reply With Quote
  #6
Old 02-28-2009
t5cents's Avatar
Member
iTrader: (6)

Join Date: Nov 2008
Location: Eureka, CA
Posts: 1,521
in the center console and on the toolbox.

1
Name:  PICT3560.jpg
Views: 29
Size:  214.9 KB
2
Name:  IMGP3480.jpg
Views: 33
Size:  93.9 KB
3
Name:  IMGP3481.jpg
Views: 30
Size:  79.9 KB
4
Name:  IMGP3479.jpg
Views: 28
Size:  67.6 KB
Reply With Quote
  #7
Old 02-28-2009
Jimmeh's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
Man Shane....your truck was tiny back then.

Here is my setup. I stole Shanes hood mounting idea (that, and my dad just laughed at my tool box mount), and mine is also mounted under the dash, like Shanes was:

Name:  Picture761.jpg
Views: 28
Size:  141.7 KB
Name:  Picture743.jpg
Views: 30
Size:  76.7 KB
Name:  Picture756.jpg
Views: 30
Size:  106.8 KB

I'll take more pictures tomorrow.
Reply With Quote
  #8
Old 02-28-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
tiny? it was bodylifted and on 35's!

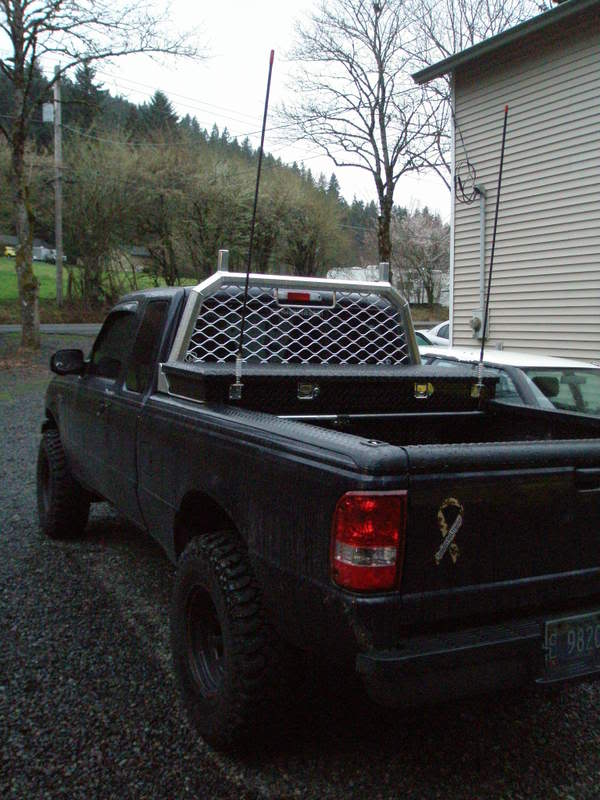

you want tiny...here....here's 32's, stock, and antenna on toolbox(to keep it on topic)...

Name:  P5140165.jpg
Views: 29
Size:  62.6 KB

Name:  P3120187.jpg
Views: 34
Size:  84.3 KB
Reply With Quote
  #9
Old 02-28-2009
Jimmeh's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
Lol, I don't know what I was thinking. Must be because that was pre-visor.
Reply With Quote
  #10
Old 02-28-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by Jimmeh View Post
Lol, I don't know what I was thinking. Must be because that was pre-visor.

ya...visor adds 6". much like decals add horsepower..
Reply With Quote
  #11
Old 02-28-2009
Jimmeh's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
Quote:
Originally Posted by Fx4wannabe01 View Post
ya...visor adds 6". much like decals add horsepower..
Exactly. My Ranger is stock, but because of the visor and stickers, I am body lifted, AND have cranked torsion bars, and have about 30,000 RWHP (for those canadians on the bored, that would be 600,000,000 RWKPHA (rear wheel kilometers per hour adders).
Reply With Quote
  #12
Old 02-28-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
that there jimmeh cracks me up.
Reply With Quote
  #13
Old 02-28-2009
Member

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
Reply With Quote
  #14
Old 02-28-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Reply With Quote
  #15
Old 02-28-2009
Member
Thread Starter

Join Date: Feb 2009
Location: Chelsea,AL
Posts: 562
Here is my antenna the truck is wet not dirty btw

Name:  IMG_0160.jpg
Views: 31
Size:  67.5 KB

From the back

Sorry the rear pic had my tag

The mounting spot on the bumper

Name:  IMG_0162.jpg
Views: 27
Size:  37.9 KB

Last edited by FordGuy302; 02-28-2009 at 11:10 PM. Reason: Tag #
Reply With Quote
  #16
Old 02-28-2009
Goodysgotacuda's Avatar
Member
iTrader: (1)

Join Date: Jul 2008
Location: Las Vegas, NV
Posts: 1,496


Reply With Quote
  #17
Old 02-28-2009
Jimmeh's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
Quote:
Originally Posted by FordGuy302 View Post
Sorry the rear pic had my tag
Aaaaaannnnnd? If you notice, there are more pictures with other peoples tags. Not sure why that's such a big deal to others....

Trigger, I still love your interior. So awesome.
Reply With Quote
  #18
Old 02-28-2009
mikerider's Avatar
Member
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Heres my set up

Name:  IMG_0769.jpg
Views: 28
Size:  149.3 KB

Name:  IMG_0783.jpg
Views: 27
Size:  160.1 KB

Name:  IMG_0787.jpg
Views: 28
Size:  146.9 KB
Reply With Quote
  #19
Old 02-28-2009
1999Rangerlockednlifted's Avatar
Member

Join Date: May 2008
Location: Strongsville, Ohio
Posts: 279
when you guys have the antennas on the rear of the toolbox how do u run them into the cab?
Reply With Quote
  #20
Old 02-28-2009
mikerider's Avatar
Member
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Quote:
Originally Posted by 1999Rangerlockednlifted View Post
when you guys have the antennas on the rear of the toolbox how do u run them into the cab?
Mine is bolted to the bottom of the box then through the grommet in the front of the bed, then along the frame passenger side frame rail to one of the grommets in the floor pans then up through the slice in the floor that the pre-tensioner comes through under the floor mat and to the CB works out rather well.
Reply With Quote
  #21
Old 03-01-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by 1999Rangerlockednlifted View Post
when you guys have the antennas on the rear of the toolbox how do u run them into the cab?

down through the grommet on the front of the bed, then along the frame til i hit a grommet in the cab floor, now we're in the cab...under the carpet, under the dash, up the a-pillar, then above the headliner and plugged into the radio. 18' is perfect!
Reply With Quote
  #22
Old 03-01-2009
Jimmeh's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
Quote:
Originally Posted by Fx4wannabe01 View Post
down through the grommet on the front of the bed, then along the frame til i hit a grommet in the cab floor, now we're in the cab...under the carpet, under the dash, up the a-pillar, then above the headliner and plugged into the radio. 18' is perfect!
Unless your Adam. Then you need about 50 feet. On a 16 foot long truck......LOL!
Reply With Quote
  #23
Old 03-01-2009
fordlife's Avatar
Member

Join Date: Aug 2008
Location: Lemoore CA/561, Fl
Posts: 773
uniden pc-68 ltw peaked and tuned.
wilson 1000 roofmount with 4ft whip
Name:  rangerCB002.jpg
Views: 29
Size:  56.0 KB
Name:  rangerCB003.jpg
Views: 28
Size:  66.8 KB
Name:  rangerCB005.jpg
Views: 92
Size:  78.7 KB

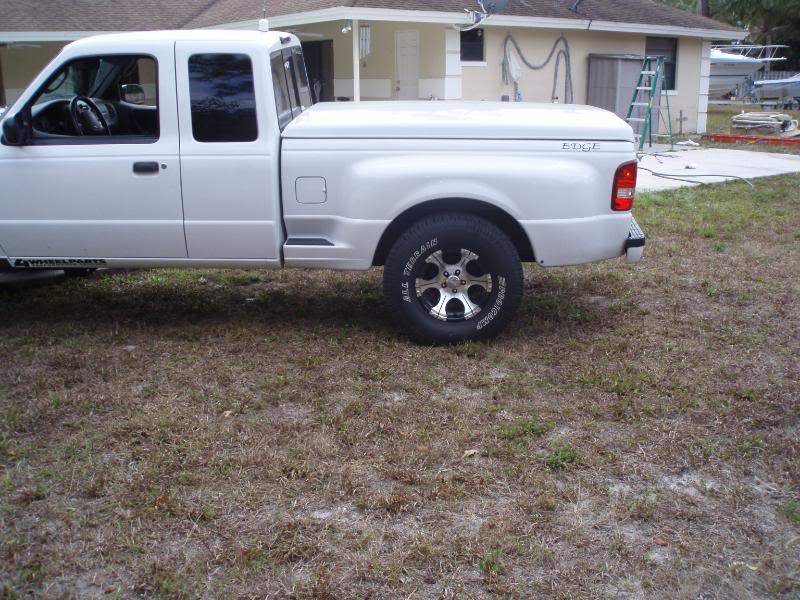

sorry i dont have a good pic of the antenna mount but its pretty simple.
Name:  rangerCB010.jpg
Views: 30
Size:  103.7 KB
Reply With Quote
  #24
Old 03-01-2009
DisturbedESV's Avatar
Member

Join Date: Apr 2008
Location: Seattle, WA
Posts: 3,115
Quote:
Originally Posted by Trigger01 View Post
LMAO at your..... purell?? In the door.... hahaha
Reply With Quote
  #25
Old 03-01-2009
Jimmeh's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
Quote:
Originally Posted by DisturbedESV View Post
LMAO at your..... purell?? In the door.... hahaha
That's where I put my Jergens.
