Dana 35 slip yoke from HELL!!

I would highly recommend checking your right side Dana 35 drive axle ( slip yoke ) ( assuming you have one ) to see if the metal bands on each end of the rubber boot that covers the slip yoke haven't been compromised or missing or loose.

Below is a couple pictures of mine that I recently removed from the truck because my slip yoke was SPINNING on it self because the metal bands that HAD been on each side of the rubber boot to keep out the elements were missing for apparently some time and water and dirt had gotten in and completely ruined the splines to the point it failed miserably and I lost 4 wheel drive.

This seems like a highly bad design and it failed at it's weakest point in the axle, I will now check my new slip yoke rubber sleeve every so often to make sure it is securely fastened on each end and properly greased!!

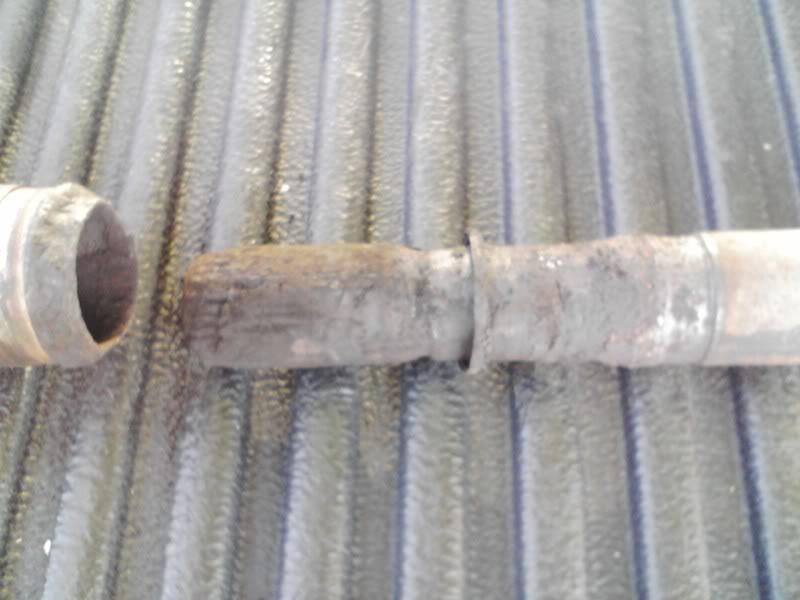

Name:  840A0846.jpg
Views: 7
Size:  47.8 KB

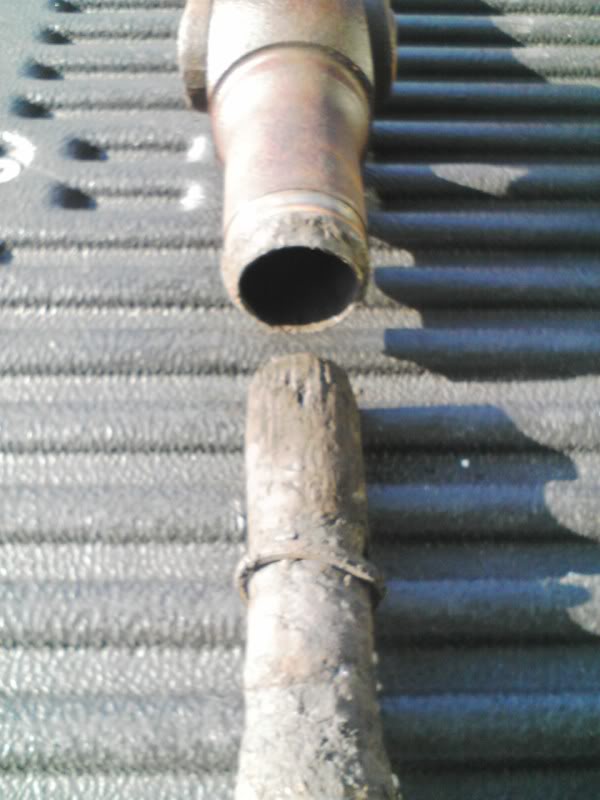

Name:  840A0845.jpg
Views: 7
Size:  52.6 KB

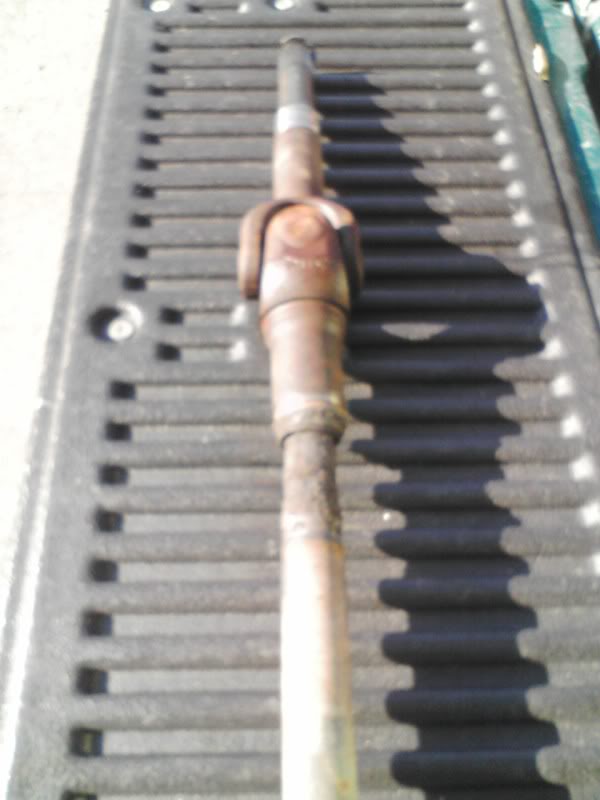

Name:  840A0844.jpg
Views: 6
Size:  42.0 KB

Last edited by 1996Ranger4x4SuperCabSTX; 09-03-2009 at 10:55 PM.
Reply With Quote
  #2
Old 09-03-2009
Lord Of War's Avatar
Member
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
Damn...

That looks real bad.
Reply With Quote
  #3
Old 09-03-2009
karrbass4life's Avatar
Member

Join Date: Nov 2004
Location: Cincinnati, Ohio
Posts: 3,072
Ouch.
Reply With Quote
  #4
Old 09-03-2009
elementsenjoi's Avatar
Member
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301
That sucks, but I don't see that as a design flaw at all. Slip yokes are intended to be serviceable and I would consider checking them and their boots routine maintenance.
Reply With Quote
  #5
Old 09-03-2009
Member
Thread Starter

Join Date: Apr 2007
Location: Kansas
Posts: 311
Quote:
Originally Posted by elementsenjoi View Post
That sucks, but I don't see that as a design flaw at all. Slip yokes are intended to be serviceable and I would consider checking them and their boots routine maintenance.
I agree that it is TECHNICALLY a serviceable part of the axle and I don't think it is a design FLAW, just a bad design, in my opinion. I wish I new how long the boot had been compromised!! I am the second owner and have had it for 3 years now, anywhooo lesson learned for sure and it sure is nice having my 4x4 back in working condition.
Reply With Quote
  #6
Old 09-03-2009
elementsenjoi's Avatar
Member
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301
Ha, it looks like it has been bad for quite some time. It's pretty tore up. Glad you have it fixed though!
