Flareside Roll bar bed dimension ??

Hi I'm new to the this forum site and I joined to get some insight on getting a flareside roll bar.

I found a roll bar that's dimensions are 45.5 inches from each end of the flange.

I know the flareside bed is around 46-47" on the when measured on the top.

BUT. I when I measured the insides it only measured about 40 inches or so because I have a factory bed liner.

Now my question is, is there still room (inches hidden) behind that bedliner and/or do I have to cut it out in order to fit this roll bar?

Please help Thanks
Reply With Quote
  #2
Old 07-31-2012
MSmall26's Avatar
Member
Thread Starter

Join Date: Sep 2011
Location: Oak Lawn, IL
Posts: 4

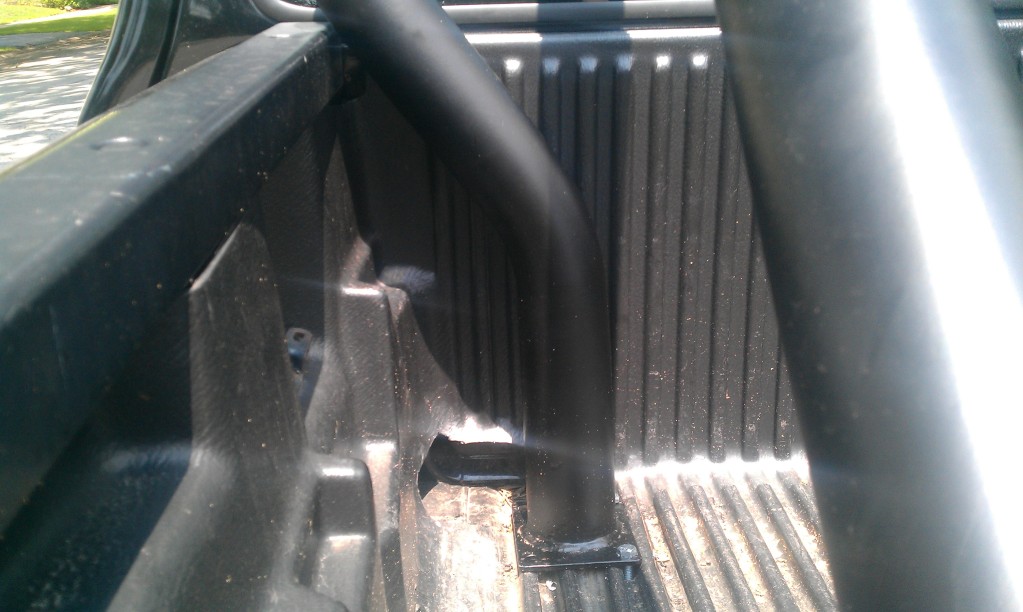

Stepside Roll Bar Cut & Mount

Ok I found a roll bar for my Stepside Ranger. The dimensions were originally 40 inches wide from the front flanges and about 35 inches wide between each rear kicker, (meant to fit a regular bed). The problem was the bend in the bar going up was hitting the sidewall of the bed. I needed to cut about a 6 inch sector on the top pipe and reattach the two. Ultimately it was a success in mounting and it looks great.






For you guys out there thinking about getting one, you can buy roll bar that fits a regular bed and make your adjustments. Its not hard to cut the bar to make it fit. I reattaches the bar by putting a PVC pipe inside and securing it through bolts. No welding required!
Attached Thumbnails
Flareside Roll bar bed dimension ??-rangerrollbar.jpg   Flareside Roll bar bed dimension ??-imag0279.jpg   Flareside Roll bar bed dimension ??-imag0278.jpg   Flareside Roll bar bed dimension ??-imag0277.jpg
Reply With Quote
  #3
Old 07-31-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
That looks pretty good.
Reply With Quote
  #4
Old 07-31-2012
annguyen1981's Avatar
Member
iTrader: (4)

Join Date: Apr 2009
Location: Chicopee, MA
Posts: 1,888
I like how you reattached the two halves without welding. Looks great.
