Help with bed rails

My stepside can't effectively carry larger items like sheetrock or plywood 'cause of the damn small width.

I'm thinking bedrails would help, but I don't want to give up my roll up bed cover. Can anyone take pics of how the bedrails mount?


Thankz
Reply With Quote
  #2
Old 06-30-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
neither can a styleside
Reply With Quote
  #3
Old 06-30-2012
<TX>TORKiT's Avatar
Member
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551
Buy a small trailer for the sheetrock hauling business. Done and done thread closed nothing to see here move along.
Reply With Quote
  #4
Old 06-30-2012
annguyen1981's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Apr 2009
Location: Chicopee, MA
Posts: 1,888
Quote:
Originally Posted by <TX>TORKiT View Post
Buy a small trailer for the sheetrock hauling business. Done and done thread closed nothing to see here move along.
Too bad I don't have a business. It's all for home repair and I don't have space for a trailer.

Any other useful info you've got laying around?
Reply With Quote
  #5
Old 06-30-2012
annguyen1981's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Apr 2009
Location: Chicopee, MA
Posts: 1,888
Quote:
Originally Posted by 99offroadrngr View Post
neither can a styleside
Odd... I would have thought a styleside would be able to have 4x8 sheets slide right into the bed flat. I remember my Chevy S10 Blazer could transport sheetrock flat.
Reply With Quote
  #6
Old 06-30-2012
Chris98's Avatar
Member
iTrader: (3)

Join Date: Feb 2010
Location: Thornton, CO
Posts: 705
Quote:
Originally Posted by annguyen1981 View Post
Odd... I would have thought a styleside would be able to have 4x8 sheets slide right into the bed flat. I remember my Chevy S10 Blazer could transport sheetrock flat.
It can, but the 4x8 sheets ride on top of the wheel wells. And Stick out the back of the truck 3ft if you have a tool box back there, 2ft if you don't. That is if your not like me and just stick the plywood resting on the cab, close tailgate, ratchet strap the front of the plywood down. Done and done.
Reply With Quote
  #7
Old 07-02-2012
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Here is what I did for my steppie to carry large material.
The Styleside has steps in the bed for adding 2x4s.

1) Cut two 2x4s to a length appropriate for your need, the bed width plus extra to hold say a 4x8 sheet; rounds the ends if you want to.
2) Cut two more 2x4s to fit just inside of the bed rails; round only one long side but both ends.
3) Drill holes on both end of the #2, approximately 1” OD.
4) Center #2 on #1, both length and width, and glue and screw them together (5 screws each minimum).

Now what you have are two reenforced 2x4 racks, if tied properly will not slide sideways and will not more back and forth.

The holes in the #2 2x4s are for tying the rack to the bed rails of the truck using the tie-downs.
The width of the #1 2x4s will hold the sheets of material or cover your needs.
You can secure the material to the 2x4s or around them to the bed tie-downs.
Make sure to leave some room at the cab and secure the load so it will not slide forward. You could add some extra 2x4s to the front rack to allow for sliding loads or not.
You may want to add a third 2x4 rack or fourth along the length of the bed and secure them to the material or to added tie-downs that you add to the bed sides.

This has worked for me, not only for 4x8 material but also for a Jeep Tub and a Truck Bed so if done correctly they will hold up.


Luck
Reply With Quote
  #8
Old 07-02-2012
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
OP made a request for pictures of bed rail mounts, not this crap.

Anybody?
Reply With Quote
  #9
Old 07-03-2012
annguyen1981's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Apr 2009
Location: Chicopee, MA
Posts: 1,888
lol. I got a kick out of them two up there bickering. (steppies rule btw)




Scrambler actually gave me another idea, but my steppie only has ONE slot for a 2x4 and it's located near the tailgate. Lame.
Reply With Quote
  #10
Old 07-05-2012
B737's Avatar
Member

Join Date: Jun 2011
Location: Brick, NJ
Posts: 297
it can be done!

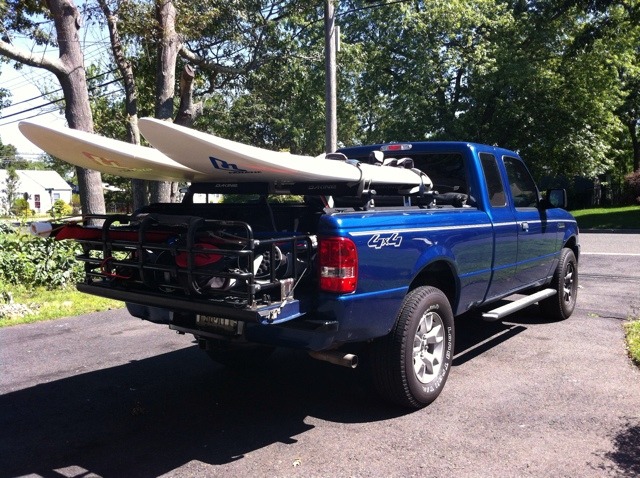

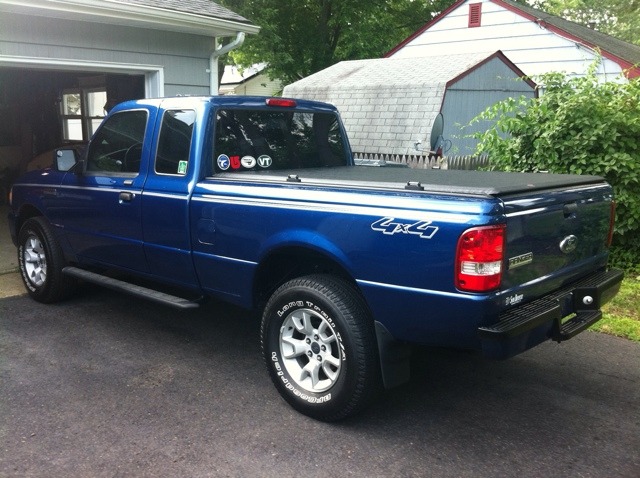

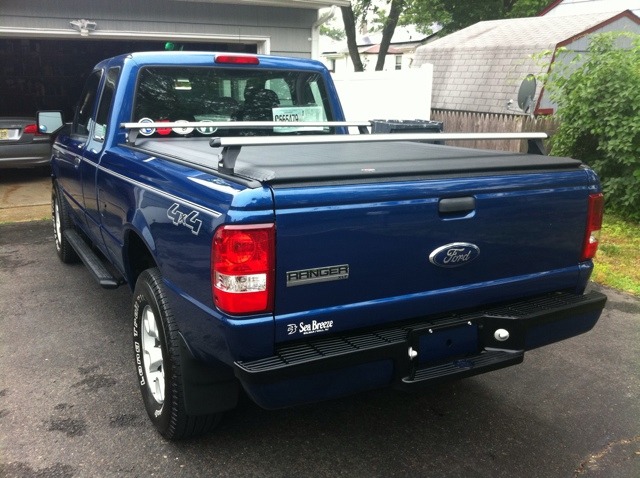

this is the system I use. My low profile tonneau cover stays in place. If i need the cross bars i simply drop them on, if i dont need them i leave them off. Its a versatile set up. I just ran 6' flat tracks down the rails, the feet slide around super easy if you need to change spacing. The cross bars drop on and pull off in seconds...





Attached Thumbnails
Help with bed rails-10671097.jpg   Help with bed rails-38a2609c.jpg   Help with bed rails-eb4e908f.jpg

Last edited by B737; 07-05-2012 at 07:44 PM.
Reply With Quote
  #11
Old 07-05-2012
Member

Join Date: Nov 2010
Location: tampa fl
Posts: 14
Quote:
Originally Posted by B737 View Post
it can be done!
this is the system is use. My low profile tonneau cover stays in place. If i need the cross bars i simply drop them on, if i dont need them i leave them off. Its a versatile set up. I just ran 6' flat tracks down the rails, the feet slide around super easy if you need to change spacing. The cross bars drop on and pull off in seconds...





NICE!
Reply With Quote
  #12
Old 07-05-2012
PSIJOE's Avatar
Member

Join Date: Nov 2011
Location: Sacramento, CA
Posts: 1,311
Pics above are AWESOME! looks great Kevin.
Reply With Quote
  #13
Old 07-05-2012
B737's Avatar
Member

Join Date: Jun 2011
Location: Brick, NJ
Posts: 297
Thanks guys.

I've been really happy w the set up, it's used several times a week, and it switches right back for DD duties. I don't haul construction materials but it would work for what the OP is looking to do. I used Thule parts to build it.
Reply With Quote
  #14
Old 07-05-2012
annguyen1981's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Apr 2009
Location: Chicopee, MA
Posts: 1,888
That is PERFECT!!!!

Do you have a list of parts needed for this build?
Reply With Quote
  #15
Old 07-05-2012
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Quote:
Originally Posted by B737 View Post
it can be done!
this is the system is use. My low profile tonneau cover stays in place. If i need the cross bars i simply drop them on, if i dont need them i leave them off. Its a versatile set up. I just ran 6' flat tracks down the rails, the feet slide around super easy if you need to change spacing. The cross bars drop on and pull off in seconds...





THAT is awesome. Great job!

Care to post up a thread including pictures of how you built it?
Reply With Quote
  #16
Old 07-05-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Awesome setup!
Reply With Quote
  #17
Old 07-06-2012
B737's Avatar
Member

Join Date: Jun 2011
Location: Brick, NJ
Posts: 297
Thanks for the thumbs up gents :) here are the details, it was really easy to do...
I started out with a Tonneau cover that sits inside the bedrails, "Access Low Profile" cover.

for the rack I used Thule parts, but Yakima ect, have the same similar parts:
60" Roof rack Rails

60" Rapid Aero Load Bars

Foot Pack

Foot Pack Mounts


Cut the tracks to fit down the bed rails, and use stainless hardware to fasten them into the bed rails... put the end caps on so it finishes it up nice. install the foot mounts. Install the feet onto the load bars. I also cut down my load bars to make them a little shorter. thats it! the load bars come off with by pushing the button on the feet. They stay locked in place well, have never moved on me.

Last edited by B737; 07-06-2012 at 07:12 AM.
Reply With Quote
  #18
Old 07-06-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
damn i wish i kept my roof rack off of the car now
Reply With Quote
  #19
Old 07-06-2012
annguyen1981's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Apr 2009
Location: Chicopee, MA
Posts: 1,888
Quote:
Originally Posted by B737 View Post
Thanks for the thumbs up gents :) here are the details, it was really easy to do...
I started out with a Tonneau cover that sits inside the bedrails, "Access Low Profile" cover.

for the rack I used Thule parts, but Yakima ect, have the same similar parts:
60" Roof rack Rails

60" Rapid Aero Load Bars

Foot Pack

Foot Pack Mounts


Cut the tracks to fit down the bed rails, and use stainless hardware to fasten them into the bed rails... put the end caps on so it finishes it up nice. install the foot mounts. Install the feet onto the load bars. I also cut down my load bars to make them a little shorter. thats it! the load bars come off with by pushing the button on the feet. They stay locked in place well, have never moved on me.
Thanks for the info, but OUCH! over $300 just for the first two parts. lol
Reply With Quote
  #20
Old 07-06-2012
B737's Avatar
Member

Join Date: Jun 2011
Location: Brick, NJ
Posts: 297
plus the tonneau cover! i was in for almost a g-note by the time i finished the bed (including the upper lower bed flood lights, liner, ect). you only gotta do it once, plus you can remove the hardware if you sell the truck. but yeah, the sticker shock sucked.

rack systems are such a scam rip-off, esp with all the 'proprietary' parts...

Last edited by B737; 07-10-2012 at 11:53 AM.
Reply With Quote
  #21
Old 07-06-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
craigslist is your friend. i got my full system for $80 and just recently sold it for 200
Reply With Quote
  #22
Old 07-10-2012
GreaseMonkey01's Avatar
Member
iTrader: (2)

Join Date: Jan 2012
Location: Woodbridge, VA
Posts: 304
That's pretty darn cool, I'm thinking about doing that now. Thanks for inspiration (and a way to spend more money, haha)!
Reply With Quote
  #23
Old 07-10-2012
B737's Avatar
Member

Join Date: Jun 2011
Location: Brick, NJ
Posts: 297

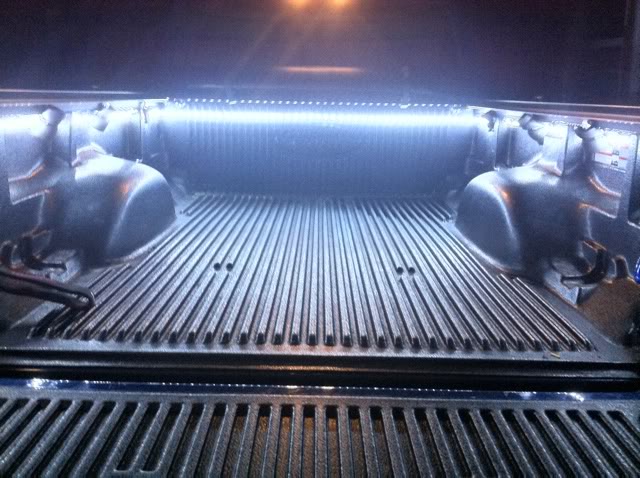

once thats all done, put in bed lights so you can see under your tonneau cover :)
Attached Thumbnails
Help with bed rails-31ed2e93.jpg
