Help One of My Pully's Broke!

anyone know where i can get a diagram of my engine..so i know how the belt goes back in?..and where the thing is to adjust the tension?..
Reply With Quote
  #2
Old 01-08-2007
l2en's Avatar
Member

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
what engine, insn't there a pully diagram sticker under the hood, 1/2" socket on the tensioner??
Reply With Quote
  #3
Old 01-08-2007
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
right on the front clip
Reply With Quote
  #4
Old 01-08-2007
Needforspeed3685's Avatar
Member

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Mine wasn't there. My Haynes manual shows it. Also, the tensioner pully is adjusted with a 3/8's socket wrench with NO sockets on it. Just insert the socket wrench into the square hole and turn.

You need to fix your Vehicle Specs in your profile. It says:
Vehicle Modifications:
Truck Specs:1995 ford ranger 2cyl & 1995 ford ranger 6 cyl 3.0

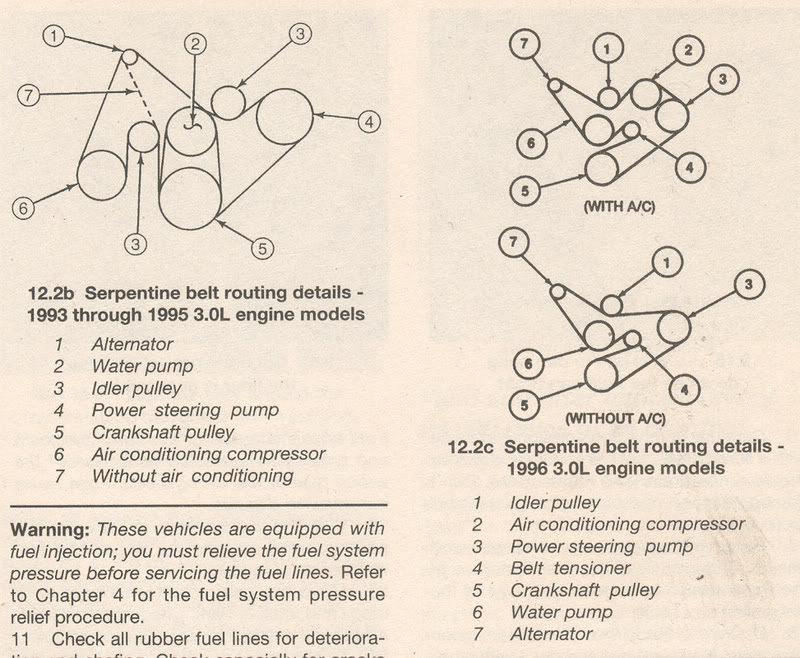

I assume you're talking about the 3.0, so here's it's diagram along with the other v6 just in case.
Name:  scan.jpg
Views: 1
Size:  88.4 KB
Name:  scan0001.jpg
Views: 1
Size:  143.2 KB

Last edited by Needforspeed3685; 01-08-2007 at 10:12 AM.
