Here is why EDGE plus wheels don't fit 2003 and newer 4x4

Look at the wheel to caliper clearance on my stock 16 inch wheel

Look at the wheel to caliper clearance on Johns 15x7 edge plus wheel, there is not clearance

Look at the clearance on my american eagle alloy 15x8 wheel with about 3 inches of backspaceing some but not alot of clearance




Reply With Quote
  #2
Old 06-01-2005
gatorblue92's Avatar
RF Veteran

Join Date: Jun 2004
Location: Delaware
Posts: 8,238
aha! it all makes sense now i noticed this earlier today when i was cleaning my stock rims sans tires for storage
Reply With Quote
  #3
Old 06-01-2005
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
wow....
Reply With Quote
  #4
Old 06-01-2005
Bigwill41's Avatar
Member

Join Date: Jun 2004
Location: Navasota, Texas
Posts: 4,659
I think I better go look at mine...
Reply With Quote
  #5
Old 06-01-2005
FoMoCoFiddy's Avatar
Member

Join Date: May 2004
Location: Smackdownville Tx
Posts: 4,508
My edge had edge plus wheels. And it was a 03?
Reply With Quote
  #6
Old 06-01-2005
pacodiablo's Avatar
Member

Join Date: Jun 2004
Location: Charlotte, NC
Posts: 1,126
Quote:
Originally Posted by FoMoCoEdge
My edge had edge plus wheels. And it was a 03?
It was 2WD. 4WDs have the clearance problems.
Reply With Quote
  #7
Old 06-01-2005
01xltranger4x4's Avatar
Member
iTrader: (3)

Join Date: May 2005
Location: MI
Posts: 3,200
Wow, 2001 xlt isint a problem is it? I had stock 16x7 teradrops, and now have 15x8 eagles.....i dont think there is a clearance issue, but i could be wrong.
Reply With Quote
  #8
Old 06-01-2005
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
um im confused? are you talking about after the larger rotor upgrade for made? if you are its not all 03s as mine has the smaller rotors. anything after march 2003 the rotors are an inch bigger.

i have edge plus wheels.
Reply With Quote
  #9
Old 06-01-2005
Draimen's Avatar
Member

Join Date: Feb 2005
Location: Fort Morgan, CO
Posts: 402
Quote:
Originally Posted by zabeard
i have edge plus wheels.
Aren't the wheels you have the same that come on xlt's and fx4's?

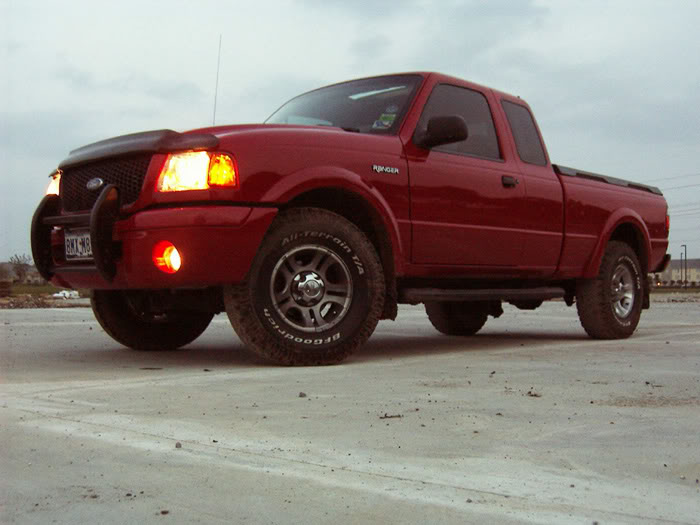

I think hes talking about this style Name:  Muddy.jpg
Views: 17
Size:  53.1 KB
Reply With Quote
  #10
Old 06-01-2005
Member

Join Date: May 2004
Location: McKinney, TX
Posts: 2,123
Quote:
Originally Posted by zabeard
i have edge plus wheels.

Not according to your avatar you don't.
Reply With Quote
  #11
Old 06-01-2005
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by Mnemonic
Not according to your avatar you don't.

oh ok well musta got confused then.
Reply With Quote
  #12
Old 06-01-2005
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by zabeard
oh ok well musta got confused then.
edge plus wheels are the old 5 split spoke 15" zach
Reply With Quote
  #13
Old 06-02-2005
Sonic04Edge's Avatar
RF Veteran

iTrader: (6)

Join Date: Jun 2004
Location: Madison. AL
Posts: 5,715
Quote:
Originally Posted by Redneckstone
edge plus wheels are the old 5 split spoke 15" zach
Partly correct. I have a edge plus wheels and they are the 16in teardrops
Reply With Quote
  #14
Old 06-02-2005
Member
Thread Starter

Join Date: Nov 2004
Location:
Posts: 3,115
Quote:
Originally Posted by 01xltranger4x4
Wow, 2001 xlt isint a problem is it? I had stock 16x7 teradrops, and now have 15x8 eagles.....i dont think there is a clearance issue, but i could be wrong.
pre 2003 4x4 are fine, all 2WD are fine, aftermarket wheels are fine(your 15x8 eagles are fine), stock 16 inch wheels are not a problem,

stock 15 inch wheels on a 2003 or later 4x4 is bad
Reply With Quote
  #15
Old 06-02-2005
Member
Thread Starter

Join Date: Nov 2004
Location:
Posts: 3,115
Also stock FX4 Level 2 alcoa wheels are fine, they are just like aftermarket wheels, they have a different tapper and backspacing.
Reply With Quote
  #16
Old 06-02-2005
Member
Thread Starter

Join Date: Nov 2004
Location:
Posts: 3,115
Here let me put it this way
Wheels that will fit 2003 and later 4x4:
Stock 16 inch
Stock FX4 level 2
most any aftermarket wheel with about 3 inches of backspacing


Wheels that will fit pre 2003 4x4 and any year 2WD:
any 5 on 4.5 wheel
Reply With Quote
  #17
Old 06-02-2005
Member

Join Date: May 2004
Location: Fuquay Varina, NC
Posts: 3,048
john and i have already had a lengthy discussion on this matter....

factory 15s will NOT FIT 2003 and up 4x4 ONLY

that means 2002 and back 4x4 will work
and all 2wd will word.

the rotors for the 4wd were upgraded in 2003
Reply With Quote
  #18
Old 06-02-2005
LILBLUE04FX4L2's Avatar
Member

Join Date: Jun 2004
Location: Exit 105 New Jersey
Posts: 2,409
wow Ben your Eagle Alloys don't have a lot of space either
I guess that could be good too, even less room for stuff to get in there
I always worry about small rocks getting between the caliper and rim



Quote:
Originally Posted by SoundPer4mance
factory 15s will NOT FIT 2003 and up 4x4 ONLY
unless they are the factory Alcoas
Reply With Quote
  #19
Old 06-02-2005
Member

Join Date: May 2004
Location: Fuquay Varina, NC
Posts: 3,048
are the alcoas still 15s on 03 and up?? if so i stand corrected
Reply With Quote
  #20
Old 06-02-2005
winks's Avatar
Member
iTrader: (5)

Join Date: May 2005
Location: Jackson, New Jersey
Posts: 4,872
Good job clearing that up Ben. Didn't realize thre was such a small amount of clearance on my alloys.
Reply With Quote
  #21
Old 06-02-2005
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by SoundPer4mance
are the alcoas still 15s on 03 and up?? if so i stand corrected
yeppers!
Reply With Quote
  #22
Old 06-02-2005
Member
Thread Starter

Join Date: Nov 2004
Location:
Posts: 3,115
Quote:
Originally Posted by LILBLUE04FX4L2
wow Ben your Eagle Alloys don't have a lot of space either
I guess that could be good too, even less room for stuff to get in there
I always worry about small rocks getting between the caliper and rim


I would asume you have about the same clearance with your alcoas as I do with by eagle alloys.
Reply With Quote
  #23
Old 06-02-2005
LILBLUE04FX4L2's Avatar
Member

Join Date: Jun 2004
Location: Exit 105 New Jersey
Posts: 2,409
just went and checked - about 3/8 of an inch at most
Reply With Quote
  #24
Old 06-02-2005
Member
Thread Starter

Join Date: Nov 2004
Location:
Posts: 3,115
Quote:
Originally Posted by LILBLUE04FX4L2
just went and checked - about 3/8 of an inch at most
Look like this ?
Reply With Quote
  #25
Old 06-02-2005
karrbass4life's Avatar
Member

Join Date: Nov 2004
Location: Cincinnati, Ohio
Posts: 3,072
G-DAMN!!! I got stock Edge 16's so im in the clear right?
