how wide is a stock xlt/edge rim?

im having a serious brain fart this morning. i think its 6.5 but im not sure... or is it 7?
Reply With Quote
  #2
Old 12-22-2006
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
7
Reply With Quote
  #3
Old 12-22-2006
FMD's Avatar
FMD FMD is offline
Member
Thread Starter
iTrader: (1)

Join Date: Aug 2005
Location: Amherst NY
Posts: 3,811
wow that was fast. and thats for a 16in rim right?
Reply With Quote
  #4
Old 12-22-2006
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
theyre all 7 except maybe the 14"
Reply With Quote
  #5
Old 12-22-2006
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
all ranger rims even my old 14" alum are 7" wide with 4.5" BS...
Reply With Quote
  #6
Old 12-22-2006
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,835
All recent Ranger 15" and 16" wheels are 7" width except the base XL 4x2 steelie. It is 15x6 with 4" backspacing.
Reply With Quote
  #7
Old 12-22-2006
Machine090767's Avatar
RF Veteran

Join Date: May 2006
Location: Minnesota
Posts: 6,410
i must have had some special rims when i bought my new edge back in 2000:

right on the invoice, it states: 16x8 alluminum wheels .... and when i ordered my other wheels, they said my style of truck has 16x8's... so how can you guys say all 15 and 16 inch rims are 7 inches wide? ( and please don't tell me that my rims are 7, or the invoice is wrong) is it maybe because i have an edge 4x4?
Reply With Quote
  #8
Old 12-22-2006
greygooseranger's Avatar
Member

Join Date: Apr 2006
Location: SE Michigan
Posts: 3,293
Quote:
Originally Posted by edgeaholic (tm)
i must have had some special rims when i bought my new edge back in 2000:

right on the invoice, it states: 16x8 alluminum wheels .... and when i ordered my other wheels, they said my style of truck has 16x8's... so how can you guys say all 15 and 16 inch rims are 7 inches wide? ( and please don't tell me that my rims are 7, or the invoice is wrong) is it maybe because i have an edge 4x4?

Well if you want the truth, ^^^^ then that's what I am going to tell you, as will many others. Don't get me wrong, I am not insinuating that you are wrong, because that may very well be what it says, but to the BEST of my knowledge, they are all 7" wide. My 2004 is 16x7, and you probably have the same wheels I do........

EDIT: You are not talking about the wheels you have on there now, are you? Because those aren't stock.

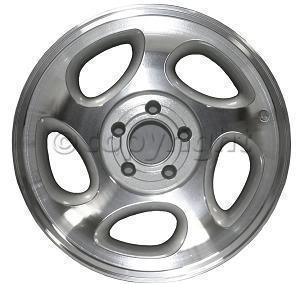

Is this your stock wheel? Because this is what I have, and its 16x7........

Name:  ALY03293U10N.jpg
Views: 92
Size:  15.6 KB
Reply With Quote
  #9
Old 12-22-2006
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,835
Quote:
Originally Posted by edgeaholic (tm)
please don't tell me that my rims are 7, or the invoice is wrong
Your Edge came from the factory with 7" rim width. If your paperwork says that the factory wheels are 16x8, then it is wrong. 4x4 or not.
Reply With Quote
  #10
Old 12-22-2006
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
unless the dealer installed aftermarket rims then your out of luck
Reply With Quote
  #11
Old 12-22-2006
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,835
Read the manufacturer's certification label on the driver's door jamb. That will show you that the factory installed wheels were 16x7.

Also, if you still have the original wheels, they should have the dimensions stamped in the rim, probably on the back side. That has been a DOT requirement for many years.
Reply With Quote
  #12
Old 12-22-2006
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
one of my sets Bob it was stamped on the inside of the rim where the tire covers it not visible with out the tire removed just fyi...
Reply With Quote
  #13
Old 12-22-2006
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,835
Quote:
Originally Posted by Redneckstone
one of my sets Bob it was stamped on the inside of the rim where the tire covers it not visible with out the tire removed just fyi...
Good info. I just looked at a bare Alcoa in the garage. On that one, it was on the back side where you can see it only if the wheel is removed from the truck. I have a Honda steel wheel that has it marked on the outside rim flange and I think I remember seeing some Acura aluminum wheels that had it under the center cap near the lug nuts. It sounds like the wheel manufacturer gets to put it just about anywhere on the wheel.
Reply With Quote
  #14
Old 12-22-2006
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
yes i think it just needs to be stamped somewhere thats all
Reply With Quote
  #15
Old 12-23-2006
FMD's Avatar
FMD FMD is offline
Member
Thread Starter
iTrader: (1)

Join Date: Aug 2005
Location: Amherst NY
Posts: 3,811
good info! I never even knew that the size of the rims were stamped on the the rims!
