Hi there,

I'm in the process of decoupling the frame from the cabin and bed of my 2000 ford ranger to deal with some nasty rust!

I was wondering if someone can point me to the parts I've marked in the attached picture, as I would like to change them? They look the same on the left and right sides.




Thanks!



The 2 things on the sides are the mounts and bushings for the upper control arms. Thing/bushing in the middle of them is the mount for the lower control arm coil shock absorbers.



+1 ^^^

Upper control arm mounts and upper shock mount

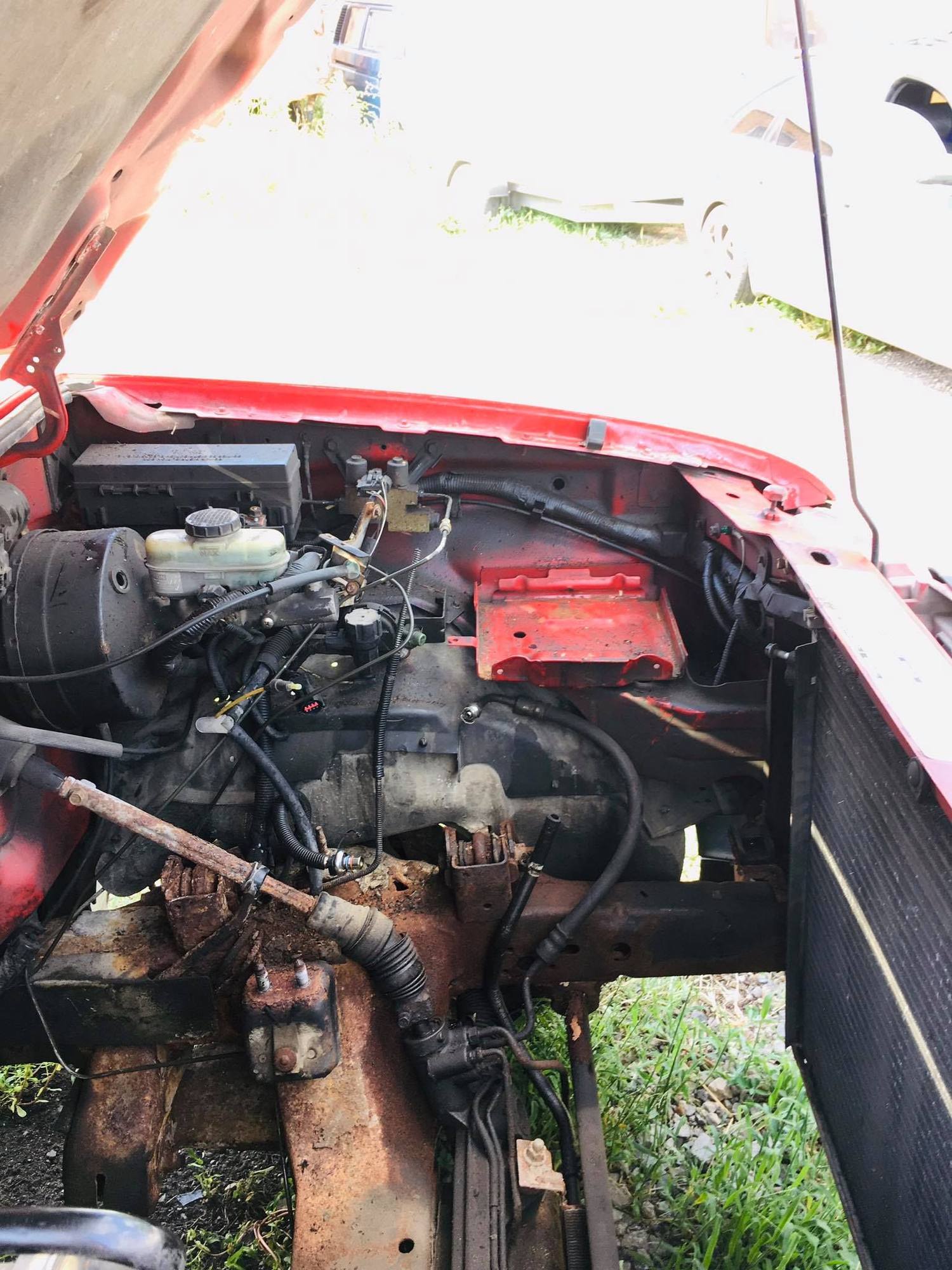

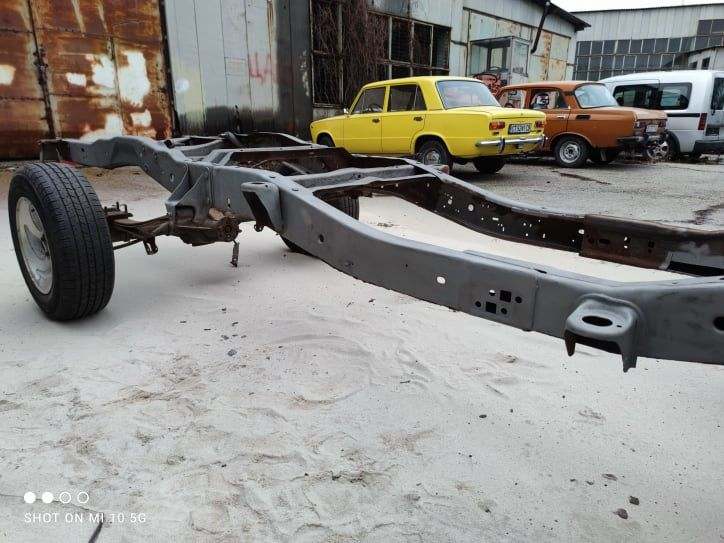

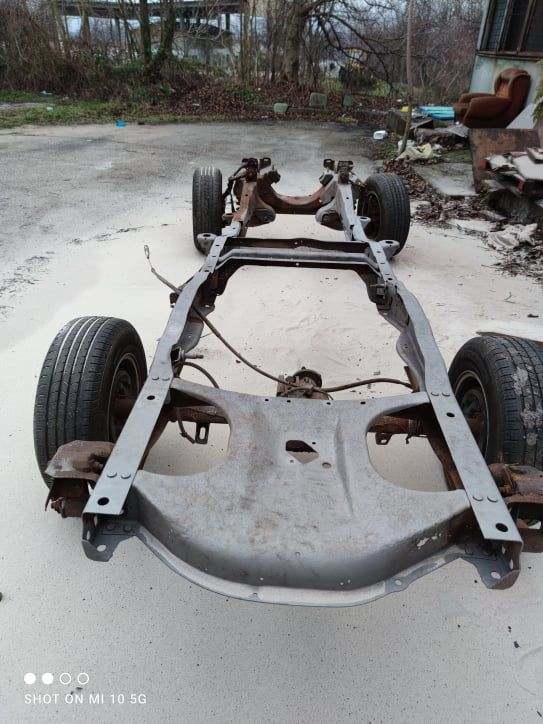

Thank you all for the info, here are some photos... don't worry it will all come back together... I hope...






I have another weird question regarding the coil springs? I could only find the upper insulators for the coil springs, but I can find both lower and upper on rockauto?

Does anyone know if the 2WD 2000 Ford Ranger should have upper and lower insulators for the coil springs?
