tire pressure monitroing system

tire pressure monitoring system..... reckon my truck has it heh. found out after i put my aftermarket wheels on. had a small feeling it had it. ok heres the question. how the hell do i get them off the stock rims and onto my aftermarket rims?

i busted a bead on one tire and its held on with a band. so is the band reuseable? is it a PITA to get off? talk to me....

i would like to swap them over to my rims myself then have the aftermarket rims and tires rebalanced even though they need it now with out the stupid sensor.

i know the easy way is to ignore the idiot light, but c'mon im paying for this damn thing i don't want a dumb light blinking at me.

also any info on he things would be cool too. how the system works in more detail than what i know which they monitor your tire pressure. what about when i air down my tires? will they get crushed? lol sorry so many questions.

so in a nutshell FILL ME IN!
Reply With Quote
  #2
Old 11-14-2008
Member
Thread Starter

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
anyone?
Reply With Quote
  #3
Old 11-14-2008
Stryker's Avatar
Member

Join Date: Feb 2008
Location: Bakersfield, CA
Posts: 412
my mom's '04 GMC Yukon XL has em too...
my dad had new rims put on wen we first bought it and Carroll's Tire did it. they took out the sensors and put em in the new rims.
idk how they did it but i kno its possible.
Reply With Quote
  #4
Old 11-14-2008
Hanks Rangers's Avatar
Member

Join Date: Sep 2008
Location: Sandpoint, ID
Posts: 821
you just got to be careful taking the bead off the rim because if you break em its not cheap, when you air down you will get that stupid little light back. reusable bands don't know, some vehicles i know you can take em off and switch them over.
Reply With Quote
  #5
Old 11-14-2008
darkstar_420's Avatar
Member

Join Date: Feb 2008
Location: sk
Posts: 621
with ford wheels your gonna need a new ring for sure, and if the rim isnt the exact same for the ring then it wont work, i work with these stupid tpms all the time. There is no other way of doing it on a ford without the ring.
Reply With Quote
  #6
Old 11-14-2008
TexasRanger's Avatar
Member

Join Date: Jun 2008
Location: austin, TX
Posts: 1,252
yeah you will need a new band. which shouldnt be too hard to come across if you look around. im pretty sure on fords it also sticks on with double sided tape, but that isnt a big deal
Reply With Quote
  #7
Old 11-14-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
You could always relocate all the sensors to your spare tire... you'd have to rerun the wiring for the sensors but you wouldn't have to worry about it until you got rid of the spare.
Reply With Quote
  #8
Old 11-14-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by TexasRanger View Post
yeah you will need a new band. which shouldnt be too hard to come across if you look around. im pretty sure on fords it also sticks on with double sided tape, but that isnt a big deal
imagine a blue sensor that held onto the wheel using a huge hose clamp. that's pretty much what Ford does.
Reply With Quote
  #9
Old 11-14-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
The band are NOT reuseable BUT here is a site that sells the ford style bands and your sensor just clips to it... enjoy


http://www.americanmuscle.com/universal-tpms-bands.html
Reply With Quote
  #10
Old 11-14-2008
jaysinpa's Avatar
Member

Join Date: Mar 2008
Location: New Brighton, PA
Posts: 648
Ask 08xlt what he did. He has an 08 and put steelies on, so he had to do something with TPMS sensor
Reply With Quote
  #11
Old 11-14-2008
Member
Thread Starter

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
Quote:
Originally Posted by Fx4wannabe01 View Post
imagine a blue sensor that held onto the wheel using a huge hose clamp. that's pretty much what Ford does.
yea i busted the bead on my stockers and seen the sensor. know what it looks like and how its held on... fun fun fun


Quote:
Originally Posted by Redneckstone View Post
The band are NOT reuseable BUT here is a site that sells the ford style bands and your sensor just clips to it... enjoy


http://www.americanmuscle.com/universal-tpms-bands.html
SWEET MAN!!! just what i needed. ill order them up and put them sensors in myself. then get my 31's rebalanced.


haha ive been in the 94 ranger era as far as safety crap and lift kits go heh. this 08 is nice and its a new learnin curve.

Last edited by Old Black Cat; 11-14-2008 at 03:25 PM.
Reply With Quote
  #12
Old 11-14-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198

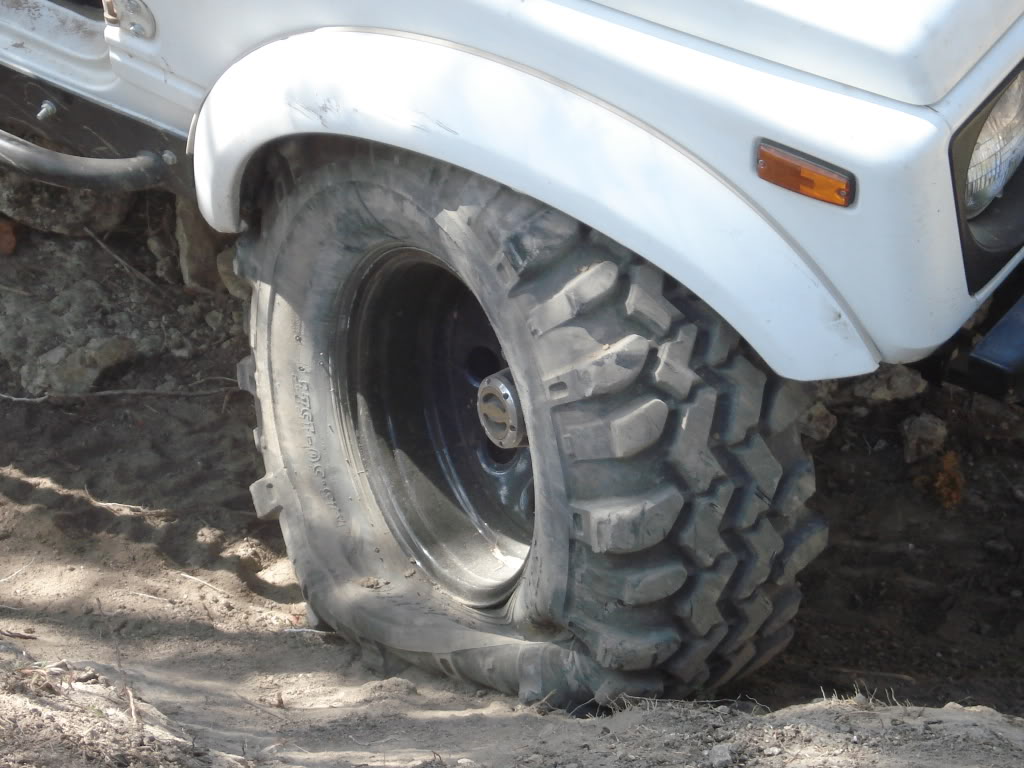

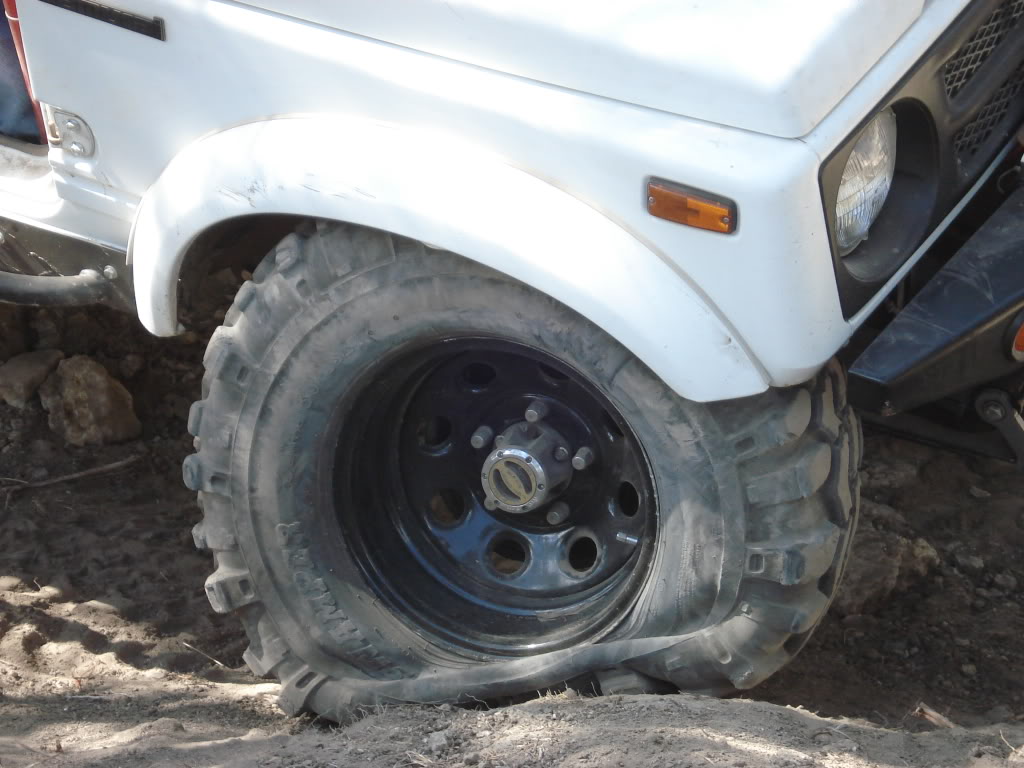

wanna know what I think about pressure monitoring?
...this is about the right amount of air
Name:  DSC05159.jpg
Views: 2
Size:  106.2 KB
Name:  DSC05160.jpg
Views: 11
Size:  113.3 KB
Reply With Quote
  #13
Old 11-15-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Trying not to hack this thread, but it defn relates...


I know when i was pricing out/specing a 09 ranger, the TPMS was optional. Is the same true for an '08? Or is it standard acrosst the board.
Reply With Quote
  #14
Old 11-15-2008
darkstar_420's Avatar
Member

Join Date: Feb 2008
Location: sk
Posts: 621
We had to order a new band at work for an escape and it was only like 30 bucks from ford so 120 bucks isnt that bad, but i like the idea with the spare, thats a good one.
Reply With Quote
  #15
Old 11-16-2008
Member
Thread Starter

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
Quote:
Originally Posted by Fx4wannabe01 View Post
Trying not to hack this thread, but it defn relates...


I know when i was pricing out/specing a 09 ranger, the TPMS was optional. Is the same true for an '08? Or is it standard acrosst the board.
to my understanding 2007 and on are required to have the tpms.

Quote:
darkstar_420 We had to order a new band at work for an escape and it was only like 30 bucks from ford so 120 bucks isnt that bad
thats alot of money for a band....
Reply With Quote
  #16
Old 11-17-2008
jaysinpa's Avatar
Member

Join Date: Mar 2008
Location: New Brighton, PA
Posts: 648
Quote:
Originally Posted by Fx4wannabe01 View Post
Trying not to hack this thread, but it defn relates...


I know when i was pricing out/specing a 09 ranger, the TPMS was optional. Is the same true for an '08? Or is it standard acrosst the board.
It was standard on my 08, and on all the 08's I looked at for that matter.
Reply With Quote
  #17
Old 11-17-2008
FullThrottle02's Avatar
Member
iTrader: (3)

Join Date: Apr 2008
Location: McHenry,IL
Posts: 586
TPMS is government mandated to be on all vehicles 2007 and newer. Some manufactures however came out with it alot earlier than that.
Reply With Quote
  #18
Old 11-19-2008
Member
Thread Starter

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
heres a picture of mine. took them out today, going to see if i can get 4 adjustable bands for them and reinstall them myself.

Reply With Quote
  #19
Old 11-19-2008
RangerJustin's Avatar
Member
iTrader: (1)

Join Date: Feb 2005
Location: SoCal
Posts: 4,428
How were they mounted on your OEM wheels?
Reply With Quote
  #20
Old 11-19-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
^^^ A band with clips
Reply With Quote
  #21
Old 11-19-2008
elementsenjoi's Avatar
Member
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301
I would be pulling the cluster apart and getting rid of that light. I swap out wheels and tires too much to be worrying about all of that nonsense.

Good luck with it though.
Reply With Quote
  #22
Old 11-19-2008
Member
Thread Starter

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
Quote:
Originally Posted by elementsenjoi View Post
I would be pulling the cluster apart and getting rid of that light. I swap out wheels and tires too much to be worrying about all of that nonsense.

Good luck with it though.
a large hose clamp would make it alot easyer to swap them. stock oem bands are crimped on. also in states that do the yearley inspections might look for the light on the dash to make sure its working. im guessing though, i just have gay smog testin here.

all that holds the sensor from turning on the rim a stickey tape and the band is to keep the sensor from flying off the rim at speed.

this is all new to me and im makin the thread for 07+ ranger owners that are un aware of the damn thing, the ways of moving them over to aftermarket wheels.

fun learning curve lol
Reply With Quote
  #23
Old 11-19-2008
elementsenjoi's Avatar
Member
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301
True, I always forget about inspections because we have none here.
Reply With Quote
  #24
Old 11-19-2008
JWall's Avatar
Member
iTrader: (1)

Join Date: May 2008
Location: Tulsa, OK
Posts: 47
Yes like said above the bands that hold the sensors on from the factory are not reusable.
Ford does sell bands that are reusable though.

I just went thru this a few weeks ago.
Reply With Quote
  #25
Old 11-19-2008
Member
Thread Starter

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
Quote:
Originally Posted by JWall View Post
Yes like said above the bands that hold the sensors on from the factory are not reusable.
Ford does sell bands that are reusable though.

I just went thru this a few weeks ago.
hmm reuseable bands from ford.... sounds like alot of ky wold be needed. LOL

how much they set ya back?
Reply With Quote
