What does the bumpstop hit?

On the lower control arms there is a bump stop. What is it supposed to hit? Pics are cool too.
Reply With Quote
  #2
Old 10-05-2009
SteveOh's Avatar
Member

Join Date: Mar 2005
Location: Ft. Campbell Kentucky
Posts: 4,585
it hits the frame..it keeps your suspension from slamming into the frame on hard bumps kinda like a cushion
Reply With Quote
  #3
Old 10-05-2009
Trigger01's Avatar
RF Veteran
Thread Starter
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
No, I'm talking about the little tab that comes out of the back of the lower control arm It's supposed to prevent you from turning the wheels to far. I guess bump stops wasn't the right word.
Reply With Quote
  #4
Old 10-05-2009
Trigger01's Avatar
RF Veteran
Thread Starter
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
The piece in the circle is what I'm talking about

Name:  LCA.jpg
Views: 11
Size:  15.7 KB
Reply With Quote
  #5
Old 10-05-2009
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
oh i thought you meant on the top part...i hit the bumpstop when wheeling i which reminds me i need to crank down my tbars a bit lol but that piece i am unsure
Reply With Quote
  #6
Old 10-05-2009
Igobytwitch's Avatar
Member

Join Date: Oct 2008
Location: Cocoa Beach, Florida
Posts: 504
I thought that was to jack it up by
Reply With Quote
  #7
Old 10-05-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
The part you circled is a jack point, but I think you're talking about the steering stops. Theres a little grove area on the spindle that they hit.
Reply With Quote
  #8
Old 10-05-2009
Trigger01's Avatar
RF Veteran
Thread Starter
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Here is the problem, A member I was talking to, before I lifted my truck, told me I need to grind them off because they would interfere with something in the brakes, but that's a bunch of bologna. Now when I turn at full lock I lose all brake pressure.

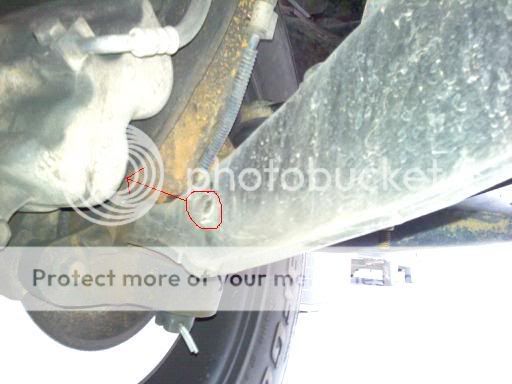

In the picture, the circle shows where the steer stop was and the arrow points to the part of the caliper it hits. Where is it supposed to hit?
Name:  SS.jpg
Views: 11
Size:  26.6 KB
Reply With Quote
  #9
Old 10-05-2009
Toms994x4's Avatar
Member
iTrader: (4)

Join Date: Jul 2009
Location: Sanford, NC
Posts: 1,300
Quote:
Originally Posted by RazorsEDGE View Post
The part you circled is a jack point, but I think you're talking about the steering stops. Theres a little grove area on the spindle that they hit.
The front jack points are the two little "blocks" on either side of the frame that the parking brake cable "clips" into.

The thing he circled is rubber and stops the steering knuckle from going any further than "full lock".
Reply With Quote
  #10
Old 10-05-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
I had the same problem when I had my lift spindles. They failed to put a spot on the lift spindle to hit the steering stop. Without that there the caliper would hit the control arm, and I lost brake pressure as well. I never ground my stock steering stops off and it still happened. I never did anything about it though I just learned what my turning limit was lol.
Reply With Quote
  #11
Old 10-05-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Quote:
Originally Posted by Toms994x4 View Post
The front jack points are the two little "blocks" on either side of the frame that the parking brake cable "clips" into.

The thing he circled is rubber and stops the steering knuckle from going any further than "full lock".
The part he circled in the first pic is not the steering stop. Its the jack point for the factory jack. Look in your owners manual. Its way to far in on the control arm to be a steering stop.
Reply With Quote
  #12
Old 10-05-2009
Toms994x4's Avatar
Member
iTrader: (4)

Join Date: Jul 2009
Location: Sanford, NC
Posts: 1,300
Quote:
Originally Posted by Trigger01 View Post
Here is the problem, A member I was talking to, before I lifted my truck, told me I need to grind them off because they would interfere with something in the brakes, but that's a bunch of bologna. Now when I turn at full lock I lose all brake pressure.

In the picture, the circle shows where the steer stop was and the arrow points to the part of the caliper it hits. Where is it supposed to hit?
Go to a junkyard and get one off another Ranger. I've never messed with them but I believe they pop in.

I'm guessing you have a spindle lift. On a stock ranger it will hit the back of the steering knuckle at full lock.

By the way, take some needle nose pliers and pull one end of that cotter pin one way around the castle nut and pull the other side the other way.
Reply With Quote
  #13
Old 10-05-2009
Trigger01's Avatar
RF Veteran
Thread Starter
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Quote:
Originally Posted by RazorsEDGE View Post
I had the same problem when I had my lift spindles. They failed to put a spot on the lift spindle to hit the steering stop. Without that there the caliper would hit the control arm, and I lost brake pressure as well. I never ground my stock steering stops off and it still happened. I never did anything about it though I just learned what my turning limit was lol.
Dang, I was kinda hoping to fix that. I don't like to let anybody use my truck, but I really hate to let anyone use it with it like that. I know they would forget and end up hitting something.


Quote:
Originally Posted by Toms994x4 View Post
The thing he circled is rubber and stops the steering knuckle from going any further than "full lock".
The thing I circled is not rubber I assure you. I had plenty of shards of metal all over me when i was grinding them off, and a little blood from where I got cut too.
Reply With Quote
  #14
Old 10-05-2009
Toms994x4's Avatar
Member
iTrader: (4)

Join Date: Jul 2009
Location: Sanford, NC
Posts: 1,300
Quote:
Originally Posted by RazorsEDGE View Post
I had the same problem when I had my lift spindles. They failed to put a spot on the lift spindle to hit the steering stop. Without that there the caliper would hit the control arm, and I lost brake pressure as well. I never ground my stock steering stops off and it still happened. I never did anything about it though I just learned what my turning limit was lol.
I has no ownerz manuel.
Reply With Quote
  #15
Old 10-05-2009
Toms994x4's Avatar
Member
iTrader: (4)

Join Date: Jul 2009
Location: Sanford, NC
Posts: 1,300
Quote:
Originally Posted by Trigger01 View Post
Dang, I was kinda hoping to fix that. I don't like to let anybody use my truck, but I really hate to let anyone use it with it like that. I know they would forget and end up hitting something.


The thing I circled is not rubber I assure you. I had plenty of shards of metal all over me when i was grinding them off, and a little blood from where I got cut too.
Oh Rly? I'll have to check that out tomorrow at the shop then. I believe the one on my 98 IS rubber and hits the steering knuckle (spindle) like I stated. There's a little "dimple" on the knuckle. I'll take pictures tomorrow if I remember but i'll definately check it out.
Reply With Quote
  #16
Old 10-05-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Reply With Quote
  #17
Old 10-05-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
could weld a piece of bar stock on the control arm to hit the spindle right before the caliper does...
Reply With Quote
  #18
Old 10-05-2009
ccernst's Avatar
Member

Join Date: May 2009
Location: Kansas City, MO
Posts: 380
Quote:
Originally Posted by Toms994x4 View Post
I has no ownerz manuel.
https://www.fleet.ford.com/maintenan...ls/default.asp

now you do!
Reply With Quote
  #19
Old 10-05-2009
Trigger01's Avatar
RF Veteran
Thread Starter
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Quote:
Originally Posted by Redneckstone View Post
could weld a piece of bar stock on the control arm to hit the spindle right before the caliper does...
I guess that's what I'll end up doing.
Reply With Quote
  #20
Old 10-05-2009
Toms994x4's Avatar
Member
iTrader: (4)

Join Date: Jul 2009
Location: Sanford, NC
Posts: 1,300
Oh crap. I see now. You're talking about the little "L" bracket that's curved like a half circle. I thought you were talking about the little rubber bumps on the BACK of the LCA. MY BAD!!!
Reply With Quote
  #21
Old 10-05-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Reply With Quote
  #22
Old 10-05-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Quote:
Originally Posted by Toms994x4 View Post
Oh crap. I see now. You're talking about the little "L" bracket that's curved like a half circle. I thought you were talking about the little rubber bumps on the BACK of the LCA. MY BAD!!!
Sorry to confuse you. That IS what he is talking about, its just not what he circled in the first pic.
Reply With Quote
  #23
Old 10-05-2009
Trigger01's Avatar
RF Veteran
Thread Starter
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Quote:
Originally Posted by RazorsEDGE View Post
Gracias.
Reply With Quote
  #24
Old 10-05-2009
Toms994x4's Avatar
Member
iTrader: (4)

Join Date: Jul 2009
Location: Sanford, NC
Posts: 1,300
Quote:
Originally Posted by RazorsEDGE View Post
Sorry to confuse you. That IS what he is talking about, its just not what he circled in the first pic.
That's why I was looking at it and I was like wtf. That's just a little rubber piece on the back of the arm.
Reply With Quote
