Wheelwell engine gaurds

ne one know where i can get the stock wheel well gaurds? didnt know if ne one might have an original set if they replaced them with gap gaurds? thanks and if not where can i buy them
Reply With Quote
  #2
Old 04-29-2008
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Are you talking about the complete plastic inner fender or the small flexible splash shields that are pinned to them?
Reply With Quote
  #3
Old 04-29-2008
Member
Thread Starter

Join Date: Apr 2008
Location: Ft. Myers, Florida
Posts: 41
the small flexible splash shields that are pinned to them with the black pins thanks
Reply With Quote
  #4
Old 04-29-2008
whippersnapper02's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2006
Location: Earth, Milky Way Galaxy
Posts: 7,415
I got mine from ford. They are crap though. Next time I'm going to get gap guards and cut them to fit.
Reply With Quote
  #5
Old 04-29-2008
Member
Thread Starter

Join Date: Apr 2008
Location: Ft. Myers, Florida
Posts: 41
ya how much did you pay for them and what exactly are they called? thanks and were can i find some front gap gaurds then?
Reply With Quote
  #6
Old 04-29-2008
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Quote:
Originally Posted by ChicksDigIt View Post
the small flexible splash shields that are pinned to them with the black pins thanks

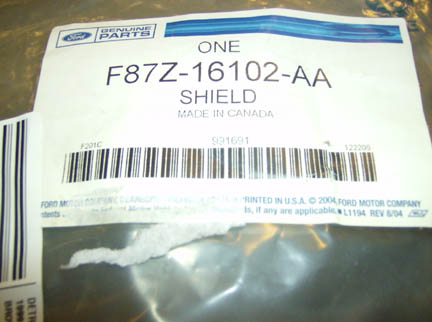

They are about $15 each at the dealer. Order 2 passenger side splash shields (F87Z-16102-AA) and reverse the pins on one of them. If you order the driver side part number from Ford, it has been superceded to a 1/4-length "shield" that is completely useless.

If you want them to live MUCH longer, mount the shields inside of the plastic fender instead of outside as from the factory. This requires repunching the two rear holes to make it line up but it is a worthwhile mod, especially if you have oversize tires.

Here is the remounted shield. At the top of the photo, you can see the "witness mark" on the inner fender where the splash shield used to be on the outside:

Reply With Quote
  #7
Old 04-29-2008
whippersnapper02's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2006
Location: Earth, Milky Way Galaxy
Posts: 7,415
LOL. I think they were called front splash guards but don't quote me. They were about 20 a piece for a small piece of rubber that barely covers anything.

You can get gap guards from any offroad place. I don't know how much they cost but my plan was to get them on cut them to size.
Reply With Quote
  #8
Old 04-29-2008
whippersnapper02's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2006
Location: Earth, Milky Way Galaxy
Posts: 7,415
Quote:
Originally Posted by rwenzing View Post
They "updated" them so now they are about half the size of that.
Reply With Quote
  #9
Old 04-29-2008
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Quote:
Originally Posted by fddriver02 View Post
They "updated" them so now they are about half the size of that.
Nope, I just bought 2 passenger side shields a month ago and they are exactly that size - the same as came from the factory on the passenger side of my 03.

As stated above, if you order the driver side shield, it has been shortened and is useless. The passenger side is full sized and also fits perfectly on the DS.
Reply With Quote
  #10
Old 04-30-2008
hatley's Avatar
Member

Join Date: Nov 2007
Location: Riverdale, Utah
Posts: 49
what if i just ripped mine off is that bad at all i just thought they looked ugly and didnt sit very well or stay in place
Reply With Quote
  #11
Old 04-30-2008
whippersnapper02's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2006
Location: Earth, Milky Way Galaxy
Posts: 7,415
Quote:
Originally Posted by rwenzing View Post
Nope, I just bought 2 passenger side shields a month ago and they are exactly that size - the same as came from the factory on the passenger side of my 03.

As stated above, if you order the driver side shield, it has been shortened and is useless. The passenger side is full sized and also fits perfectly on the DS.
I must have missed it. Ford told me that they were both small. There I go listening to Ford again.
Reply With Quote
  #12
Old 04-30-2008
FMD's Avatar
FMD FMD is offline
Member
iTrader: (1)

Join Date: Aug 2005
Location: Amherst NY
Posts: 3,811
your better off buying some flat rubber from a distributor and making your own.

I happen to come into a roll of rubber, 2ft wide, 1/8 think 40ft long... for free, which I used for stone gaurds for behind my fog lights. I have been meaning to make splash gaurds for around my engine, but so far I have been able to find better things to do with my time.
Reply With Quote
  #13
Old 04-30-2008
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Quote:
Originally Posted by fddriver02 View Post
I must have missed it. Ford told me that they were both small. There I go listening to Ford again.

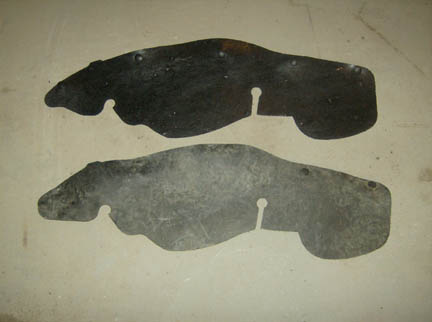

The top one is new, the bottom one was factory installed on my 03. Both are passenger side but will also fit the driver side.
Attached Thumbnails
Wheelwell engine gaurds-ps-shield-comparison-002-sm.jpg   Wheelwell engine gaurds-ps-shield-part-number-sm.jpg
Reply With Quote
  #14
Old 04-30-2008
Member
Thread Starter

Join Date: Apr 2008
Location: Ft. Myers, Florida
Posts: 41
well thanks guys... i just need something there to cover that gap and keep some mud from my engine it gets nasty when play time rolls around haha
Reply With Quote
  #15
Old 04-30-2008
99_NWRanger's Avatar
Member

Join Date: Apr 2008
Location: WA / Mountain Home, ID
Posts: 331
Mine have been out since I bought the truck. Replaced the shocks and never put them back in. Didn't really see much use for them.
