Who has lights on top of their truck?

I'm putting some lights on top, but can't think of a good way to bring the wires into the cab. Anyone have good solutions for this? I don't want to only use silicone... I'd like something more professional.
Reply With Quote
  #2
Old 03-30-2013
Chris98's Avatar
Member
iTrader: (3)

Join Date: Feb 2010
Location: Thornton, CO
Posts: 705
Rubber grommets.
Reply With Quote
  #3
Old 03-31-2013
annguyen1981's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Apr 2009
Location: Chicopee, MA
Posts: 1,888
I'm been trying to find some, but the only ones I've found have holes that are too big and will still let water through.
Reply With Quote
  #4
Old 03-31-2013
Member

Join Date: Feb 2013
Location: Atascadero, CA
Posts: 14
I'm interested in this myself. I've been looking for giant grommets with small openings and haven't been able to find them anywhere. I think they may be some sort of specialty product that hardware stores don't typically carry. Possible solutions I've come up with are: 1) Use large grommets with large openings and fill them with silicone to seal them, (2) use large metal washers with smaller openings and place grommets inside the washer's pre-drilled hole and affix the washer assembly where it's needed with some kind of epoxy or JB Weld and caulk or silicone around the edge for a tight seal.

If you find some awesome specialty grommets, let me know where you got them because I'm not crazy about either of the two possible solutions above.
Reply With Quote
  #5
Old 03-31-2013
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by annguyen1981 View Post
I'm putting some lights on top, but can't think of a good way to bring the wires into the cab. Anyone have good solutions for this? I don't want to only use silicone... I'd like something more professional.
What type of lights ?

Do you have a back rack of some type ?

A picture of the truck ?

I am adding roof lights but on a Visor, Lund LED separate lights added to a non-lighted Lund Visor.
I am going to use Windshield Sealant to seal the mounting screws and the wire hole which will be directly through the roof near a side pillar.
windshield Sealant isn't like regular silicone, it doesn't harden and it holds well to anything it contacts so no leaks if enough is used.
Reply With Quote
  #6
Old 03-31-2013
annguyen1981's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Apr 2009
Location: Chicopee, MA
Posts: 1,888
I've got an expo roof rack that I've already modified to fit, but just haven't installed yet. I'm trying to iron out all the wiring details just in case I want to do something different.



The latest pic of the truck:







The roof rack and my current idea for lights. (I also have a pair of Hella 500's, but I'm not sure if I want to mount those up there...


Attached Thumbnails
Who has lights on top of their truck?-625463_837942764275_225317319_n.jpg   Who has lights on top of their truck?-536527_836641257505_602356018_n.jpg
Reply With Quote
  #7
Old 03-31-2013
annguyen1981's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Apr 2009
Location: Chicopee, MA
Posts: 1,888

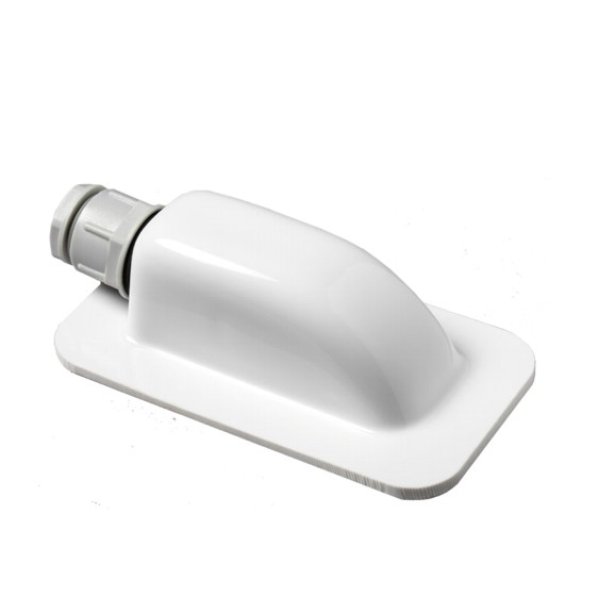

I've discovered something called a "CABLE ENTRY GLAND"




What do you guys think?
Attached Thumbnails
Who has lights on top of their truck?-solara-roof-grommet-dd1-w-452-p.jpg
Reply With Quote
  #8
Old 03-31-2013
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Nice feed thru but something like that will work or run the wire under the rack mounting rail and through the roof.

Make sure to run a ground wire up there too.
The ground does have to connect to the rack just the light grounds.
Make sure the ground wire is at least the size of the power wire.

Last edited by Scrambler82; 04-16-2013 at 10:42 AM.
Reply With Quote
  #9
Old 04-16-2013
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
annguyen1981
How’s this going ?
How did you decide to run the wiring ?

One thing about the windshield sealant, it can get messy so make sure things are lined up and holes already drilled before adding the stuff.
Reply With Quote
  #10
Old 04-16-2013
annguyen1981's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Apr 2009
Location: Chicopee, MA
Posts: 1,888
I haven't found a solution I liked yet... I did, however, mount the roof rack:





Now, I'm waiting to get two sets of lights that I want. I'm not mounted anything on top just in case I get a basket in the future. The lights will be on the bottom of the roof rack rails. Once I finally get the lights, I'll know how many wires need to pass through the roof and figure out the wiring then.
Reply With Quote
  #11
Old 04-16-2013
mikerider's Avatar
Member
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
I have about a dozen wires running from my roof into the cab so far the best way I have found is to run them around the weather stripping at the back of the half door and enter through the wiring boot there or go down the rest of the way to the split in the weather stripping.

I will try to get some pics of the various ways I have routed things.

in total I have 10 18 guage wires, 3 coax cables and 1 0 guage cable that runs all the wiring for my rear trafic advisor bar.
Reply With Quote
  #12
Old 04-17-2013
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by annguyen1981 View Post
I haven't found a solution I liked yet... I did, however, mount the roof rack:



Now, I'm waiting to get two sets of lights that I want. I'm not mounted anything on top just in case I get a basket in the future. The lights will be on the bottom of the roof rack rails. Once I finally get the lights, I'll know how many wires need to pass through the roof and figure out the wiring then.
Looks good.
Is there any space on the underside of the rail ?
How did you seal the mounting hardware ?
Also, how clean do you want the install ?
I for one would not want wires running everywhere.
Reply With Quote
  #13
Old 04-17-2013
annguyen1981's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Apr 2009
Location: Chicopee, MA
Posts: 1,888
Quote:
Originally Posted by mikerider View Post
I have about a dozen wires running from my roof into the cab so far the best way I have found is to run them around the weather stripping at the back of the half door and enter through the wiring boot there or go down the rest of the way to the split in the weather stripping.

I will try to get some pics of the various ways I have routed things.

in total I have 10 18 guage wires, 3 coax cables and 1 0 guage cable that runs all the wiring for my rear trafic advisor bar.
Pics of all those wires would be GREAT. Obviously, I won't be running that many wires.

Quote:
Originally Posted by Scrambler82 View Post
Looks good.
Is there any space on the underside of the rail ?
How did you seal the mounting hardware ?
Also, how clean do you want the install ?
I for one would not want wires running everywhere.
Here's the How-To I made for everyone:
https://www.ranger-forums.com/how-di...f-rack-137996/


There's roughly 1.8 inches under the rail. The lights I found and like can go as low as 1.5", so that's no problem.
http://www.ebay.com/itm/5-RECTANGULA..._qi=RTM1303752

I plan on drilling small holes on the underside of the crossrails to snake the wires through. Then I'll drill another hole near the foot of the crossrail in order to bring the wires inside via a hole in the roof.
Attached Thumbnails
Who has lights on top of their truck?-imlogo.png
Reply With Quote
  #14
Old 04-17-2013
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
I ran my satellite radio wire the way mikerider mentioned... just a single wire but it worked fine for me for a couple years!
Reply With Quote
  #15
Old 05-02-2013
rangerrunner11's Avatar
Member

Join Date: Feb 2011
Location: .
Posts: 1,018




I used a razor blade, put a slit in the weather stripping, used 1 hot and 1 ground wire to the rack and ran it down inside the door frame to the engine bay and into the cab. completely invisible except for a 2" section from the door jam to the rack. then I ran the wires inside the rack to the lights. so you see absolutely nothing. *The rack is hollow, gotta remove the end caps*
Attached Thumbnails
Who has lights on top of their truck?-dsc08613.jpg   Who has lights on top of their truck?-dsc08614.jpg
Reply With Quote
  #16
Old 05-03-2013
annguyen1981's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Apr 2009
Location: Chicopee, MA
Posts: 1,888
Can you post a close up of the wires going inside?
Reply With Quote
  #17
Old 07-01-2013
(Danger_Ranger)'s Avatar
Member

Join Date: May 2013
Location: katy
Posts: 2
I use the anzo 4 inch HID spotlights on my roof rack and they're wonderful
Attached Thumbnails
Who has lights on top of their truck?-2013-06-25-14.55.25.png
Reply With Quote
