Icon5 06+ power mirror installed on 05 and older. Need help from those who have done it

I'm about ready to install and I wasn't sure if the plug was the same. I saw someone say theirs didn't match and I just wanted to see if that was the case for all of the 05 and older or if it was hit or miss?

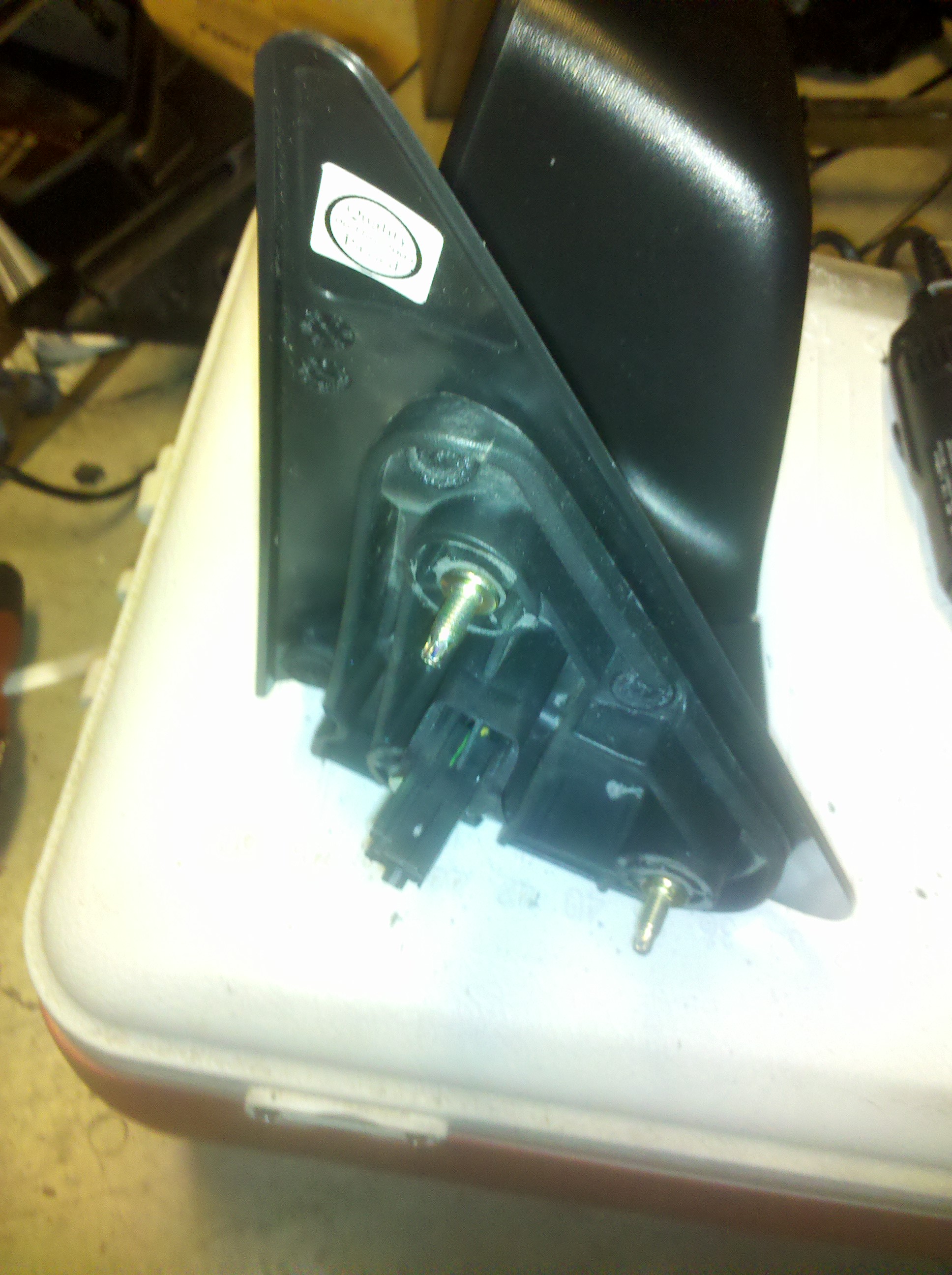

Edit: Here is a picture of mine modded like shane's write up.
Attached Thumbnails
06+ power mirror installed on 05 and older. Need help from those who have done it-img_20100907_230839.jpg

Last edited by Sonic04Edge; 09-08-2010 at 02:54 AM.
Reply With Quote
  #2
Old 09-08-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Reply With Quote
  #3
Old 09-08-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
x2 on thread above. I didn't now about it's existince til Trent posted it.

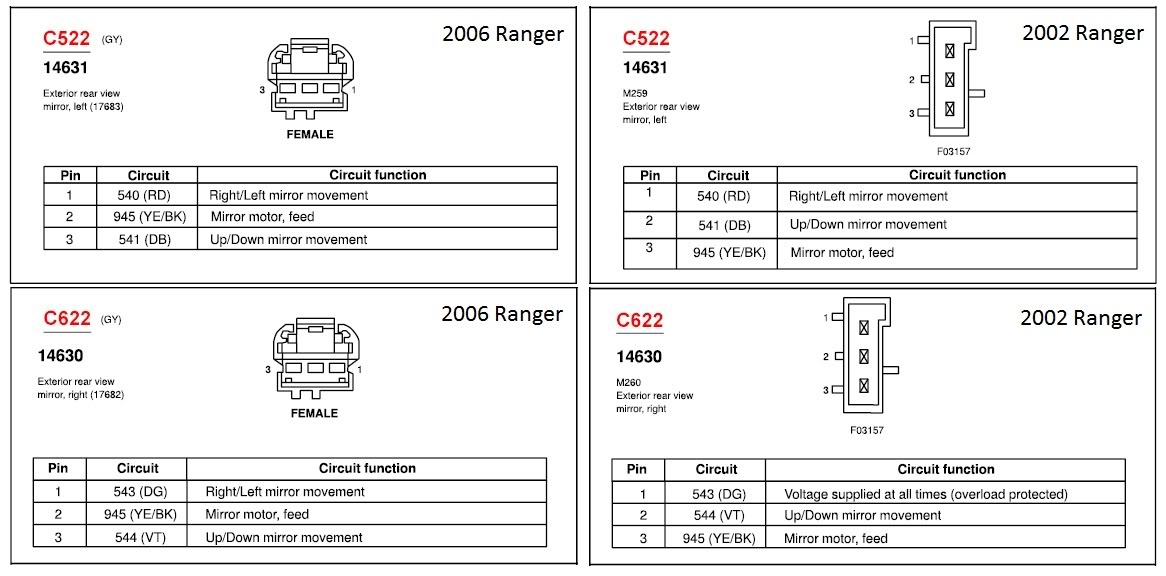

I made this pic the other day for another member.... comparing the plugs '02 to '06.
Name:  Mirrors_02_to_06.jpg
Views: 13
Size:  102.9 KB





I plan to have a mod edit my how-to to include the power portion. Mike, would you mind taking pics and giving a short description of what you had to do to make them work properly? I've got an idea in my head but I've no power truck. lol. Through PM is perfect.
Reply With Quote
  #4
Old 09-08-2010
Sonic04Edge's Avatar
RF Veteran

Thread Starter
iTrader: (6)

Join Date: Jun 2004
Location: Madison. AL
Posts: 5,715
Quote:
Originally Posted by Fx4wannabe01 View Post
x2 on thread above. I didn't now about it's existince til Trent posted it.



I made this pic the other day for another member.... comparing the plugs '02 to '06.






I plan to have a mod edit my how-to to include the power portion. Mike, would you mind taking pics and giving a short description of what you had to do to make them work properly? I've got an idea in my head but I've no power truck. lol. Through PM is perfect.
You know me shane I always take pictures LOL. Thanks for the diagram that will make wiring it up much easier lol.
Reply With Quote
  #5
Old 09-08-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Thanks Mike. Yeah...colors are probably different, but having the connector view and what each wire location does, well, you can totally finger it out. No holding hands needed. lol.
Reply With Quote
  #6
Old 09-08-2010
Sonic04Edge's Avatar
RF Veteran

Thread Starter
iTrader: (6)

Join Date: Jun 2004
Location: Madison. AL
Posts: 5,715
Quote:
Originally Posted by Fx4wannabe01 View Post
Thanks Mike. Yeah...colors are probably different, but having the connector view and what each wire location does, well, you can totally finger it out. No holding hands needed. lol.
lol no problem shane, btw i added a picture of my 06's modded.
