2001 Ranger fuel pump pinout?
Thread Starter
|
Member
Joined: Sep 2011
Posts: 724
Likes: 7
From: NOVA
2001 Ranger fuel pump pinout?
Just removed my old fuel pump. It's too dark now to put in the new one but I wanted to test out the old pump but wasn't sure of the pinout. IE: I just want to take 12v and touch the pin/ground to see if it makes any noise.
I found a pinout but it was for the 4 pin flat type of connector. My fuel pump connector is 4 pin but round. Two pins on each side.
Would anyone know of the pinout for a 2001 fuel pump?

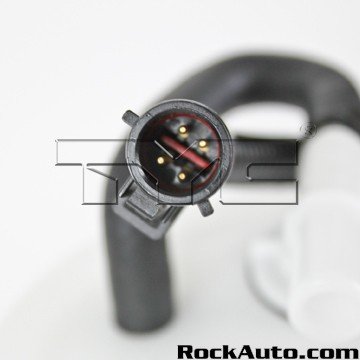

Looks like this:
-Nigel
I found a pinout but it was for the 4 pin flat type of connector. My fuel pump connector is 4 pin but round. Two pins on each side.
Would anyone know of the pinout for a 2001 fuel pump?
Looks like this:
-Nigel
