3rd Brake Light

Will a "F250 F350 3rd Third Brake Light Lamp SuperDuty 05-08 OEM" replacement third brake light fit on 2004 rangers? I know the wiring is different because of the cargo light, but other than that it should fit right?

F250 F350 3rd Third Brake Light Lamp SuperDuty 05-08 OE : eBay Motors (item 200428162110 end time Mar-15-10 08:16:25 PDT)

Just want to make sure before I bid on it. From searching I found that some of them do, but just want to make sure this specific one does, I didn't find a "this fits this" all bundled into one source.
Reply With Quote
  #2
Old 03-03-2010
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Yep it will fit. To get the cargo lights working all you need to do is run a wire from your dome light to the wire that goes to the cargo lights.
Reply With Quote
  #3
Old 03-03-2010
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
It's hard to tell if that's the rare one.... I wish those pics were better. But yes, the superduty ones will work. I'm running one and so are several members on here. I used to sell them.
Reply With Quote
  #4
Old 03-03-2010
RLong31's Avatar
The Ban Hammer
Thread Starter
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
Sweet, thank you. Apparently the guy has 10 available, and the cheapest I've seen around, so if anybody else needs, snag em up.
I just can't justify spending the 90-100 bucks on the LED smoke one yet
Reply With Quote
  #5
Old 03-03-2010
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
I'm just curious. Why do people want the super duty light? What makes it so special?
Reply With Quote
  #6
Old 03-03-2010
RLong31's Avatar
The Ban Hammer
Thread Starter
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
Quote:
Originally Posted by TrePaul86 View Post
It's hard to tell if that's the rare one.... I wish those pics were better. But yes, the superduty ones will work. I'm running one and so are several members on here. I used to sell them.
What would make it rare? They do something different on some?
Reply With Quote
  #7
Old 03-03-2010
RLong31's Avatar
The Ban Hammer
Thread Starter
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
Quote:
Originally Posted by robert99ranger View Post
I'm just curious. Why do people want the super duty light? What makes it so special?
Well, I just want something with a cargo light. I looked at one from a Mazda, and it looked old and faded... eww. This one looks new and clean.
Reply With Quote
  #8
Old 03-03-2010
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Oh ok
Reply With Quote
  #9
Old 03-03-2010
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Quote:
Originally Posted by RLong31 View Post
What would make it rare? They do something different on some?
The rare ones have almost a clear hazy look over the brake light part. If you want a pic of what I'm talking about, I can try and dig it up. It has the exact same part numbers as the regular ones, but it's different.

I was selling them for like $40 or $50... They're just rare seeing as how Ford can't even find the difference using a parts search.
Reply With Quote
  #10
Old 03-03-2010
RLong31's Avatar
The Ban Hammer
Thread Starter
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
Ah I see... well, I don't. If you can find that pic, I'll be able to see, haha. I'll probly pick this one up cuz it's cheap. The ugly mazda one was 37 shipped, this looks better and is 23 shipped.
Reply With Quote
  #11
Old 03-03-2010
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Reply With Quote
  #12
Old 03-03-2010
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Here's a close up:

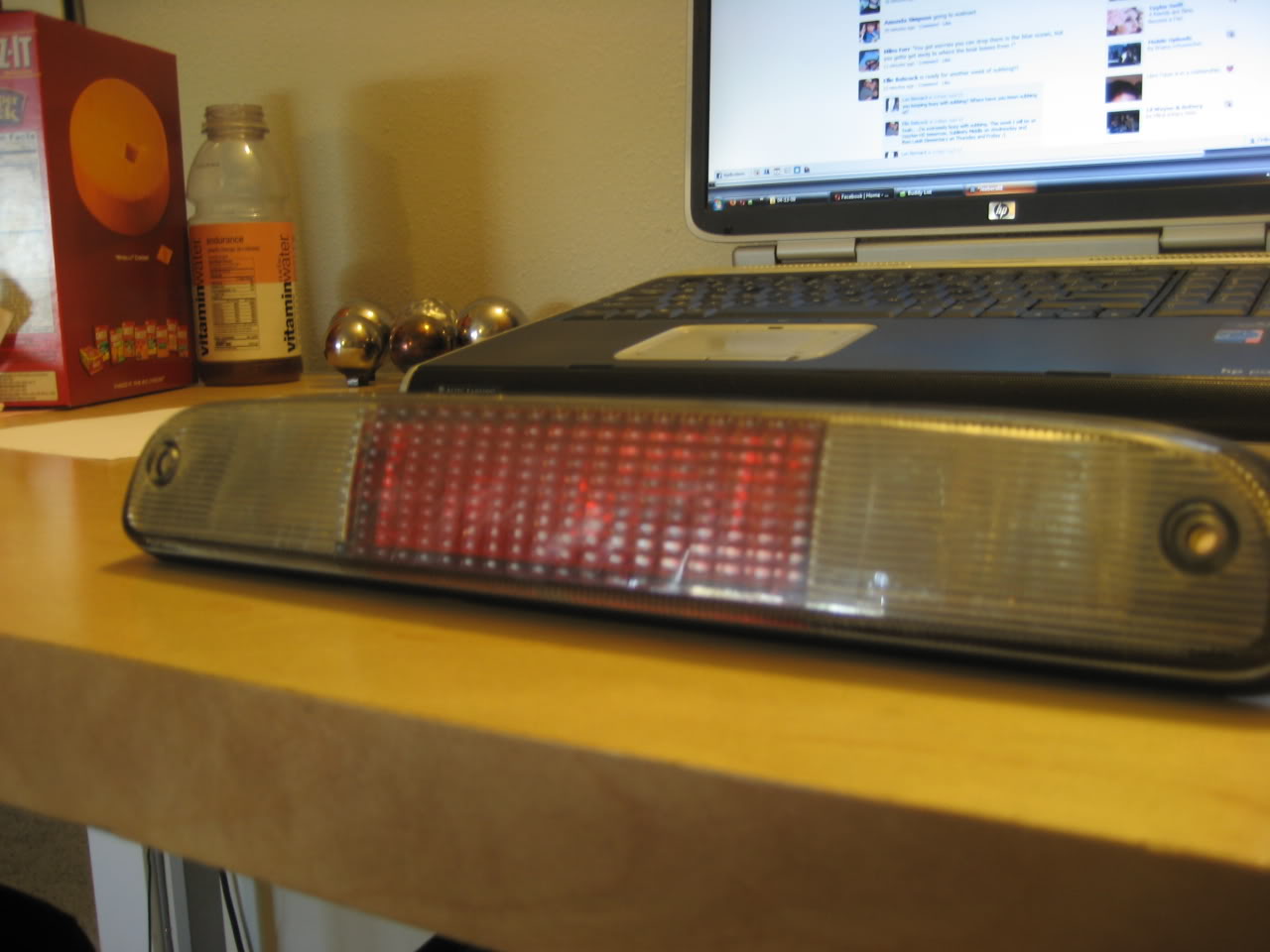

Name:  IMG_0190.jpg
Views: 39
Size:  97.6 KB

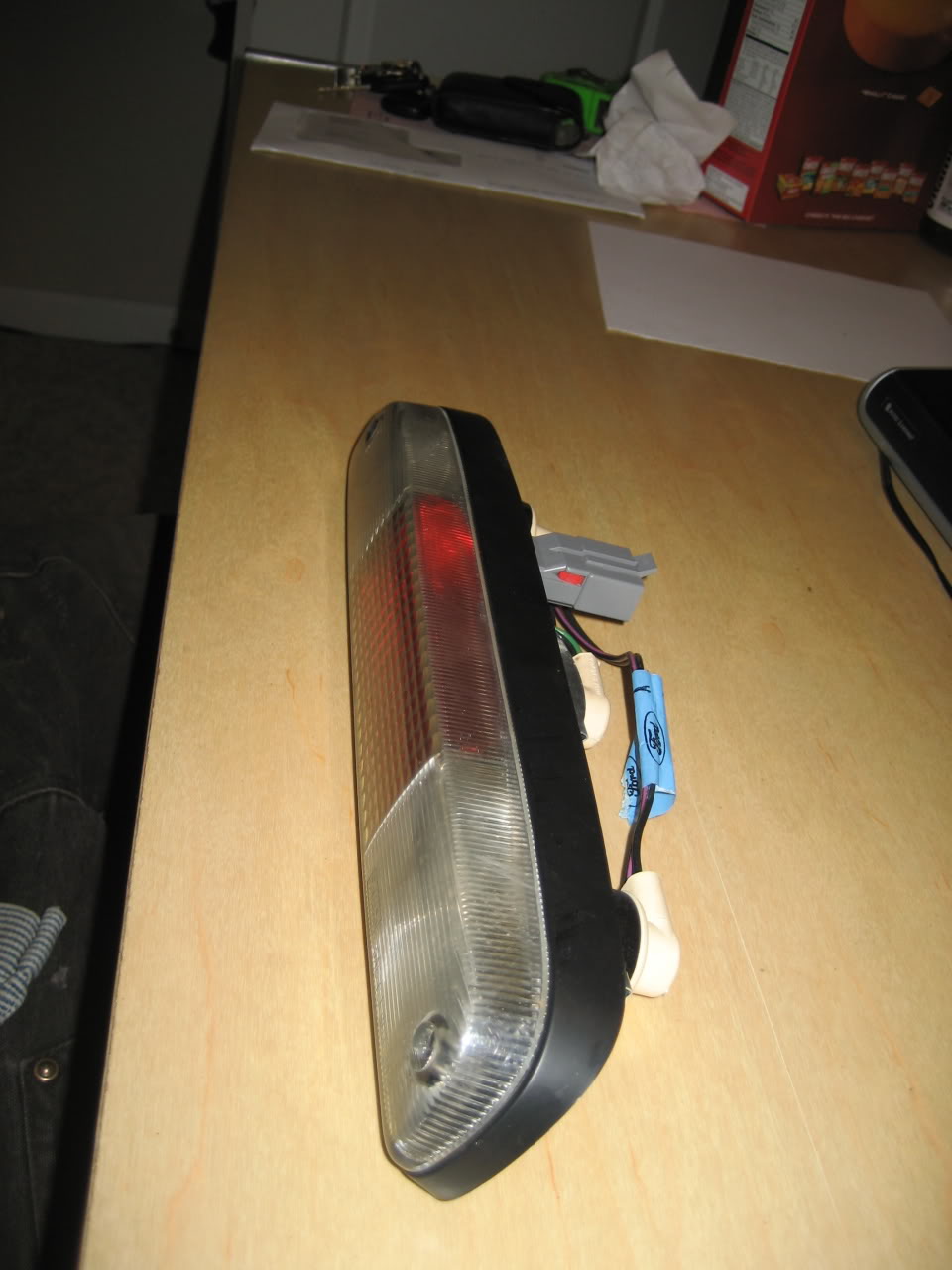

Name:  IMG_0183.jpg
Views: 38
Size:  103.2 KB

You can see the "clear haze" I'm talking about in this pic... Lemme find my comparison shot.
Reply With Quote
  #13
Old 03-03-2010
RLong31's Avatar
The Ban Hammer
Thread Starter
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
Quote:
Originally Posted by RangerNDog View Post
Not exactly sure, but that looks like the whole thing shines bright white when cargo lights are on, and then lights up red in the middle for brake. That's actually kinda sweet if that's how it works.
Reply With Quote
  #14
Old 03-03-2010
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
AH HA! Found em!

Here's a better pic of what I'm talking about:

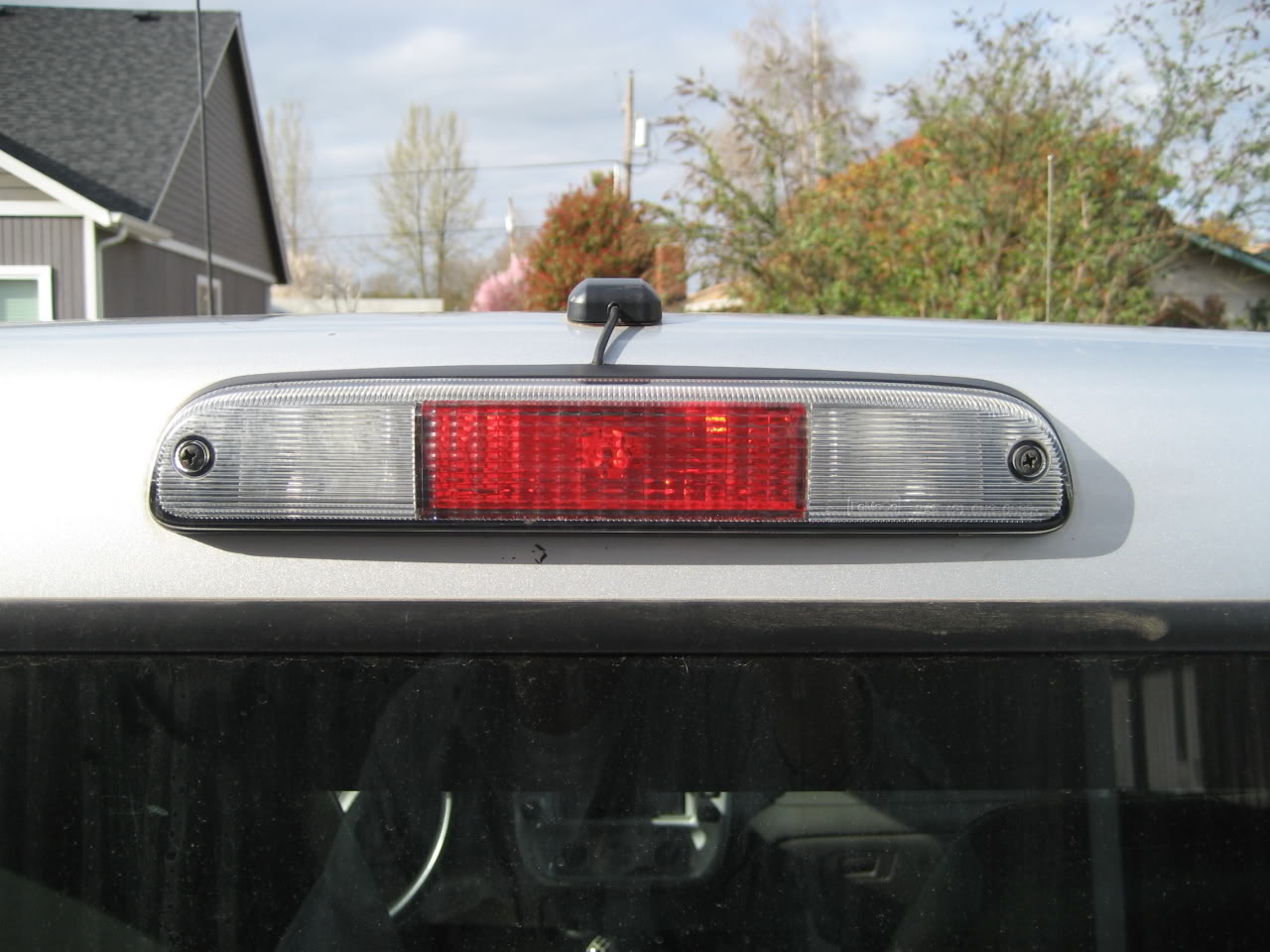

Name:  IMG_0101.jpg
Views: 37
Size:  145.6 KB

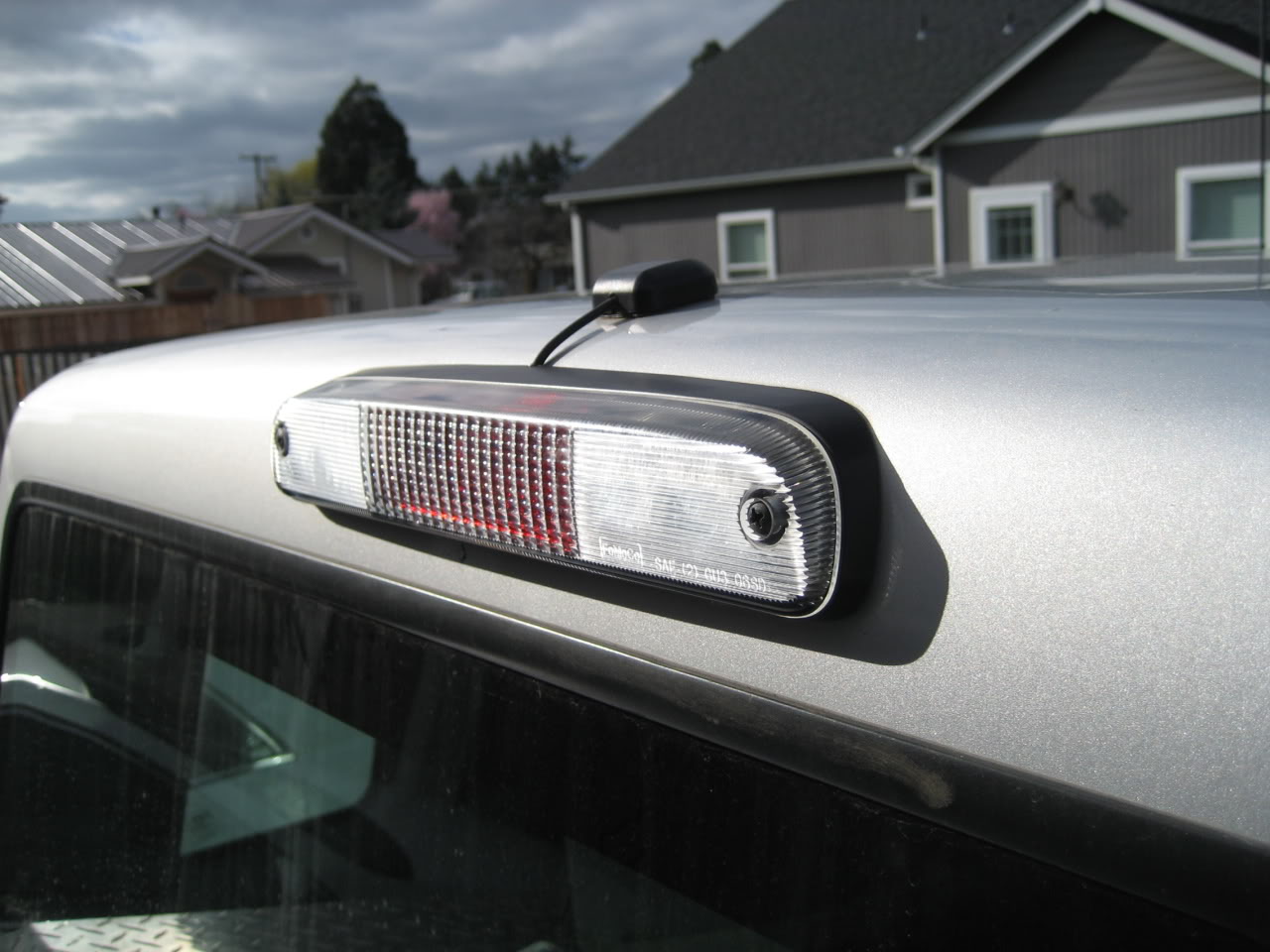

Name:  IMG_0102.jpg
Views: 43
Size:  141.4 KB

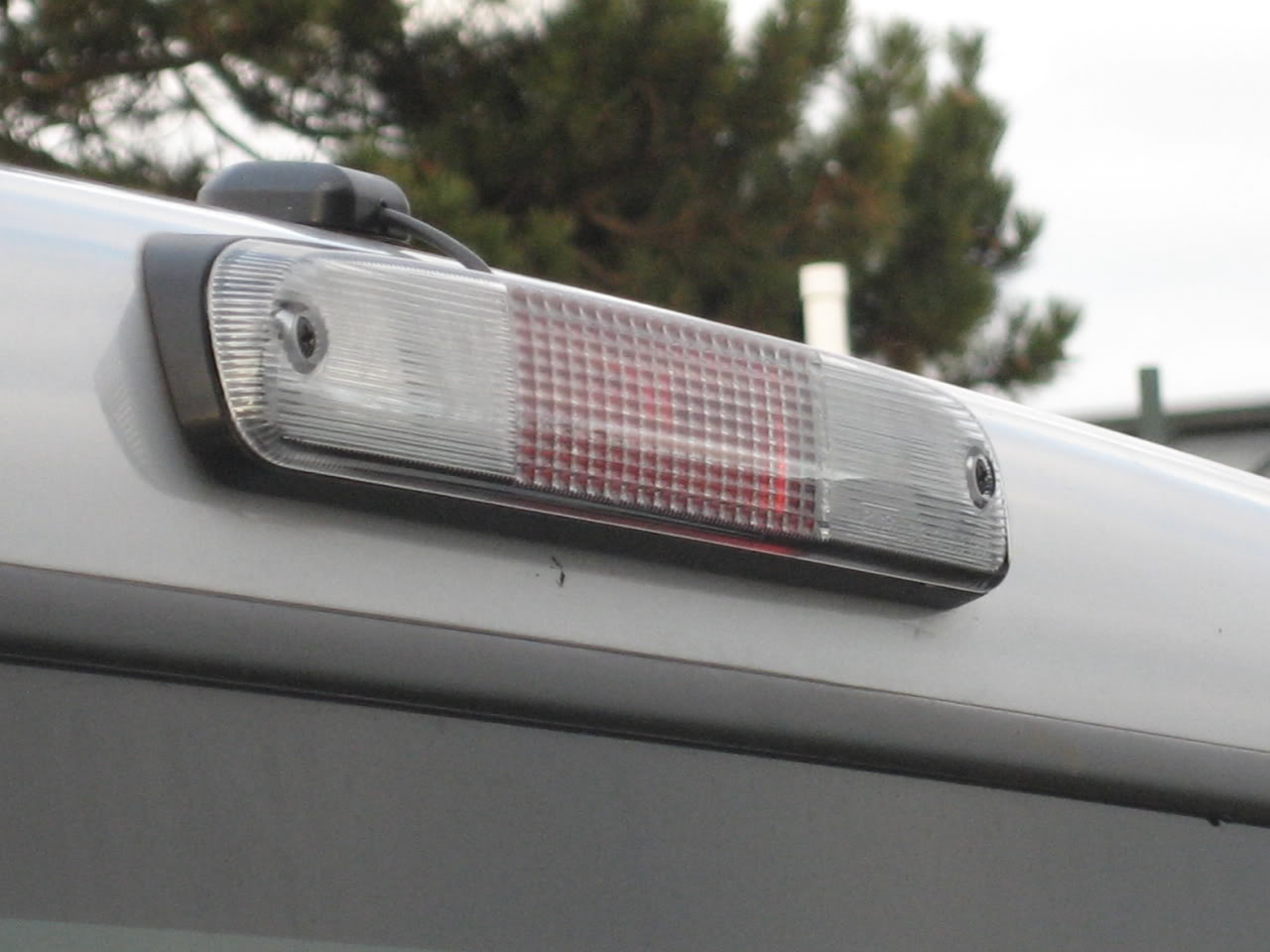

Name:  IMG_0105.jpg
Views: 37
Size:  104.6 KB

And the comparison shot to prove it all:



Name:  IMG_0104.jpg
Views: 38
Size:  156.3 KB
Reply With Quote
  #15
Old 03-03-2010
RLong31's Avatar
The Ban Hammer
Thread Starter
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
Ahh... I see now. Thanks for digging it up. Hmm, not sure if that one is the hazy one, you're right, the picture isn't all that great to see one way or another.
Reply With Quote
  #16
Old 03-03-2010
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Quote:
Originally Posted by RLong31 View Post
Not exactly sure, but that looks like the whole thing shines bright white when cargo lights are on, and then lights up red in the middle for brake. That's actually kinda sweet if that's how it works.
Im not sure what you mean about shinning bright white. It works just like the stock 3rd brake light. Its clear and when you hit the brakes the leds light up red and you just use the stock cargo lights.
Reply With Quote
  #17
Old 03-03-2010
RLong31's Avatar
The Ban Hammer
Thread Starter
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
The way they have the picture flashing kind of makes it look like the red part lights up white when the cargo lights light up.
Reply With Quote
  #18
Old 03-25-2010
Member

Join Date: Sep 2009
Location: San Diego, CA
Posts: 74
does anyone on here still sell the hazy type of 3rd brake light?
Reply With Quote
  #19
Old 03-25-2010
StrangerRanger's Avatar
Member

Join Date: Jan 2009
Location: The 253
Posts: 756
Rangers came without cargo lights?

Whaaaaat?
Reply With Quote
  #20
Old 03-25-2010
Member

Join Date: Sep 2009
Location: San Diego, CA
Posts: 74
Lol, well my ranger edge didnt come with them. I've got the pink wire in the harness behind the brake light so I'm pre wired for it but didn't actually get the lamp >.<
Reply With Quote
  #21
Old 03-25-2010
Member

Join Date: Sep 2009
Location: San Diego, CA
Posts: 74
Wonder why they did that on the edges? Wire the truck for it but then back off on the actual light. Maybe they thought the solid red looked more sporty...
Reply With Quote
  #22
Old 03-25-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
up to '03, only XLT's got cargo lamps. All others(XL, Edge) got the plain jane red one. But it's easily swappable. It's totally plug and play...just make sure you get the 3 bulb harness with your third.

ALL 04+ got all red's. It's missing the constant power wire up there and it's also missing map lights on the dome lights. I call this the cheapification of the Ranger. lol.




Here's another comparison between the up to 03 Ranger/up to 05 Sport Trac/up to 05 Super Duty third VERSUS 06+ Super Duty...

The 'iced' look provides ALOT brighter third brake light. It's ALOT more brilliant. Even more brilliant than the brake lights on the tails. And for the record, LED aftermarket thirds all look ricer to me.

Name:  P4120038.jpg
Views: 134
Size:  81.2 KB
Reply With Quote
  #23
Old 03-25-2010
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Quote:
Originally Posted by TrePaul86 View Post
The rare ones have almost a clear hazy look over the brake light part. If you want a pic of what I'm talking about, I can try and dig it up. It has the exact same part numbers as the regular ones, but it's different.

I was selling them for like $40 or $50... They're just rare seeing as how Ford can't even find the difference using a parts search.
maybe it's just a manufacturing screwup or a shotty batch. i wouldn't want that hazy one. it looks old.
Reply With Quote
  #24
Old 03-25-2010
--weezl--'s Avatar
Member
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
this gives me ideas for making my own... :D
Reply With Quote
  #25
Old 03-26-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
"Haze" is totally the wrong word to describe it. I call it "ice". It's the same style lense you see on 04+ F150s....the red part looks like it's covered in ice. Not opaque red like stock rangers. The comparisons do the talking and show the differences. I've seen side by side comparos in person between the two and the 06+ SD blows the ranger/trac/older SD out of the water.


The reason for the rarity: ONLY 06+ Super Duty's have them. It is not available new from ford because the part numbers actually on the 06+ SD's lead you right back to same one found on Rangers/old SD's/sport tracs. I've tried to order one new from Ford for 2 years and even did some hardcore parts catalog/interchanges/part numbers digging and it always comes up with the same one found on rangers.
