Hey John I am about to install my trans temp in the hole you did my question is how fast does the fluid come out when you remove that bolt? lol Trying to think how much tranny fluid I will need.
Reply With Quote
  #52
Old 03-23-2007
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
I don't think I had but a trickle when I opened it. It's above the resting fluid level, so it's just some backflow from the piping. It's not bad.

Uhhh...don't take it out when the engines running though...
Reply With Quote
  #53
Old 03-23-2007
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
Dang so I guess installing it while drivings out of the question!! lol I have the Auto Meter NV series gauges been sitting around since July figured I would do it tonight!
Reply With Quote
  #54
Old 03-23-2007
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
Alright off to the auto store to get the fitting for the oil presure guage! Hey stay on here all night so if I need help your only a few keys away!!! lol j/j thanks for the great thread that tells me how to do stuff!
Reply With Quote
  #55
Old 03-23-2007
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Pull over somewhere and turn off the engine. It'll take about 30 seconds...
Reply With Quote
  #56
Old 03-23-2007
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
I am stupid I forgot a while back I already got the fittings when I got to my brothers work he called me an idiot! lol
Reply With Quote
  #57
Old 03-24-2007
sniper_101's Avatar
Member

Join Date: Jul 2005
Location: Sask, Canada
Posts: 1,902
Anyone have pics of the Trans Temp sender in the cooler line? Which line (input/output) should I tap into?

I'm putting my Oil Pressure sender in tomorrow and want to put the sender in for my Trans Temp. with a "T" in the cooler line.
Reply With Quote
  #58
Old 03-24-2007
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
Do you have a trans cooler? If so I would put it in before the cooler cause then you know what the trans temp is.
Reply With Quote
  #59
Old 03-24-2007
sniper_101's Avatar
Member

Join Date: Jul 2005
Location: Sask, Canada
Posts: 1,902
Yep, my trans lines go through the rad and the cooler. Anyone happen to have pics of their trans temp sender in the cooler line? Thanks guys!
Reply With Quote
  #60
Old 03-24-2007
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
Have you thought about putting it in the transmission itself? I bought a T thing to do it in the line but the tranny has the bolt on the side(dont know about 94's) a picture is posted elsewhere in this thread it was so easy remove the bolt put in sender. Just a thought
Reply With Quote
  #61
Old 03-24-2007
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
A4LD's are supposed to have the same port in them. He should have it too I do believe.
Reply With Quote
  #62
Old 03-24-2007
PotterFX4's Avatar
Member

Join Date: May 2005
Location: Parma, OH
Posts: 296
Do you have a picture of where you "stole" power from?
Reply With Quote
  #63
Old 03-24-2007
sniper_101's Avatar
Member

Join Date: Jul 2005
Location: Sask, Canada
Posts: 1,902
Well . . . I tried putting my Trans Temp sender in one of the two plugs which apparently eliminated my 2nd gear. I put the 3" long plug back in and 2nd gear is back, I have not tried the other because I'll just tap into my cooler line.

Name:  HPIM2546.jpg
Views: 2
Size:  45.7 KB

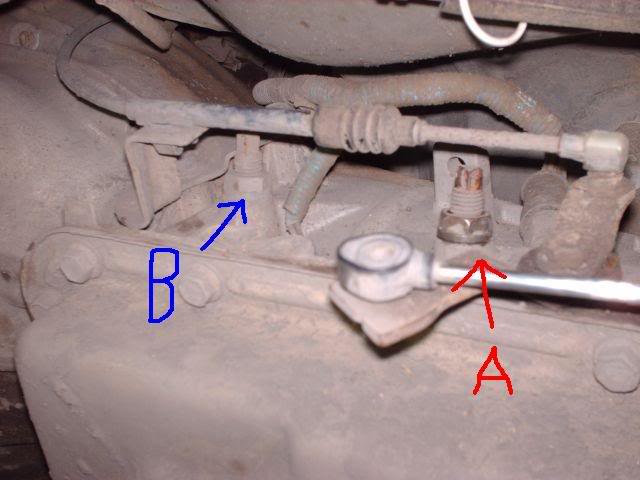

A = where sender was, when sender in I do not get 2nd gear.
B = another plug, have not tried yet

Name:  HPIM2550.jpg
Views: 2
Size:  50.7 KB
C = 1/8" to 1/4" adapter
D = Trans Temp sender, 1/8" threading and only about an inch long.

Any other suggestions? I'm about ready to go buy a "T" to read into the cooler lines.
Reply With Quote
  #64
Old 03-24-2007
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
That metal rod thats under the A follow that back to where it connects the bolt is after that.
Reply With Quote
  #65
Old 03-24-2007
sniper_101's Avatar
Member

Join Date: Jul 2005
Location: Sask, Canada
Posts: 1,902
Ohhh, I see, I got it now haha. I was wayyyy off, thanks for the help guys, this seems like the perfect place to mount one anyway!
Reply With Quote
  #66
Old 03-24-2007
sniper_101's Avatar
Member

Join Date: Jul 2005
Location: Sask, Canada
Posts: 1,902
Quote:
Originally Posted by n3elz
Well, they make the single pods if you can decide which you need more.

By the way, 5R44E and 5R55E's run pretty hot -- about 195 F on a hot day with hill climbing. Full synthetic transmission fluid to my mind is a MUST. I use Amsoil (what else, lol) but there are several out there that have less degradation at high temp.

Under lesser load I'm running at the more nomal 175 to 180 F. It's interesting to watch it and with the sensor actually in the transmission it's a pretty good indication.
Does it sound right that my A4LD runs and stays at just over 150*F? I love having them actually hooked up I'm gonna kill someone watching these things haha
Reply With Quote
  #67
Old 03-24-2007
jrpro130's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2005
Location: Florida
Posts: 5,057
Quote:
Originally Posted by Ranger_Danger
Does it sound right that my A4LD runs and stays at just over 150*F? I love having them actually hooked up I'm gonna kill someone watching these things haha
I'm at 150 all day.

Unless I downshift and keep it at 4krpms or above, it stays around 135-150. I don't have synthetic fluid, nor do I have much as far as engine mods go.

Pretty much stock temp.

When I'm ofrroading 165 is the norm...I hit 180 when I spin a lot and if I'm really really stuck trying to get out.
Reply With Quote
  #68
Old 03-24-2007
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
I still dont have mine hooked up I am trying to figure out what to attach the wires too
Reply With Quote
  #69
Old 03-24-2007
Nate97Ranger's Avatar
Member

Join Date: Aug 2005
Location: Fort Bragg, NC 82nd AB
Posts: 420
Lol im just going to pay a shop for my water/tran temp gauges and oil pressure gauges, I tried and it was to complicated for me :)
Reply With Quote
  #70
Old 03-25-2007
Member

Join Date: Jan 2006
Location: Richmond, Va
Posts: 295
Quote:
Originally Posted by Ranger_Danger
Well . . . I tried putting my Trans Temp sender in one of the two plugs which apparently eliminated my 2nd gear. I put the 3" long plug back in and 2nd gear is back, I have not tried the other because I'll just tap into my cooler line.


A = where sender was, when sender in I do not get 2nd gear.
B = another plug, have not tried yet


C = 1/8" to 1/4" adapter
D = Trans Temp sender, 1/8" threading and only about an inch long.

Any other suggestions? I'm about ready to go buy a "T" to read into the cooler lines.
Those are your band adjustments for your tranny. I'm not a tranny guy, but if you messed with those you probably need to have your tranny checked & adjusted. The port you're looking for is closer toward the tail shaft, just past the shift linkage.




Last edited by tekrsq; 03-25-2007 at 07:30 AM.
Reply With Quote
  #71
Old 03-25-2007
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
Alright I got mine wired up today. I think I hooked up the hot wire to the wrong red/yellow one cause it only comes on if I turn on my headlights and stays on if I turn them off.
Reply With Quote
  #72
Old 03-25-2007
Needforspeed3685's Avatar
Member

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
I don't know how your transmission is working properly, with all of that build-up of mud!!!

The gauges look great!
Reply With Quote
  #73
Old 04-07-2007
RRF901's Avatar
Member

Join Date: Dec 2006
Location: Memphis,TN/Huntsville,AL
Posts: 42
John, I have some questions about your oil gauge install. What type of lines did you run from the gauge to the sending unit? The lines supplied with the kit are nylon..I don't feel real comfortable using those. Did you use braided stainless steel lines? Also, How did you connect the lines to the top of the analog sending unit? It seems like it should be simple, but this has me confused...
Reply With Quote
  #74
Old 04-07-2007
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Quote:
Originally Posted by Ranger_Danger
Well . . . I tried putting my Trans Temp sender in one of the two plugs which apparently eliminated my 2nd gear. I put the 3" long plug back in and 2nd gear is back, I have not tried the other because I'll just tap into my cooler line.


A = where sender was, when sender in I do not get 2nd gear.
B = another plug, have not tried yet


C = 1/8" to 1/4" adapter
D = Trans Temp sender, 1/8" threading and only about an inch long.

Any other suggestions? I'm about ready to go buy a "T" to read into the cooler lines.
Dude, you should NOT have removed that! It's the band adjuster for the 2nd gear band. That is NOT where I showed to put it.

When replaced, it has to be put at a very specific torque to make the transmisstion work right. That nut around it is the locknut to keep the adjuster from moving.
Reply With Quote
  #75
Old 04-07-2007
n3elz's Avatar
RF Veteran
Thread Starter

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Quote:
Originally Posted by RRF901
John, I have some questions about your oil gauge install. What type of lines did you run from the gauge to the sending unit? The lines supplied with the kit are nylon..I don't feel real comfortable using those. Did you use braided stainless steel lines? Also, How did you connect the lines to the top of the analog sending unit? It seems like it should be simple, but this has me confused...
Sounds like you have a "mechanical" gauge. That type routes the actual oil up to the gauge and actuates it with the hydraulic pressure of the oil. There's no "sender" on those really -- just an adaptor to allow connection of the plastic "impulse" line to the gauge.

I used an electrical gauge that has a pressure sensor that sends it's signal back to the gauge electrically. I don't like mechanical oil pressure gauges because if it ever comes apart in the truck -- it's a mess!!!
Reply With Quote
