Airbag 2-7 code fixed butttt........

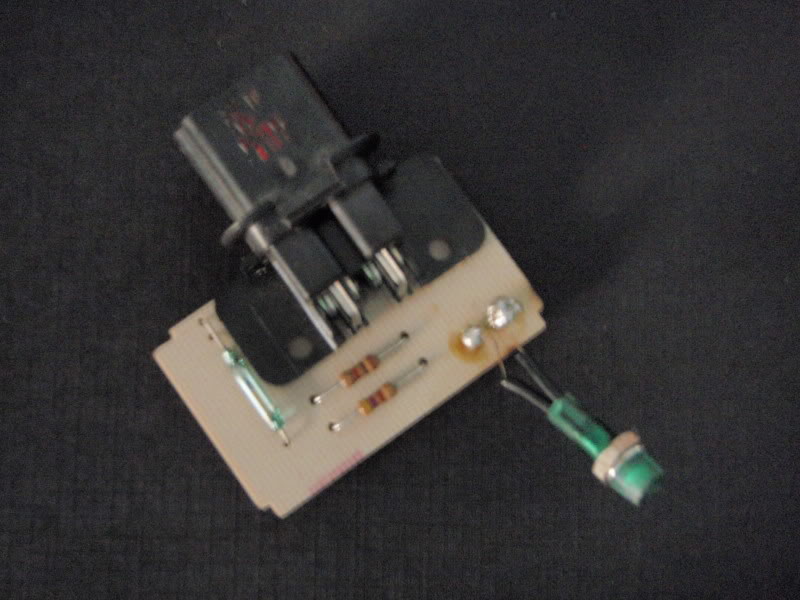

so i changed out the light.. easy enough.
Name:  035.jpg
Views: 91
Size:  74.2 KB

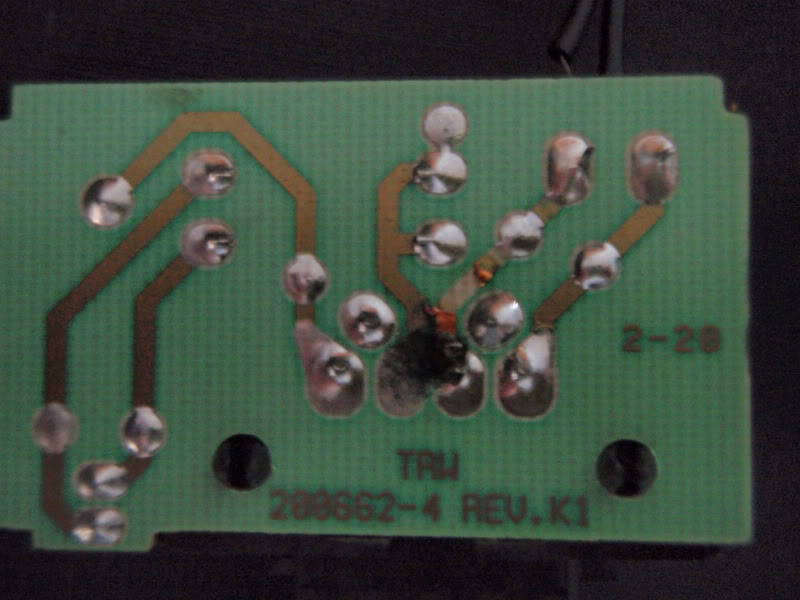

but then after put it back in i was still getting the flash code.. upon further inspection (and turning the damn thing over) i saw this
Name:  036-1.jpg
Views: 92
Size:  66.1 KB
notice the gold "ribbon" is split. same problem as the OHC post i just made lol. any ideas?
Reply With Quote
  #2
Old 12-08-2008
Member

Join Date: Jun 2005
Location: Havertown,PA
Posts: 467
try putting some solder in the burnt part to make the connection.take your time and make sure iron is nice and hot before you start.
Reply With Quote
  #3
Old 12-08-2008
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
tru.. ill give it a shot
Reply With Quote
  #4
Old 12-09-2008
Member

Join Date: Mar 2007
Location: Upstate,NY
Posts: 2,598
Looking at the top pic I can see where the problem is.
You left the leads exposed too much on the lamp and they shorted together.
The black tubing needs to cover the leads almost all the way to the board or when you mount it , the lamp will twist and short them again.
