Buggman Fender Badge LED Install!!!!

So I got my kit from buggman the other day for the fender badge led.(https://www.ranger-forums.com/interior-exterior-electrical-misc-119/buggmans-06-fender-badge-led-plate-mod-ky-129683/) Finally got around to installing it tonight and take some pictures and videos. I guess this can be maybe a how-to/review. First off this is a great kit very well built. Terry has pretty detailed instructions that he ships out with his kit which explains everything. Some pictures.

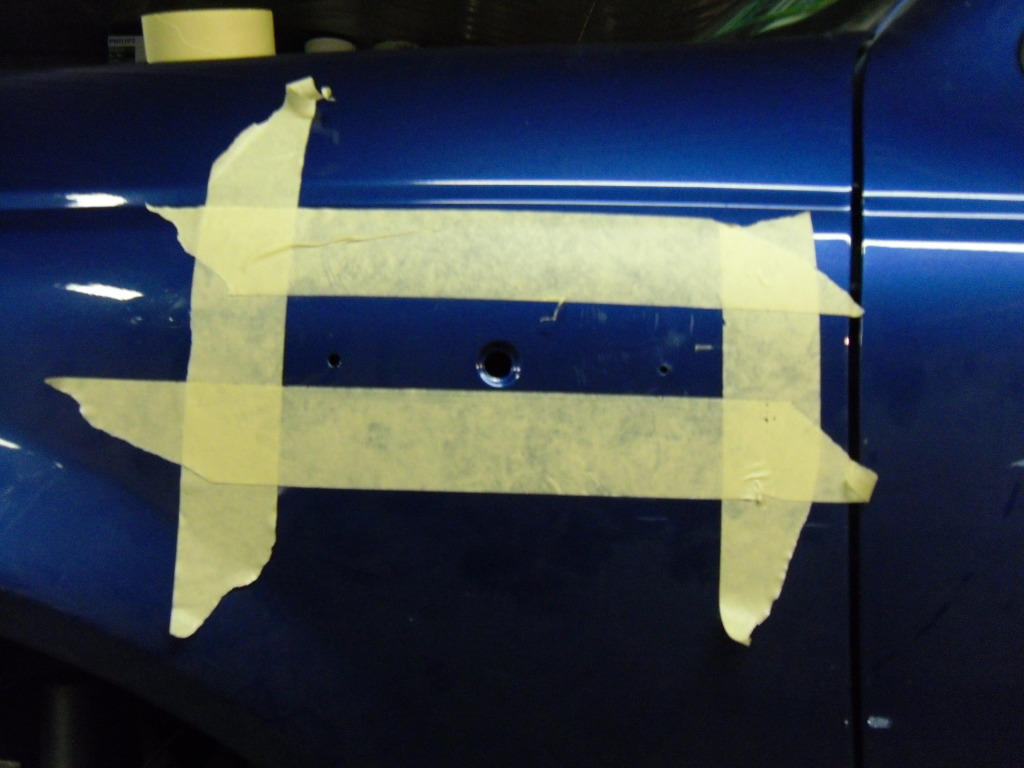

Badge removed ready to get started. Make sure to tape around badge before removal. This not only protects the paint but also helps when reinstalling your badge. I used a large putty knife and a heat gun to remove the badge.


Your 06+ badge removed from the truck

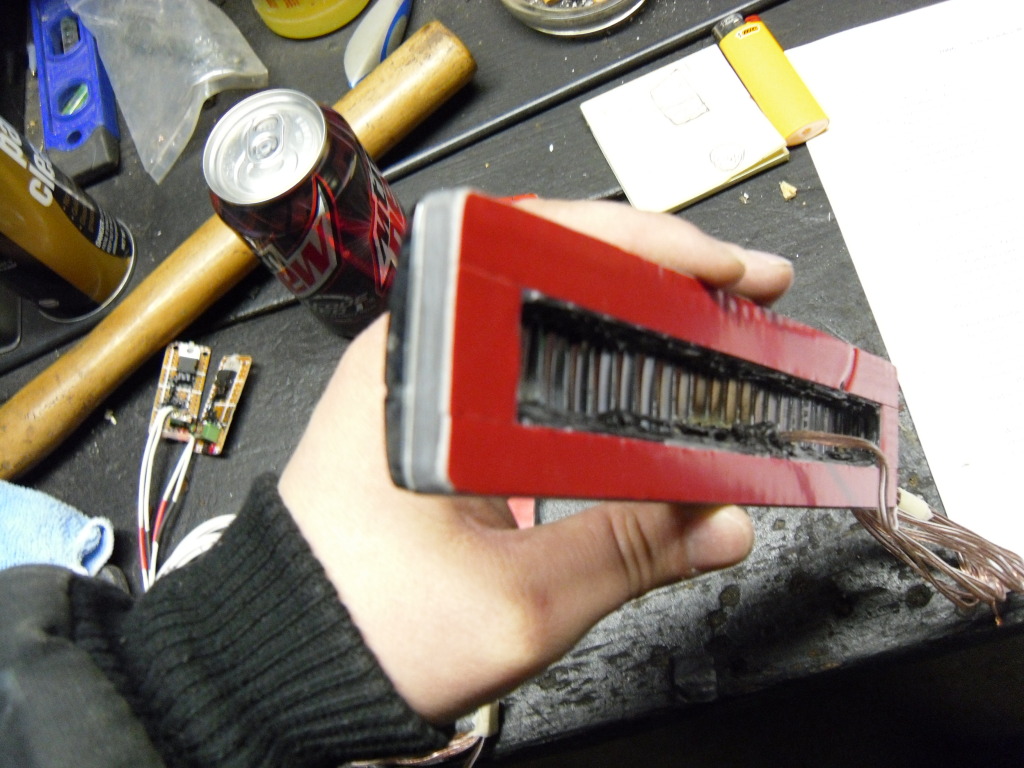

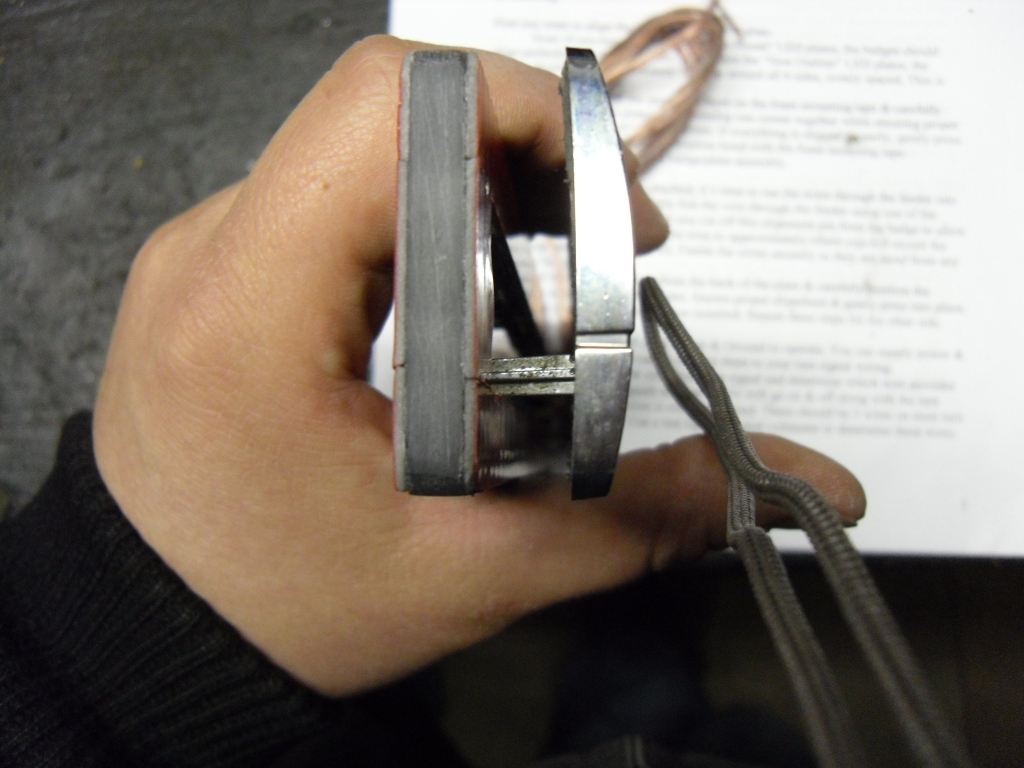

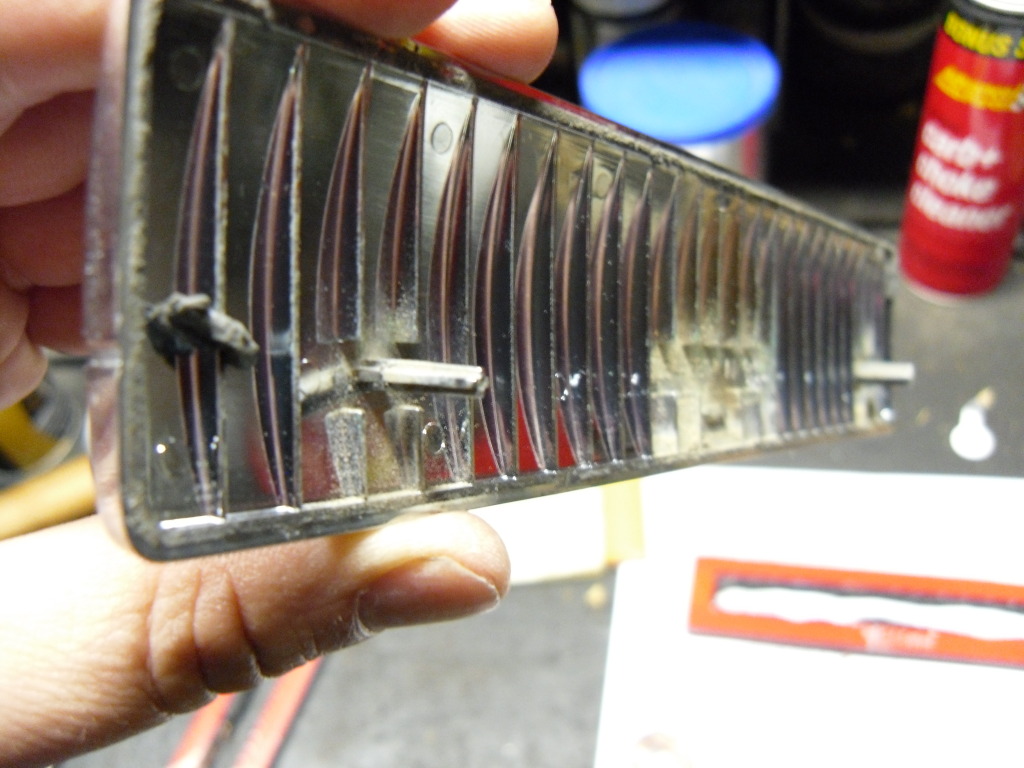

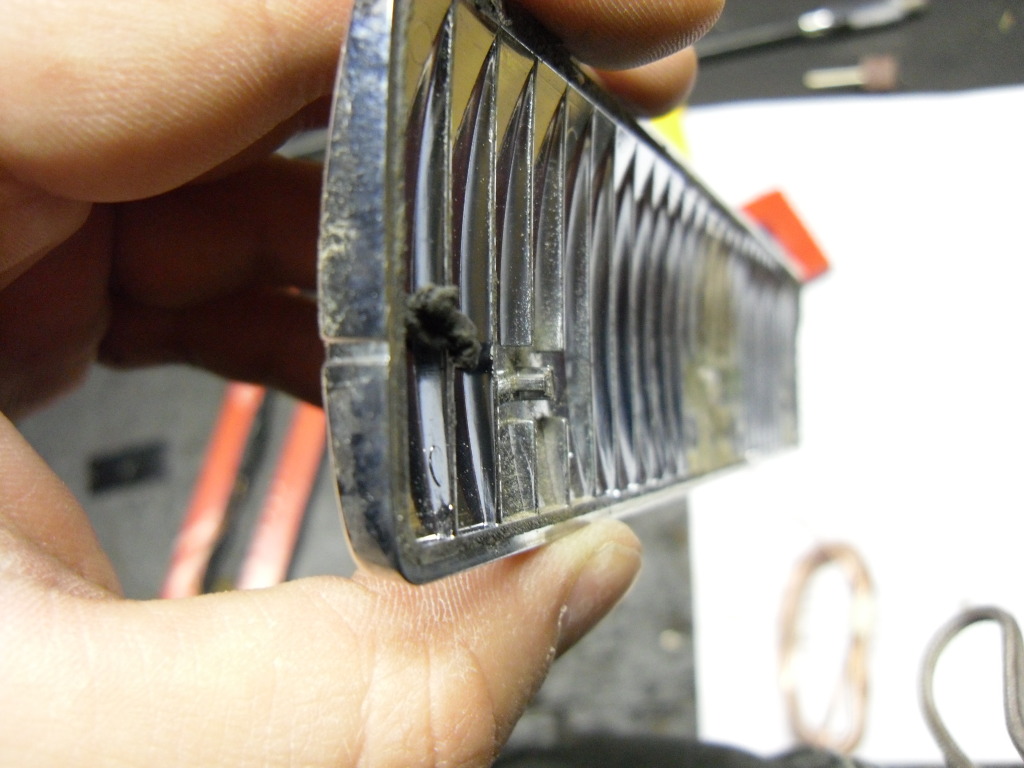

So the first thing you will notice when you have your badge off is that buggman plate doesnt line up with your alignment pins on the badge.


Out comes the Dremel to fix this situation.


Now led plate fits flush.


Following buggmans write up I wired up to my mirror turn signals that I installed last year.
My take on Turn Signal Mirrors

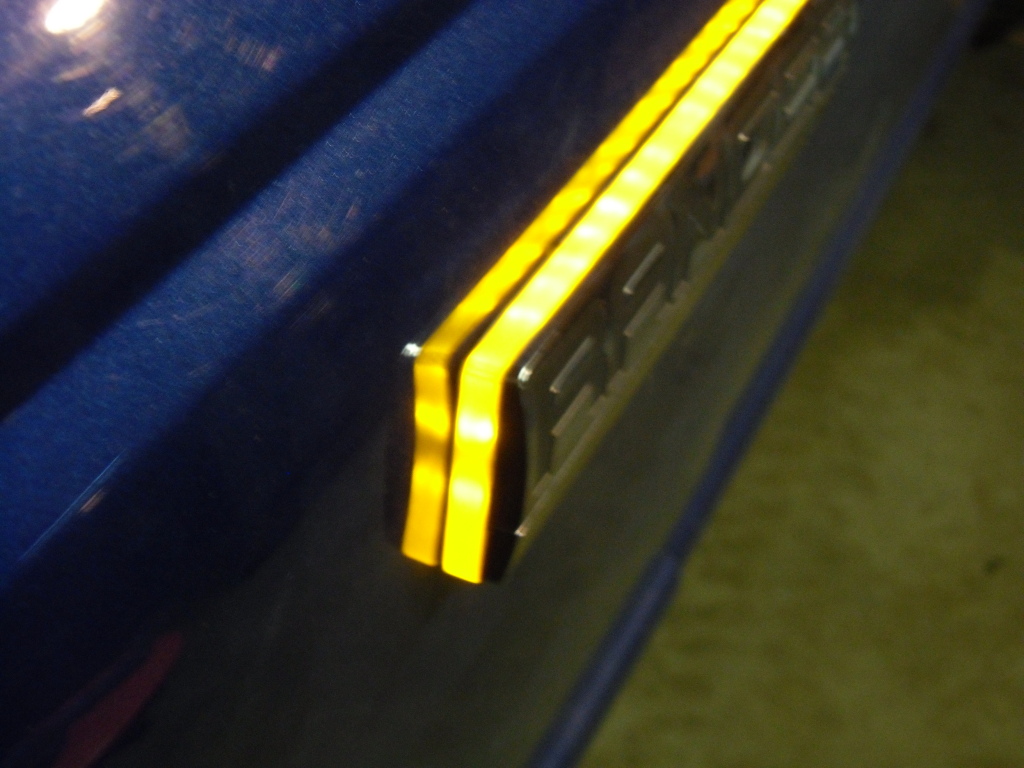

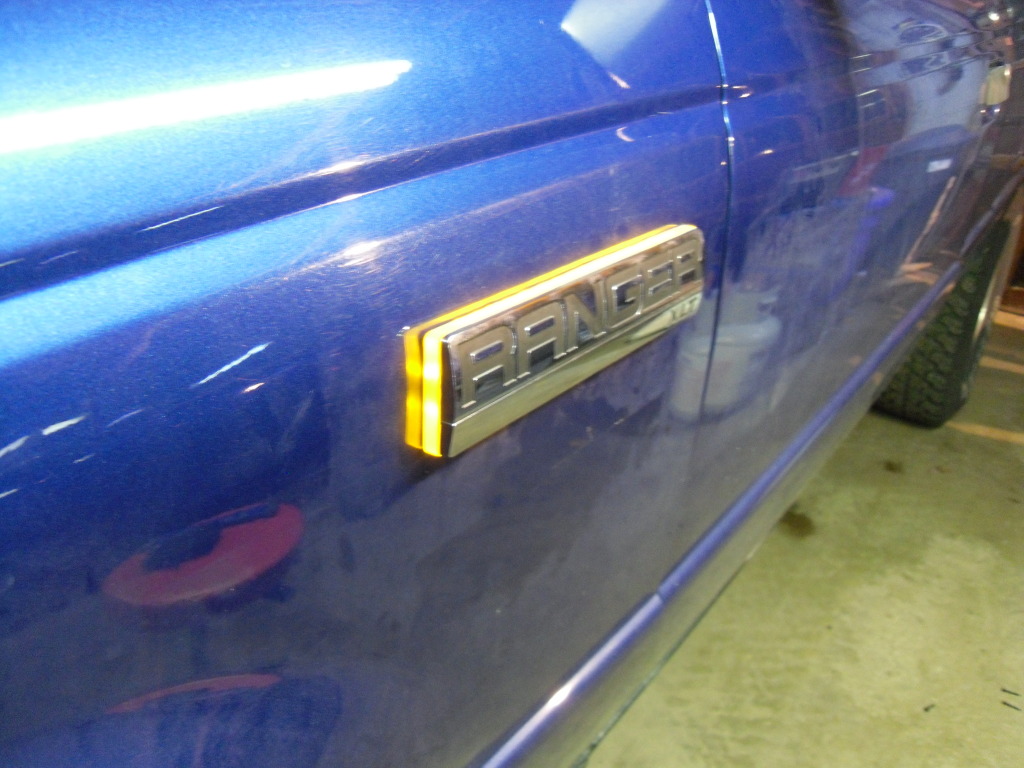

All mounted up and on



Here you will see my only concern that I had when I received the kit. The fender is a bit contoured and the led plate is flat. So it doesnt sit completely flush to the fender.

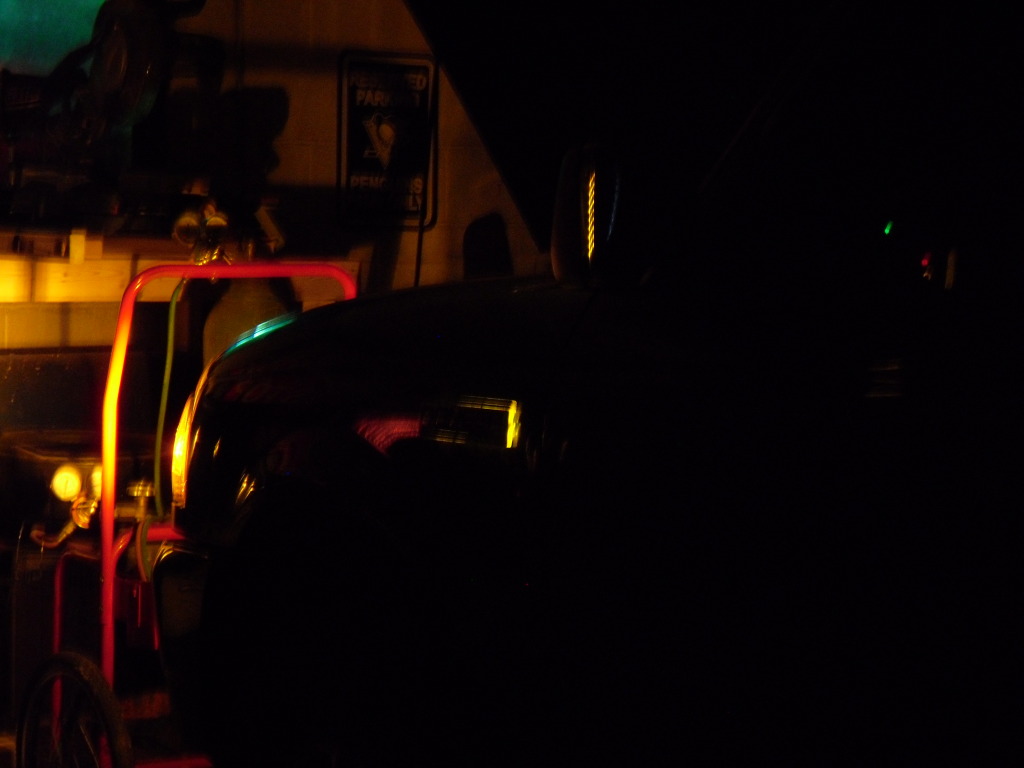

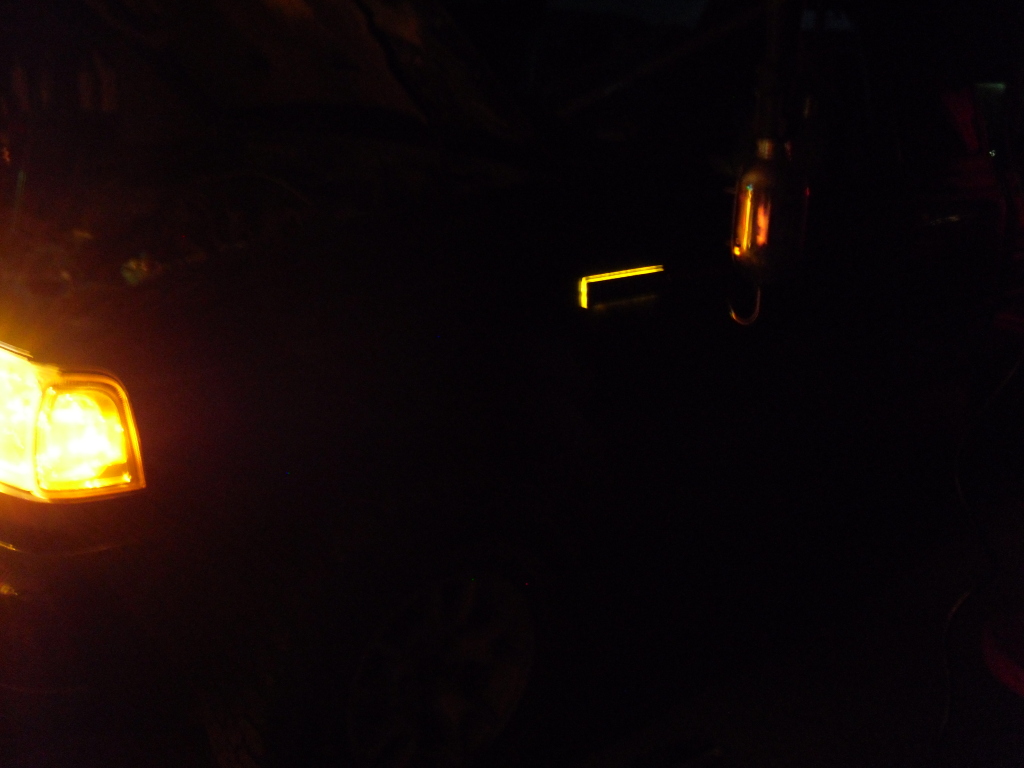

Dark pictures!



and some videos too!




Final Review.

All and all im happy with my purchase. One thing I would do different however, I would get the 2.0 version instead of the flush mount. Looking straight on to the flush mounts you can barely see the badges light up. These really shine when you are off at an angle. The yellow is actually a really close match to the amber the pictures dont do that justice. I wouldnt hesitate with purchasing anything from buggman. Every interaction I have had with him has been a great experience.
Attached Thumbnails
Buggman Fender Badge LED Install!!!!-sam_0469.jpg   Buggman Fender Badge LED Install!!!!-sam_0470.jpg   Buggman Fender Badge LED Install!!!!-sam_0472.jpg   Buggman Fender Badge LED Install!!!!-sam_0475.jpg   Buggman Fender Badge LED Install!!!!-sam_0476.jpg

Buggman Fender Badge LED Install!!!!-sam_0487.jpg   Buggman Fender Badge LED Install!!!!-sam_0483.jpg   Buggman Fender Badge LED Install!!!!-sam_0481.jpg   Buggman Fender Badge LED Install!!!!-sam_0478.jpg   Buggman Fender Badge LED Install!!!!-sam_0488.jpg

Buggman Fender Badge LED Install!!!!-sam_0489.jpg

Last edited by vista4.0; 01-08-2012 at 08:50 PM.
Reply With Quote
  #2
Old 01-08-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Looks good!
Reply With Quote
  #3
Old 01-08-2012
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Looks good! I really don't care for how far they make the badge stick out and the gap. I'm sure he can improve upon his design.
Reply With Quote
  #4
Old 01-08-2012
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
excellent! looks good.
Reply With Quote
  #5
Old 01-08-2012
vista4.0's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
Quote:
Originally Posted by KLC View Post
Looks good! I really don't care for how far they make the badge stick out and the gap. I'm sure he can improve upon his design.
I agree completely. As long as they stay on Im happy! I think they look great!
Reply With Quote
  #6
Old 01-08-2012
sullys_ranger's Avatar
Member

Join Date: Mar 2006
Location: NewLexington, Ohio
Posts: 3,615
those turned out great! ive never heard a bad thing about hi or his products.
Reply With Quote
  #7
Old 01-08-2012
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Nice!

Terry is always thinking up some awesome stuff.
Reply With Quote
  #8
Old 01-08-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Those are great. If your really concerned about that gap,
Run a bead of clear silicone in there. It shouldn't really do no harm to your paint.
but again, Great looking and clean install. Terry does excellent work.
Reply With Quote
  #9
Old 01-08-2012
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
I like it. I would prefer white instead of amber.
Reply With Quote
  #10
Old 01-08-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Looks good... but they do look like the stick out a little too far!
Reply With Quote
  #11
Old 01-08-2012
vista4.0's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
Wirelessly posted (Android)

Quote:
Originally Posted by StxDangerRanger
Those are great. If your really concerned about that gap,
Run a bead of clear silicone in there. It shouldn't really do no harm to your paint.
but again, Great looking and clean install. Terry does excellent work.
Thats something to think about.
Reply With Quote
  #12
Old 01-09-2012
buggman's Avatar
Member
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
Wow, those look pretty nice installed.
I've only seen them on while making them & stuck on my toolbox

I never really noticed the contour on the fenders, so I thought the plates would set more flush on top.
One thing I can do is include an extra piece of foam tape for the top side to fill the gap in a little more. There's probably no way I could get the material bent to fit both the fender & flat enough for the badges to set flat though.

The badges I just got have the alignment pins more towards the middle (top to bottom) of the badges... maybe I got tailgate badges Oh well, they're nothing a quick snip with wire cutters won't fix.

I don't think you'll have any issue with them falling off under normal conditions. The tape is rated for 5lbs & outdoor use.
If you frequent those automatic car washes that beat the dirt off rather than wash it off... I dunno if anything even if it's bolted on could survive that.

I just took my grille oval/led ring off & it took me the better part of an hour to get that little sucker off.

Didn't realize there was that big hole behind the badges either... perfect spot to feed the wire through.

I'm surprised at the color too, it's really close to your turn signal colors. My pics make them look a lot lighter yellow.

The original flush versions don't have quite the visibility of the new outline version, but the flush versions are a bit less noticeable.

Excellent write-up/how-to/review.
Reply With Quote
  #13
Old 01-09-2012
vista4.0's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
Glad I could help Terry. Im really liking them. For the little issue with it sitting flush it was really just that front top corner that I couldnt get to stick. It appears it has sealed up everywhere else. For those that think these sit out a bit far, honestly they dont stick out that far. I showed a couple people last night and they couldnt tell till I turned them on. They really blend in well.
Reply With Quote
  #14
Old 01-14-2012
<TX>TORKiT's Avatar
Member
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551
I like it, good job on the install with pics and videos. You beat me to it.
Reply With Quote
  #15
Old 01-14-2012
vista4.0's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
Wirelessly posted (Android)

Quote:
Originally Posted by &lt;TX&gt;TORKiT
I like it, good job on the install with pics and videos. You beat me to it.
Did u get the flush mount or 2.0 ?
Reply With Quote
  #16
Old 01-16-2012
2008RangerSport's Avatar
Member

Join Date: Dec 2011
Location: Warner Robins, GA
Posts: 150
I cant wait to get mine and install this...it looks great
Reply With Quote
  #17
Old 01-16-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Did you ever do anything about the gap.
I kinda liked Terry's idea about maybe putting a piece of foam in there. They make a super sticky, rigid foam that goes in between truck caps and beds, i'd look into that.
Reply With Quote
  #18
Old 01-16-2012
<TX>TORKiT's Avatar
Member
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551
Quote:
Originally Posted by vista4.0 View Post
Wirelessly posted (Android)



Did u get the flush mount or 2.0 ?
Flush mount.
Reply With Quote
  #19
Old 01-16-2012
2008RangerSport's Avatar
Member

Join Date: Dec 2011
Location: Warner Robins, GA
Posts: 150
Quote:
Originally Posted by <TX>TORKiT View Post
Flush mount.
install yours yet?
Reply With Quote
  #20
Old 01-17-2012
buggman's Avatar
Member
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
Quote:
Originally Posted by StxDangerRanger View Post
Did you ever do anything about the gap.
I kinda liked Terry's idea about maybe putting a piece of foam in there. They make a super sticky, rigid foam that goes in between truck caps and beds, i'd look into that.
I had a couple ideas on the little gap.
1 was to put an extra piece of foam mounting tape on the top edge of the plate

2 was to simply lower the badges about 1/4" to 1/2" below the original location.

I don't think anyone would notice if the badges were mounted that small amount lower... unless you were to measure them
Reply With Quote
  #21
Old 01-17-2012
SVT01RANGER's Avatar
Member
iTrader: (2)

Join Date: Jun 2004
Location: West Eugene, OR
Posts: 3,634
i have one of mine installed, and didn't notice the gap,a nd i got V2.0

any special care i should take with the supplied board? also how did you wire your badge up? does it come on with the parking lights?
Reply With Quote
  #22
Old 01-17-2012
rolsmojave3's Avatar
Level III Supporter

Join Date: Jun 2006
Location: Wisconsin
Posts: 2,852
Looks neat, never seen that before! Now you need some Recon running lights.

Attached Thumbnails
Buggman Fender Badge LED Install!!!!-rangerundercab.jpg
Reply With Quote
  #23
Old 01-17-2012
vista4.0's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
Quote:
Originally Posted by buggman View Post
I had a couple ideas on the little gap.
1 was to put an extra piece of foam mounting tape on the top edge of the plate

2 was to simply lower the badges about 1/4" to 1/2" below the original location.

I don't think anyone would notice if the badges were mounted that small amount lower... unless you were to measure them
That would probably fix the little gap. I havent done anything to mine and I probably wont.

Quote:
Originally Posted by SVT01RANGER View Post
i have one of mine installed, and didn't notice the gap,a nd i got V2.0

any special care i should take with the supplied board? also how did you wire your badge up? does it come on with the parking lights?
The boards are in the cab on mine. Right now mine only light up with the turn signals but I might change that so they come on with the parking lights and flash as turn signals.
Reply With Quote
  #24
Old 01-17-2012
SVT01RANGER's Avatar
Member
iTrader: (2)

Join Date: Jun 2004
Location: West Eugene, OR
Posts: 3,634
i tried to hook mine up like the blinker mod, but it will light up when the parking lights come on, and blink when the turn signals when the lights are on, but wont blink when the lights are off
Reply With Quote
  #25
Old 01-17-2012
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
do you have a wiring diagram or can you explain how you wired them for that to happen?
Reply With Quote
