Cab swap

Has anyone ever put an extended cab on a reg can frame? I really wanna put one on my truck. Then get a fleet side bed and cut it down to fit.
Reply With Quote
  #2
Old 11-04-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Your probably better off swapping your internals over to an extended cab body and frame.
Reply With Quote
  #3
Old 11-04-2012
99DangerRanger's Avatar
Level III Supporter

Join Date: Mar 2011
Location: New Creek, WV
Posts: 441
I agreed with Adam. Unless you want a 4 foot bed. And the shape of the frame changes at the end of the regular cab. It would be a lot of work for no gain.
Reply With Quote
  #4
Old 11-04-2012
ClubFoot's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: San Diego, Cailfornia
Posts: 269
The bed size doesn't bother me at all. What I want is the look. I really don't use the bed for much and miss my extended cab. My only worries are the shape of the frame. Why I was asking on here.
Reply With Quote
  #5
Old 11-04-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538

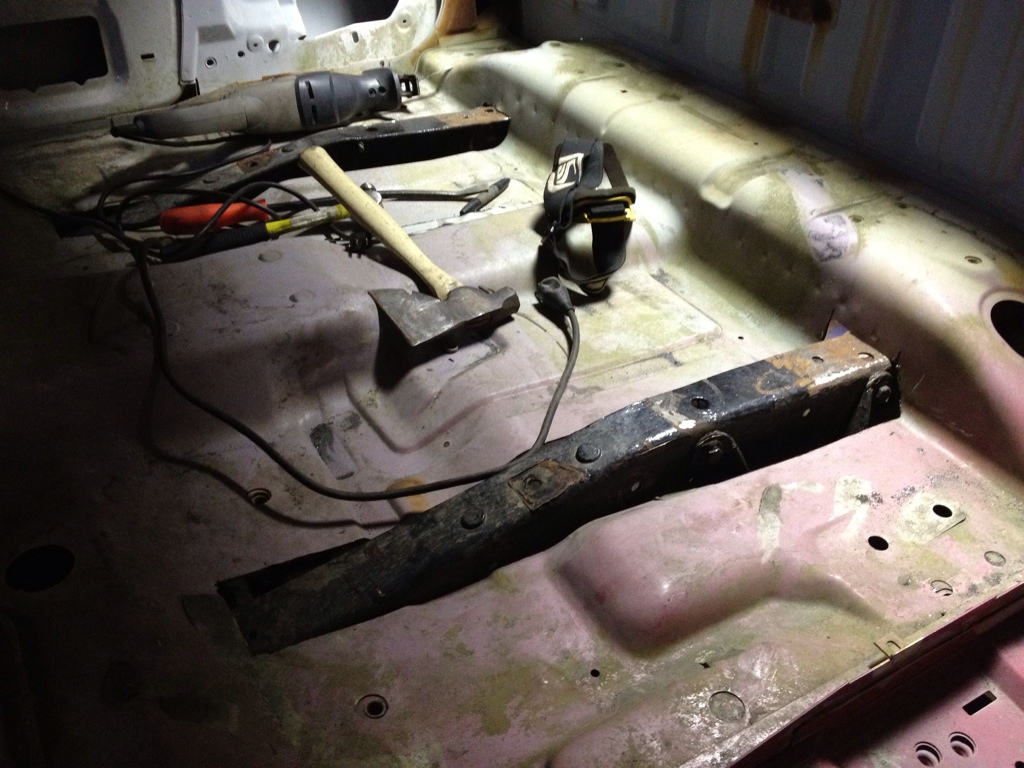

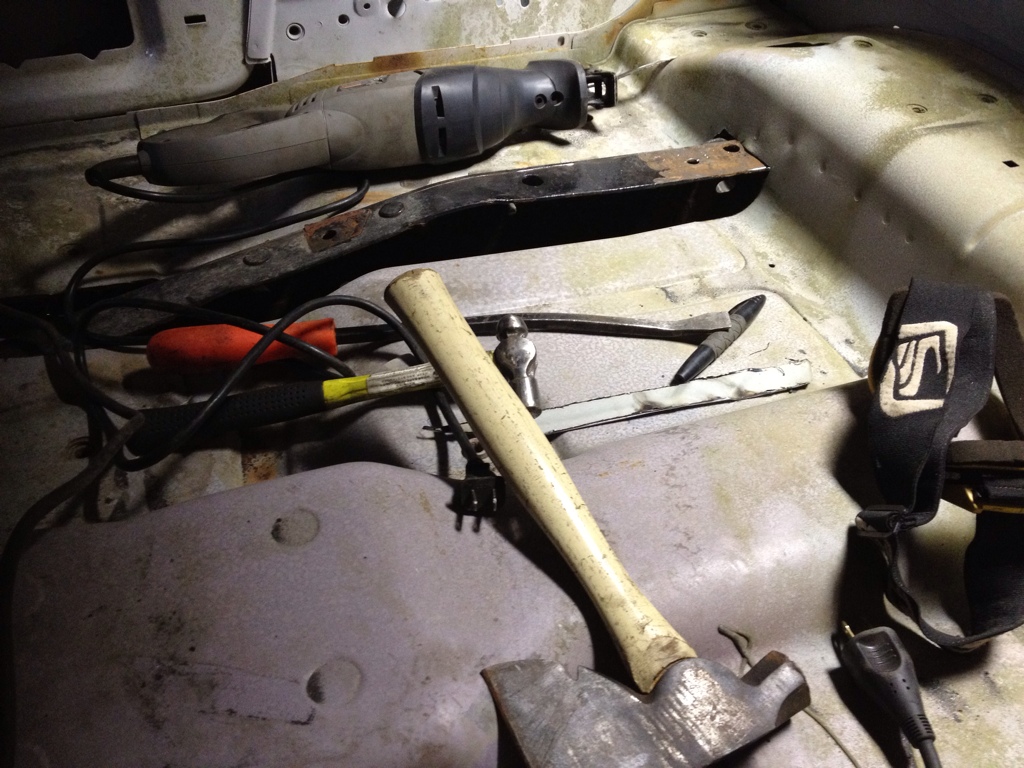

You would have to cut the floor of the cab to make room for the frame. The frame goes up around the rear axle and since the extended cab frame is longer you would have to adjust for it. Thus cutting your floor in the new cab and welding plates to cover it. Like this.




Reply With Quote
  #6
Old 11-04-2012
ClubFoot's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: San Diego, Cailfornia
Posts: 269
Wow, thanks for the pictures and info. It is amazing to see what I was picturing in my head. Do you think a body lift would help with the cutting?
Reply With Quote
  #7
Old 11-04-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Yes and no. A body lift would give you that clearance but the body mounts are most likely not going to line up meaning you would have to use less and have the cab secured with less bolts or fab up some mounts. If you are going to do it cutting the floor will be the best way to do it.
Reply With Quote
  #8
Old 11-04-2012
ClubFoot's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: San Diego, Cailfornia
Posts: 269
Hmm, well thanks for the help and ideas. I hope the time for this comes sooner rather than later.
Reply With Quote
  #9
Old 08-25-2016
Member

Join Date: Apr 2015
Location: Fresno
Posts: 6
How did the swap turnout ?

How did the cab swap go ? I know this is a few years old thread but I'm about to swap my supercab 2wd onto my single cab 4wd frame. Hoping it comes out good, the 2wd is automatic w A/C and the 4wd is stick but no A/C so got to figure out what's gonna work with what.
Reply With Quote
  #10
Old 08-25-2016
TheArcticWolf1911's Avatar
Member

Join Date: Nov 2015
Location: Evansville, Indiana
Posts: 1,499
clubfoot hasn't even been online in over a year. You'll rarely get an answer from a thread over one year old.
