Door Switch Lighting Idea

My next LED mod is going to be a bit different. I have been planning to put a strip of LEDs under my doors so that when the door is opened, the LEDs turn on. This would be quite useful at night when there are puddles on the ground and you cant see. It would look like a 'ray of light' sweeps out with the door. I would use blue as it matches the plethora of LEDs I currently have.

Now the technical details.

My plan is to use the switched side of the door switches that 'know' if the door is opened or not. These are the same switches that turn on your dome light when you open the door, or turn on the 'door ajar' light. My plan was to steal power from this switched side.

I do believe I would have to diode isolate the power coming to the LEDs so that they will not turn on when I turn on my dome light. I want them to only come on when the door is opened. I plan to do this to both passenger, and drivers door (only a 2 door truck)

Does this sound like a workable idea? Has anyone done this before?

Also, I think the switch is in the latch, correct? Can anyone shed some 'light' haha.
Reply With Quote
  #2
Old 04-25-2009
Smakes's Avatar
Member
iTrader: (5)

Join Date: Nov 2008
Location: nowhere
Posts: 235
imo steal the switch out of a refridgerator.. you know the one that pivots out when its open and causes the light to turn on then turns off when you close the door and the switch is pushed in lol
Reply With Quote
  #3
Old 04-25-2009
Jp7's Avatar
Jp7 Jp7 is offline
Member
Thread Starter
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
Originally Posted by Smakes View Post
imo steal the switch out of a refridgerator.. you know the one that pivots out when its open and causes the light to turn on then turns off when you close the door and the switch is pushed in lol
Why? The electrical system already knows when the door is open. It is just a matter of using the information available. That would be like adding a big carburetor to an engine you've beefed up just because you cant figure out fuel injection.
Reply With Quote
  #4
Old 04-25-2009
Smakes's Avatar
Member
iTrader: (5)

Join Date: Nov 2008
Location: nowhere
Posts: 235
hey i was just throwing out an idea...

idk jack **** about wiring in my truck i just drive the dam thing lol
Reply With Quote
  #5
Old 04-25-2009
kenny_216's Avatar
Member

Join Date: Aug 2008
Location: Phoenix, AZ
Posts: 879
idk man that sounds pretty cool tho! let me know how it works out!
Reply With Quote
  #6
Old 04-25-2009
Member
iTrader: (2)

Join Date: Sep 2008
Location: Sumter, SC
Posts: 633
does that switch have enough power for lights? i might be just some deal where it just sends a signal somewhere and then the lights get power from somewhere else. you could always run a wire from the dome light. little extra work but it's a guarantee.
Reply With Quote
  #7
Old 04-25-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Well yes but then whenever he turned on his dome light those would light up. He only wants it to light up when the door is open. You could easily wire up a relay with the door switch as the trigger. Hey Jp7 I'll dig out my wiring diagram later and look up the door ajar sensor and see how that circuit works. Hit me up on AIM later
Reply With Quote
  #8
Old 04-25-2009
BCobe's Avatar
Member

Join Date: Jul 2008
Location: Fairfeild,California
Posts: 1,055
That would be BA... post pics if you get them on
Reply With Quote
  #9
Old 04-25-2009
Jp7's Avatar
Jp7 Jp7 is offline
Member
Thread Starter
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
Originally Posted by 04blackedge View Post
Well yes but then whenever he turned on his dome light those would light up. He only wants it to light up when the door is open. You could easily wire up a relay with the door switch as the trigger. Hey Jp7 I'll dig out my wiring diagram later and look up the door ajar sensor and see how that circuit works. Hit me up on AIM later
Of course, I could use a relay. I just thought this would be the simple way of doing things. The oznium strips barely draw any current. I think I'll use 2 or 3 foot strips, I can't imagine them drawing any more than 3/4ths amp each.
Reply With Quote
  #10
Old 04-25-2009
Yellow_edge_4x4's Avatar
Member

Join Date: Oct 2008
Location: Bryan, OH
Posts: 723
sorry to thread jack but where are the sensors for the door a jar. Ive gone out and slamed all 4 of my doors and the thing is still on, gets anoying at night.

This is a good idea just dont know how it would work. If you get it to work this might be my next mod.
Reply With Quote
  #11
Old 04-26-2009
Xplo's Avatar
Member

Join Date: Apr 2007
Location: Norcross, GA
Posts: 83
Quote:
Originally Posted by Yellow_edge_4x4 View Post
sorry to thread jack but where are the sensors for the door a jar. Ive gone out and slamed all 4 of my doors and the thing is still on, gets anoying at night.

This is a good idea just dont know how it would work. If you get it to work this might be my next mod.
Well the switch for the dome light is in the door latch, so I assume the door ajar light is as well.


I like the puddle light idea a lot, and it sounds workable.
Reply With Quote
  #12
Old 04-26-2009
Jp7's Avatar
Jp7 Jp7 is offline
Member
Thread Starter
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
The things I have to find out is:

Does the switch give 12V or does it give ground?

What are the right colors to give?

If anyone knows this would be nice, my truck is a 2004 2 door extended cab.

I can do some testing but any wiring guru's chime in.
Reply With Quote
  #13
Old 04-26-2009
rangercrazy07's Avatar
Member
iTrader: (2)

Join Date: Oct 2005
Location: Marietta, GA
Posts: 758
Will there be clearance at the bottom of the door for the led's? cuz its a tight fit with the ranger plate at the bottom correct?

and as for wiring you could steal some power from fuse 25 or 27 its the one that if you pull it your dome lights will not come on. or just find the wires in the door on the switch you should be fine pulling power off of it. are you also running an ohc?
Reply With Quote
  #14
Old 04-26-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
His fuse 25 and 27 are not the same as yours.
Reply With Quote
  #15
Old 04-26-2009
Jp7's Avatar
Jp7 Jp7 is offline
Member
Thread Starter
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
Will there be clearance at the bottom of the door for the led's? cuz its a tight fit with the ranger plate at the bottom correct?
I squished some clay in the door and there is plenty of room for an oznium strip in there.

Quote:
and as for wiring you could steal some power from fuse 25 or 27 its the one that if you pull it your dome lights will not come on. or just find the wires in the door on the switch you should be fine pulling power off of it. are you also running an ohc?
I think I should be fine stealing power right off of the door switch. It should be about 1/2 amp, they are only LEDs. I do not have an OHC.
Reply With Quote
  #16
Old 05-02-2009
Jp7's Avatar
Jp7 Jp7 is offline
Member
Thread Starter
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
OK - thanks to Trent (who gave me the wire colors) i Pre-tested this mod today:

The door latch has the switch in it, and it is switched ground.

I hooked my meter between the Battery Positive, and the yellow/black wire on the latch on the drivers side door.

When the door is open I get 12.2V.

When the door is closed I get between .9 and .7 V.

You would think this should be zero.

I am at a loss for this, as with .9V the LEDs will barely come on just a little bit.

Maybe when the switch is open, it is not really open, just high resistance?

Can someone shed some light on this?
Reply With Quote
  #17
Old 05-02-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
You need to use the wire that triggers the dome light when the door is open to be ran to pin 86 on the relay. This will take the low amperage from that circuit and apply it to the relay to trigger a 12v system on pin 87 which will run to the lights. Pin 30 is constant power and 85 is ground.
Reply With Quote
  #18
Old 05-02-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Hes not using a relay
Reply With Quote
  #19
Old 05-02-2009
Rev's Avatar
Rev Rev is offline
Level I Supporter

Join Date: May 2005
Location: San Diego, CA
Posts: 1,179
I believe you’ll find that the door switch is tied into the GEM. The circuit simply senses either a high or low state on the YE/BK wire, depending on the door switch position (open/closed). The GEM in turn either opens or closes the interior lamp relay, turning on or off the interior lamps.
Reply With Quote
  #20
Old 05-02-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
04+ don't have a GEM, they have a SJB instead. I'll grab some pics of the door switch circuit.
Reply With Quote
  #21
Old 05-02-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Quote:
Originally Posted by 04blackedge View Post
Hes not using a relay
From what I've read and been told, since the circuit is such a low current draw, it isn't enough to power aux lights like LEDs or like what I have with the lights under the doors, like what Jp7 is trying to do.

You need the relay in the system to do this to trigger a constant 12v circuit using a low amperage circuitt such as the dome light when the doors are open...

Hope that's making sense, I know what I'm trying to say, just don't know if it's coming across in english lol
Reply With Quote
  #22
Old 05-02-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426

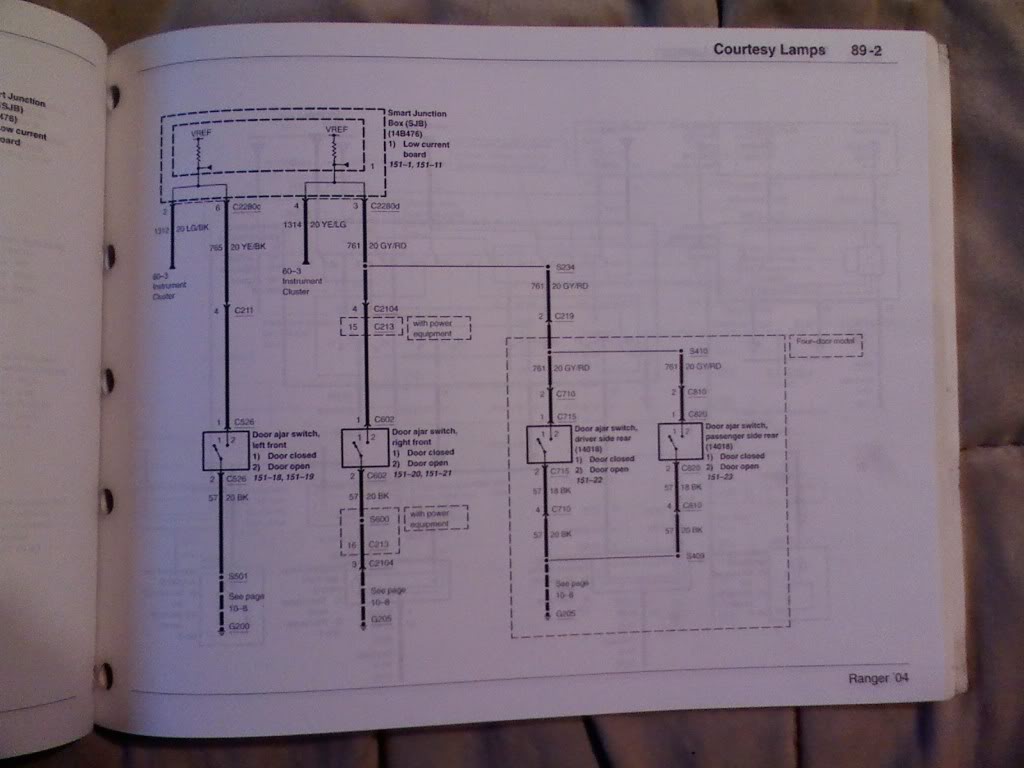

Name:  0502092001.jpg
Views: 2
Size:  72.5 KB
Reply With Quote
  #23
Old 05-02-2009
Rev's Avatar
Rev Rev is offline
Level I Supporter

Join Date: May 2005
Location: San Diego, CA
Posts: 1,179
Quote:
Originally Posted by 04blackedge View Post
04+ don't have a GEM, they have a SJB instead. I'll grab some pics of the door switch circuit.
I would suspect the circuit operation is still similar to that of the GEM's in older trucks. That would account for the .7-.9V he's seeing when the switch is open due to resistance or volt drop through the circuit (I hooked my meter between the Battery Positive, and the yellow/black wire).
Reply With Quote
  #24
Old 05-02-2009
Level I Supporter

Join Date: Aug 2006
Location: Durham, NC
Posts: 3,657
The switch is CLOSED, when door is open, causing the full 12.2V reading between BATTERY + terminal and the wire going to the switch. The switch is OPEN when the door is closed, and the reason it doesn't go all the way to 12.2V ( or get 0V with respect to the BATTERY + terminal), is the wire is probably coming off the source of a NFET, and you are seeing a source follower effect, where the source is setting a Vt below the NFET gate.
Reply With Quote
  #25
Old 05-02-2009
Jp7's Avatar
Jp7 Jp7 is offline
Member
Thread Starter
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
Originally Posted by Takeda View Post
The switch is CLOSED, when door is open, causing the full 12.2V reading between BATTERY + terminal and the wire going to the switch. The switch is OPEN when the door is closed, and the reason it doesn't go all the way to 12.2V ( or get 0V with respect to the BATTERY + terminal), is the wire is probably coming off the source of a NFET, and you are seeing a source follower effect, where the source is setting a Vt below the NFET gate.
Yes, but what do you think would be the best way to have 0 volts when the door is closed?

I do not want to put it on the dome light circuit because I do not want the "puddle LEDs" to come on when I turn my dome light on with the switch on the dash, only when I open the door.

Thanks guys
Reply With Quote
