Euro Designz 9007 Bulb, am i safe running these? - Ranger-Forums - The Ultimate Ford Ranger Resource


General Technical & Electrical General technical and electrical discussion for the Ford Ranger that does not fit in any other sub-forum.

Reply

LinkBack Thread Tools Search this Thread
  #1
Old 03-13-2010
LiftKitRanger's Avatar
Member
Thread Starter

Join Date: Aug 2009
Location: WA
Posts: 110
Euro Designz 9007 Bulb, am i safe running these?

Hey guys,
I had one of my headlights burn up the other day, and my little brother has a set of Euro Designz 9007 Bulbs he never used, they are some kind of cheap ebay brand i think. I can't find any info on them online, so they might not be making them anymore. IF i can remember right, they say 55W on the bulb housing. On the package they don't say anything about the wattage, they just say DOT Approved. I am wondering, AM i going to be okay running those in my truck? I have heard alot about burning up harnesses. I have seen some 9007s at the auto parts store that say.. 55w then like 110 drawing wattage. Could somebody fill me in?

Thanks
Reply With Quote
  #2
Old 03-13-2010
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
If you stick to 55/65 watt lamps then you should be OK but if you start to go above that wattage range start thinking about an aftermarket harness or just build one.

As an example:
I have 55/100 watt Bulbs going in my headlights.
Housings are after market and rated for the higher wattage lamps.
Harness is aftermarket harness that will be both mod’d (battery power wire to relay and then to headlights) and installed along with the higher wattage bulbs.

Do it right the first time and the lights will burn brighter and last longer.
Reply With Quote
  #3
Old 03-13-2010
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096

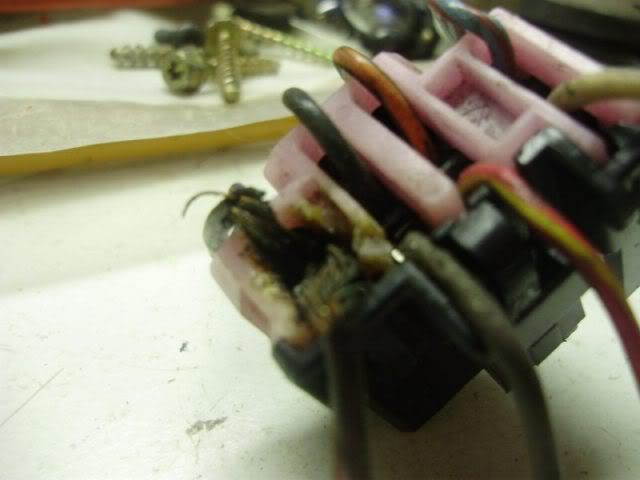

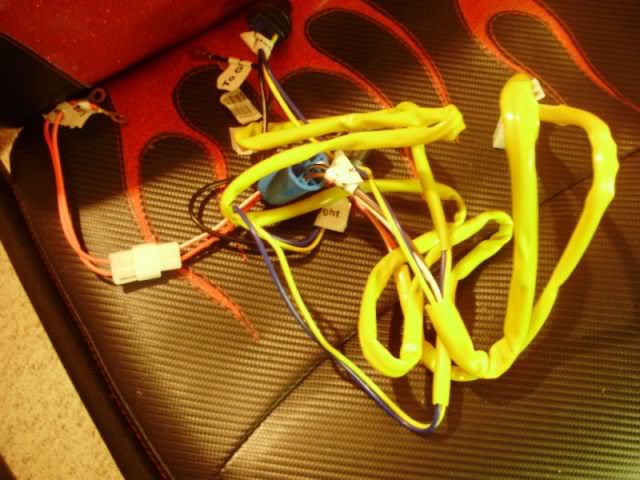

^^agreed! my headlight switch used to get extremely hot, in fact here is a pic of the wiring harness. i found a replacement at car quest, and got the heavy duty harness from lmc truck. headlights seem brighter, the harness doesn't get hot anymore. i highly recommend doing it if upgrading your lights.

Name:  PC300205.jpg
Views: 2
Size:  40.4 KB

Name:  PC280182.jpg
Views: 2
Size:  65.5 KB
Reply With Quote
  #4
Old 03-13-2010
LiftKitRanger's Avatar
Member
Thread Starter

Join Date: Aug 2009
Location: WA
Posts: 110
Thanks guys.

I know these bulbs are cheap, you can just tell. It doesn't even say on the package the wattage but on the actual bulb it says " 9007 55W ". I AM assuming that they are 55/65 bulbs and not something falsly printed on there, I hope i am right. I mean, I figured, they are free, and i could use them if they arent going to hurt my rig.

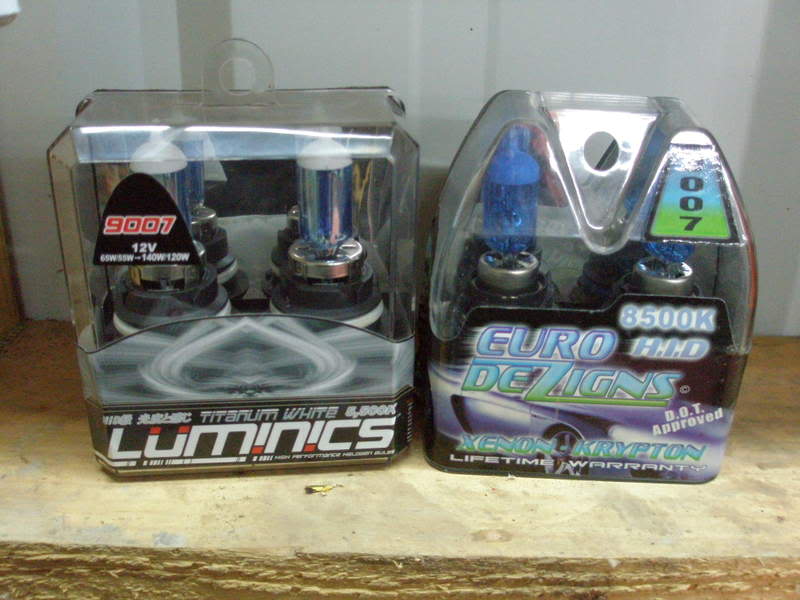

They are these on the right

Name:  P4060147.jpg
Views: 3
Size:  67.4 KB
Reply With Quote
  #5
Old 03-13-2010
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Install them, turn the on with the engine running and let them burn for a while.
Check the harness and the Headlight switch every once in a while to see it there is excessive heat not just a little warm.
If no too hot them they should be OK for the long run.

luck to ya, keep an eye on the wire heat too.
Reply With Quote
  #6
Old 03-13-2010
Beerman's Avatar
Member

Join Date: Feb 2010
Location: Greenville NC
Posts: 18
Hey man if you don't mind me kicking in my two cents. You will be disappointed with these headlights. They don't seem to have a good solid beam and the highbeams were almost non existent. I bought them for my headlights and fogs, the fog lights burnt out in about 2 months and I so unhappy with the headlights that I went ahead an replaced them all with Sylvania bulbs. but there was no damage to the harness. So if they are free then go with it, Just be safe driving at night.
Reply With Quote
  #7
Old 03-13-2010
SVT01RANGER's Avatar
Member
iTrader: (2)

Join Date: Jun 2004
Location: West Eugene, OR
Posts: 3,634
i agree, you wont be happy, i have alot of experence with these types of bulbs, i went thru alot of them when i had my accord, my recomendation would either be a HID kit, or the silverstars
Reply With Quote
  #8
Old 03-13-2010
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
silverstars!!!!

Name:  ULTRA1ASPEED.png
Views: 3
Size:  155.0 KB
Reply With Quote
  #9
Old 03-13-2010
Tys 4x4 FTW's Avatar
RF Veteran
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
HID's!!!!



you will be disappointed with those blue tinted bulbs. went through that BS on my old car. finally got HID's and never looked back.
Reply With Quote
  #10
Old 03-13-2010
Casper98's Avatar
Member
iTrader: (1)

Join Date: Jun 2007
Location: Gresham OR
Posts: 1,789
Get HID's, trust me you'll like them!
Reply With Quote
  #11
Old 03-14-2010
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
$$$$ ?
Manufacturer ?
Model ?
Reply With Quote
  #12
Old 03-17-2010
02_xlt's Avatar
Member

Join Date: Mar 2010
Location: Mauriceville, TX
Posts: 134
yea the only problem with the hid's is replacing the bulbs.......160 for a pair......
Reply With Quote
