f250 master cylinder?

Hi all,

i was told that the f250 master cylinders bolt to the ranger booster... can anybody confirm/deny or point me in the direction of the information? thanks! pictures would be fantastic and or a how to
Reply With Quote
  #2
Old 01-20-2015
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by jscrivo View Post
Hi all,

i was told that the f250 master cylinders bolt to the ranger booster... can anybody confirm/deny or point me in the direction of the information? thanks! pictures would be fantastic and or a how to

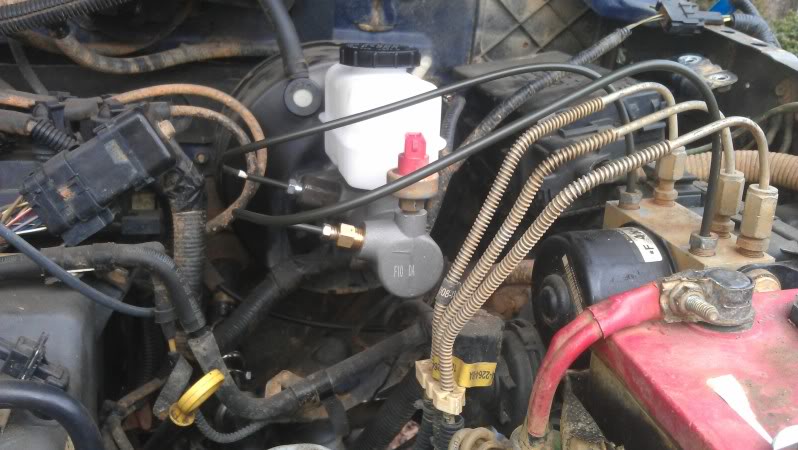

I installed a F350 master cylinder in a 2003. Just needed adapters for the brake line ports.

Name:  IMAG0518.jpg
Views: 3
Size:  70.5 KB
Reply With Quote
  #3
Old 01-20-2015
jscrivo's Avatar
Member
Thread Starter

Join Date: Apr 2014
Location: Ontario, Canada
Posts: 10
Was it a direct bolt in then? aside from the adapters?
Reply With Quote
  #4
Old 01-20-2015
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Yes.
Reply With Quote
  #5
Old 01-20-2015
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
What does this mod do? Better stopping ability?
Reply With Quote
  #6
Old 01-22-2015
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
iTrader: (6)

Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,054
Quote:
Originally Posted by morris View Post
What does this mod do? Better stopping ability?
Same question
Reply With Quote
  #7
Old 01-27-2015
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by morris View Post
What does this mod do? Better stopping ability?
It has a larger bore to push more fluid. So it should give you more responsive braking.

I did it on mine because 1 ton axles and brakes. It stops alright.

Last edited by seed60; 01-27-2015 at 01:00 PM.
Reply With Quote
  #8
Old 01-27-2015
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
It stops alright because of the extra weight of 1 tons or it stops alright as an upgrade over stock?
Reply With Quote
  #9
Old 01-27-2015
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by morris View Post
It stops alright because of the extra weight of 1 tons or it stops alright as an upgrade over stock?
It just stops alright. Nothing amazing but I have a very heavy wheel/tire combo. I never ran the f350 master cylinder with stock brakes and never ran the stock master cylinder with 1 ton brakes.

You should see some improvement using the larger bore master cylinder with stock brakes. Moving more fluid faster should give you faster more responsive brakes.
Reply With Quote
  #10
Old 01-27-2015
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
iTrader: (6)

Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,054
What year 350 did you get yours from? <05?
Reply With Quote
  #11
Old 01-27-2015
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Quote:
Originally Posted by seed60 View Post
It just stops alright. Nothing amazing but I have a very heavy wheel/tire combo. I never ran the f350 master cylinder with stock brakes and never ran the stock master cylinder with 1 ton brakes.

You should see some improvement using the larger bore master cylinder with stock brakes. Moving more fluid faster should give you faster more responsive brakes.

How would my braking be if it was a 250 resovoir and the disc conversion?
Reply With Quote
  #12
Old 01-27-2015
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
iTrader: (6)

Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,054
Quote:
Originally Posted by morris View Post
How would my braking be if it was a 250 resovoir and the disc conversion?
That's what I'm thinking
Reply With Quote
  #13
Old 01-27-2015
mikerider's Avatar
Member
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
I tried it with my truck and had no difference in braking. Not better or worse.

Still trying to figure out the best set up but for now I'm back to the ranger Master
Reply With Quote
  #14
Old 01-27-2015
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Maybe stock or 250 MC and a exploder pro portioning vavle?
Reply With Quote
