Fan not blowing on all settings

My fan only blows on 3 and 4. 1 and 2 seem to do nothing. Any ideas?

Also, my fan starting making like a clicking noise the other day like something was in it but it has since gone away.
Reply With Quote
  #2
Old 11-20-2012
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
Not running on lower speeds is a symptom of a bad blower resistor or a corroded connector at the resistor.
Clicking is usually from leaves or twigs in the blower impeller.
Reply With Quote
  #3
Old 11-20-2012
robert99ranger's Avatar
RF Veteran
Thread Starter
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
I saw something about that. Where do I need to look? Under the hood?
Reply With Quote
  #4
Old 11-20-2012
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
Under hood. The blower resistor block is screwed into the plenum right next to the blower. Look for a 5-pin connector.
Reply With Quote
  #5
Old 11-20-2012
robert99ranger's Avatar
RF Veteran
Thread Starter
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Thanks man. I will take a look when I get home for Thanksgiving and I will post what I find.
Reply With Quote
  #6
Old 11-20-2012
rangermainer's Avatar
Member
iTrader: (1)

Join Date: Nov 2011
Location: maine
Posts: 252

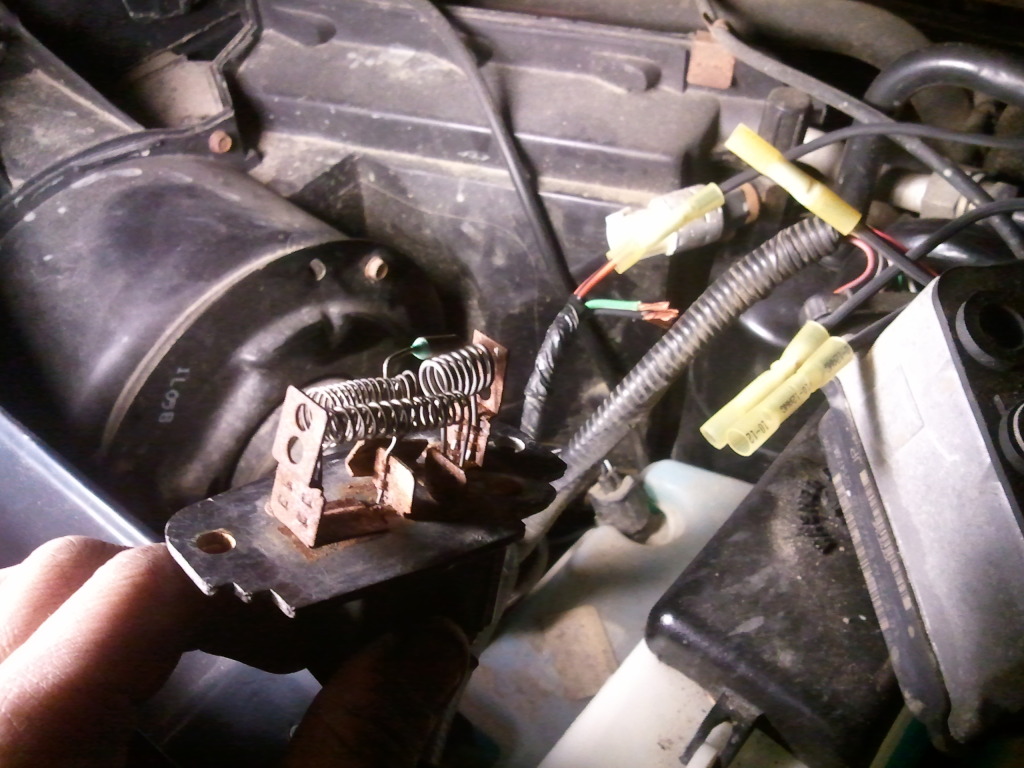

i just fixed mine last week
Attached Thumbnails
Fan not blowing on all settings-2012-11-10173455-1.jpg
Reply With Quote
  #7
Old 12-24-2012
robert99ranger's Avatar
RF Veteran
Thread Starter
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807

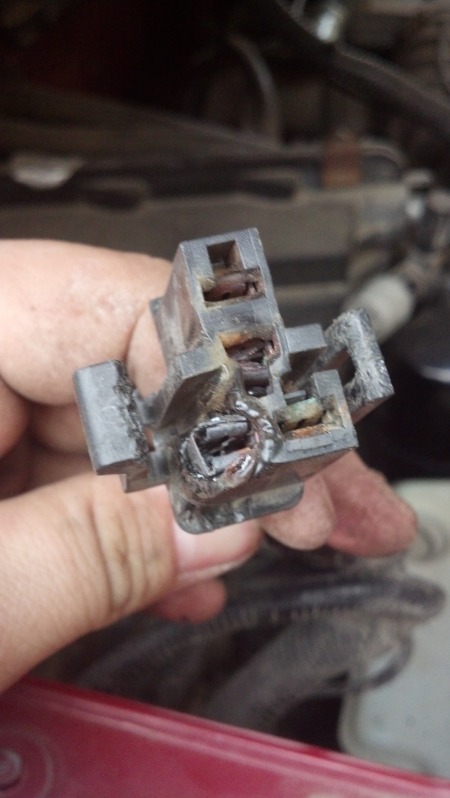

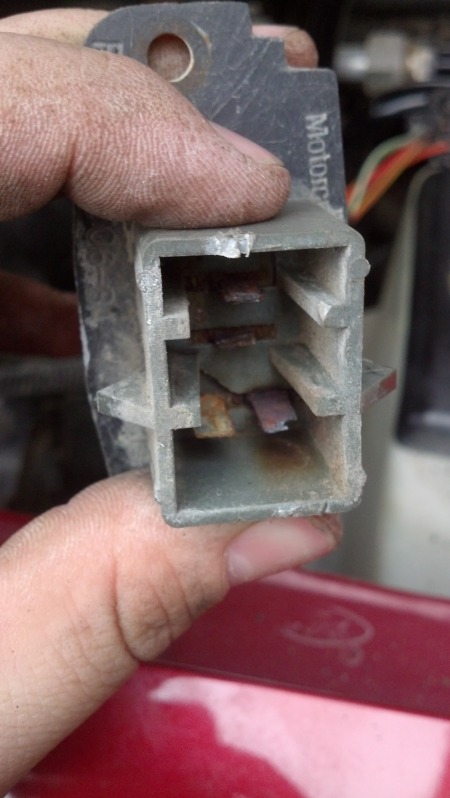

Update: Finally took it apart. Looks like something got hot.



Attached Thumbnails
Fan not blowing on all settings-2012-12-24_16-21-15_666.jpg   Fan not blowing on all settings-2012-12-24_16-21-25_376.jpg
Reply With Quote
  #8
Old 12-31-2012
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Wow, hot stuff.
I need to look at mine since I only have high now.
I purchased a new resistor pak and was thinking of the wire lug setup but too cold right now.

Thanks for the picture of the connector.

Last edited by Scrambler82; 12-31-2012 at 06:49 PM.
Reply With Quote
  #9
Old 12-31-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Holy crap! That's a lot of heat!
Reply With Quote
  #10
Old 12-31-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
I remember when my old '97 did the same thing.... at least it's an easy fix!
Reply With Quote
  #11
Old 01-05-2013
robert99ranger's Avatar
RF Veteran
Thread Starter
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807

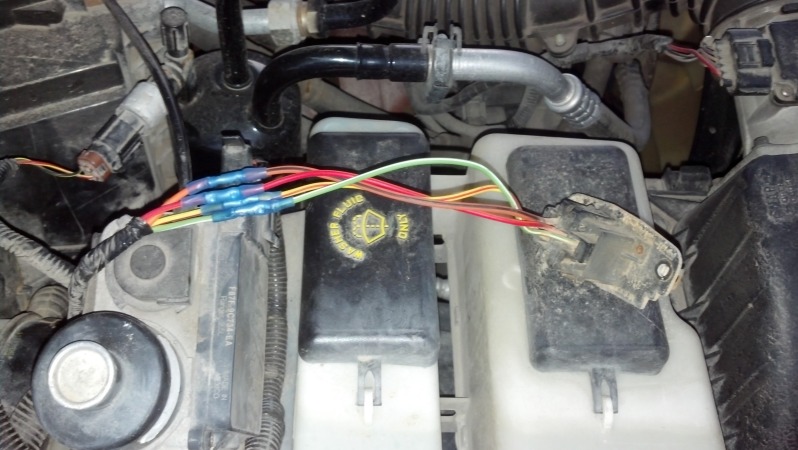

All fixed

Attached Thumbnails
Fan not blowing on all settings-2013-01-04_17-12-28_72.jpg
Reply With Quote
  #12
Old 01-05-2013
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by robert99ranger View Post
All fixed

Did you just rewire without the connector or did you replace the Resistor Pak ?

Any pics of your steps ?
Reply With Quote
  #13
Old 01-05-2013
robert99ranger's Avatar
RF Veteran
Thread Starter
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
I went to the junkyard and cut off the resistor plug with wire from a ranger. I used the resistor from the ranger from the junkyard. I tried just plugging in a different resistor but the wiring was shot within the plug. All I did was cut off the old plug and slice on the new one. Only took 10 minutes.
Reply With Quote
