Ground

I need to wire up my off road lights and I was wondering where a good ground would be. I need two up front (one for each light) and one near the swtich (in the cab). Thanks
Reply With Quote
  #2
Old 09-26-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
the one up front, just go to the battery (best ground on the truck)....where is the switch in the cab located at? look at a wiring diagram and find a ground wire near it...
Reply With Quote
  #3
Old 09-26-2007
2003stealthedge's Avatar
Member

Join Date: May 2005
Location: The ILL State
Posts: 1,297
frame
Reply With Quote
  #4
Old 09-26-2007
FireRanger's Avatar
Join Date: May 2004
Location: CT
Posts: 0
There is a ground point next to the radiator on the left side adjacent to the battery. I like to use that to reduce the number of wires on the battery. But thats because I have lights coming out of everywhere and run out of space quickly.
Reply With Quote
  #5
Old 09-26-2007
outdoorsman's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2006
Location: Phoenix Arizona
Posts: 1,690
Thanks guys, I'll poke around and see what I can find. If anybody else has ideas keep them coming. I'm trying not to use the battery as a ground just because I don't want that cluttered look.
Reply With Quote
  #6
Old 09-26-2007
outdoorsman's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2006
Location: Phoenix Arizona
Posts: 1,690

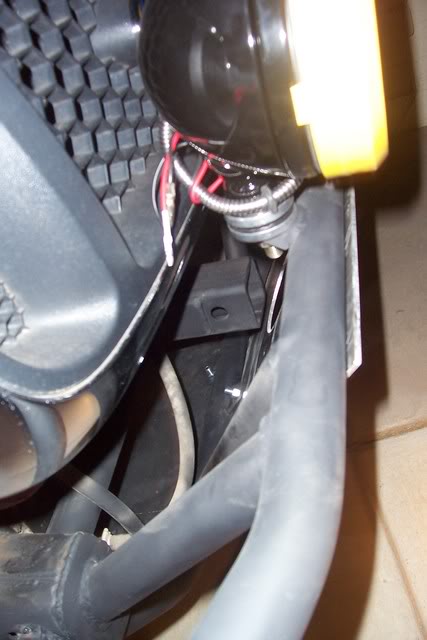

Would it be ok to ground the lights using the bolts that hold in my skid plate? You can sorts see one or two in this picture

Name:  100_3193.jpg
Views: 1
Size:  37.6 KB
Reply With Quote
  #7
Old 09-26-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
yes....
Reply With Quote
  #8
Old 09-26-2007
outdoorsman's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2006
Location: Phoenix Arizona
Posts: 1,690
thanks!
Reply With Quote
  #9
Old 09-26-2007
jtfoxman's Avatar
Member

Join Date: Jun 2005
Location: The Poconos
Posts: 891
Quote:
Originally Posted by FireRanger
There is a ground point next to the radiator on the left side adjacent to the battery. I like to use that to reduce the number of wires on the battery. But thats because I have lights coming out of everywhere and run out of space quickly.
That's the best place. Easily accessible and not cluttering up your battery. Easy to see just look left of the radiator just like FireRanger said and you will see other ground wires there.
