Install of Westin Off-road Light bar and Hella 500ff Lights

So I wanted to install some lights on my truck some things that I wanted though:
I did not want connections in the elements down near the bumper.
I did not want to cut or alter the dashboard.
I did not want to have to drill of modify the bumper to make something fit.

So with my list I set out to get things together to meet my criteria.
To get all the connections up into the engine bay I replaced the short leads with new colour coded wire to allow connection in the engine bay.

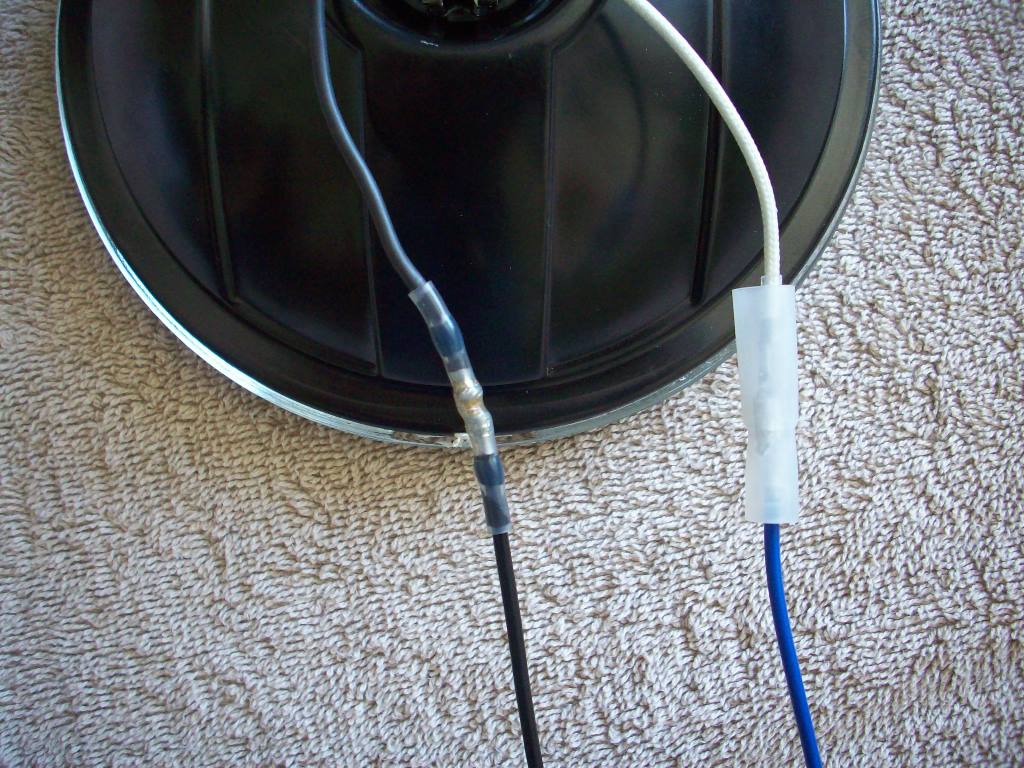

I ditched many of the provided connections in favor of Western Union wire splices and heat shrink soldered connections
I bought a project box to house the switches and would place it below the center of the dash in front of the shifter.
I found the Westin Off-road Light Bar simple to mount and not an arm and a leg with no modification required

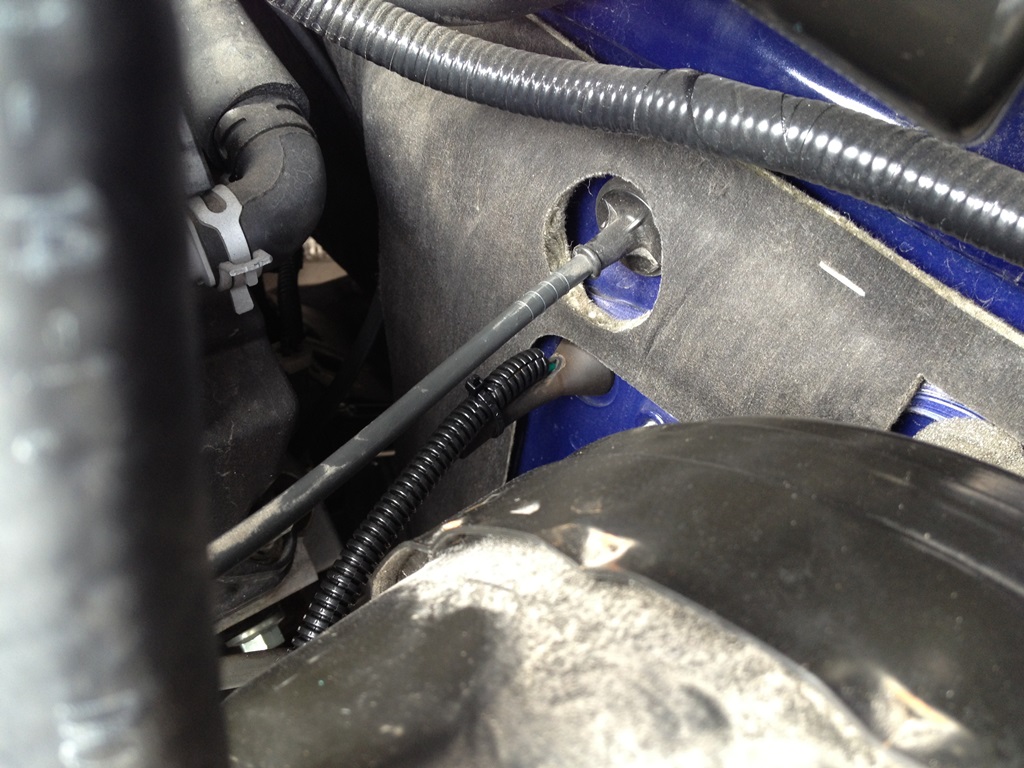

After consulting some members I used the Hood release grommet to get wires into the cab.

Lots of pictures to follow……





Attached Thumbnails

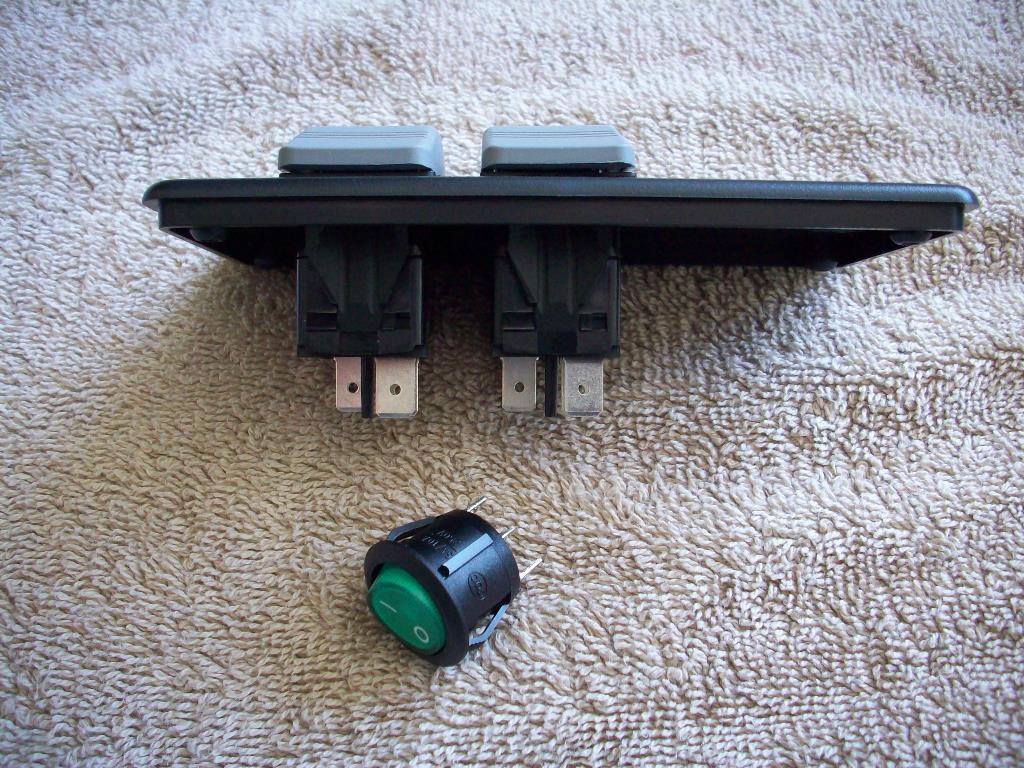

Install of Westin Off-road Light bar and Hella 500ff Lights-switch-comparison-1.jpg   Install of Westin Off-road Light bar and Hella 500ff Lights-switch-panel-complete-2.jpg   Install of Westin Off-road Light bar and Hella 500ff Lights-switch-panel-compete-1.jpg   Install of Westin Off-road Light bar and Hella 500ff Lights-grommets.jpg   Install of Westin Off-road Light bar and Hella 500ff Lights-project-box.jpg


Last edited by pafenton; 03-10-2013 at 09:46 PM.
Reply With Quote
  #2
Old 03-10-2013
pafenton's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Sooke, BC
Posts: 74
Install of Westin Off-road Light bar and Hella 500ff Lights Cont.

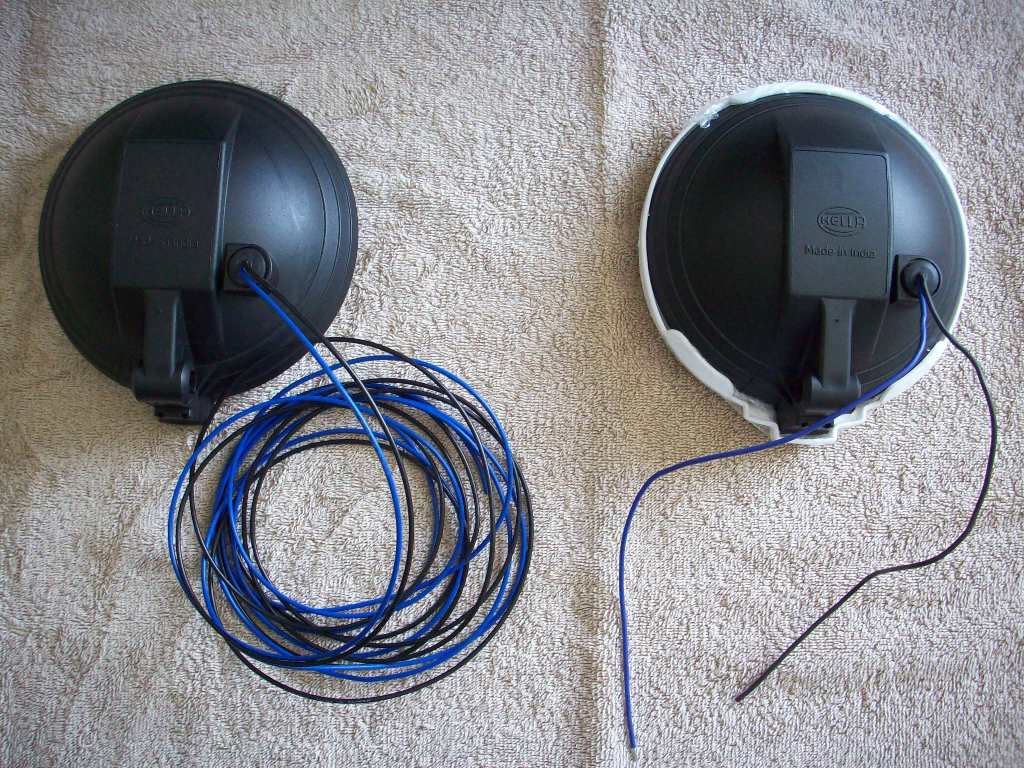

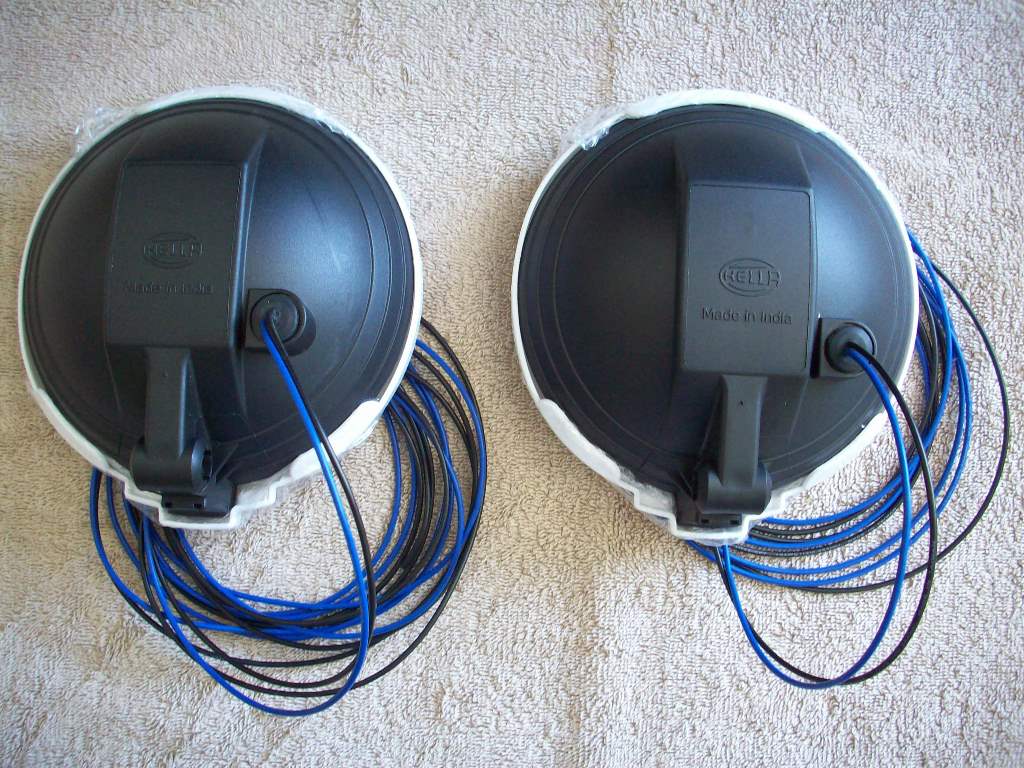

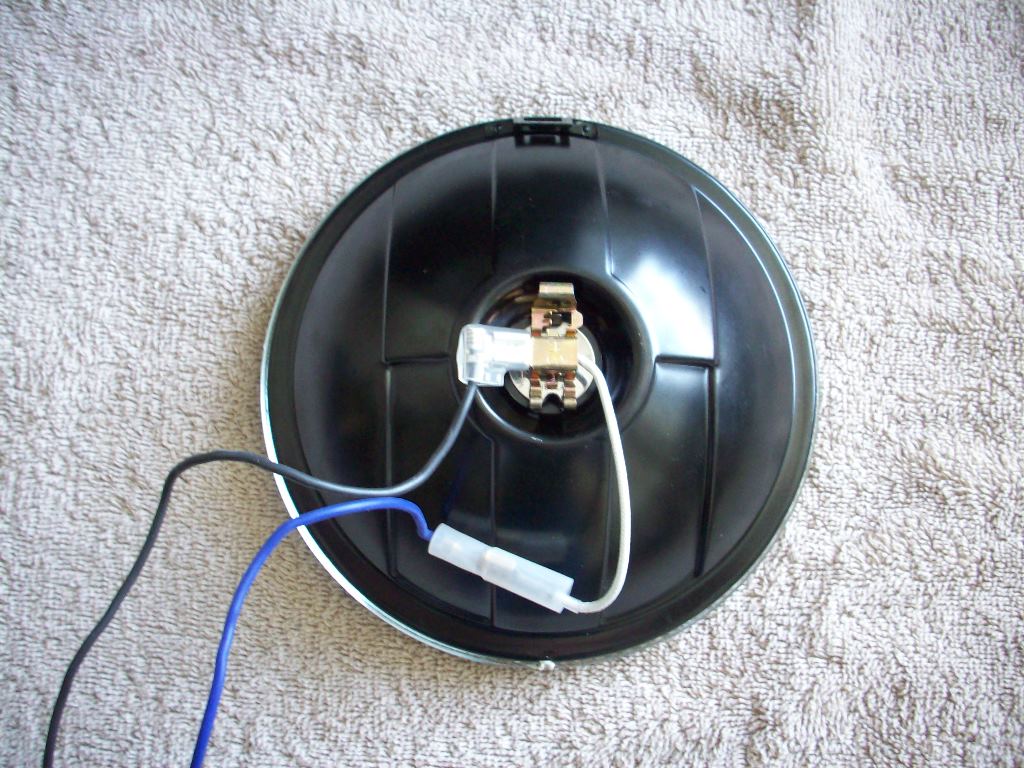

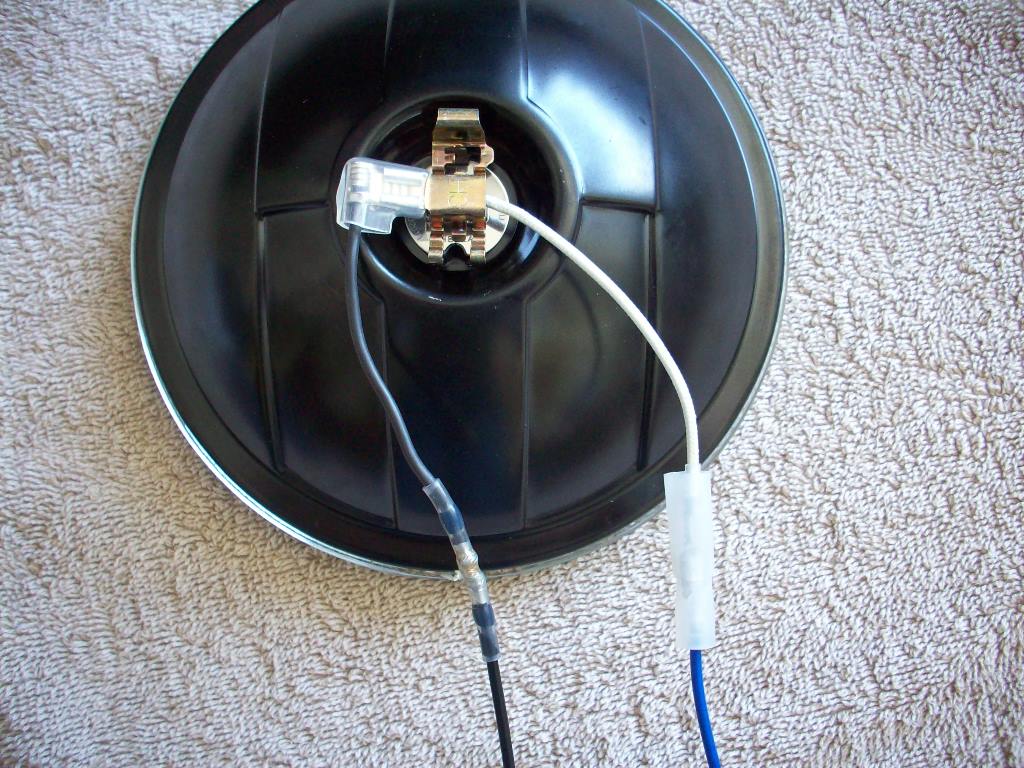

Modifications made to the Hella 500FF Lights





Attached Thumbnails
Install of Westin Off-road Light bar and Hella 500ff Lights-original-leads.jpg   Install of Westin Off-road Light bar and Hella 500ff Lights-heat-shrink-soldered-westren-union.jpg   Install of Westin Off-road Light bar and Hella 500ff Lights-extended-leads.jpg   Install of Westin Off-road Light bar and Hella 500ff Lights-new-original-leads.jpg   Install of Westin Off-road Light bar and Hella 500ff Lights-extended-lenght-leads.jpg

Reply With Quote
  #3
Old 03-10-2013
pafenton's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Sooke, BC
Posts: 74

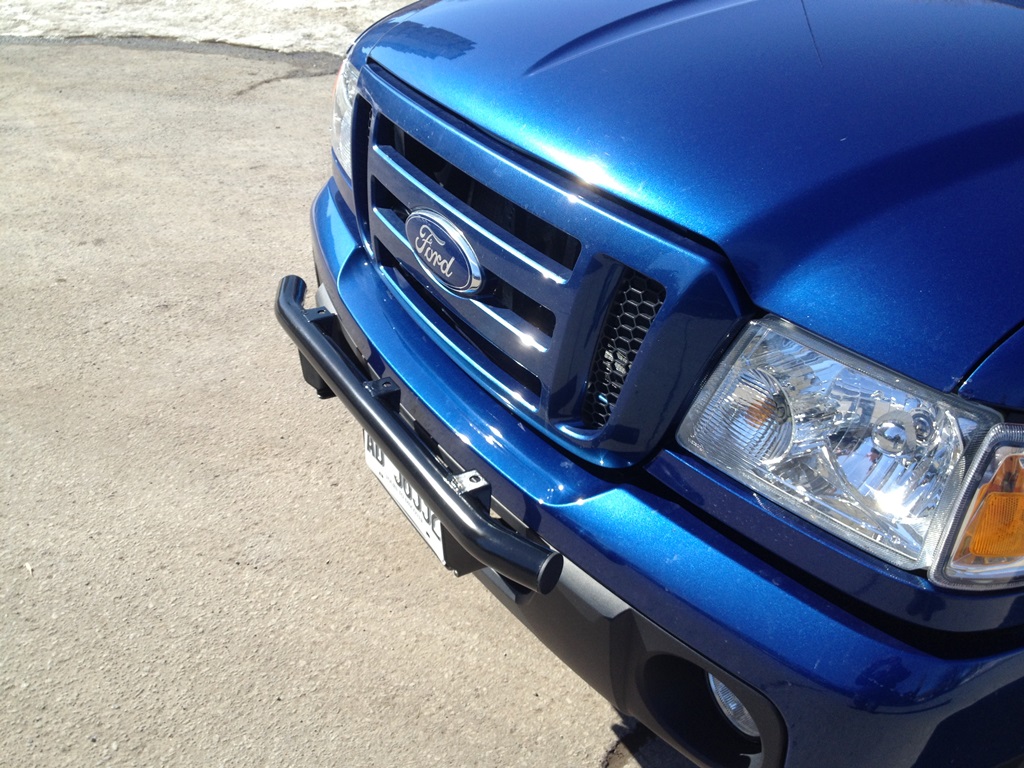

Westin Light Bar

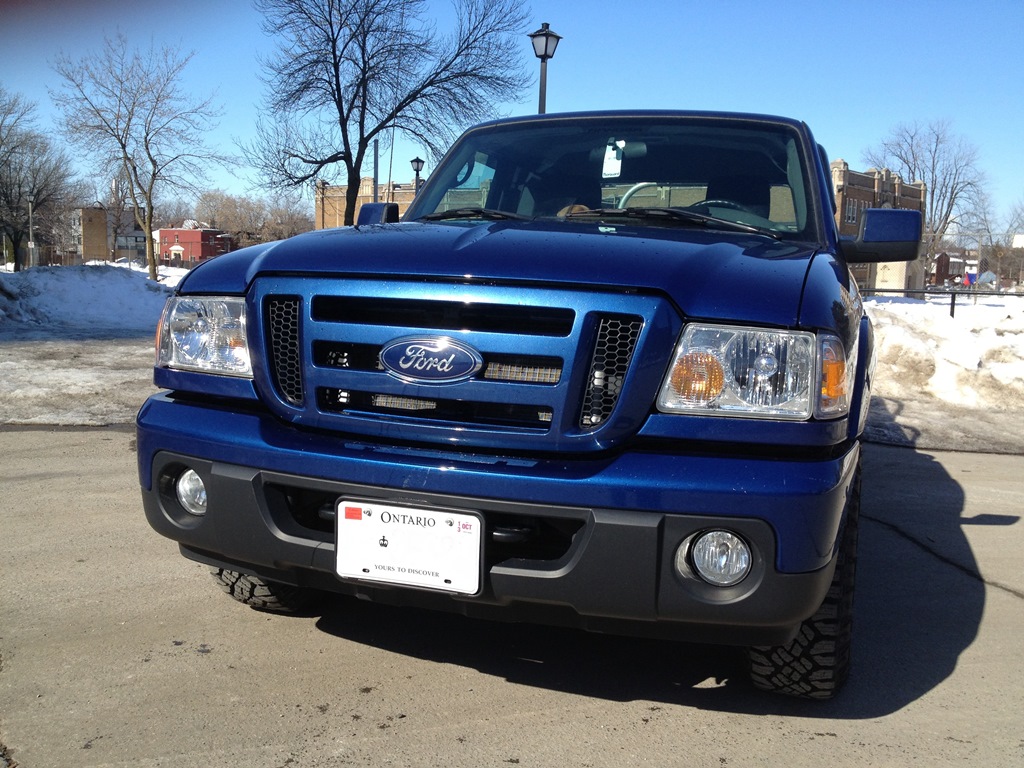

Install of the Westin Light Bar this required removal of two of the factory bolts and swaping of the tow hooks I had previously installed from a scrap yard project.



Attached Thumbnails
Install of Westin Off-road Light bar and Hella 500ff Lights-front-before-light-bar.jpg   Install of Westin Off-road Light bar and Hella 500ff Lights-light-bar-2.jpg

Last edited by pafenton; 03-10-2013 at 08:38 PM.
Reply With Quote
  #4
Old 03-10-2013
pafenton's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Sooke, BC
Posts: 74

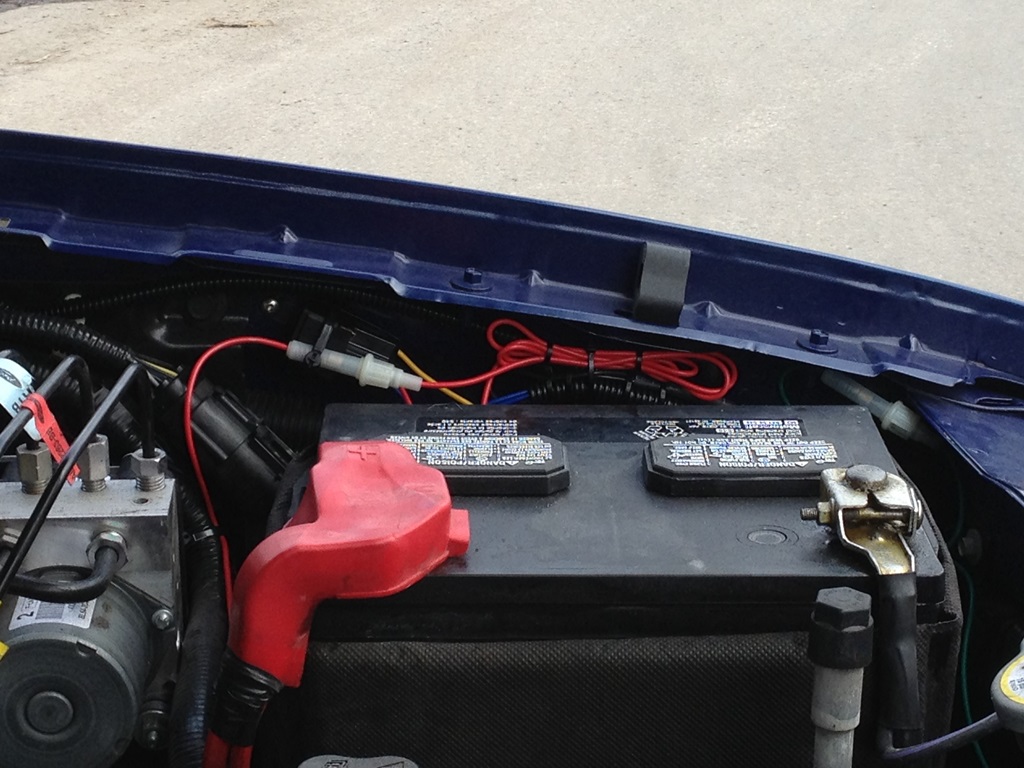

Hella 500ff Lights Cont.Engine Bay Wiring

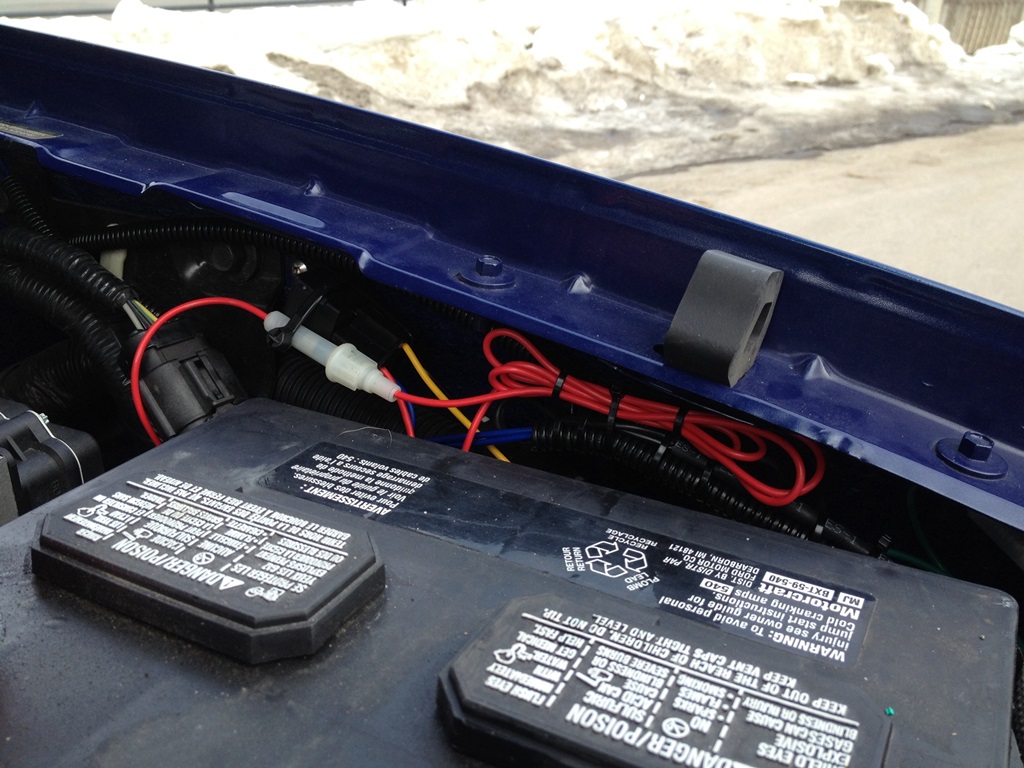

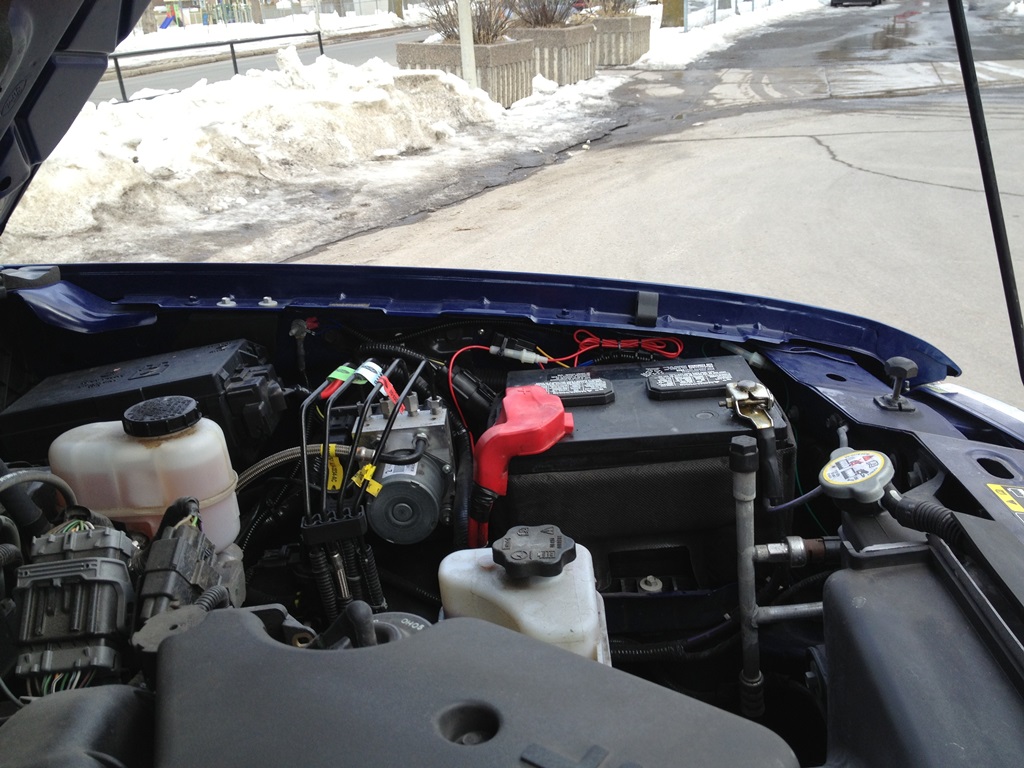

I ran all the wires and placed the relay tight and high in the drivers side fender outboard the battery.

Using provided advice I ran the + 12 Volt (Green) taken from the High beem (Purple with Orange Stripe) from Drivers side headlamp and the load (Yellow) wires throught the firewall at the hood release cable grommet. I did this by pushing a 1/8 allen key from the inside to stretch the grommet and then made a small incision to allow the wires to be fed into the cab.




Attached Thumbnails
Install of Westin Off-road Light bar and Hella 500ff Lights-engine-bay-1.jpg   Install of Westin Off-road Light bar and Hella 500ff Lights-engine-bay-2.jpg   Install of Westin Off-road Light bar and Hella 500ff Lights-engine-bay-3.jpg   Install of Westin Off-road Light bar and Hella 500ff Lights-hood-release-cable-grommet.jpg

Last edited by pafenton; 03-11-2013 at 01:28 PM.
Reply With Quote
  #5
Old 03-10-2013
pafenton's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Sooke, BC
Posts: 74
Westin Off-road Light bar and Hella 500ff Lights Cont.

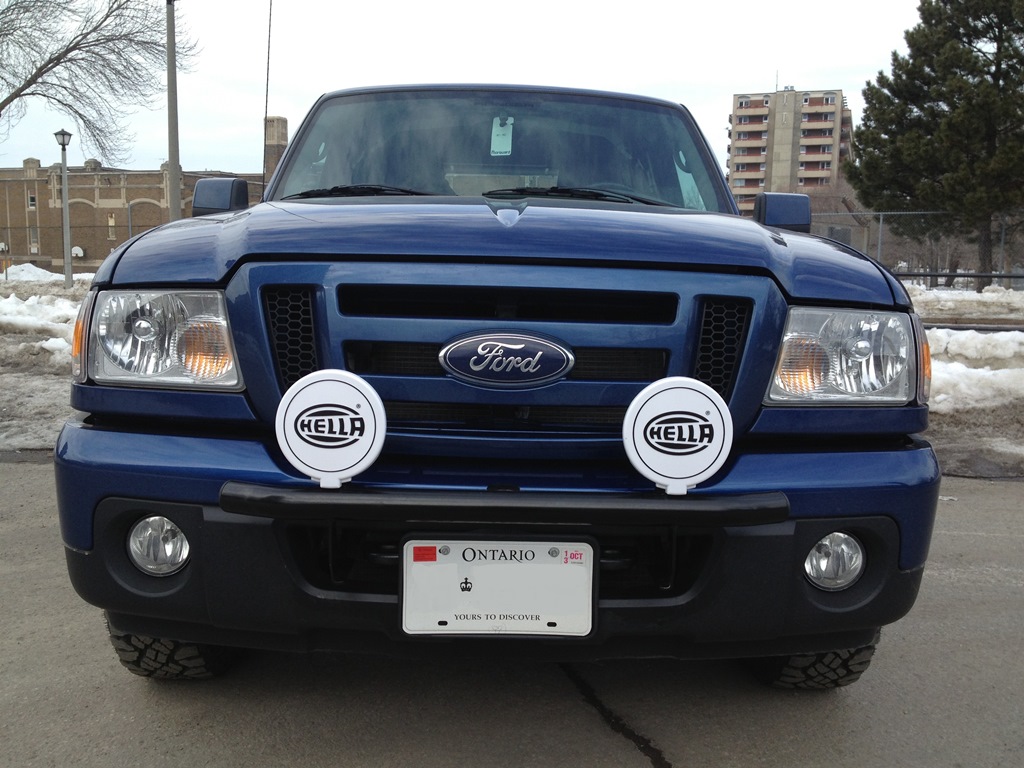

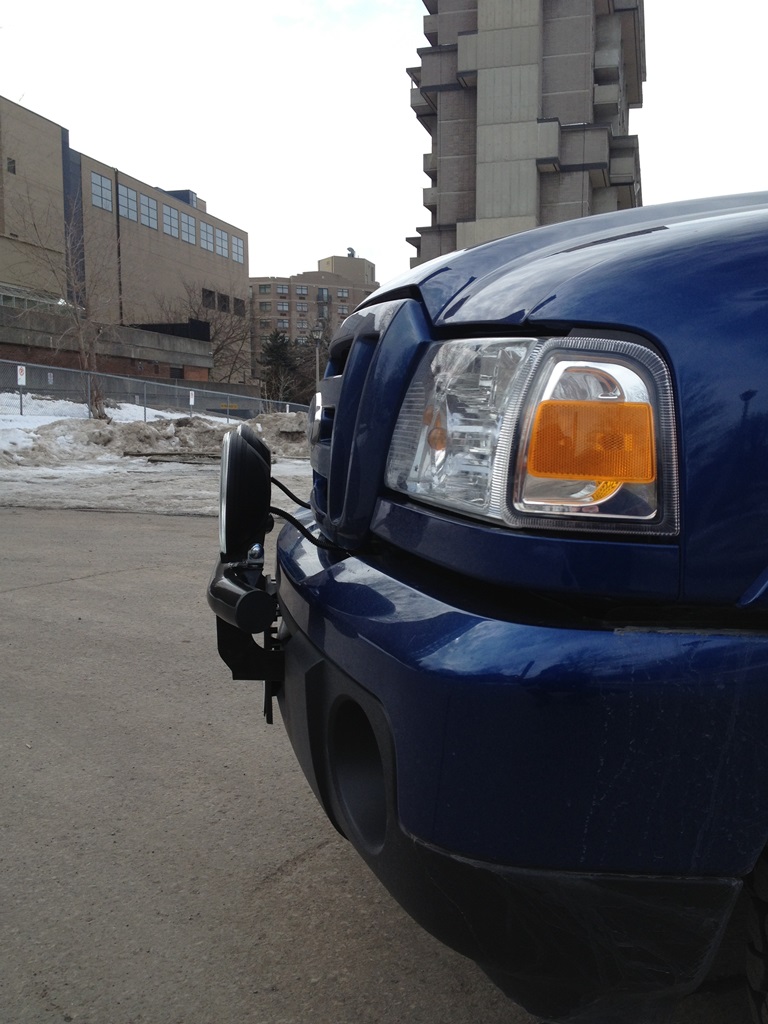

Pictures off the lights installed and the covers on and off.





Attached Thumbnails
Install of Westin Off-road Light bar and Hella 500ff Lights-front-covers-1.jpg   Install of Westin Off-road Light bar and Hella 500ff Lights-front-without-covers-1.jpg   Install of Westin Off-road Light bar and Hella 500ff Lights-side-view-2.jpg
Reply With Quote
  #6
Old 03-10-2013
pafenton's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Sooke, BC
Posts: 74

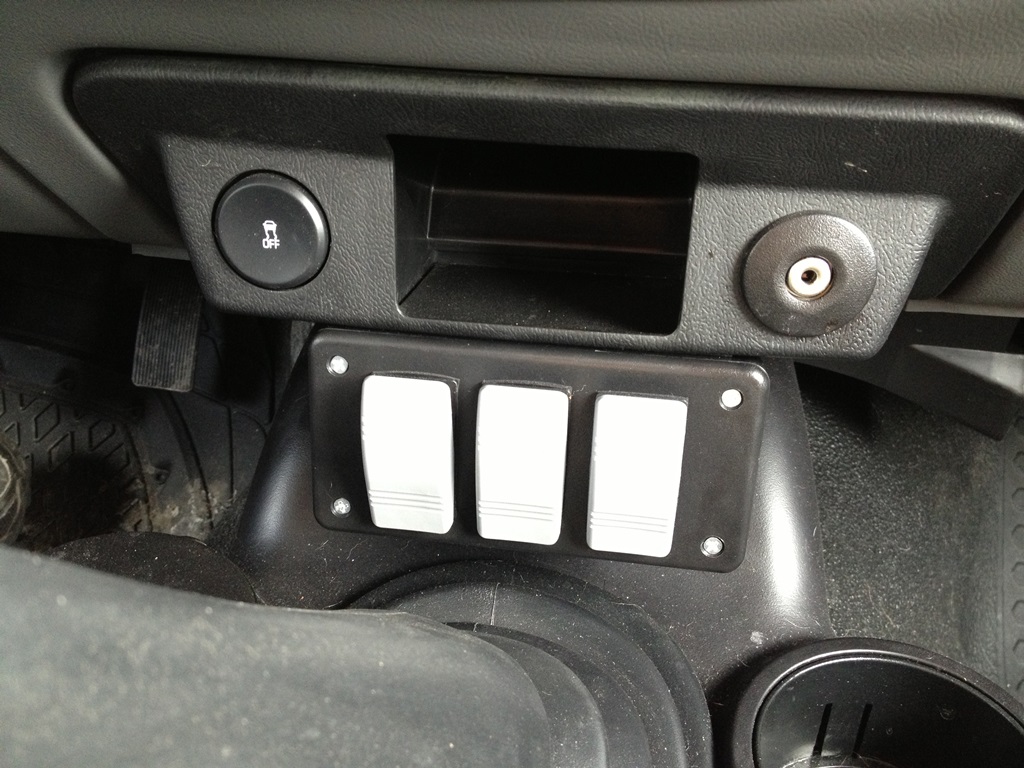

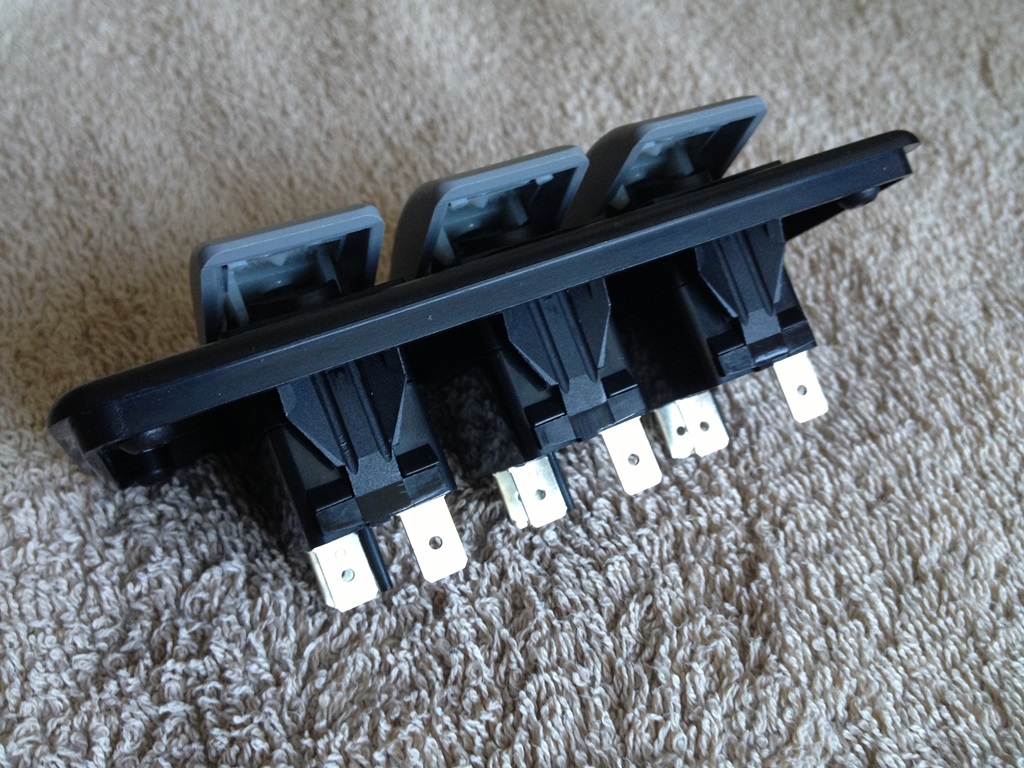

Switch Panel Location

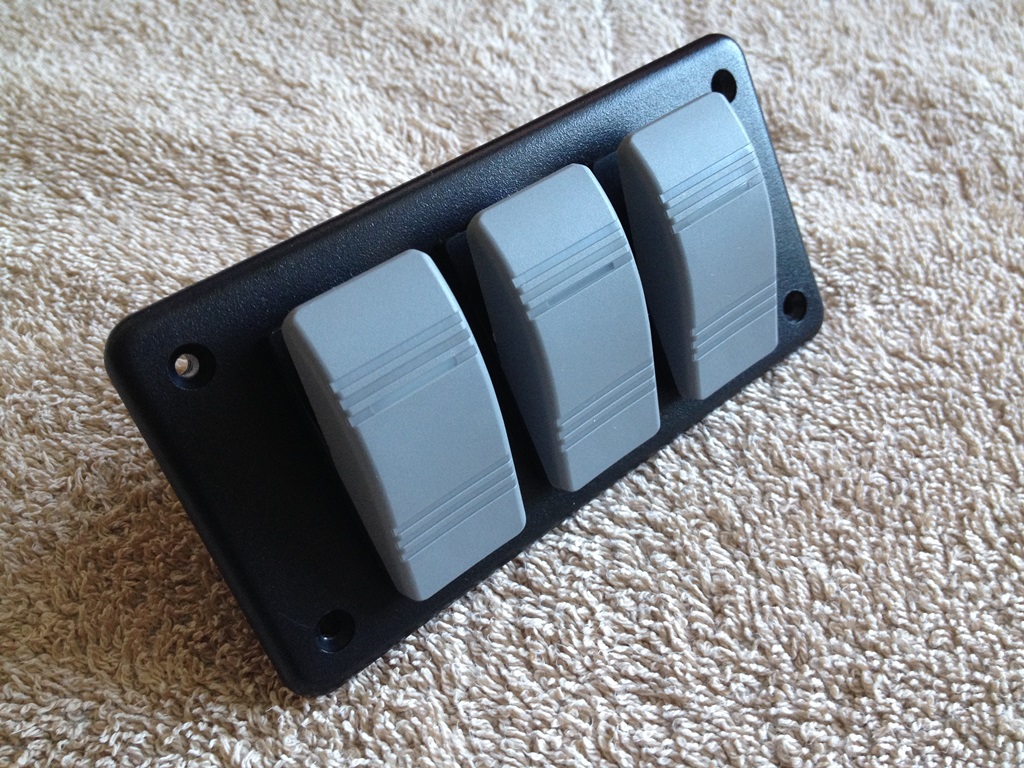

I was not a fan of the switch supplied with the lights and wanted a switch with a higher rating and a rocker action, after getting frustrated with the internet and pricing I found the final switches at a local marine store that did mail order as well but a quick drive out I got three switches with the same ratings as another brand all in probably including my gas for less that the shipping another Ontario outlet wanted to ship from Burlington to Ottawa.

the Switches are Blue Sea Systems PN 8230 are LED indicated and are rated for 20 amps at 12 VDC

Attached Thumbnails
Install of Westin Off-road Light bar and Hella 500ff Lights-switch-panel.jpg

Last edited by pafenton; 03-10-2013 at 09:25 PM.
Reply With Quote
  #7
Old 03-10-2013
pafenton's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Sooke, BC
Posts: 74
Anyone has any questions feel free to ask. =)
Reply With Quote
  #8
Old 03-10-2013
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Nice clean install
Reply With Quote
  #9
Old 03-10-2013
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Nice work!
Reply With Quote
  #10
Old 03-10-2013
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
^ X2
Good ideas all of what you did.
Reply With Quote
  #11
Old 03-10-2013
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
What is it about this bar that makes it for 06+? Is the opening in those bumpers different?
Reply With Quote
  #12
Old 03-10-2013
pafenton's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Sooke, BC
Posts: 74
2006 Ford Ranger: A mild facelift for the '06 Ranger involved modest revisions to bumpers, grille, fenders, and lights.

I believe that the bumpers are steel prior to 2005, in the LMC truck cataloge you can see the differences the 2006 plus bumpers contain an impact bar under the bumper pad that you can see this is the colour matched part or black textured part your see on newer trucks.

for this reason the contruction underneath is different.

Hope this helps

Page 20 in the LMC Fall 2012 Catalog if you have one
Reply With Quote
  #13
Old 03-10-2013
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
I understand the cosmetic changes in 06

Towhook and bumpers are interchangeable in all 98+ Rangers, I don't recall any other mounting provisions that would be different.

I like it and think it would be a clean way to mount an LED bar, besides the tabs that everyone makes
Reply With Quote
  #14
Old 03-11-2013
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
Nice work man. Very CLean
Reply With Quote
  #15
Old 03-11-2013
pafenton's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Sooke, BC
Posts: 74
Quote:
Originally Posted by 01RangerEdge View Post
I understand the cosmetic changes in 06

Towhook and bumpers are interchangeable in all 98+ Rangers, I don't recall any other mounting provisions that would be different.

I like it and think it would be a clean way to mount an LED bar, besides the tabs that everyone makes
Tomorrow I will get a picture of how it mounts for you, the instructions on the Westin site have a pretty good picture as well.
Reply With Quote
  #16
Old 03-11-2013
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by pafenton View Post
Anyone has any questions feel free to ask. =)
Me. Me !


Quote:
Originally Posted by pafenton View Post
I was not a fan of the switch supplied with the lights and wanted a switch with a higher rating and a rocker action, I found the final switches at a local marine store, I got three switches with the same ratings as another brand .
The Switches are Blue Sea Systems PN 8230 are LED indicated and are rated for 20 amps at 12 VDC
Since I hope you are running a relay (picture shows one) for the lights the switch need only carry approximately 2 or 3 amp rating. There are not a lot of good looking 12V switches in that amperage category so we can do with what ever one we like the looks of but 20 amps is not needed.

The relay in the battery picture is for the lights ?

The switch box idea is unique for the Ranger Forums, interesting the way you set it up.
What are the extra switches for ?

Quote:
Originally Posted by pafenton View Post
Using provided advice I ran the + 12 Volt (Green) taken from the High beem (Purple with Orange Stripe) from Drivers side headlamp and the load (Yellow) wires through the firewall at the hood release cable grommet. I did this by pussing a 1/8 allen key from the inside to stretch the grommet and then made a small incision to allow the wires to be fed into the cab.
Why use the High Beam Wire, why not the Low Beam as OEM or the Parking Light wire for on all the time with any lights ?

Your method of getting the wires inside is a good one, nice look, minimal damage to the grommet. I wish there was other holes that we could open up to get a group of wire through the firewall.
Reply With Quote
  #17
Old 03-11-2013
pafenton's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Sooke, BC
Posts: 74
The Switches were just a preference and yes there is a relay it is actually behind the fuse holder on the red lead, the Ty-wrap is lose around the relay so I can remove the fuse but hold it in place. I am a Marine Electrician in the Royal Canadian Navy by trade.
The Two addition switches will be used for a set of worklights facing behind the truck mounted on my rack, and cargo lamp under the rack for the bed.

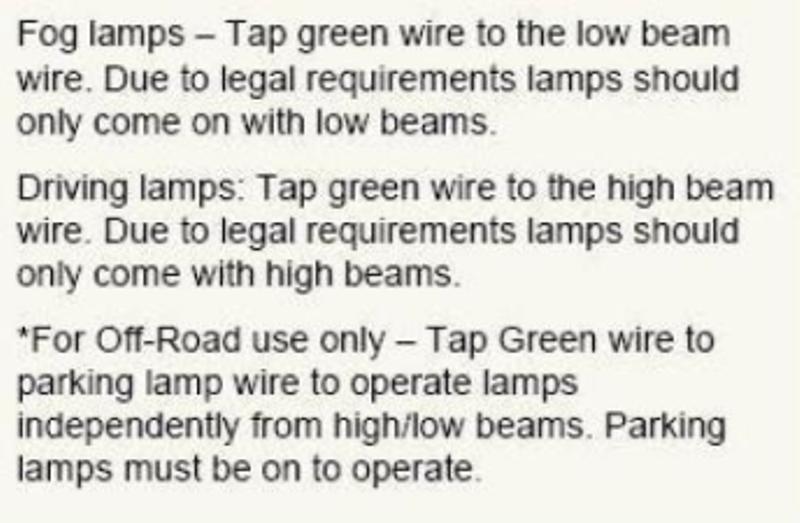

As for use of the High Beam lead that is as per Provincial Regulations Driving lights may only be used with High Beam lights so when I return to BC this summer there will be no issues with inspections. The supplied Hella instructions cover this.



I wired a previous truck in the same manner, the bonus is you can never leave them on when using the High beam lead to trigger the relay as they turn off automatically when you go back to low beam and you don't offend oncoming traffic.

I had bought some grommets to make my own hole but try and get a drill in there, and I even have a compact dewalt.

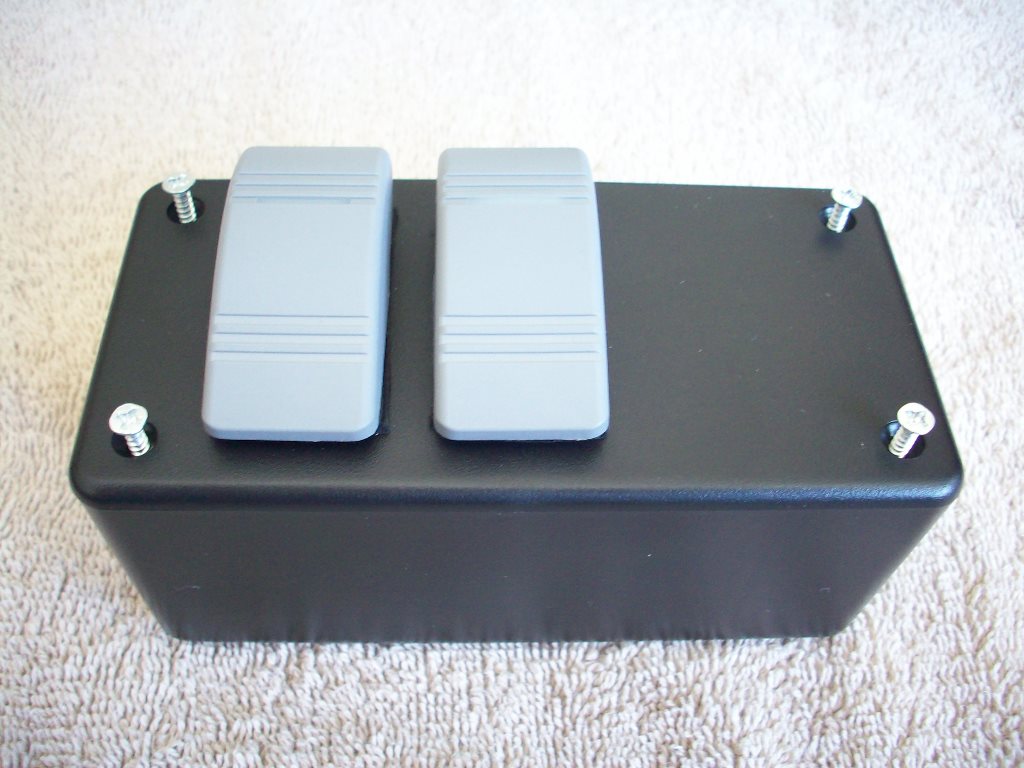

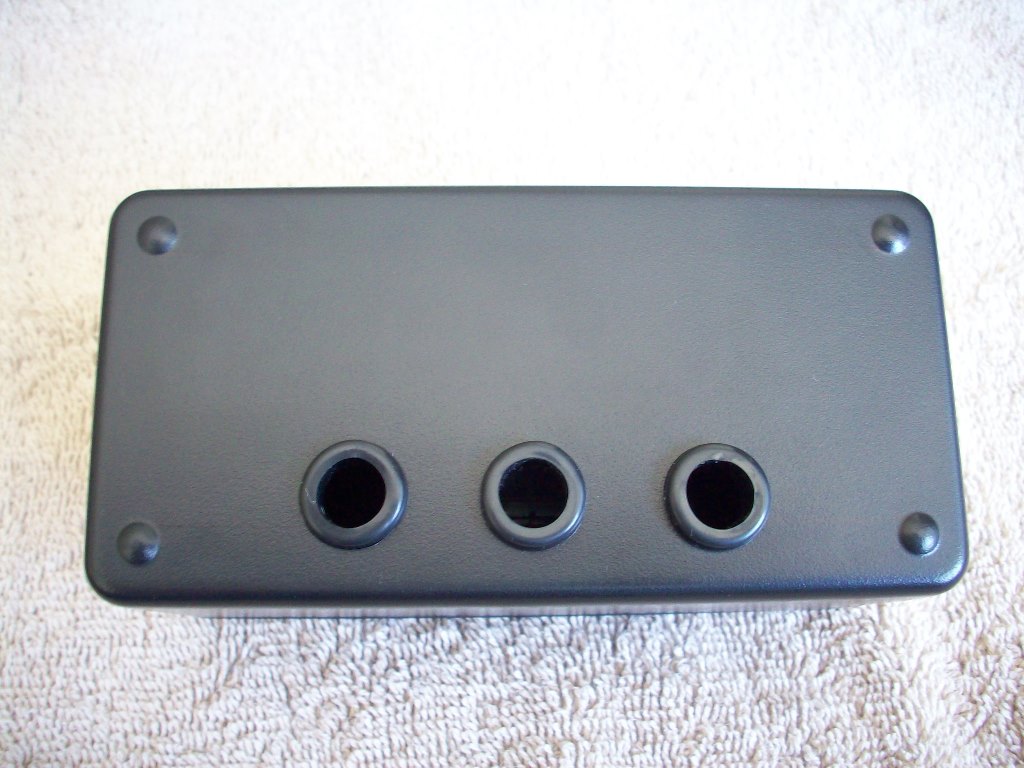

The project box comes from the Source(Radio Shack) and was six bucks it gives you a choice of the black plastic you see or an aluminum plate for the front cover. I choose the black obviously and the grey switches also tie in with the dash and interior colours.
Attached Thumbnails
Install of Westin Off-road Light bar and Hella 500ff Lights-wiring-intstructions.jpg

Last edited by pafenton; 03-11-2013 at 09:35 AM.
Reply With Quote
  #18
Old 03-11-2013
pafenton's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Sooke, BC
Posts: 74
About the switches at twenty amps they are overkill but when you consider they are marine grade, dust and waterproof with a panel gasket provided it is a good chance I will never have to replace them. The box is perched between to cup holders so it was a little insurance to boot. At less than 10 dollars a pop they were only a dollar or two more than what is available at Canadian Tire or the local auto parts store and almost half the price of Cole Hersee or Daystar switches that are almost identical.

Also if I want to run a load through them I can for worklights or the cargo light bcause the rating is more that sufficient.

Last edited by pafenton; 03-11-2013 at 03:08 PM.
Reply With Quote
  #19
Old 03-11-2013
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by pafenton View Post
The Switches were just a preference and yes there is a relay it is actually behind the fuse holder on the red lead, the Ty-wrap is lose around the relay so I can remove the fuse but hold it in place. I am a Marine Electrician in the Royal Canadian Navy by trade.
The Two addition switches will be used for a set of worklights facing behind the truck mounted on my rack, and cargo lamp under the rack for the bed.

As for use of the High Beam lead that is as per Provincial Regulations Driving lights may only be used with High Beam lights so when I return to BC this summer there will be no issues with inspections. The supplied Hella instructions cover this.



I wired a previous truck in the same manner, the bonus is you can never leave them on when using the High beam lead to trigger the relay as they turn off automatically when you go back to low beam and you don't offend oncoming traffic.

I had bought some grommets to make my own hole but try and get a drill in there, and I even have a compact dewalt.

The project box comes from the Source(Radio Shack) and was six bucks it gives you a choice of the black plastic you see or an aluminum plate for the front cover. I choose the black obviously and the grey switches also tie in with the dash and interior colours.

Ok on that.

Good job and looks good.

Ltr
Reply With Quote
  #20
Old 03-11-2013
pafenton's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Sooke, BC
Posts: 74
Quote:
Originally Posted by 01RangerEdge View Post
I understand the cosmetic changes in 06

Towhook and bumpers are interchangeable in all 98+ Rangers, I don't recall any other mounting provisions that would be different.

I like it and think it would be a clean way to mount an LED bar, besides the tabs that everyone makes

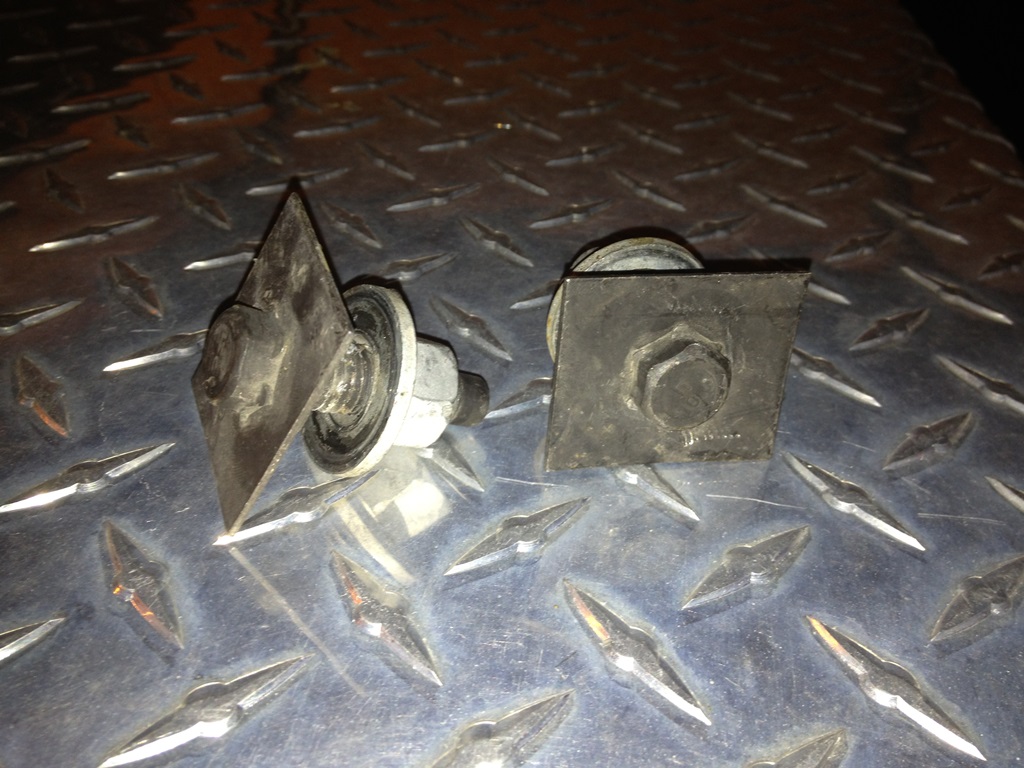

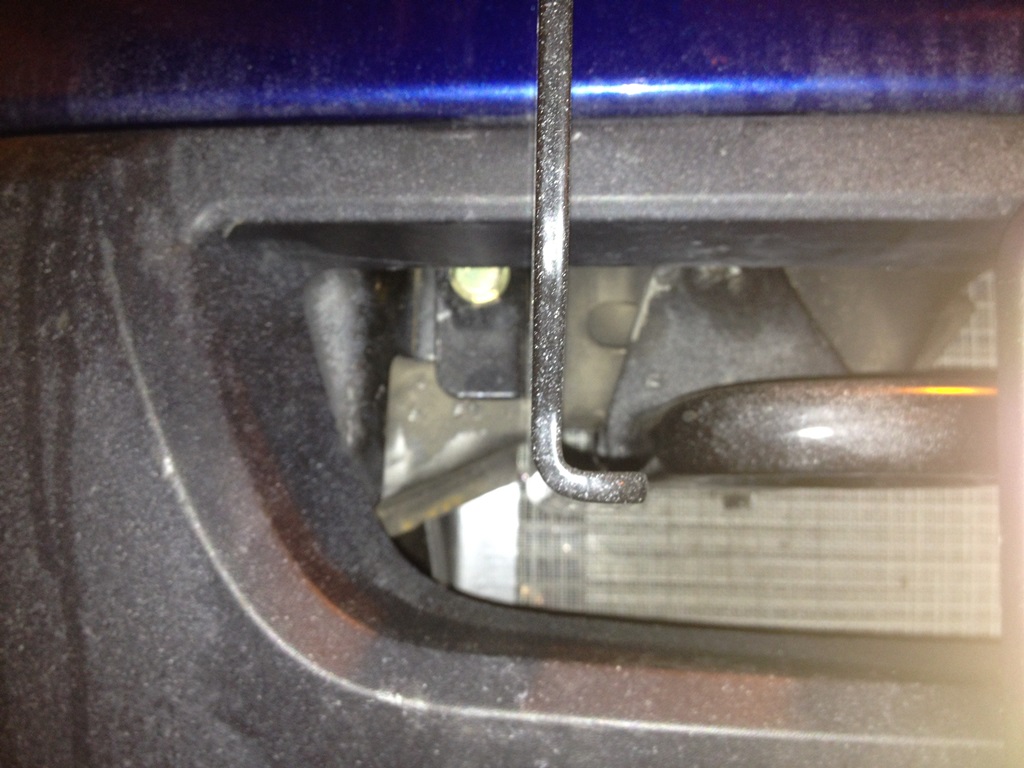

Here are a couple of pictures the bolts with plates that need to come out then a shot of the passenger side with reversed tow hook for reference hope this helps with your fit question.



Attached Thumbnails
Install of Westin Off-road Light bar and Hella 500ff Lights-bolts-removed.jpg   Install of Westin Off-road Light bar and Hella 500ff Lights-mounting-tow-hook.jpg
Reply With Quote
  #21
Old 03-11-2013
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Thanks for the pic.
Reply With Quote
  #22
Old 03-19-2013
Member

Join Date: Jan 2012
Location: monroe nc
Posts: 38
Very clean install! Looks great!
Reply With Quote
  #23
Old 06-16-2013
Member

Join Date: Jun 2013
Location: Elverta, CA
Posts: 1
Does anyone have any suggestions or photos of this light bar with an actual LED bar instead of the Hella style lights?
