Instrument lights...

I got a couple of questions.

On my 2002 Edge I have two instrument lamps that aren't functioning.

I have been told that between around the 2001-2003 Rangers had two different types of instrument panel illumination.

The first type allows for burned out bulbs to be replaced individually.

The second type requires that the entire instrument panel be replaced because there is (supposedly) no provision for bulb replacement.

That I have lost two areas of illumination on the instrument panel...first the bulb that illuminates my gas guage...second the bulb that illuminates the gear selector...at different times leads me to believe (I'm praying) that my truck has the first type of bulb replacement. That the bulbs might be replaced.

I'd like to replace the whole set but I fear I'm going to unable to find a good used serviceable instrument panel.

So I'm looking for any input that might help me to solve this dilemma.

Whadda ya' think?
Reply With Quote
  #2
Old 04-16-2014
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
it should just be six 194 bulbs. I've helped someone swap their bulbs to LEDs in a 2002 a few years back.

2004 had different bulbs due to cluster redesign but could still be individually replaced
Reply With Quote
  #3
Old 04-18-2014
RazorEdge's Avatar
Member
Thread Starter

Join Date: Nov 2013
Location: Mount Pleasant
Posts: 130
Thank's, Partner...
Reply With Quote
  #4
Old 04-19-2014
buggman's Avatar
Member
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648

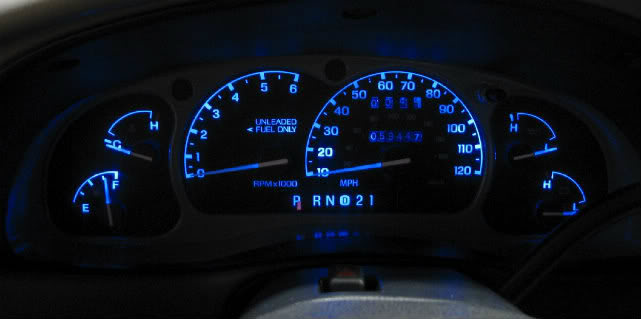

If your cluster is the older style like my 96
Name:  IMG_1493-1-1.jpg
Views: 4
Size:  22.9 KB

You'll have 6x bulbs for the back lighting.

If you have the newer style dash with the digital display, you'll have 5x of the smaller bulbs.

For the older style clusters even the "idiot lights" can be changed using smaller led's than the backlighting uses.

The newer clusters' back lighting & some idiot lights can be changed...I forget which indicators can be changed.... maybe the turn signal indicators & a few more. Some of the other indicators have surface mounted led's (SMD) directly onto the circuit boards. Those can be changed out, but it's not for the average person to tackle... one bad move & you could fry the entire cluster.

I have led's for both style cluster back lighting & even for the older style idiot lights if you need any just let me know.
Reply With Quote
  #5
Old 04-19-2014
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Buggman LEDs are great. My entire interior has them and I have some outside as well!
Reply With Quote
  #6
Old 04-19-2014
RazorEdge's Avatar
Member
Thread Starter

Join Date: Nov 2013
Location: Mount Pleasant
Posts: 130
Thanks for the information...you have been Very helpful.
Reply With Quote
  #7
Old 04-19-2014
RazorEdge's Avatar
Member
Thread Starter

Join Date: Nov 2013
Location: Mount Pleasant
Posts: 130
Thanks for the information, Partner...
