L1224R LED modded '06+ tails!!! (56k no, 28 pics...)

Hey.

FINALLY showing off my led conversion 06+ tails!! Jp7, a member here, used these lamps and he showed them off...so.....i bought a pair from him to try out just for the hell of it. I was after better lighting, my whole back end to be led, the just plain badass factor, and keeping it all stock looking. What's the judgement? GREAT SUCCESS!! ~says Borat.



L1224R led's are made by Osram Sylvania and were introduced in '04 and first used on the '06 Mercurt Mountaineer. They are the first automotive LED to be made 'screw-in' as a standardized form to make just the lamp replaceable instead of the entire housing needing to be replaced. Thus making them cheaper to produce, cheaper for the auto manufacturer to 'tweak'/update lenses with respect to how light is reflected, and cheaper to maintain than the 'dot' led tails that some manufacturers are putting on vehicles these days.

More info on these bulbs/diodes...whatever the technical name is. lol....
http://www.sylvania.com/joule/images/PIB_LED_System.pdf

*~~*Something i noticed in above link...AMBER and WHITE L1224R's!!???!!??? Hmm....shane having an LED front end conversion w/ hid projectors? what's this????? hmmm...

These ones i used came off of a Mountaineer, purchased from Ranger-Forums member Jp7. *I give Positive feedback towards Jp7...fast shipper, he's there to help if you need it. AAA+++. PLUS.....i'm pretty dang sure i couldn't just go to a junkyard locally and pick up two mountaineer housings and cut 'em up for how cheap i got these...

Link to Jp7's rear lighting thread... https://www.ranger-forums.com/forum2...ad.php?t=64070





After having these installed, it's an incredible difference in the "BAM!" factor and the pimp factor. They are brighter and way more vivid than the stock 3157's. The color is more red when compared to the old incandescent 3157's. The speed in which it takes for these to be in fill intensity is VERY VERY fast compared to regular old filament bulbs, as you can see in a video found below....way below. lol. Time to 'rise': 250 milliseconds for incandescent bulbs......1.8 milliseconds for an LED. 138.8 times FASTER than incandescent. WOW! I have yet to find out how to cure the 'hyperflash' when signaling yet...but that's soon to come. Maybe jp7 has some links for me. Still need to put on the led clearence lamp between the bumper/gate, led lisence plate lights, and led headache rack lights.




On with the pics!!

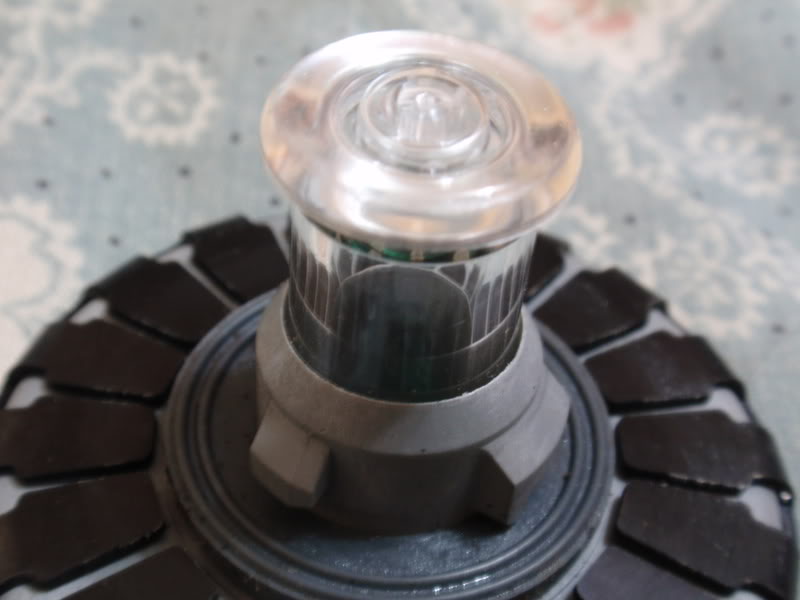

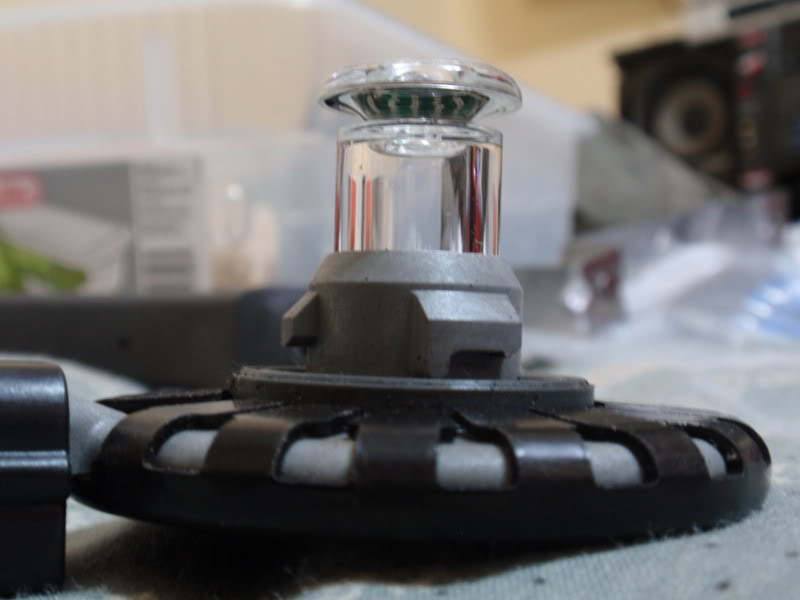

Close up shots of the L1224R's....
Name:  P8260056.jpg
Views: 41
Size:  47.0 KB

Name:  P8260055.jpg
Views: 38
Size:  44.1 KB

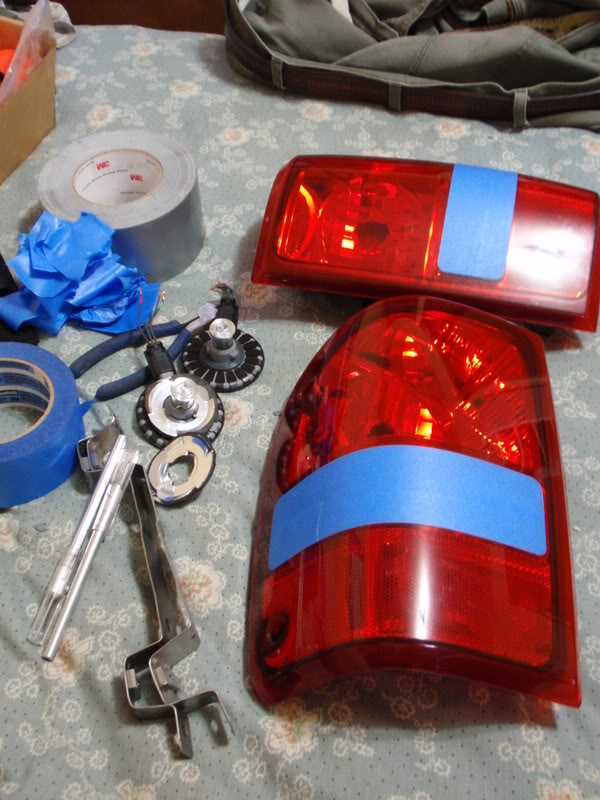

Oh yes...the working mess on the bed. lol. WAS going to tint the tails while doing this mod...but no where locally had nightshade...so...it'll wait.
Name:  P8250018.jpg
Views: 37
Size:  93.7 KB

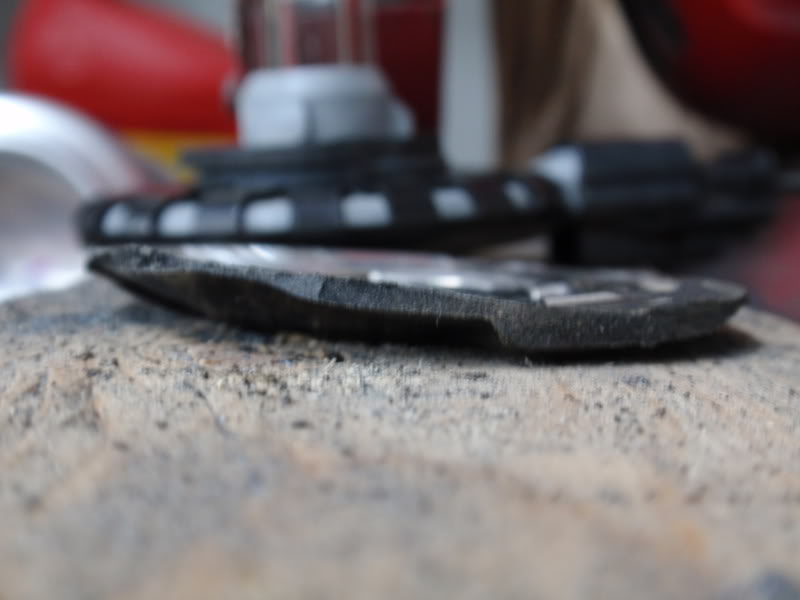

Here's one issue i had at first...but was easily cured. This is what the bulb 'rotates'/'screws' into....notice how it's 'domed'. If i were to just JB weld the 'dome' as-is, the L1224R's would not have used the stock reflector very well at all....no 'bounce'.....
Name:  P8260025.jpg
Views: 37
Size:  44.1 KB

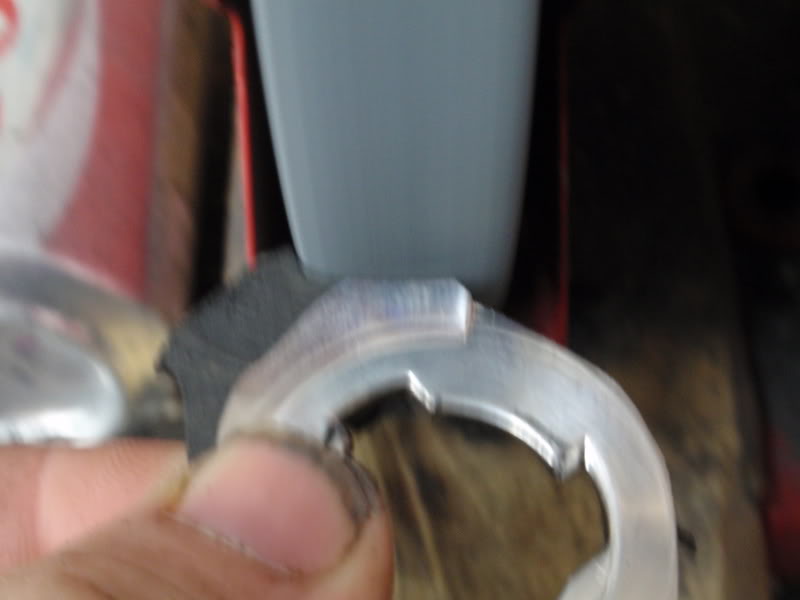

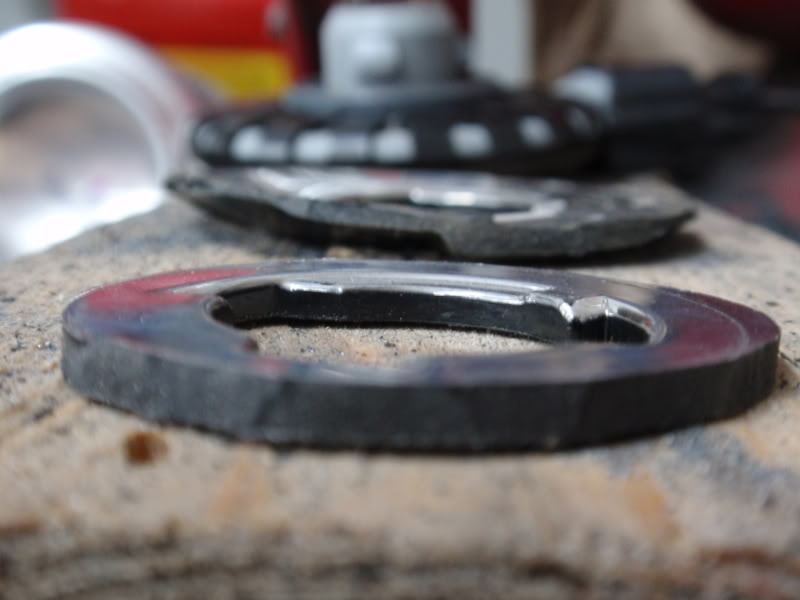

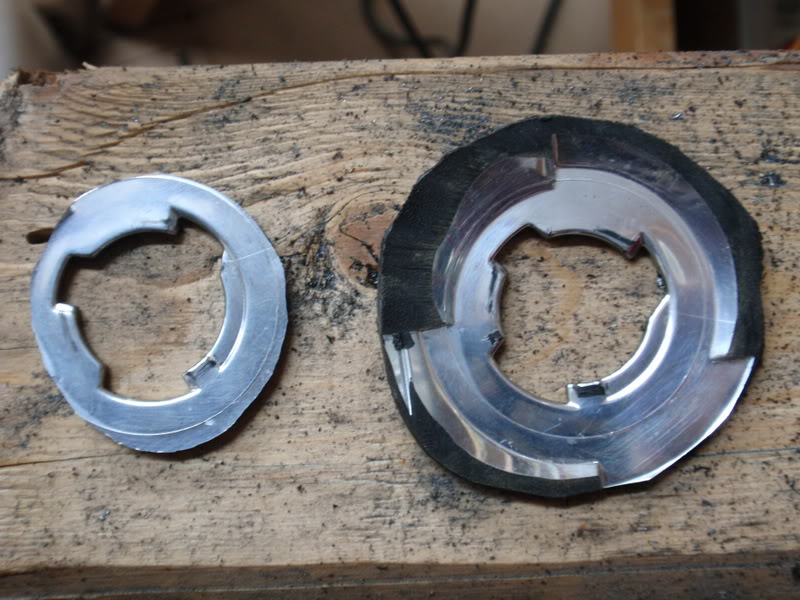

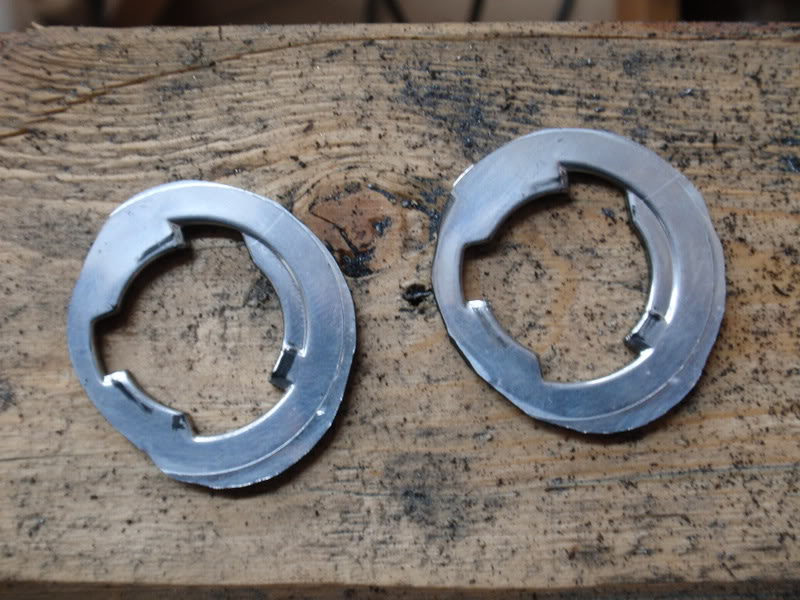

There's enough of a flat surface on these pieces that the 'domed' part of it was easily removed....by use of a bench grinder!
Name:  P8260031.jpg
Views: 37
Size:  37.7 KB

Name:  P8260030.jpg
Views: 41
Size:  48.1 KB

Name:  P8260027.jpg
Views: 41
Size:  105.9 KB

Name:  P8260032.jpg
Views: 45
Size:  104.7 KB

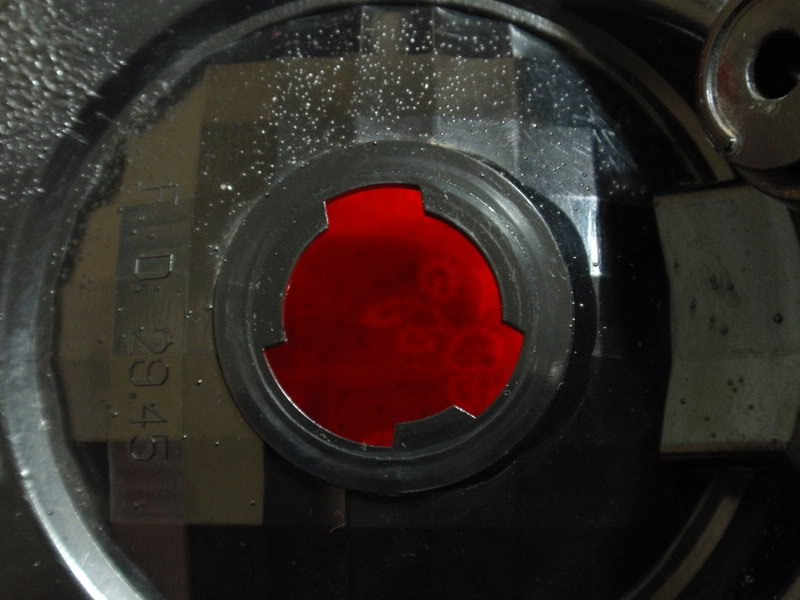

STOCK 3157 plug hole on back of '06+ tails...
Name:  P8260034.jpg
Views: 51
Size:  61.0 KB

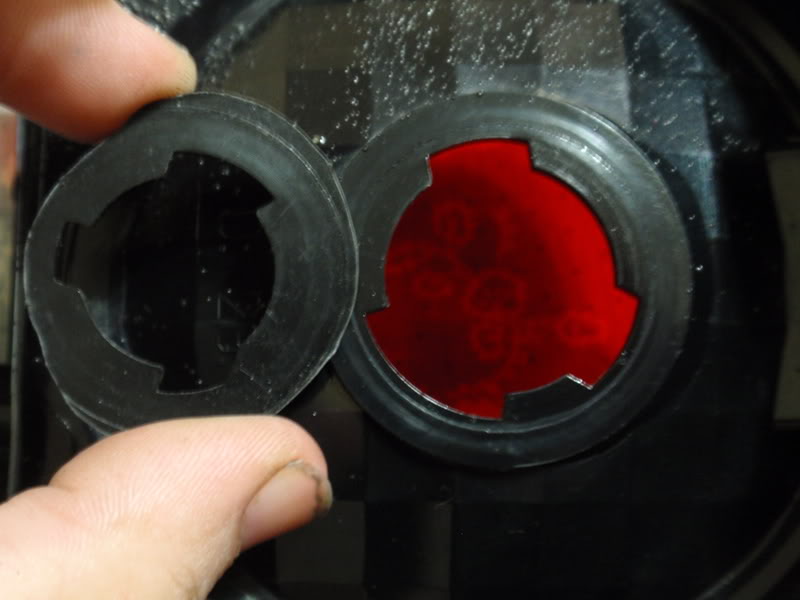

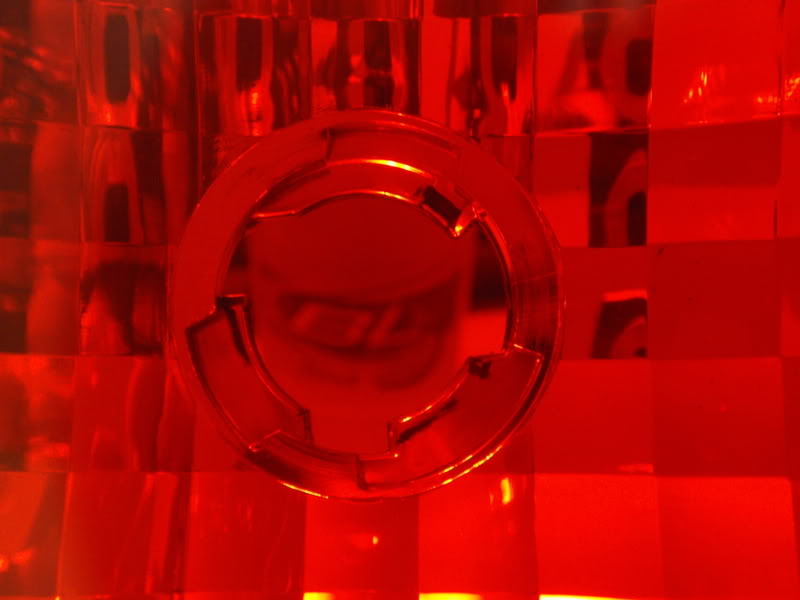

NOTICE: Hole size difference for the bulb holder inner....L1224R is slightly smaller of a hole than the 3157 hole....so....no destroying your brand new tails!! (mostly)
Name:  P8260035.jpg
Views: 42
Size:  51.0 KB

I wanted the L1224R's to be completely centered in the old 3157 holes...that way there's even light being projected off the reflector. Get your bulb holders lined up, and tape 'em down. Keep in mind....where you have this piece at, MUST work in relation to the plugs on the back of the new lighting equipment. More on that later. You'll notice in this pic, that you can get it EFFIN PERFECT!....hard to describe sorta...but the notches work in sync with eachother...no trimming of housing needed.
Name:  P8260038.jpg
Views: 40
Size:  45.8 KB

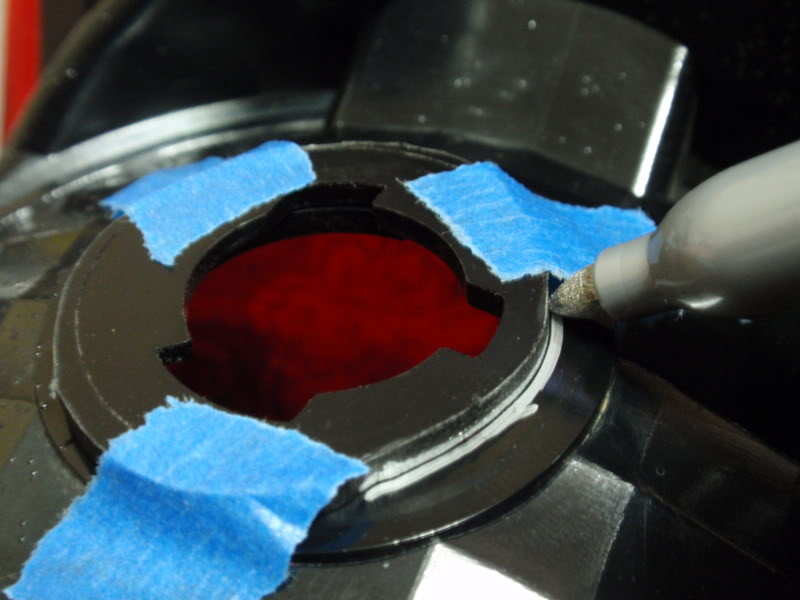

So you got 'em taped down, I made an alignment mark, and traced around the piece so that I know where it's sitting so i have no extra ugly epoxy showing. Make sure you can 'act' as though your installing your lamps...so that you have no "IT WONT FIT" issues...
Name:  P8260045.jpg
Views: 36
Size:  54.4 KB

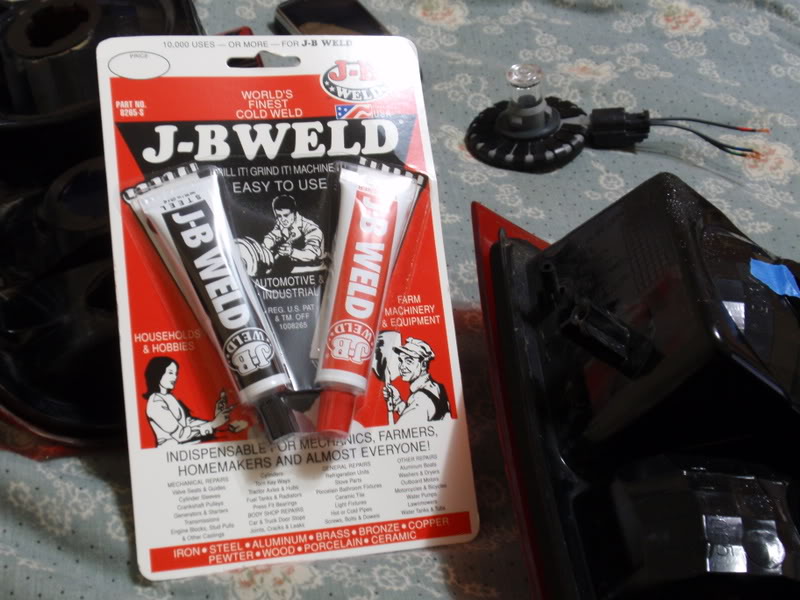

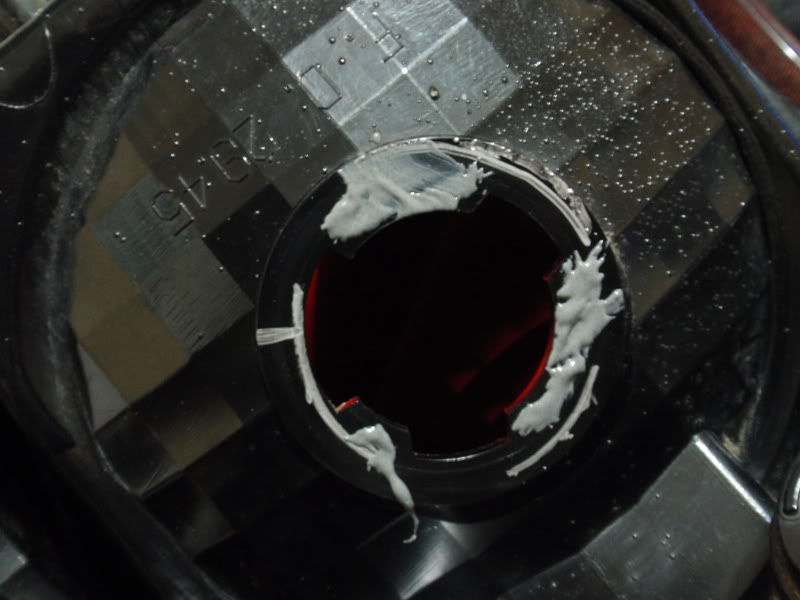

JBweld FTW!
Name:  P8260044.jpg
Views: 35
Size:  91.8 KB

Name:  P8260050.jpg
Views: 38
Size:  60.0 KB

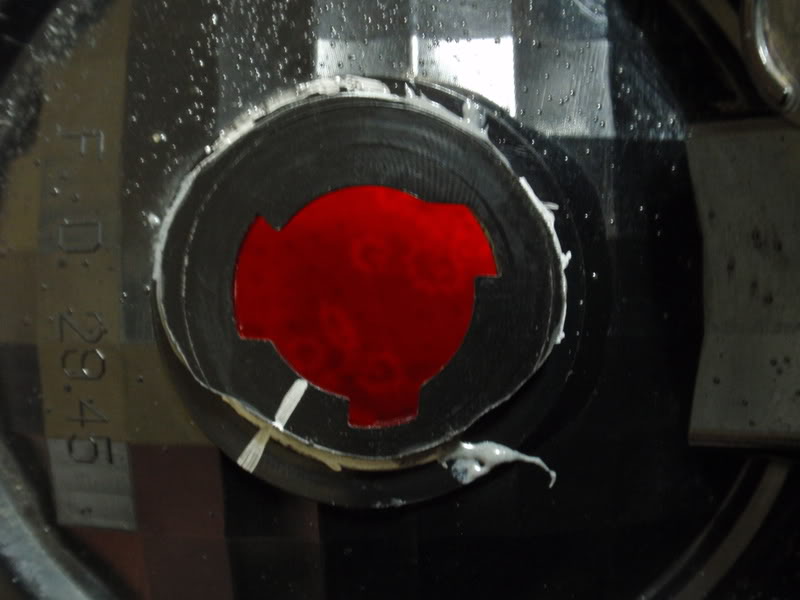

Bulb holder on housing...aligned with your alignment marks.
Name:  P8260051.jpg
Views: 39
Size:  54.2 KB

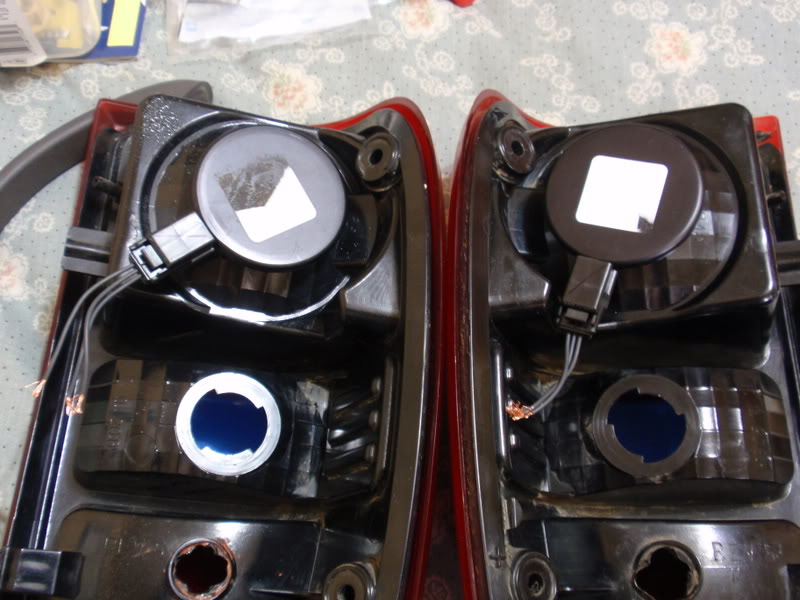

Let the JBweld cure over night...Then go around the new screw-in hole pieces with something like silocone or plastic epoxy, then install the L1224R's.
Name:  P8260060.jpg
Views: 44
Size:  84.3 KB

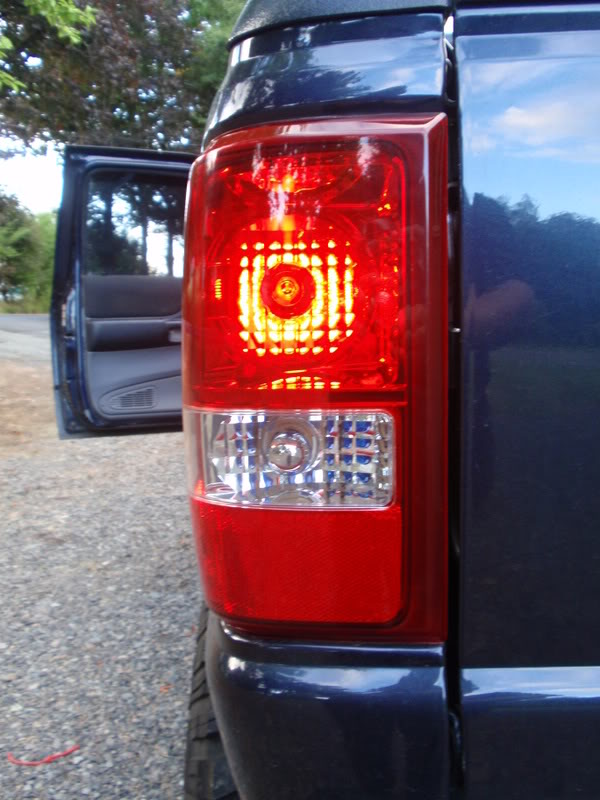

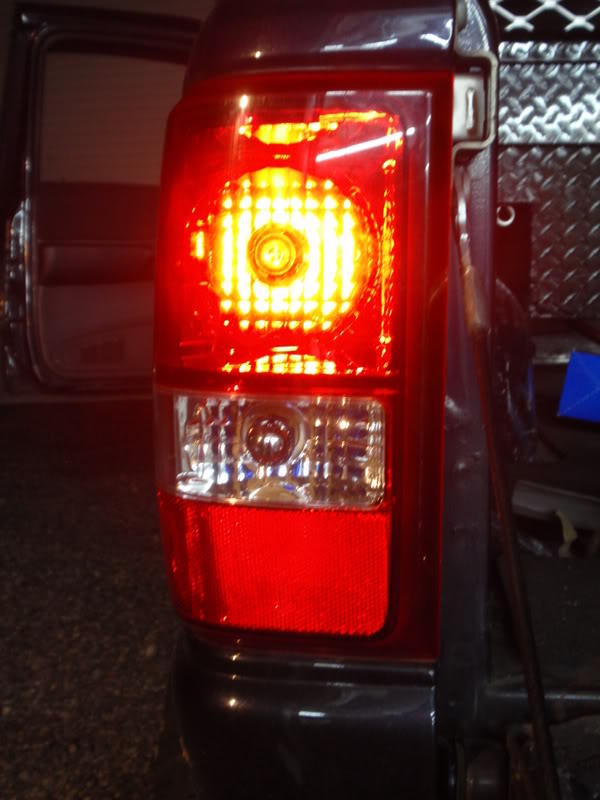

Cut old 3157 plug off, crimp/solder new pigtail for L1224R's to the stock wiring. You did figure out what wire does what right? I used those heat shrink butt connectors for temperary use until i get some good bullets or male/female connectors...i'll worry about that later. Make sure everything works. DONE!

Name:  P8260105-1.jpg
Views: 37
Size:  70.0 KB

Name:  P8270113.jpg
Views: 44
Size:  90.1 KB

Name:  P8270115.jpg
Views: 38
Size:  83.9 KB

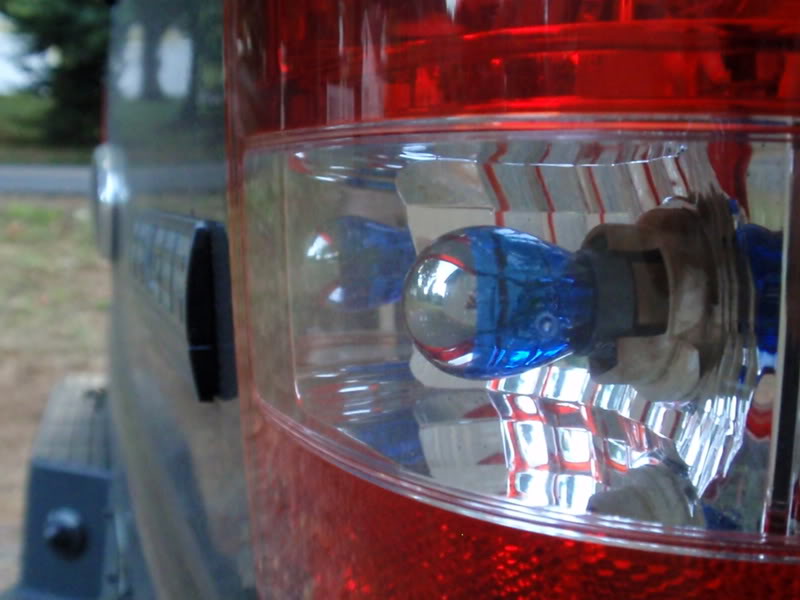

While i was at it....figured it was time to chage them backup bulbs. I was running those 55w 3156's....now running 3157's Xenon(hyper white) 'chrome-domes' from Autolumination.com that I had just lying around. SICKK!! looking in the housing.
http://autolumination.com/3157_3156.htm
Name:  P8270122.jpg
Views: 40
Size:  66.0 KB

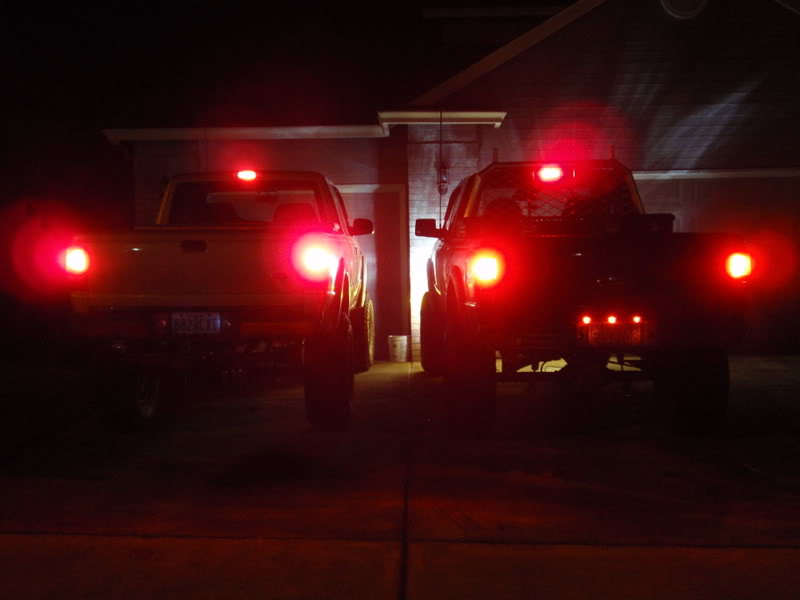

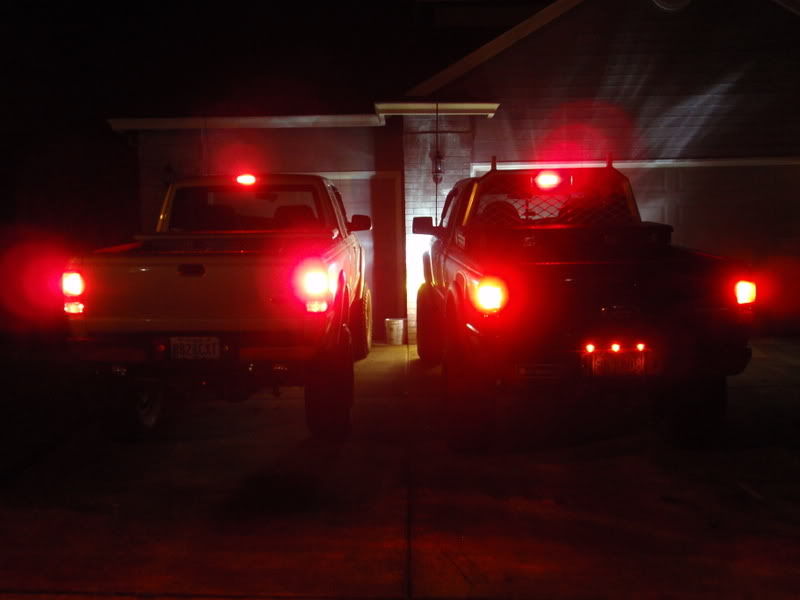

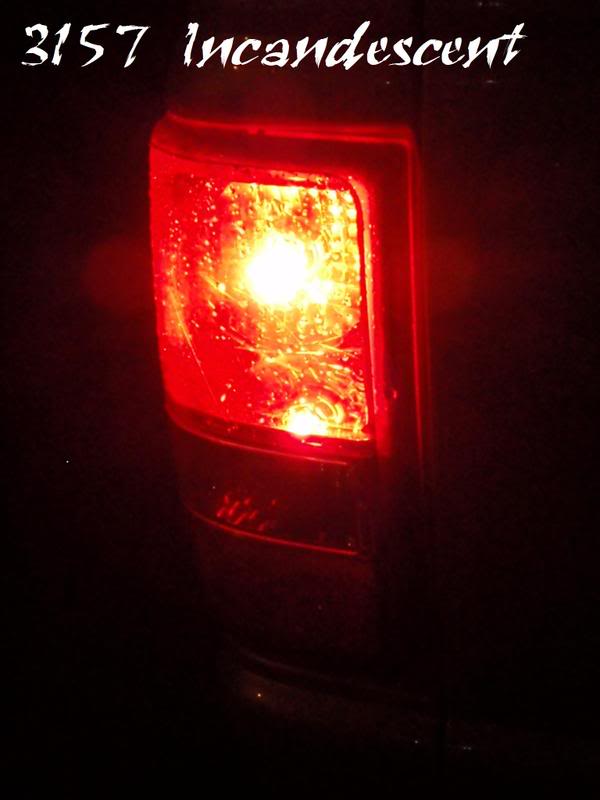

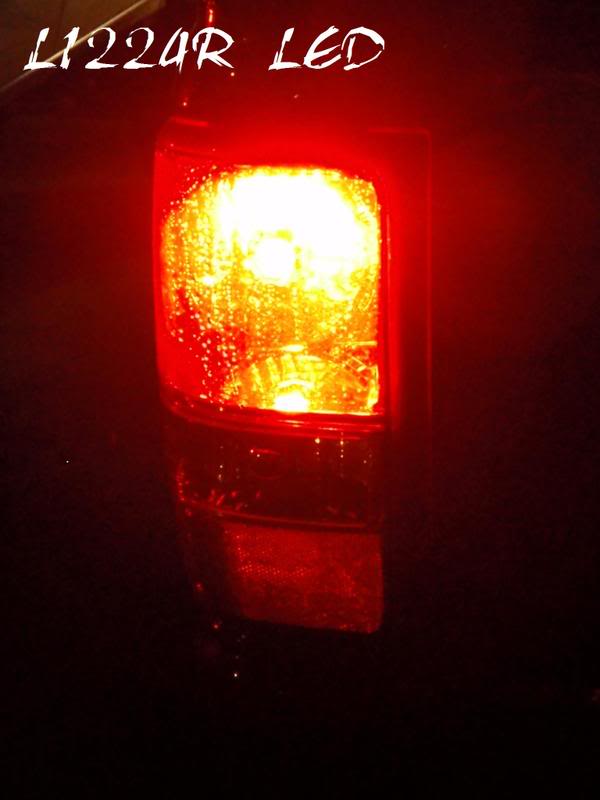

Some Comparison shots and a vid....STOCK incandescent vs. LED...


Kinda hard to tell...still getting used to playing around with the new camera at night...truck on left = stock(trepaul86). truck on right = L1224R and LED third replacement bulb(me!). Notice the shade of red you see....
Name:  P8310206.jpg
Views: 44
Size:  42.2 KB

Name:  P8310208.jpg
Views: 40
Size:  40.2 KB

Name:  P8310218edit.jpg
Views: 40
Size:  42.2 KB

Name:  P8310217edit.jpg
Views: 37
Size:  40.2 KB

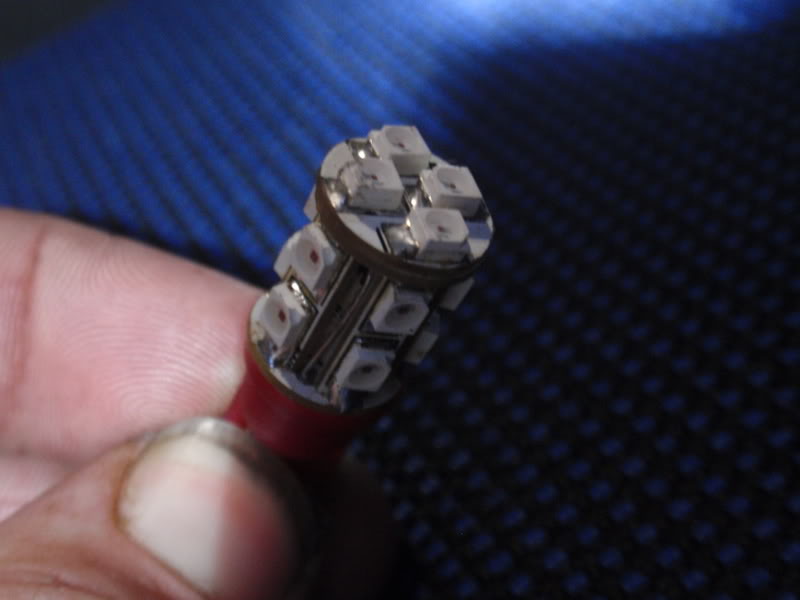

OH YEA! Pictured above is the installed V-Leds.com's AWESOME 5w 14 M-SMT 906 replacement....and it looks GREAT!!! in my Super Duty third brake light...
http://www.v-leds.com/Shop/Control/P...id/0/SFV/32481
Name:  P8280151.jpg
Views: 40
Size:  42.8 KB


I am VERY VERY satisfied with the new rear mod. Like I said...I still need to research how to fix the 'hyperflash' issue. I was going after a stock-like LED conversion for the rear, WITHOUT seeing all those 'dots' from normal LED third or tails. And the verdict is:



Oh....Party up front...AND now party up rear? What kind of hair cut is that!??


Name:  P8310224.jpg
Views: 39
Size:  39.9 KB



Way too late update:

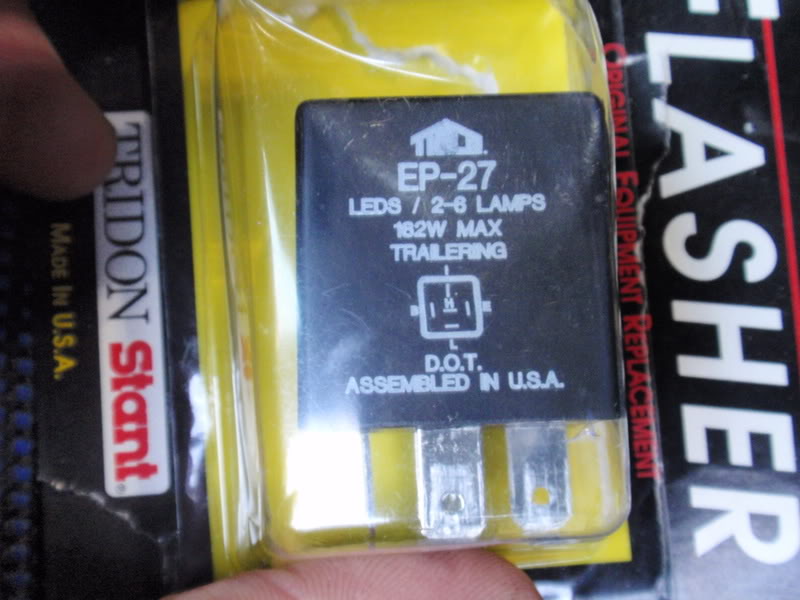

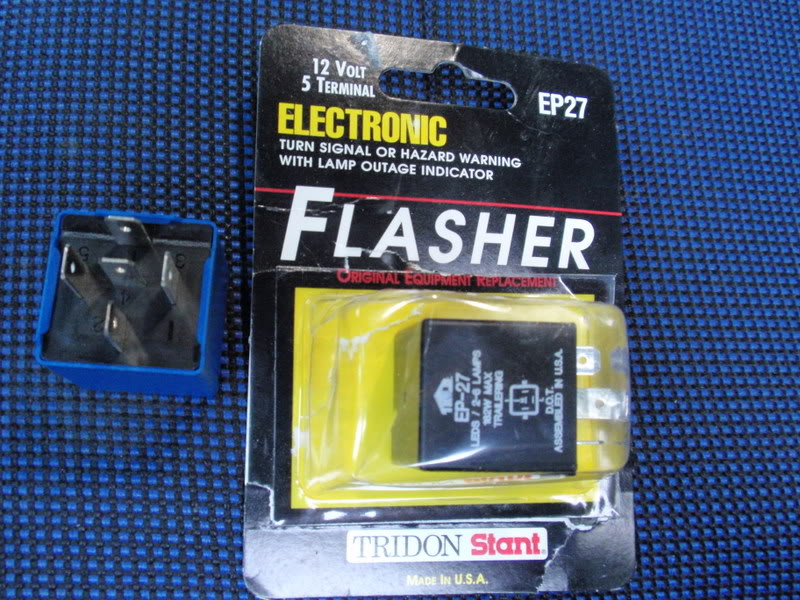

Replaced the stock blue incadescent flasher with a flasher purchased at Autozone for about $12. It's an EP27 that says LED on the flasher, but not the packaging. works great! Cured the 'hyperflash' issues when the turnsignal is selected. Problem was cured about a week after the LED install was done.

Went to 3 different auto parts stores to find one that would work. The one from Schucks flashed FASTER than the stock flasher. lol.

Vid comes later.




Oh....and to anyone talking about the 3rd bulb on '06+ tails....yea.....I'm going to do it again. Damnit Trevor for driving by my house the other day after his full blown LED conversion on all his lighting. lol.

Name:  P9230011.jpg
Views: 54
Size:  136.0 KB

Name:  P9230014.jpg
Views: 41
Size:  72.4 KB

Last edited by Fx4wannabe01; 09-29-2008 at 03:58 AM.
Reply With Quote
  #2
Old 09-01-2008
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
hyperflash is easy to take care of..... just buy the flasher v-leds.com sells - it is like 16$ i think - mine flash just like stock after installing the electronic flasher..

great thread Shane - i couldn't have done it better...

(by the way, the flasher is plug and play - it takes 5 minutes to install - the stock one is blue, and is under the dash near the steering wheel.)



http://www.v-leds.com/Shop/Control/P...id/0/SFV/32481
here is the link...

Last edited by Jp7; 09-01-2008 at 04:15 AM.
Reply With Quote
  #3
Old 09-01-2008
Fx4wannabe01's Avatar
RF Veteran
Thread Starter
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
http://www.v-leds.com/Shop/Control/P...id/0/SFV/32481 ??

or...

I read somewhere that newer rangers have 5 pins...I've never actually noticed a normal old flasher under there before.

http://www.v-leds.com/Shop/Control/P...id/0/SFV/32481

EDIT: WOAH WOAH there hairdryer in engine bay person(turbo)...you edited your post with a link. SWEEET!. lol.

Last edited by Fx4wannabe01; 09-01-2008 at 04:21 AM.
Reply With Quote
  #4
Old 09-01-2008
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
yeah thats what i have on my 04... I posted a thread about it a while ago the flasher fix works perfect i have no bulbs anywhere and it blinks and clicks perfect.. it even makes a nicer click sound then stock.
Reply With Quote
  #5
Old 09-01-2008
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Do not buy these, they are retarded... I have them in my evo because it does not have a conventional "flasher" (with no flasher you are forced to use resistors, and I hate them)


Last edited by Jp7; 09-01-2008 at 04:25 AM. Reason: My haid dryer owns... 24PSI whoo hoo..
Reply With Quote
  #6
Old 09-01-2008
Fx4wannabe01's Avatar
RF Veteran
Thread Starter
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Kicks and giggles....

no clue why i never stumbled upon all this info on them until AFTER i installed them. lol...i even searched...and that first link in the thread starter post never popped up until tonight. lol.

Offical product line the L1224R's are part of is the ' Joule ' system. SHOOT....just found out Ford first used this lamp in the Mustang GT-R concept...6 of these bad boys in the back!! Then made it standard equipment on the '06 Mountaineer refresh to all clear housings. Now it also appears on the '08 Taurus X and the Mercury Sable. I swear...i'm learning alot tonight. lol. Searching for amber ones as i type...

Here's the mountaineer they came out of...

Last edited by Fx4wannabe01; 09-01-2008 at 04:46 AM.

Reply With Quote
  #7
Old 09-01-2008
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
front leds would look awesome
Reply With Quote
  #8
Old 09-01-2008
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
i was reading over the link to the pdf you posted fx4wannab and i dont think the amber or white ones are out yet. it has them listed under product development
Reply With Quote
  #9
Old 09-01-2008
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
That's badass! Notice the tail light mod on the silver truck?! haha
Reply With Quote
  #10
Old 09-01-2008
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
wow thats too easy... didn't know Trevor had the tail light mod too...i love how mine look now
Reply With Quote
  #11
Old 09-01-2008
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Yeah, I did it awhile back.. took me all of about 30mins... Step drill, connectors, test light and some electrical tape to ensure the bulb stays in there... Like a strap if you will..

I'm runnin 906 in the lower light holes, not the 194's, that's why they're so bright. Gotta admit, it's sweet! Shane says he won't do it again, but he will lol. I've had people ask if they're like emergency vehicle lights cuz they trade off when lit up lol... It's great!
Reply With Quote
  #12
Old 09-01-2008
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
haha, electrical tape... I used some plastic epoxy so there are in there for good, I used the 921s? w/e is in the 3rd brake light... mine are just for running lights but they are still very bright... next month I have another mod coming back... HIDs


sshh...
Reply With Quote
  #13
Old 09-01-2008
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
Originally Posted by RangerNDog View Post
front leds would look awesome
you mean like this?



Reply With Quote
  #14
Old 09-01-2008
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
I wanted to be able to still take the bulb out if it burns out and replace it, so I didn't seal it. I used the ends off the gauges I used for my pressure gauge... Yoinked 2 of them from the surplus place for that mod specifically. Cut the hole with a step drill just big enough to push the light into and have it snap into place. Electrical tape is just to make sure it stays in there. Not meant to actually hold it in there lol...

Mine are wired like this. one wire to the park lamps, the other to the turn signal. So they take turns flashing, which is pretty cool lol.. I can get a vid up if people want.

Jp7, they make those for the front in hyper white?!
Reply With Quote
  #15
Old 09-01-2008
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
Originally Posted by TrePaul86 View Post

Jp7, they make those for the front in hyper white?!

Yes, you mean like this right?

Reverse bulbs and turn signals are the same bulb, just different colors.

Reply With Quote
  #16
Old 09-01-2008
Fx4wannabe01's Avatar
RF Veteran
Thread Starter
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by RangerNDog View Post
i was reading over the link to the pdf you posted fx4wannab and i dont think the amber or white ones are out yet. it has them listed under product development
The link in which i found it was dated '06...

Quote:
Originally Posted by 07SPORT View Post
wow thats too easy... didn't know Trevor had the tail light mod too...i love how mine look now
Yep...he dug seein' mine all the time...so....yea he did it too. Remember how i said i was about ready to eliminate it? well....this mod thread is why. lol.
Reply With Quote
  #17
Old 09-02-2008
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Jp7, link me those bulbs! I want them for my corner and blinker! Mine are getting a yellow-ish haze
Reply With Quote
  #18
Old 09-02-2008
Fx4wannabe01's Avatar
RF Veteran
Thread Starter
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Reply With Quote
  #19
Old 09-02-2008
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Quote:
Originally Posted by Jp7 View Post
you mean like this?



Heck yea that is what i am talking about. They look sweet. I just can justify spending $50 on some turn signal bulbs.

Fx4wannabe:
I cant find the bulbs for sale anywhere. Eather i just fail at searching for them or they are hard to find. I wouldn't be surprised if they have em out in europe cuz they get all the cool stuff first.
Reply With Quote
  #20
Old 09-02-2008
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
Originally Posted by RangerNDog View Post
Heck yea that is what i am talking about. They look sweet. I just can justify spending $50 on some turn signal bulbs.

Fx4wannabe:
I cant find the bulbs for sale anywhere. Eather i just fail at searching for them or they are hard to find. I wouldn't be surprised if they have em out in europe cuz they get all the cool stuff first.
My dad always says "if you wanna play, you gotta pay!"
Reply With Quote
  #21
Old 09-02-2008
Fx4wannabe01's Avatar
RF Veteran
Thread Starter
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by RangerNDog View Post
Fx4wannabe:
I cant find the bulbs for sale anywhere. Eather i just fail at searching for them or they are hard to find. I wouldn't be surprised if they have em out in europe cuz they get all the cool stuff first.
Contact Jp7 within this thread....that's where i got my taillamp stuff....
Reply With Quote
  #22
Old 09-02-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Looks good!
Reply With Quote
  #23
Old 09-03-2008
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Quote:
Originally Posted by Fx4wannabe01 View Post
Contact Jp7 within this thread....that's where i got my taillamp stuff....
Sorry i was talking about the amber or white ones.
Reply With Quote
  #24
Old 09-03-2008
Fx4wannabe01's Avatar
RF Veteran
Thread Starter
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
ohh....yea. i havnt been successful on find those either.
Reply With Quote
  #25
Old 09-03-2008
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Reply With Quote
