  #51
Old 09-06-2008
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
He will go back... Just let me keep driving in front of him all the time and trust me, you'll see a thread with them modded with an led or something. lol
Reply With Quote
  #52
Old 09-29-2008
Fx4wannabe01's Avatar
RF Veteran
Thread Starter
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Way too late update:

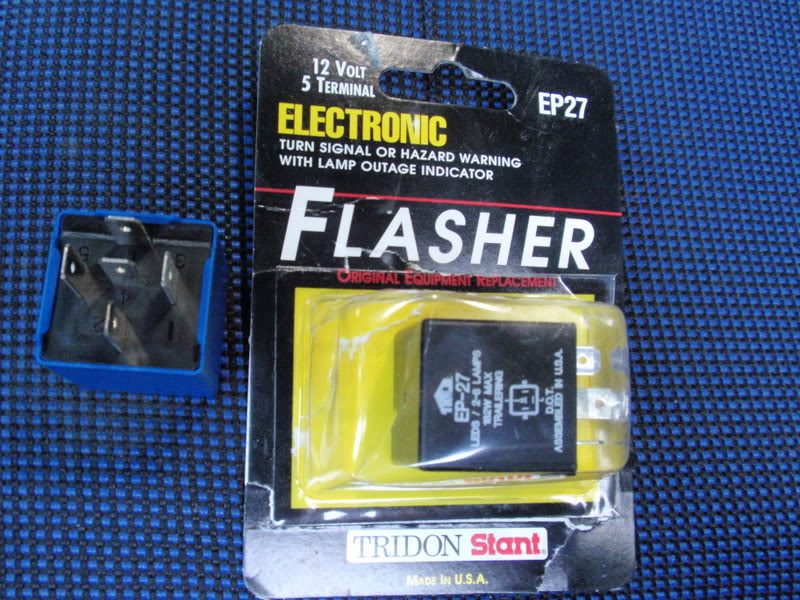

Replaced the stock blue incadescent flasher with a flasher purchased at Autozone for about $12. It's an EP27 that says LED on the flasher, but not the packaging. works great! Cured the 'hyperflash' issues when the turnsignal is selected. Problem was cured about a week after the LED install was done.

Went to 3 different auto parts stores to find one that would work. The one from Schucks flashed FASTER than the stock flasher. lol.

Vid comes later.




Oh....and to anyone talking about the 3rd bulb on '06+ tails....yea.....I'm going to do it again. Damnit Trevor for driving by my house the other day after his full blown LED conversion on all his lighting. lol.

Name:  P9230011.jpg
Views: 11
Size:  136.0 KB

Name:  P9230014.jpg
Views: 9
Size:  72.4 KB
Reply With Quote
  #53
Old 09-29-2008
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
My ep27 doesn't have any writing on the flasher, I have the vled's one. Why don't you put something else in the bottom of the lights?
Reply With Quote
  #54
Old 09-29-2008
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
I wanna see pic of the tails with leds in the bottom.
Reply With Quote
  #55
Old 10-23-2008
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Now the civicforums.com guys are buying my LEDs!

http://www.civicforums.com/forums/3-...ml#post4356429
Reply With Quote
  #56
Old 10-23-2008
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
you still have some left? on the Ranger all we have to do is connect the wires, I see on the civic forum there was talk of this dim mode bright mode is that just for civics...?
Reply With Quote
  #57
Old 10-23-2008
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
Originally Posted by 07SPORT View Post
you still have some left? on the Ranger all we have to do is connect the wires, I see on the civic forum there was talk of this dim mode bright mode is that just for civics...?
I sold the civic guy the exact same thing Shane bought, of course there is a bright (turnsignal brake light) mode and dim (running lights) mode - just like your stock bulbs.

I have some left now, till people buy them all up..
Reply With Quote
  #58
Old 10-24-2008
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Whats the price on these?
Reply With Quote
  #59
Old 10-24-2008
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
Originally Posted by RangerNDog View Post
Whats the price on these?
PM Sent
Reply With Quote
  #60
Old 10-24-2008
yetti96's Avatar
Member

Join Date: Mar 2008
Location: Fort Myers, FL
Posts: 371
Oh JP7, btw, I saw a new body style Chevy Malibu with what looked like the L1224R bulbs in it. The rapid ignition of light caught my attention out fo the corner of my eye and I pulled up and got some pics at a red light. I will post them hopefuly this weekend, but LED is the wave of the future, lol. Now I am glad I waited on putting those bulbs in my Ranger.
Reply With Quote
  #61
Old 10-24-2008
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
yeah LEDs are awesome and go perfect with HIDs
Reply With Quote
  #62
Old 10-24-2008
Fx4wannabe01's Avatar
RF Veteran
Thread Starter
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by 07SPORT View Post
yeah LEDs are awesome and go perfect with HIDs
you are correct.

Now, if only Turb'z and I can find those L1224R's in Amber, i'd be set!
Reply With Quote
  #63
Old 10-24-2008
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
Originally Posted by Fx4wannabe01 View Post
you are correct.

Now, if only Turb'z and I can find those L1224R's in Amber, i'd be set!
I'm trying... I was thinking worse case scenario to take apart an L1224R and mod it internally. - should be easier than a cluster, and no needles...

Last edited by Jp7; 10-24-2008 at 09:50 PM.
Reply With Quote
  #64
Old 10-24-2008
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
heck all white would be cool too!!! I've been doing research as well... no luck so far...
Reply With Quote
  #65
Old 10-24-2008
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Quote:
Originally Posted by 07SPORT View Post
heck all white would be cool too!!! I've been doing research as well... no luck so far...
Yea white ones for the reverse would be awesome.
Reply With Quote
  #66
Old 10-24-2008
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
i'd run them for turn signals, lol...

the ones in my pic are "stealth" 3157s imagine that x5
Reply With Quote
  #67
Old 10-24-2008
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Quote:
Originally Posted by 07SPORT View Post
i'd run them for turn signals, lol...

the ones in my pic are "stealth" 3157s imagine that x5
?????? What are these stealth bulbs?
Reply With Quote
  #68
Old 10-24-2008
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
Originally Posted by 07SPORT View Post
i'd run them for turn signals, lol...

the ones in my pic are "stealth" 3157s imagine that x5
you lost me... stealth?

Cheeseburgers sound good now....
Reply With Quote
  #69
Old 10-24-2008
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
I am wondering if he means chrome dipped bulbs
Reply With Quote
  #70
Old 10-24-2008
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
Originally Posted by RangerNDog View Post
I am wondering if he means chrome dipped bulbs
Oh, forgot about those.
Reply With Quote
  #71
Old 10-25-2008
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
yessir...
*with freshly painted light sockets (primer) , I couldn't stand seeing brown sockets...

Name:  102308_131400.jpg
Views: 10
Size:  157.2 KB
Reply With Quote
  #72
Old 10-25-2008
Fx4wannabe01's Avatar
RF Veteran
Thread Starter
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
^^yuck. i got amber ones and 'xenon white' ones......dim as hell. i couldn't do it.
Reply With Quote
  #73
Old 10-25-2008
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Quote:
Originally Posted by 07SPORT View Post
yessir...
*with freshly painted light sockets (primer) , I couldn't stand seeing brown sockets...

Yea I love thoes. I had a set on the SRT. When I traded in the car if I would have thought about it I would have replaced the headlights and turn signals withe the stock ones. Who knew they used the same ones as a ranger. I could have had a set of SS and chromes.

How did you go about painting the sockets? That looks like a great thing to do. It makes them look 100x better.

/thread jacking
Reply With Quote
  #74
Old 10-25-2008
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
you pull it out and disconnect the socket, put a lil tape over the metal connectors, and paint it lightly with primer
Reply With Quote
  #75
Old 10-25-2008
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
I will have to do this one day when I am board or when I have to change the bulbs.
Reply With Quote
