Make fog lights turn on with running lights

Hey just wondering if anyone can help me, I know I read it somewhere a while ago and now I can't find it.... I want to have it so I can run my fog lights with the running lights. It should be simple but I can't figure it out. Is it as simple as switching a couple wires?
Reply With Quote
  #2
Old 04-02-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
running lights as in ambers?

like this?
Reply With Quote
  #3
Old 04-02-2012
9ranger8's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: Brick, nj
Posts: 163
Yea like thAt
Reply With Quote
  #4
Old 04-02-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
just push your fog switch when you have the running lights on lol
Reply With Quote
  #5
Old 04-02-2012
9ranger8's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: Brick, nj
Posts: 163
Well on my year it doesn't work lol
Reply With Quote
  #6
Old 04-02-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
wtf really? my 99 did it lol
Reply With Quote
  #7
Old 04-02-2012
Blhde's Avatar
Member

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
In stock form fog's come on with the parking lights.

Im assuming you bought a used truck someone else has worked on.

You need to find out what was done.
Reply With Quote
  #8
Old 04-02-2012
Kris03's Avatar
Member

Join Date: Jun 2011
Location: glastonbury, ct
Posts: 1,236
i remember someone from a meet said...alot of wiring was different from 98 to 99. the fogs dont come on with the running lights.
Reply With Quote
  #9
Old 04-02-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by Kris03 View Post
i remember someone from a meet said...alot of wiring was different from 98 to 99. the fogs dont come on with the running lights.
green 98 i had did
Reply With Quote
  #10
Old 04-02-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
I wish I could do this too. Even just lurker mode id be happy with. I tried to remove the fuse for DRL and it took my highbeams, and I think my blinkers too.
Reply With Quote
  #11
Old 04-02-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
can't you just bend a pin or something morris? I know its like that on VW but i've never messed with a canadian ranger haha
Reply With Quote
  #12
Old 04-02-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
I don't think so. I remember when I joined I asked someone in ont. they told me hold, I did it and all the above happened. I hope it's not like the dodges when it burns out.... My dynasty's DRL went and killed my battery since it left the lights on. I pulled it and lost my HB indicator. I had to guess..
Reply With Quote
  #13
Old 04-02-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
damn lol
Reply With Quote
  #14
Old 04-02-2012
Rev's Avatar
Rev Rev is offline
Level I Supporter

Join Date: May 2005
Location: San Diego, CA
Posts: 1,179
1998 models with factory fog lamps will only work with the headlamps on low beam. If you want them to work in conjunction with the park lamps and headlamps (including high beam) you’ll need to modify the fog lamp relay wiring at the PDB. This can be done by locating the relays socket #1 terminal (Dark Green with Light Green stripe wire). Cut this wire under the PDB and splicing the end coming from the PDB (relay socket side) into one of the park lamp feed wires (Brown wire). The other end of the Dark Green with Light Green stripe should be insulated (taped) and secured.

1999 and newer added a Fog Lamp Isolation Relay in conjunction with the Fog Lamp Relay and changed the relay control circuit from the low beams to the park lamps. The Fog Lamp Isolation Relay is used to cut off the fog lamps with the high beams on.
Reply With Quote
  #15
Old 04-02-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Quote:
Originally Posted by morris View Post
I don't think so. I remember when I joined I asked someone in ont. they told me hold, I did it and all the above happened. I hope it's not like the dodges when it burns out.... My dynasty's DRL went and killed my battery since it left the lights on. I pulled it and lost my HB indicator. I had to guess..
I'm with Pedro, I was damn sure you had to bend a pin on a relay and it worked.


EDIT:
Here Hoser.
Use google.
http://www.therangerstation.com/Maga...glight_mod.htm
Reply With Quote
  #16
Old 04-02-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by Rev View Post
1998 models with factory fog lamps will only work with the headlamps on low beam. If you want them to work in conjunction with the park lamps and headlamps (including high beam) you’ll need to modify the fog lamp relay wiring at the PDB. This can be done by locating the relays socket #1 terminal (Dark Green with Light Green stripe wire). Cut this wire under the PDB and splicing the end coming from the PDB (relay socket side) into one of the park lamp feed wires (Brown wire). The other end of the Dark Green with Light Green stripe should be insulated (taped) and secured.

1999 and newer added a Fog Lamp Isolation Relay in conjunction with the Fog Lamp Relay and changed the relay control circuit from the low beams to the park lamps. The Fog Lamp Isolation Relay is used to cut off the fog lamps with the high beams on.
previous owner must have made the changes on my old green 98. they worked with just the parking lamps on.
Reply With Quote
  #17
Old 04-02-2012
Rev's Avatar
Rev Rev is offline
Level I Supporter

Join Date: May 2005
Location: San Diego, CA
Posts: 1,179
Quote:
Originally Posted by 99offroadrngr View Post
previous owner must have made the changes on my old green 98. they worked with just the parking lamps on.
It was a common Mod.

Quote:
Originally Posted by StxDangerRanger View Post
I'm with Pedro, I was damn sure you had to bend a pin on a relay and it worked.
I believe on 1999 thru 2003 models you could bend the Fog Lamp Isolation Relay control leg off to the side and re-install it allowing the fog lamps to stay on with high beams (aka fog light Mod).
Reply With Quote
  #18
Old 04-02-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Quote:
Originally Posted by Rev View Post
It was a common Mod.



I believe on 1999 thru 2003 models you could bend the Fog Lamp Isolation Relay control leg off to the side and re-install it allowing the fog lamps to stay on with high beams (aka fog light Mod).
Rev gets it for the win again.

I knew it was something along those lines.
Reply With Quote
  #19
Old 04-02-2012
04RangerDave's Avatar
JDM> RANGER

iTrader: (3)

Join Date: Jul 2010
Location: RI
Posts: 5,030

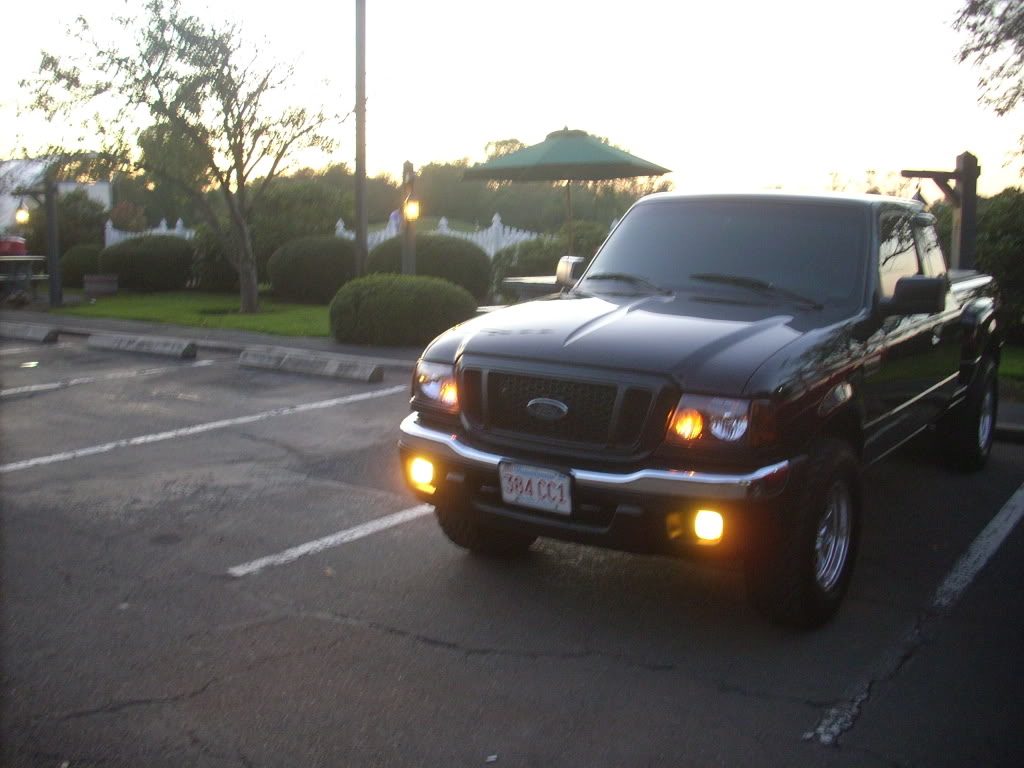

Attached Thumbnails
Make fog lights turn on with running lights-dscn1780.jpg
Reply With Quote
  #20
Old 04-02-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313

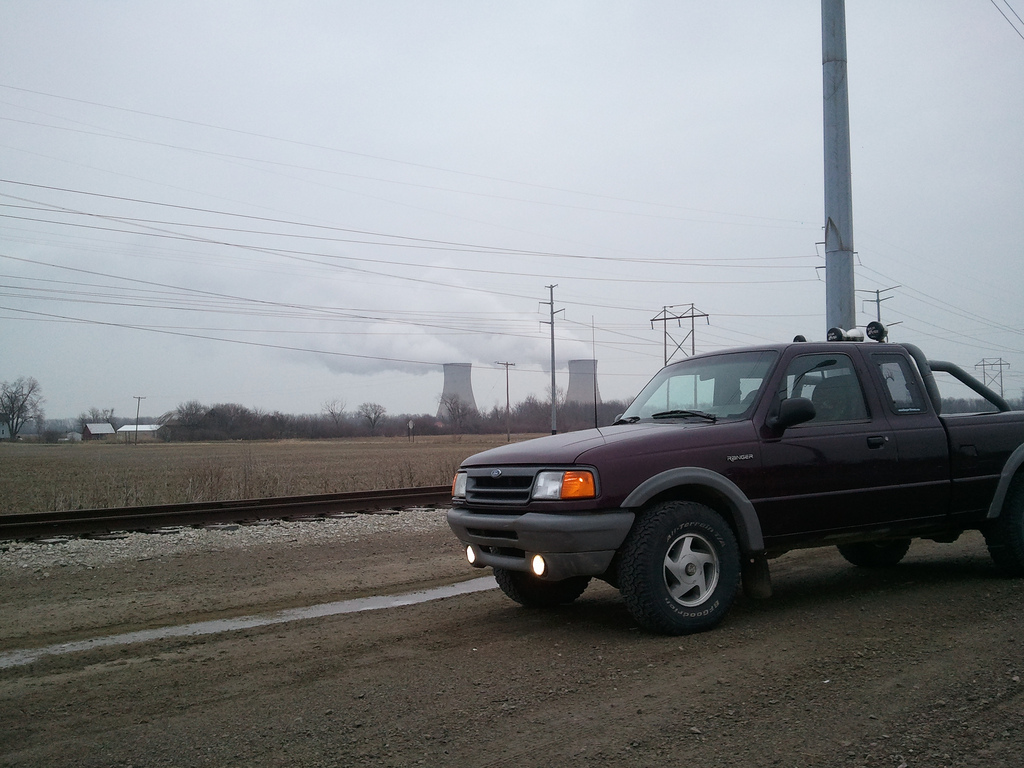

Well, since we're all posting lurk mode pictures.

Attached Thumbnails
Make fog lights turn on with running lights-6852699003_e0d92eb4ea_b.jpg
Reply With Quote
  #21
Old 04-03-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Thanks Alex, I'll read it better later.
Reply With Quote
  #22
Old 04-03-2012
04RangerDave's Avatar
JDM> RANGER

iTrader: (3)

Join Date: Jul 2010
Location: RI
Posts: 5,030

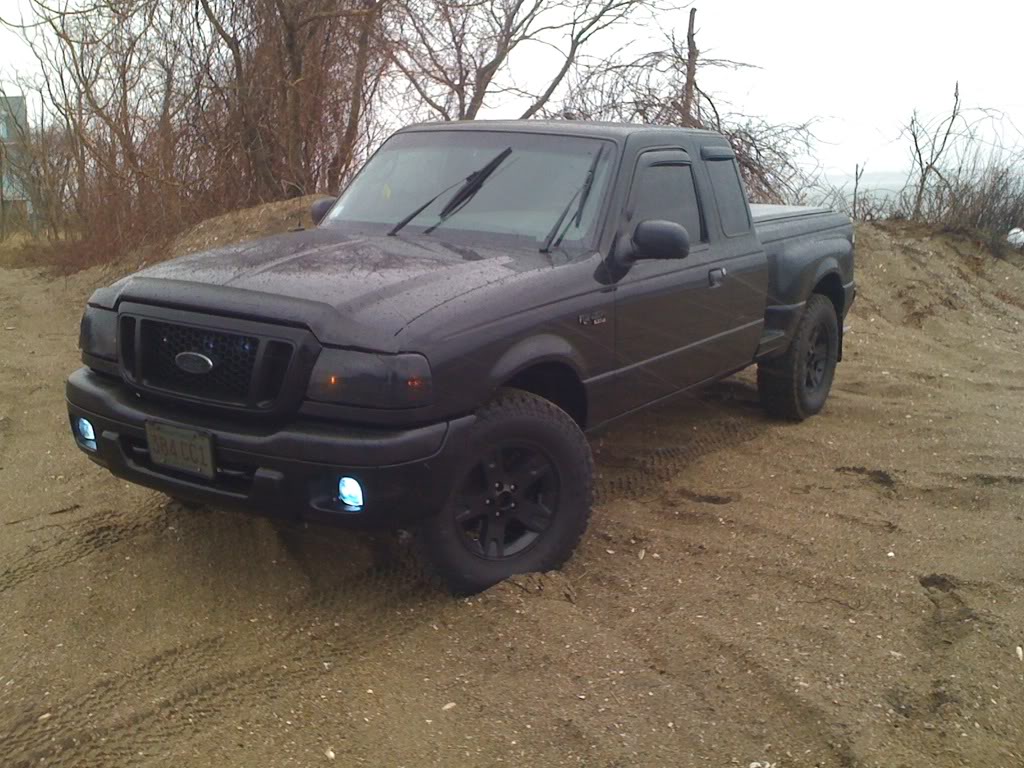

ultimate lurk mode

Attached Thumbnails
Make fog lights turn on with running lights-img_0368.jpg
Reply With Quote
  #23
Old 04-06-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Ok, I read the DIY. Are relays and relay harnesses generic or do I need exactly what is in that "how to:"
Reply With Quote
  #24
Old 04-06-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Nah, you can make your own harness and buy the relays anywhere. i can tell you how to do that part.
Reply With Quote
  #25
Old 04-06-2012
djfllmn's Avatar
Moderator

Join Date: Mar 2009
Location: York, PA
Posts: 5,796
heres my lurk mode lol...doesnt get used much because i have autolamps now
Attached Thumbnails
Make fog lights turn on with running lights-utf-8bv2vzdcbnyw5jagvzdgvyltiwmtiwmzizltawmzmzlmpwzw.jpg
