Reverse Lights

Any idea where the switch for the reverse lights are at. I have a standard. Is it under the boot, in the cab or do I gotta get under the tuck. THANKS!!!!
Reply With Quote
  #2
Old 02-10-2012
Member

Join Date: Aug 2004
Location: Wesley Chapel, FL
Posts: 1,072
It's a mechanical switch on the side of the transmission. You have to get under the truck and use a big socket to take the switch out. Problem is, a big socket needs a big wrench and there isn't much room in the transmission tunnel. I used an old breaker bar, as they are thinner than a socket wrench.
The switch itself is $20 from any auto parts place.
Reply With Quote
  #3
Old 02-10-2012
Member

Join Date: Jan 2012
Location: mt. sterling, ky
Posts: 39
It should be on the drivers' side with 2 wires coming out of it.
Reply With Quote
  #4
Old 02-11-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
What is going on you adding new Back-me-up Lights ?
Reply With Quote
  #5
Old 02-11-2012
Member
Thread Starter

Join Date: Feb 2012
Location: Fort Riley KS
Posts: 56
Eventually, but they don't come on. Gonna troubleshoot this weekend and wanted to save some time looking for it.
Reply With Quote
  #6
Old 02-11-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by LastStarfighter View Post
Eventually, but they don't come on. Gonna troubleshoot this weekend and wanted to save some time looking for it.
Good go, get the info ahead of time.

Get a pic or two of the location and how/what you did to trouble shoot the problem.

i don’t know the fuse but did yo chk it ?
How about the grounds at the lights ?
Are the bulbs good, chk them with a Multimeter set to ohms/resistance; same with the fuse, just to be sure.

luck
Reply With Quote
  #7
Old 02-13-2012
Member

Join Date: Aug 2004
Location: Wesley Chapel, FL
Posts: 1,072

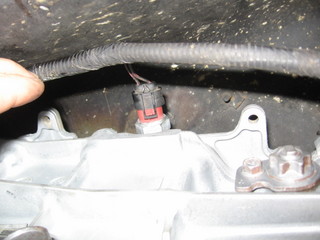

Definitely a good idea to check fuses and bulbs before you crawl under and check the switch. As you can see from this pic, it's in a real difficult spot.



The black cap is held on by two thin clips that have a tendency to get brittle with age. Pry them just a hair then pull off the electrical connector. It's water tight, so it may give a fair amount of resistance. I also suggest taping or tying the connector out of the way when you go to remove the switch. Otherwise the connector will be in the way, and may get damaged. I managed to tuck mine under the wire harness, but some wire tie would have been easier.

The switch has a big steel ball at the transmission side which is depressed to make the connection



In my case, the switch was still working electrically, but the steel ball wasn't getting pushed in far enough by the shift lever. I opted to replace it, since there isn't a good way to adjust it, and I didn't want to over torque the aluminum transmission housing threads.
As you can see from the first pic, there isn't much room to swing a socket and a flat wrench won't work. The best would be a large size ratcheting flat wrench with pivoting ends, but I didn't have one.
Attached Thumbnails
Reverse Lights-img0228ya2.jpg
Reply With Quote
  #8
Old 02-14-2012
mylifted97's Avatar
Member

Join Date: Jun 2011
Location: Maryland
Posts: 3
I had the same issue, It was just the fuse.
Reply With Quote
  #9
Old 02-21-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by LastStarfighter View Post
Any idea where the switch for the reverse lights are at. I have a standard. Is it under the boot, in the cab or do I gotta get under the tuck. THANKS!!!!
How did this work out ?
Reply With Quote
  #10
Old 02-22-2012
Member
Thread Starter

Join Date: Feb 2012
Location: Fort Riley KS
Posts: 56
Ok so the truck has a trouble code and I looked under the truck and the wires to the downstream sensor were ripped out. I think someone dropped the tranny and didn't put the harness back right. Ripped the plug right out and ripped the reverse plug off too. Zip stripped it back on and whimmy wham wham wozzle!

Thanks everyone!
Reply With Quote
  #11
Old 02-23-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by LastStarfighter View Post
Ok so the truck has a trouble code and I looked under the truck and the wires to the downstream sensor were ripped out. I think someone dropped the tranny and didn't put the harness back right. Ripped the plug right out and ripped the reverse plug off too. Zip stripped it back on and whimmy wham wham wozzle!

Thanks everyone!
So you have reverse lights now ?
Reply With Quote
  #12
Old 02-23-2012
Member
Thread Starter

Join Date: Feb 2012
Location: Fort Riley KS
Posts: 56
Quote:
Originally Posted by Scrambler82 View Post
So you have reverse lights now ?
Yes.
Attached Thumbnails
Reverse Lights-happy-yes.jpg
Reply With Quote
