Starter issuses

I think my starter is dying. When I start it and it's turned over I hear fast paced ticking for a split second. I called napa to see about prices and described the sound and symptoms and he said that its consistsnt. He reccomended I look at the flywheel for damaged teeth, I did and the corners look like they are starting to get rounded/damage.

Icing on the cake is when it didn't wanna start tonight, I could hear the gas pump and I had power as my radio, dash and whatnot turned on. Just not to the starter.

Does anyone kno how tough of a job this is to replace? Looks fairly simple, undo some bolts and slide it off. Is this true? Ball park on time?

BTW, it's a manual trans.
Reply With Quote
  #2
Old 12-03-2014
RF Veteran
iTrader: (1)

Join Date: Jan 2014
Location: Vancouver, BC
Posts: 7,615
If dash lights are off then remove and clean battery terminals, both battery terminals.

As for the starter, yes the bendix drive or solenoid could be going out, these push out and then retract the starter motors gear from the flywheel gear.
If starter motor gear fails to retract all the way it will cause ticking noise, and can damage flywheel gears if not fixed.

It isn't time consuming if you have the right tools, 1 hour maybe for first timer.

Disconnect battery<<<!!!!!!!!!!!

On the back of the starter motor will be two wires, the large wire going to the battery's positive terminal and a smaller wire going to the Key switch.
Remove both of these.
There should be two bolts holding the starter motor to the bell housing/transmission
One of these may also have a large cable going to battery's negative terminal, it needs to be put back there with new starter motor.

Remove these two bolts and then pull out the starter motor
Reply With Quote
  #3
Old 12-03-2014
morris's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Ok, that's what I was thinking.
Reply With Quote
  #4
Old 12-03-2014
Member

Join Date: Dec 2014
Location: Pekin
Posts: 130
Starter jobs shouldn't be too hard. A really nice thing to have is ramps. Much more stable than using a jack and jack stands. With ramps you can lift a truck a foot or more in a manner of seconds. Pop her in reverse, shut down, lock the parking brake, and get to work. Make sure you use the appropriate sized sockets on these bolts. Using a metric socket on a SAE bolt, even if fitment is close, could spell trouble for you. Using an easy out on a rounded starter bolt is suicide-worthy.

Good luck OP.
Reply With Quote
  #5
Old 12-11-2014
morris's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833

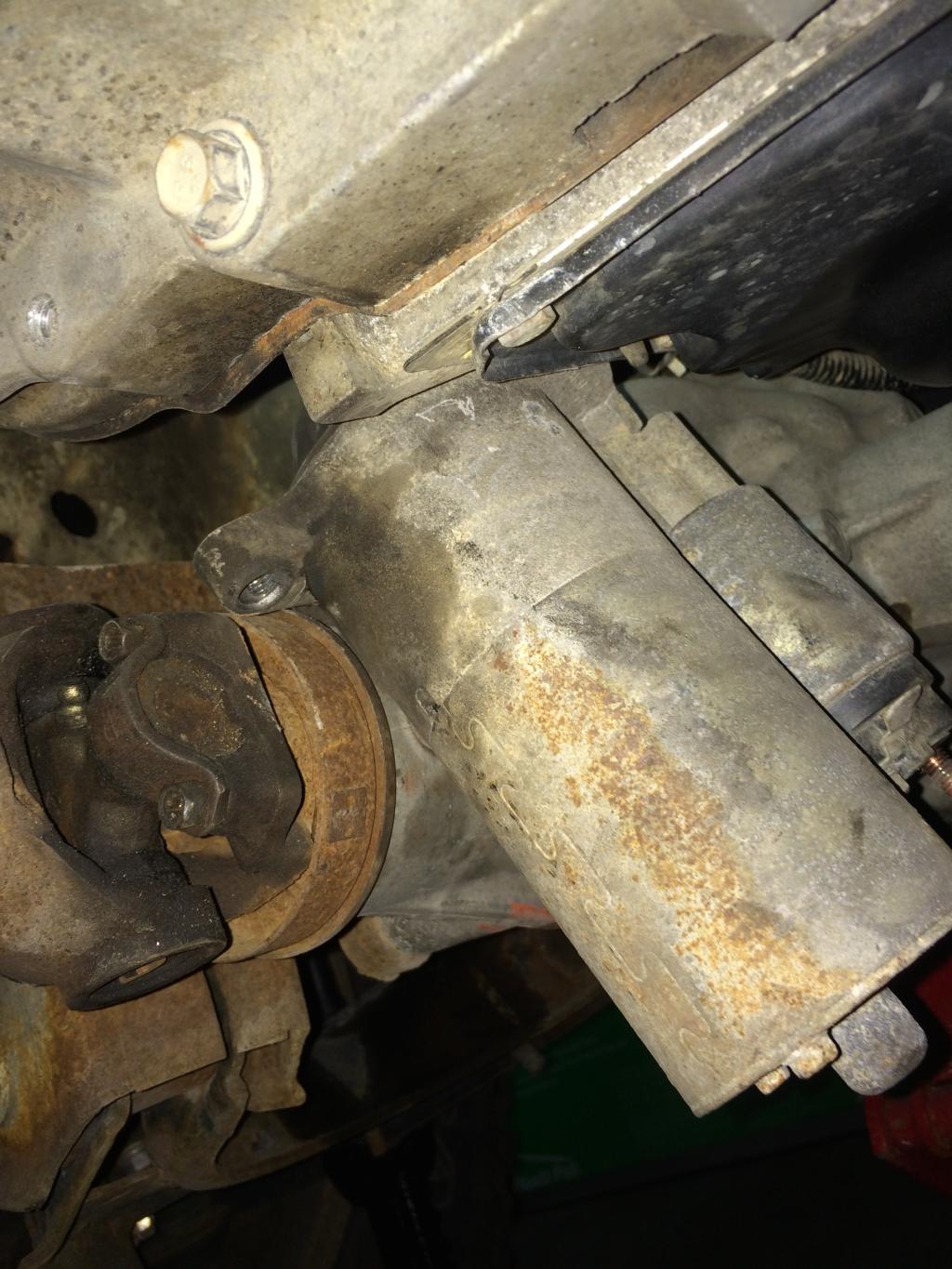

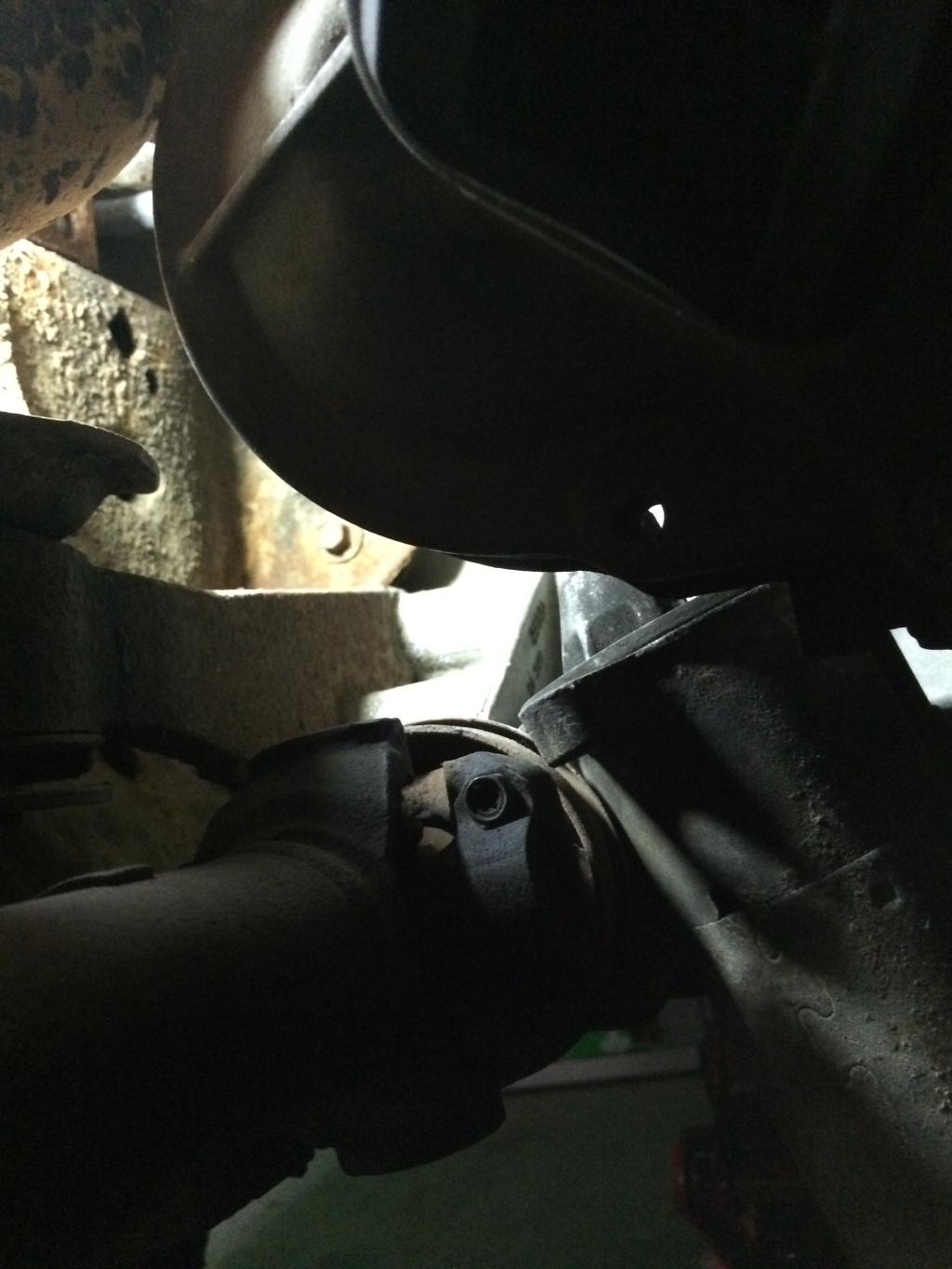

Ok, I'm in a pickle. I got the starter off the trans but can't get it past my engine, front differential or up because of the frame/exhaust manifold.

How do I get it out? Which is the best/easiest way?

Name:  D1849E36-08AB-4CA8-B4F2-DFCE30E6B9A1_zpsdfdvy7vw.jpg
Views: 6
Size:  175.2 KB
Name:  7D8E83DD-C277-4B56-80FC-2D0E2AEE3C6A_zpsnfrtgtsf.jpg
Views: 4
Size:  103.1 KB
Reply With Quote
  #6
Old 12-11-2014
RF Veteran
iTrader: (1)

Join Date: Jan 2014
Location: Vancouver, BC
Posts: 7,615
Never did a starter on the 4.0l SOHC, my 4.0l OHV starter just wiggled out

I don't think you should have to do this but you can always jack up the frame, differential/front axle will stay the same height, that should give you some clearance.
Reply With Quote
  #7
Old 12-11-2014
morris's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
How would jacking the frame keep the diff from moving? The diff attaches to the frame. They move as one.

Last edited by morris; 12-12-2014 at 12:22 AM.
Reply With Quote
  #8
Old 12-14-2014
morris's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Job done.

Ltr
Reply With Quote
  #9
Old 12-14-2014
RF Veteran
iTrader: (1)

Join Date: Jan 2014
Location: Vancouver, BC
Posts: 7,615
Good work.

No, axle/differential is connected to frame by springs or torsion bars, the frame will go up a few inches before the axle will start to move up

Last edited by RonD; 12-14-2014 at 03:23 PM.
Reply With Quote
  #10
Old 12-14-2014
morris's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
You realize your TTB and my IFS are different? From what I saw under there the diff looks like it's attaches to the frame with brackets. The only thing that flexes under there is my axles.
Reply With Quote
  #11
Old 12-15-2014
RF Veteran
iTrader: (1)

Join Date: Jan 2014
Location: Vancouver, BC
Posts: 7,615
Sorry, yes, independent front suspension(IFS) would have a fixed differential and axles would be on springs.

So how did you get it out?
Reply With Quote
  #12
Old 12-15-2014
morris's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Wiggled. Same for getting the new in
Reply With Quote
  #13
Old 12-15-2014
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by morris View Post
Wiggled. Same for getting the new in
told ya it'd work lol
Reply With Quote
  #14
Old 12-15-2014
morris's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Shut up!

Lol
Reply With Quote
