Uh-Oh! Choke Thermostat Screws

I seem to have messed up my screws on my 1985 ford ranger. They have a little ball on top and I can't seem to find them anywhere online. I'm new here (literally made an account just now to ask this) so hopefully I posted in the right channel. Help would be much appreciated!

Reply
Old Mar 24, 2024
  #2
RonD's Avatar
RF Veteran
iTrader: (1)
Joined: Jan 2014
Posts: 30,635
Likes: 2,949
From: Vancouver, BC
Usually they are riveted on, not adjustable, so someone may have drill the 3 rivets out and install screws, usually self tapping

But they are called Choke Cover Clamp screws if you can find them

What size engine in your 1985 Ranger?
Always good to include that


Last edited by RonD; Mar 24, 2024 at 12:38 PM.
Reply
Old Mar 24, 2024
  #3
Ian05's Avatar
Thread Starter
|
Member
Joined: Mar 2024
Posts: 7
Likes: 0
From: Gordonville, PA
Originally Posted by RonD
Usually they are riveted on, not adjustable, so someone may have drill the 3 rivets out and install screws, usually self tapping

But they are called Choke Cover Clamp screws if you can find them

What size engine in your 1985 Ranger?
Always good to include that

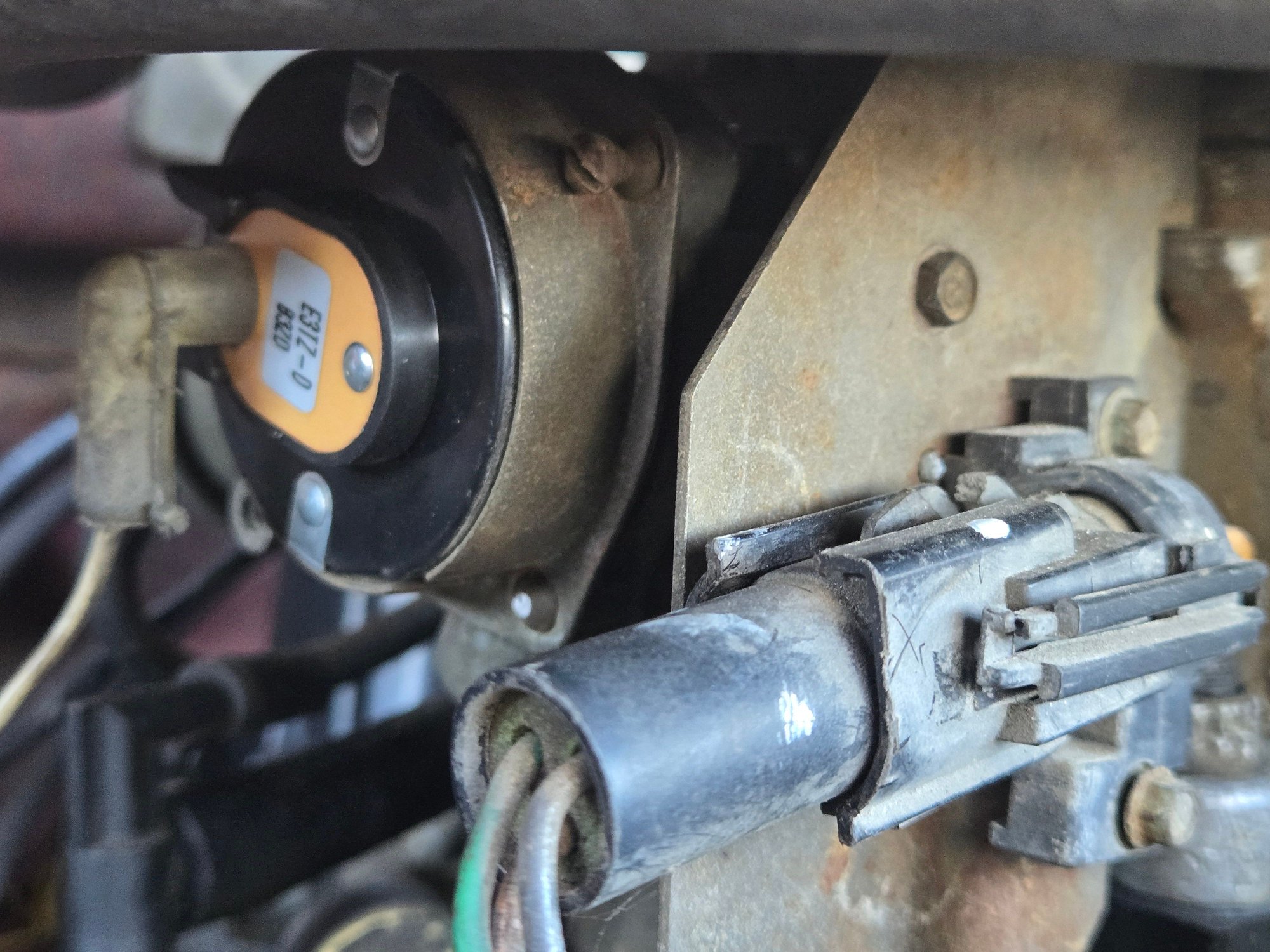

My apologies, it's a 2.8L V6. I believe we're talking about two different things. They are the screws for the bracket that hold the choke thermostat in place.

Untouched screws (Red),
Messed up screw (Green)


Reply
Old Mar 24, 2024
  #4
RonD's Avatar
RF Veteran
iTrader: (1)
Joined: Jan 2014
Posts: 30,635
Likes: 2,949
From: Vancouver, BC
Yes, those are called Choke Cover Clamp screws, if you can find them

Seen in this diagram: https://www.justanswer.com/uploads/s...2_bbl_diag.jpg
Upper left

Also there are Choke Housing screws, seen just below in diagram

I can't see finding these as part of 2.8l carb set
Best bet is to pull one out and hit a hardware store, find a nut with same threads then find the screws that are long enough that match the nut, so same threads as in carb body

If you are trying to order online not sure what to look for

1985 2.8l should have a Motorcraft 2150 2-barrel carb

Try Googling: motorcraft 2150 carburetor parts choke
