What is it?

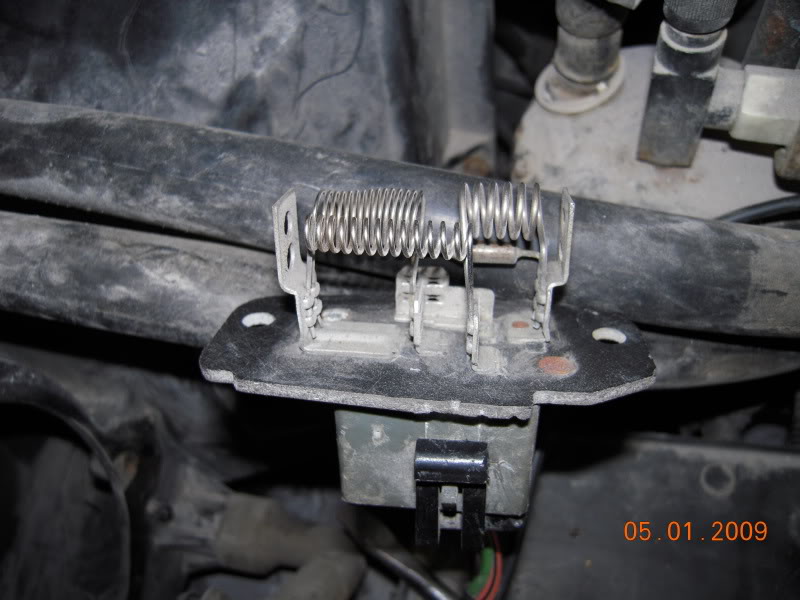

I was just curious about what this thing is. It is bolted into the evaporator
box.

Name: DSCN0376.jpg Views: 117 Size: 69.6 KB

Reply
0
Old May 3, 2009
Share
  #2
TheStig88's Avatar
Member
iTrader: (4)
Joined: Aug 2008
Posts: 2,120
Likes: 4
From: Columbia, Missouri
heater coils of some sort...

Reply
0
Old May 3, 2009
Share
  #3
schatten789's Avatar
Member
Joined: Feb 2007
Posts: 735
Likes: 0
From: Matagorda County, Texas
Its the resistor block for the a/c, I think it controls the fan speed for your a/c.

some info on it here.

https://www.ranger-forums.com/forum2...ad.php?t=54918

Reply
0
Old May 3, 2009
Share
  #4
bjohnson238's Avatar
Thread Starter
|
Member
Joined: Nov 2008
Posts: 732
Likes: 1
From: Muncie, IN
Thanks, I was taking the blower motor out to clean the box and just decided to see what else was in there. Now I know what to look for when my different speeds quit workin.

Reply
0
Old May 5, 2009
Share
  #5
OTRtech's Avatar
Member
Joined: Mar 2007
Posts: 2,598
Likes: 14
From: Upstate,NY
The small round component under the right coil in the pic is a thermal fuse.
