wiring up trans and water temp guages

how do you wire up the transmission temp guage? what all is involved? same question for the water temp guage. thanks for the help.
Reply With Quote
  #2
Old 08-03-2006
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367

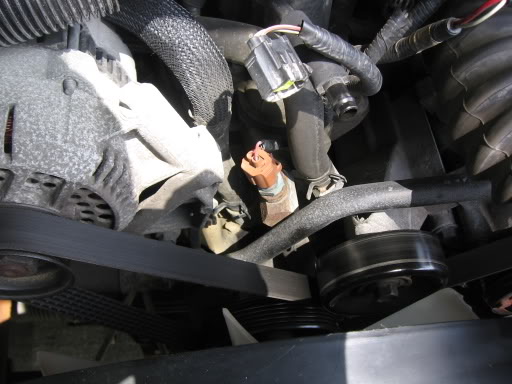

cant help you with trans, but water is simple... just unscrew the sender with the brown plug, and then screw in the new sender, add wireing and your done...

Name:  sender001.jpg
Views: 1
Size:  43.1 KB
Reply With Quote
  #3
Old 08-03-2006
Member
Thread Starter

Join Date: Dec 2005
Location: Ft Hood, TX
Posts: 1,779
wont taking off the stock sender trigger the CEL? and will a bamachips x1 tuner clear the code if it does trigger it?
Reply With Quote
  #4
Old 08-03-2006
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
no theres two senders, one is for the computer ( it has two wires) the one your removing goes directily to the gauge in your dash ( one wire)...
Reply With Quote
  #5
Old 08-03-2006
Member
Thread Starter

Join Date: Dec 2005
Location: Ft Hood, TX
Posts: 1,779
any ideas for the trans temp sensor anyone?
Reply With Quote
  #6
Old 08-03-2006
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
Reply With Quote
  #7
Old 08-03-2006
Member
Thread Starter

Join Date: Dec 2005
Location: Ft Hood, TX
Posts: 1,779
you know, i searched for the better part of an hour and i couldnt find anything. thanks jeff.
Reply With Quote
  #8
Old 08-03-2006
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
ha yea, for me i was going nuts because theres a how to for it, but none of the photos work lol...

also once you see the directions, it makes soo much more sense because its quite simple...
Reply With Quote
  #9
Old 08-03-2006
Rand's Avatar
Member

Join Date: Jun 2004
Location: Barberton,Ohio
Posts: 1,189
If anyone is interested I can find the autometer part number.
I got mine at summit racing for 34$ (transmission temp gauge)

Rand
Reply With Quote
  #10
Old 08-03-2006
Member
Thread Starter

Join Date: Dec 2005
Location: Ft Hood, TX
Posts: 1,779
i acturally just got the auto meter nv white face/green luminescent for water and trans for 60 each.
Reply With Quote
  #11
Old 08-03-2006
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
thats not bad for those, theyre like 100 or something at summmit...

i got lucky with mine and won an auction so i got my water guage for 12 shipped, just spent 45 on a vacuum gauge today though....


any one got pics of the line they used to tape into their vacuum gauge?
Reply With Quote
