Alternator Compilation

Reply




  #1
Old 08-08-2016
TheArcticWolf1911's Avatar
Member
Thread Starter
Join Date: Nov 2015
Location: Evansville, Indiana
Posts: 1,667
Alternator Compilation

This list is a compilation of Ford vehicles that have alternators that APPEAR to be compatible. This is NOT a definiate list, so please do not treat it as such. These vehicles listed are equipped with three-bolt fixed alternators which appear SIMILAR to what the Ranger* uses with the intent to provide a list of possible vehicles to choose from. No promises, warranties, or guarantees are implied under any circumstance. Continue at your own risk!
Always have used alternators checked before installing!
Ranger-Forums is not responsible for any mistakes, loss, damage, or injury involved with any swapping, modification, or any other such activities.
*Applies to 3.0 and 4.0 engines
This list will be updated as needed.
With the disclaimers out of the way, let's get on with it.
Do you want to ditch your 95 amp alternator for a 130 amp alternator? This is a popular swap done by many, including myself. With a 130 amp alternator, you can add more electrical accessories without reducing the preformance of other accessories or lights. "The Big 3" is a perfect supporting mod for the extra current, and is very popular with the users of high-power audio systems or bright lighting.
Your first instict may be to buy a brand new one, or a remanufactured alternator. If you have looked alternators up, you're likely to not be thrilled by the prices you see. After all, not all of us have 100+ dollars to throw at an alternator. Your next option would be a used unit, which is usually a fraction of the price. Salvage yard or internet purchase aside, you need to know which vehicle you can use an alternator from, especially if your selection is slim.
That's where this list comes in. I have cross-referenced alternators from several Ford vehicles using RockAuto, AutoZone, and O-Reilly Auto Parts which APPEAR to work with the 3.0 and 4.0 engines on the Ranger. Note that I said 'appear to work'. Since not everything in this world is clear cut, this list is designed to narrow your selection down to some possible results. Of course, do realize that there is a risk involved that it may not work for one reason or another.
Now, onto technical. The Ford Ranger is commonly equipped with a 95 amp alternator, although higher current alternators were available for later year Rangers from the factory. This is what the 95 amp alternator appears as.

Note the four hole pattern on the case. This outright designates that it is a 95 amp alternator.

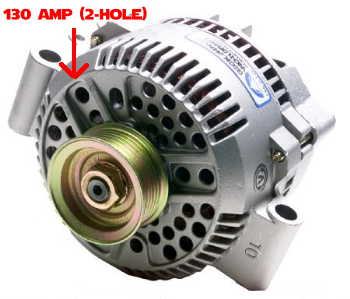

This alternator is a 130 amp alternator. Note that the diameter is bigger, but also note the change in hole patterns. Instead of four, we have two. This designates this alternator as a 130 amp alternator.

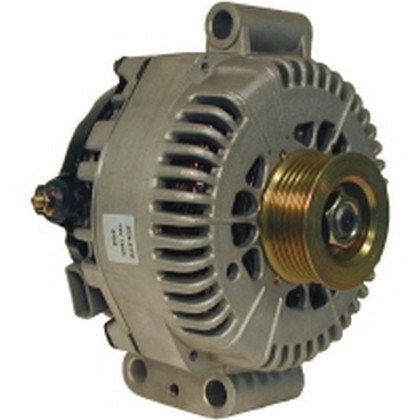

Unfortunately, not all alternators that are 130 amps in capacity are marked this way. Some alternators look more like this. No holes to speak of.

Of course, this naturally throws up a red flag. How are you supposed to know what it's rated for? Unfortunately, there's rarely a clear cut answer. Regardless of case design, a 95 amp alternator will be smaller than a 130. Also note that some vehicles were only offered with one rating of alternator. Others were offered with more than one.
Do note that although an alternator may be swapped from a vehicle to another vehicle of different models, some characteristics of the alternator itself may be different, such as pulley diameter and width or electrical connections.
Only models/engines with plausible compatible alternators will be listed. Incompatible engines/models will not be listed.

EXPLORER:

1991-2008 4.0 V6 (SOHC/OHV) (95-01 Most commonly used)
The OHV 4.0 was offered with both 95 and 130 amp alternators. SOHC does not appear to have been offered with the 95 amp.
1996-2001 5.0 V8
The 5.0 V8 appears to have been only ever offered with the 130 amp alternator.

EXPLORER SPORT TRAC:
2001-2005 4.0 V6 (SOHC?)
Offered with 115 and 130 amp alternators.

TAURUS:
1996-1999 3.4 V6
The Taurus 3.4 V6 appears to only be offered with the 130 amp alternator. Many places list this as a difficult install.

RANGER:
2006-2011 3.0 V6 & 4.0 V6 SOHC
The Ranger was offered with a 130 amp alternator (as well as 110-115) between these years as stock.

E150:
1997-2003 4.2 V6
Offered with both 130 and 95 amp alternators.

E250:
1997-2003 4.2 V6
Offered with both 130 and 95 amp alternators.

F150:
1997-2003 4.2 V6
Offered with 95, 110, 115, 130 amp alternators. Ranger compatible alternators were offered throughout 1997 to 2008, however the 130 was no longer offered after 2003.
Strangely, the 2004 F150 model year is not listed for the 4.2 engine in Rockauto.


For more information, visit: Ford Ranger Alternators
Any and all photos are property of their respective owners.


Originally Posted by cheese_man View Post
do not forget to mention , that if your factory alternator generates 45 amps at idle

the high capacity alternator should also only generate 45 amps at idle

this is with all accessories off including the headlights

any higher than 45 amps and you risk burning up your vehicles wiring including the ECM and PCM

( there is a reason why your alternator only generates that many amperes at engine idle speed )

they are amperage sensitive ( excluding the 2010 - 2011 models , where are those are computer controlled output alternators

Attached Thumbnails Alternator Compilation-95_amp_alternator_4-hole.png   Alternator Compilation-130_amp_alternator_2-hole.png   Alternator Compilation-2024.jpg

Last edited by TheArcticWolf1911; 08-12-2016 at 04:21 PM. Reason: Added Information
Reply With Quote
  #2
Old 08-09-2016
RF Veteran
iTrader: (1)
Join Date: Jan 2014
Location: Vancouver, BC
Posts: 10,498
Very nice, thank you

Reply With Quote
  #3
Old 08-09-2016
TheArcticWolf1911's Avatar
Member
Thread Starter
Join Date: Nov 2015
Location: Evansville, Indiana
Posts: 1,667
You're welcome :)

Reply With Quote
  #4
Old 08-12-2016
cheese_man's Avatar
Member
iTrader: (1)
Join Date: Nov 2009
Location: arthur
Posts: 2,122
do not forget to mention , that if your factory alternator generates 45 amps at idle

the high capacity alternator should also only generate 45 amps at idle

this is with all accessories off including the headlights

any higher than 45 amps and you risk burning up your vehicles wiring including the ECM and PCM

( there is a reason why your alternator only generates that many amperes at engine idle speed )

they are amperage sensitive ( excluding the 2010 - 2011 models , where are those are computer controlled output alternators

Reply With Quote
  #5
Old 08-12-2016
TheArcticWolf1911's Avatar
Member
Thread Starter
Join Date: Nov 2015
Location: Evansville, Indiana
Posts: 1,667
Thank you for that bit of info. I've added it as a quote in the original post.

Reply With Quote
  #6
Old 10-18-2017
MaDMaXX's Avatar
Member
Join Date: Jul 2017
Location: Oregon
Posts: 780
Very handy, thank you.

Reply With Quote
  #7
Old 10-18-2017
TheArcticWolf1911's Avatar
Member
Thread Starter
Join Date: Nov 2015
Location: Evansville, Indiana
Posts: 1,667
You're welcome. It's amazing what boredom can help you achieve.

Reply With Quote
  #8
Old 3 Weeks Ago
Join Date: Sep 2014
Location: San Diego, CA
Posts: 58
i know its been a minute since this forum was alive, but is there a way to see how many amps the alternator makes at idle? I pulled a 2006 explorer alternator (130 amps) and want to make sure I don't fry my computer.

Reply With Quote
  #9
Old 3 Weeks Ago
RF Veteran
iTrader: (1)
Join Date: Jan 2014
Location: Vancouver, BC
Posts: 10,498
Originally Posted by HawaiiRanger04 View Post
i know its been a minute since this forum was alive, but is there a way to see how many amps the alternator makes at idle? I pulled a 2006 explorer alternator (130 amps) and want to make sure I don't fry my computer.
Doesn't work that way
In your house you most likely have a 200amp main breaker, so every plug in your house has access to 200amps(well not quite), but you can still plugin a phone charger using 2 amps and it won't blow charger or phone up

AMPs are an available rating, that alternator has 130 amps available for use.........if needed

Alternators output about 50% of rating at engine idle RPMs, under 1,000rpms
Full output is at about 1,800 engine RPMs

Most newer vehicles run 90amp alternators, this means they need about 40amps max with all electrics on.
Dimming head lights at idle means alternator has lost 1 of its fields, there are 3, since you don't drive at idle this can be fine for years, until another field fails or alternator bearing goes out

Voltage is another thing, it is unusual for an alternator to fail with high voltage, but it is possible, maximum voltage is 15volts DC in a vehicle, above that and electrics can be effected.
So with engine idling check voltage at battery, 13.5v-14.9v is acceptable, then REV engine to 2,000RPMs and hold it there for 30 seconds, voltage should not go above 15volts
The Voltage Regulators job is to keep output voltage between 13.5 and 14.9v regardless of RPMs


Last edited by RonD; 3 Weeks Ago at 01:17 PM.
Reply With Quote
  #10
Old 3 Weeks Ago
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,113
And to help if you're wanting to get a little more anperage at idle, you can throw a smaller pulley on it too. It'll spin a bit faster to mimic the factory pulley at a higher rpm without actually revving the engine.

Reply With Quote
  #11
Old 1 Week Ago
Member
Join Date: Sep 2017
Location: Whittier, California
Posts: 31
Originally Posted by cheese_man View Post
( excluding the 2010 - 2011 models , where are those are computer controlled output alternators
Would it be safe to say this list compilation would be only for pre-2010 models then?



Reply With Quote
