I'll try to get a complete cut list together at some point, probably once all of the wood work is done.
Reply With Quote
  #27
Old 03-10-2012
Member

Join Date: Dec 2011
Location: edmonton
Posts: 30
thanks i'm thinkin of something simular only on the drivers side and a bit taller.. remove drivers seat.. keep more "foot" room for rear passenger if needed and still have max storage.. maybe even a hidden compartment or two..
cheers
Reply With Quote
  #28
Old 03-10-2012
Member

Join Date: Dec 2011
Location: edmonton
Posts: 30
ha not for you to make a cut list for that ha just thinkin of what i wanna do with mine and use your experience to aide mine..
clarification as after re-reading my last post it could "read wrong"
4
Reply With Quote
  #29
Old 03-17-2012
VH5150's Avatar
Level III Supporter
Thread Starter
iTrader: (9)

Join Date: Dec 2009
Location: Rutland VT
Posts: 834

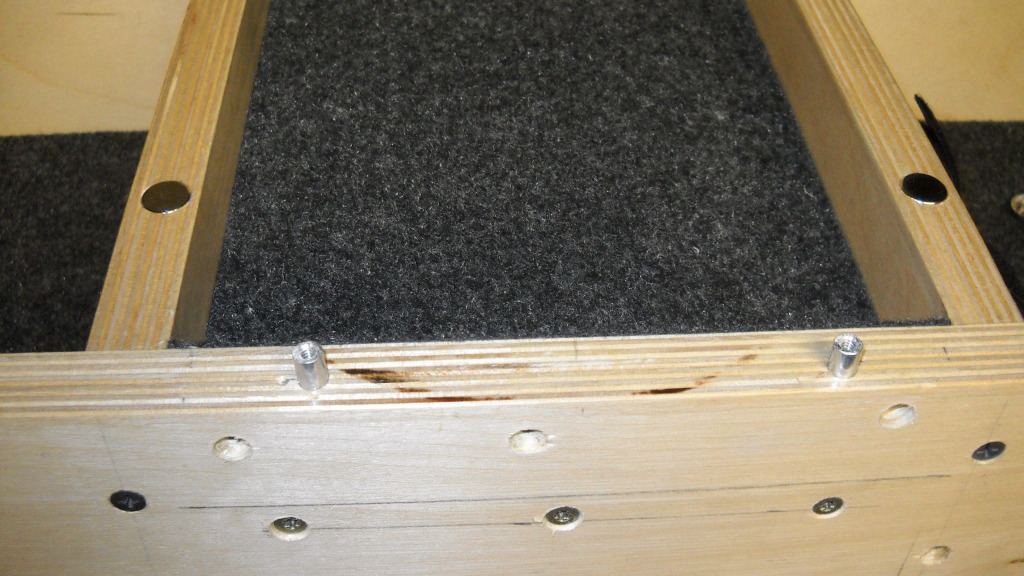

Locating pins for the "secret" compartment (not so secret now, I guess).
Name:  storagebox001-1.jpg
Views: 159
Size:  192.4 KB

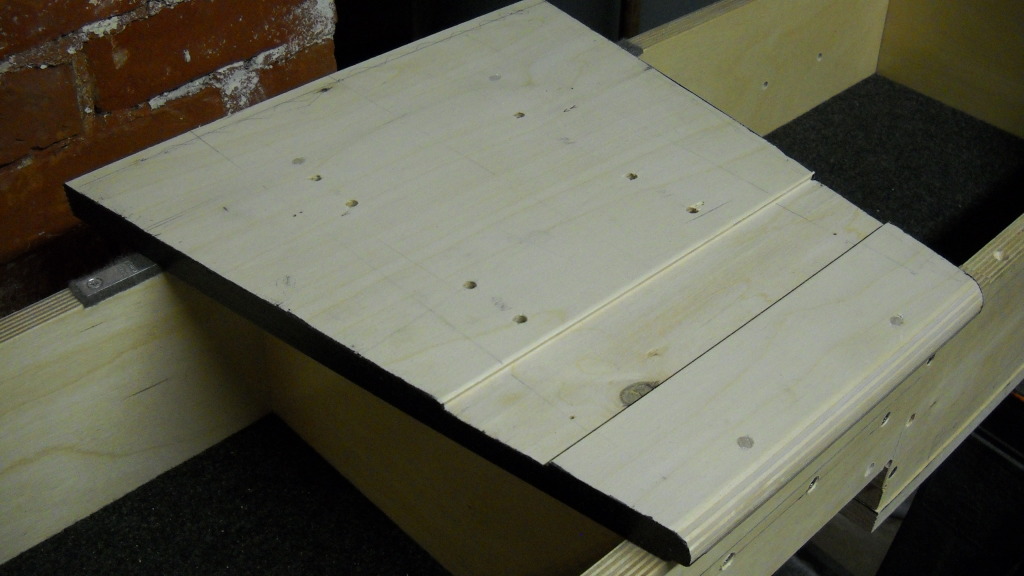

Lid for compartment:
Name:  storagebox003-1.jpg
Views: 157
Size:  132.9 KB
Held in place with rare earth magnets, locating pins keep everything lined-up.

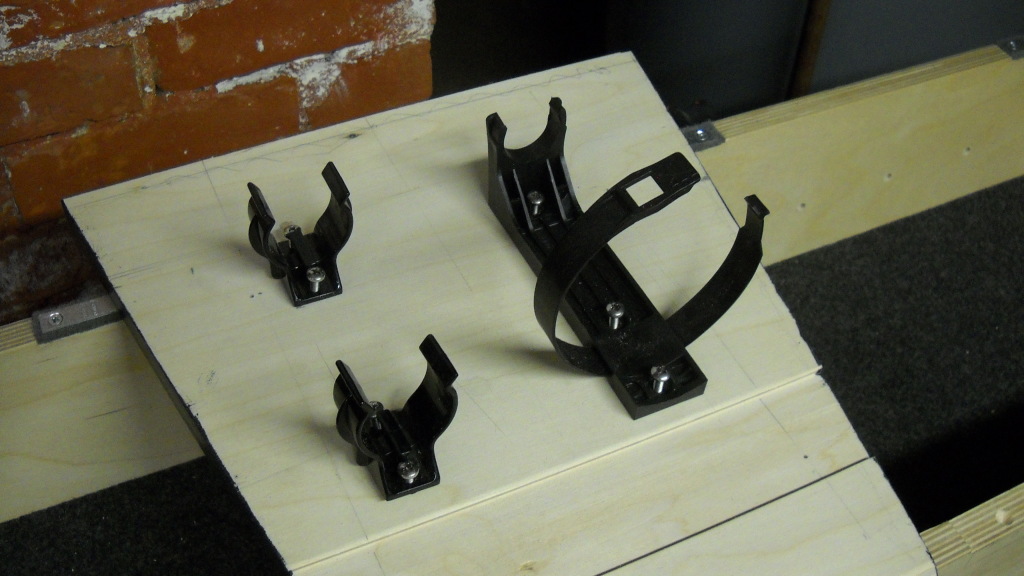

MagLite and fire extinguisher brackets mocked-up on center lid:
Name:  storagebox004.jpg
Views: 157
Size:  159.5 KB

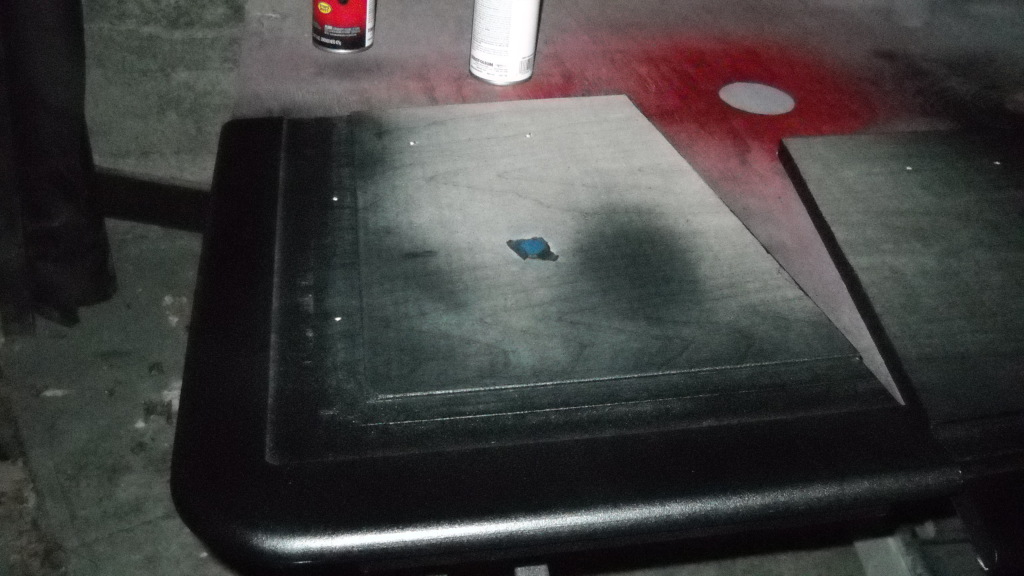

Nice today, so i was able to get the bedliner sprayed on the lid sections
Name:  storagebox010.jpg
Views: 158
Size:  164.6 KB
Carpet tomorrow
MikeR
Reply With Quote
  #30
Old 04-02-2012
VH5150's Avatar
Level III Supporter
Thread Starter
iTrader: (9)

Join Date: Dec 2009
Location: Rutland VT
Posts: 834
Carpet installed. I made sure to mask the bedlined area to avoid getting the spray adhesive on it. Use 3M Super77, spray both surfaces liberally, then let tack-up for at least five minutes. Once glue has "set", slowly lay the carpet onto the box, smoothing it out as you go--I used a Bondo spreader for this. Work it into all of the corners and edges, then rough-trim the excess off wih a SHARP utility knife blade. Once the glue has dried for an hour or so, go back and carefully trim the edges with a sharp utility knife blade

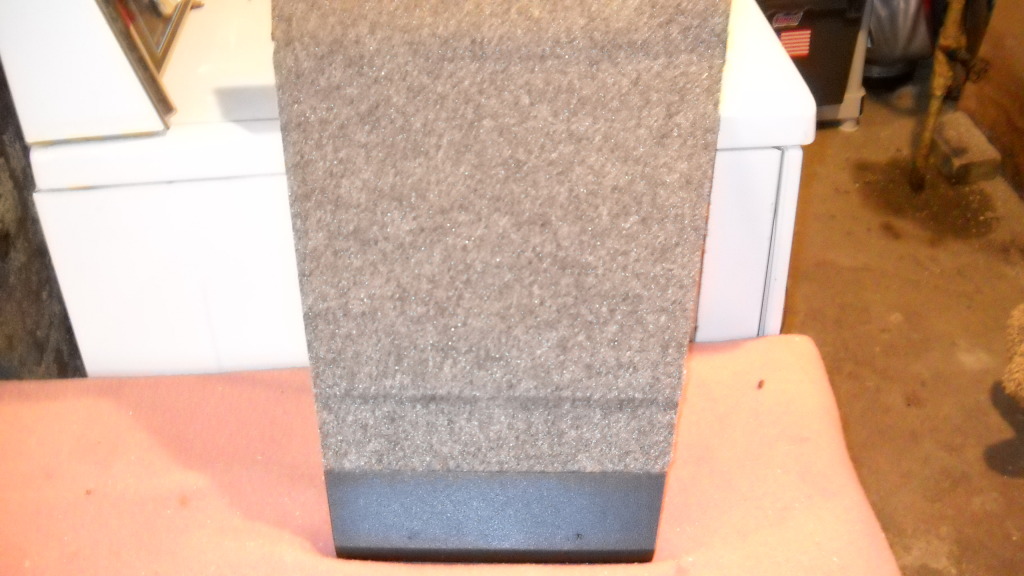

This is the center panel:
Name:  storagebox002-2.jpg
Views: 156
Size:  145.9 KB

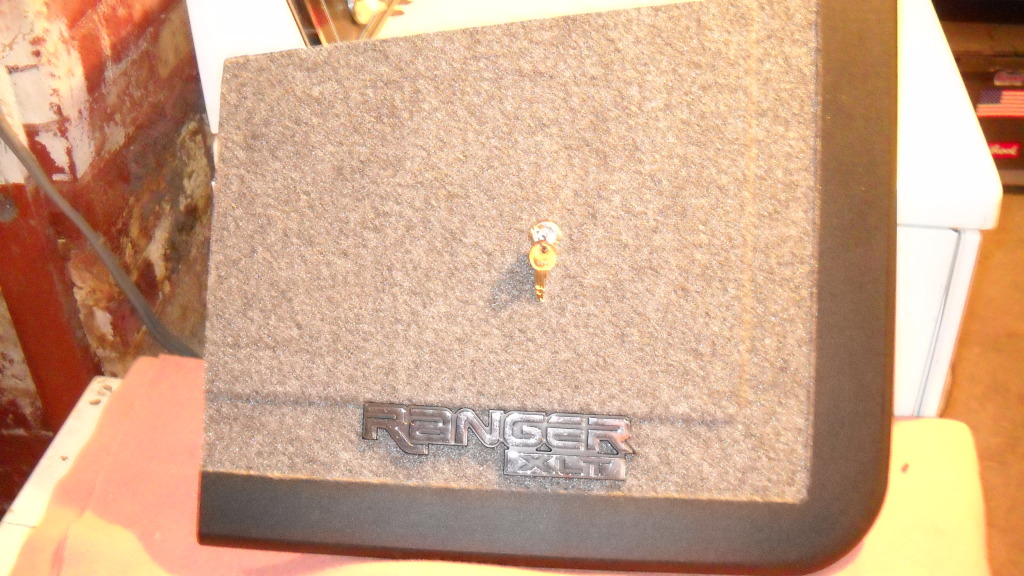

I like how this looked on the old box, so I incorporated them onto this one. These are the original Ranger emblems that were removed when i put my '06 emblems on. They're held in place by the locating pins, which are pressed into a couple of blind holes-they fit really snugly.
Name:  storagebox001-2.jpg
Views: 155
Size:  220.1 KB

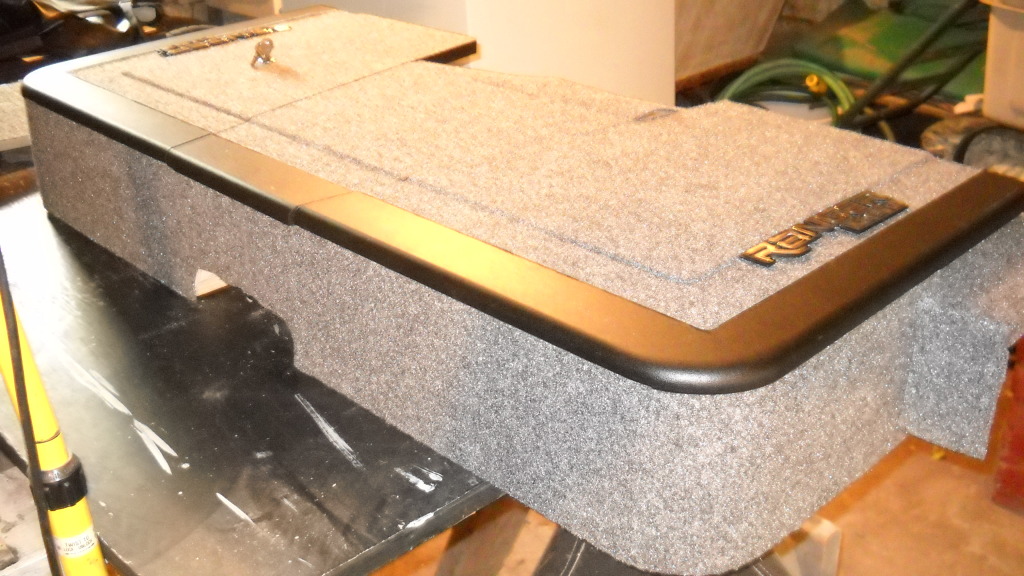

Ready to install:
Name:  storagebox004-1.jpg
Views: 160
Size:  210.1 KB
Installed:
Name:  storagebox001-3.jpg
Views: 313
Size:  184.3 KB

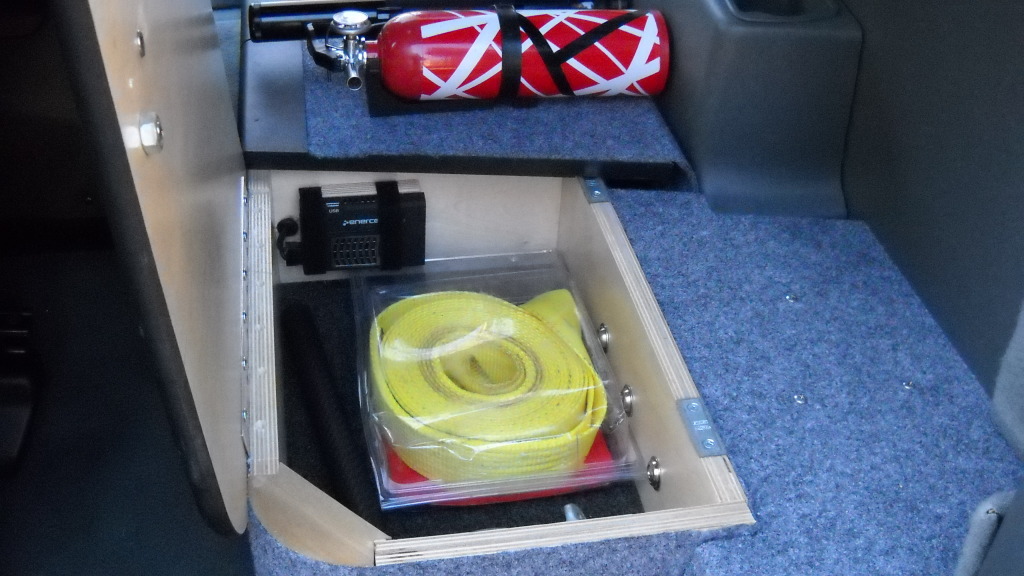

EVH-striped fire extinguisher, MagLite, and power inverter all installed.

Name:  storagebox002-3.jpg
Views: 159
Size:  179.7 KB

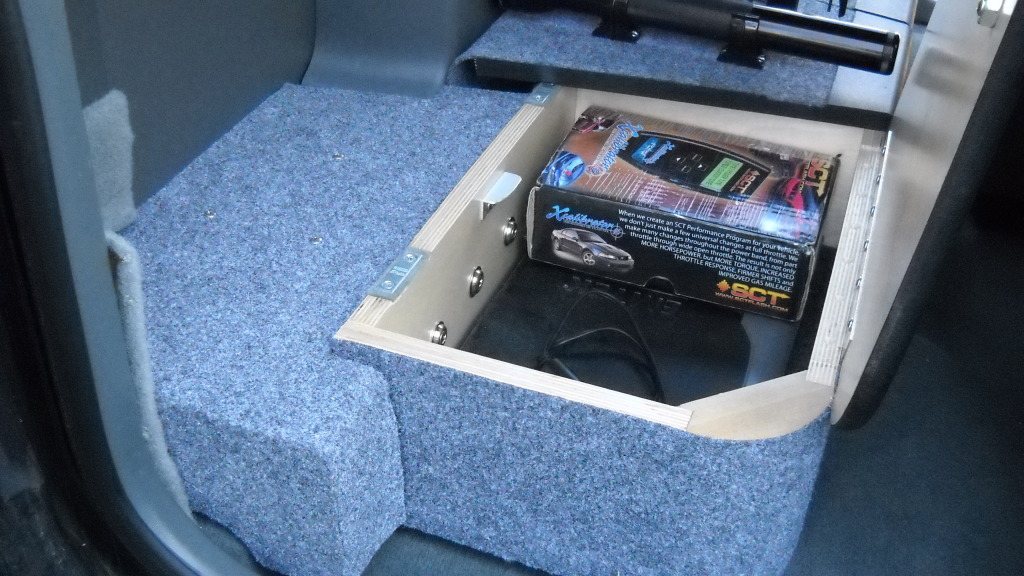

Name:  storagebox004-2.jpg
Views: 182
Size:  216.7 KB
For some reason, the color of the carpet looks kinda blue in these pics--probably my POS camera. This carpet doesn't match my interior as well as the old one did, but overall, I'm very happy with how this on turned out.
Reply With Quote
  #31
Old 04-02-2012
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Nice Mike! I hope mine will be close to being this awesome!

You ever thought about marketing?
Reply With Quote
  #32
Old 04-03-2012
Member

Join Date: Dec 2011
Location: edmonton
Posts: 30
finshed it looks sweet
well done sir
the only thing i would change is getting rid of the cup holder/ jack holder thing and rework it
however it would mean bye bye cup holders
anyways very well done.
I might tackle this one day
Mike
Reply With Quote
  #33
Old 04-03-2012
VH5150's Avatar
Level III Supporter
Thread Starter
iTrader: (9)

Join Date: Dec 2009
Location: Rutland VT
Posts: 834
Thanks guys-
It's 9:07 and Taylor is "Offline"--he'd better be putting in the box that I sent him since it was delivered at 11:40 this morning!
Gotta keep the jack cover thing, though; my jack's in there.
I'm going to keep my eyes open for some different carpet--the stuff that's on Taylor's matched my interior almost exactly.
