How-To: Homemade Grille (Plastic)

I was getting tired of being able to clearly see my radiator from the front so i decided to try and make a grill for the front end. BTW click to make the pictures bigger

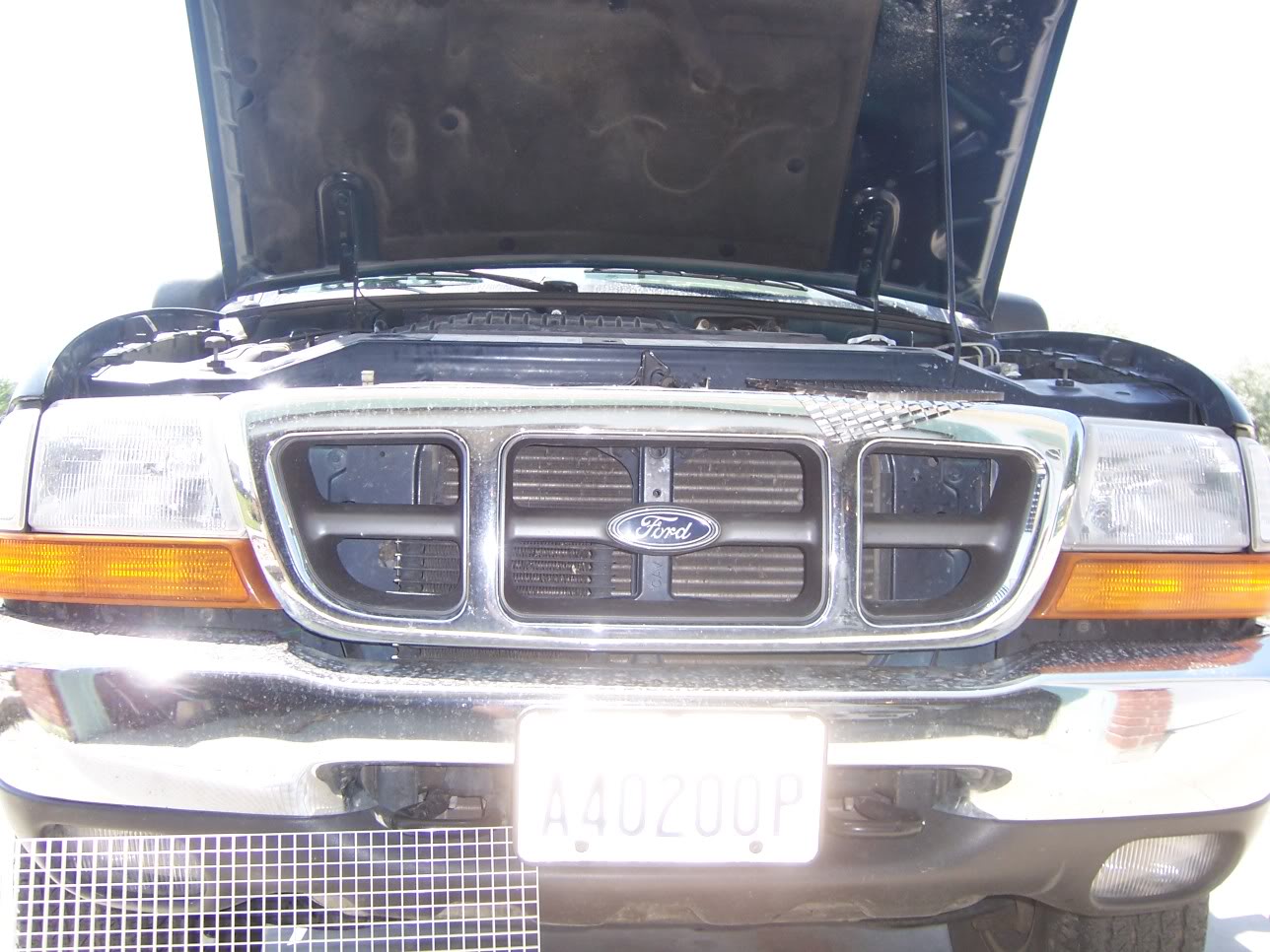

this is before: you can see the radiator and oil cooler easily
Name:  100_1357.jpg
Views: 36
Size:  180.8 KB


i took some plastic grating that i had laying around and found that it would do the job:

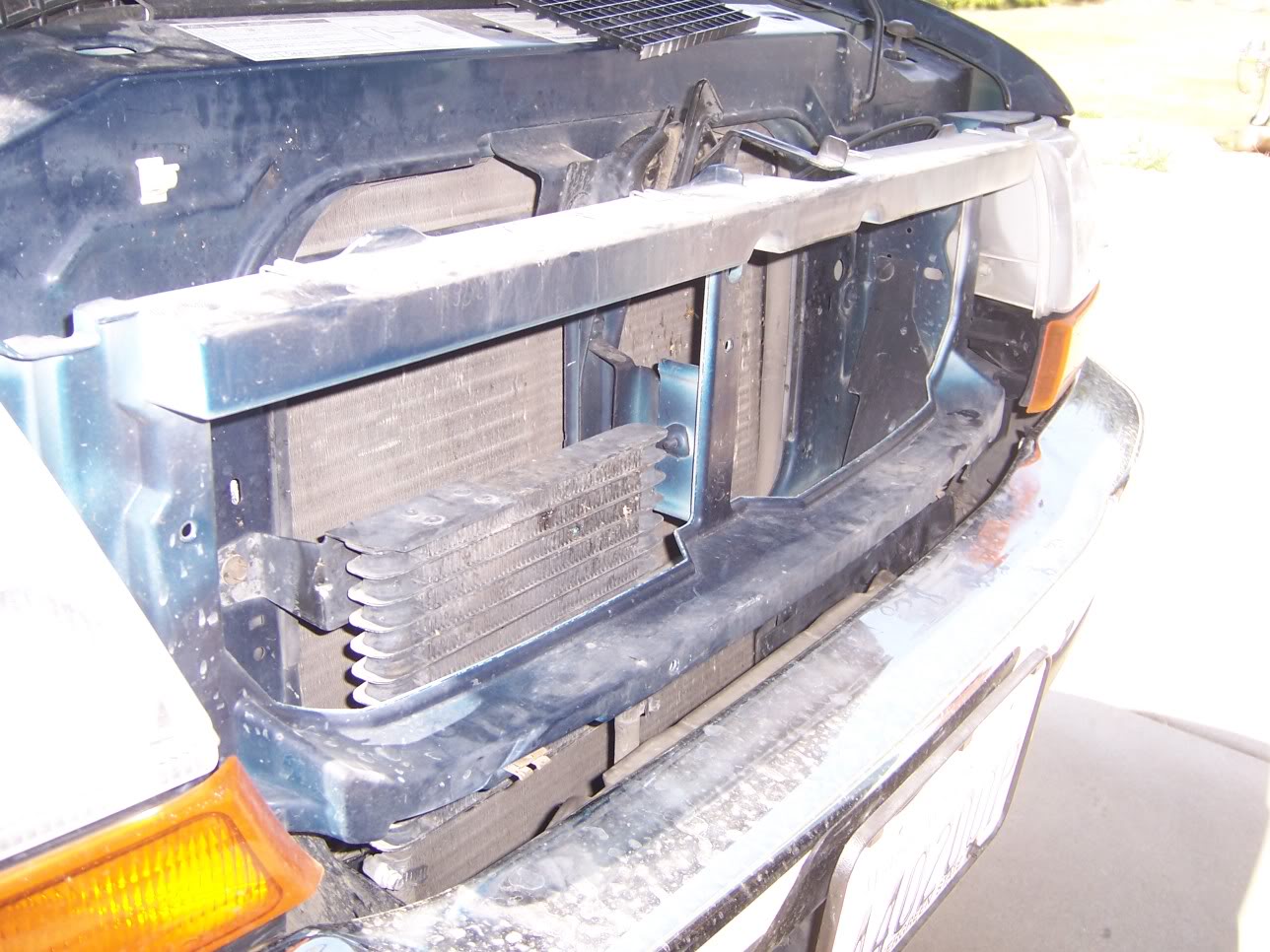

i removed the stock grill and found some mounting points:
Name:  100_1363.jpg
Views: 35
Size:  184.2 KB


from there i took a smaller piece of the grate and painted it black,and placed it behind the stock to see how would fit:
Name:  100_1368.jpg
Views: 37
Size:  149.0 KB

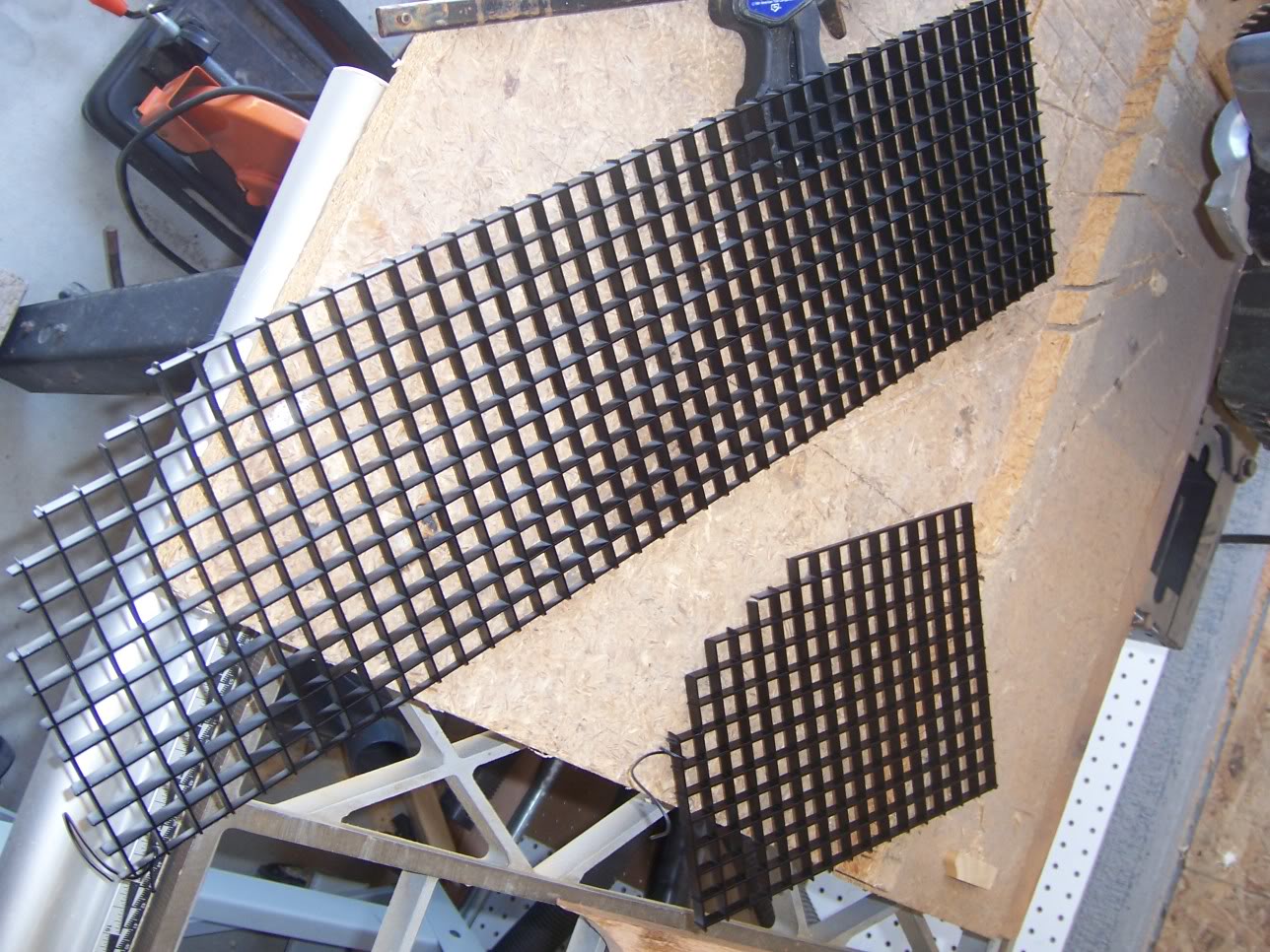

from there i cut out and painted the rest of the material. I had to make it two pieces because of lack of material:
Name:  100_1369.jpg
Views: 38
Size:  252.7 KB

i devised a nut and bolt arrangment that allowed me to move the grill forward and back:

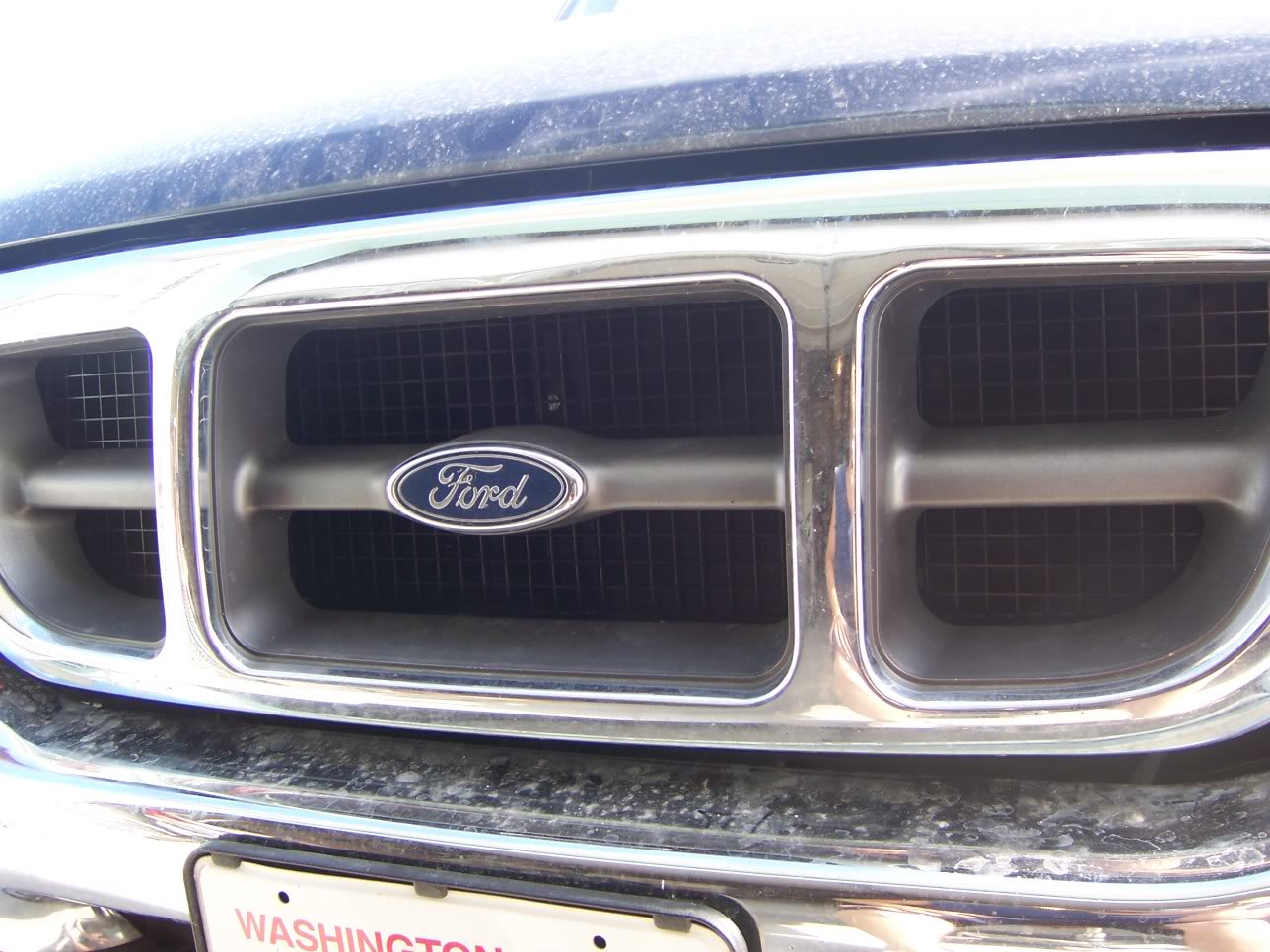

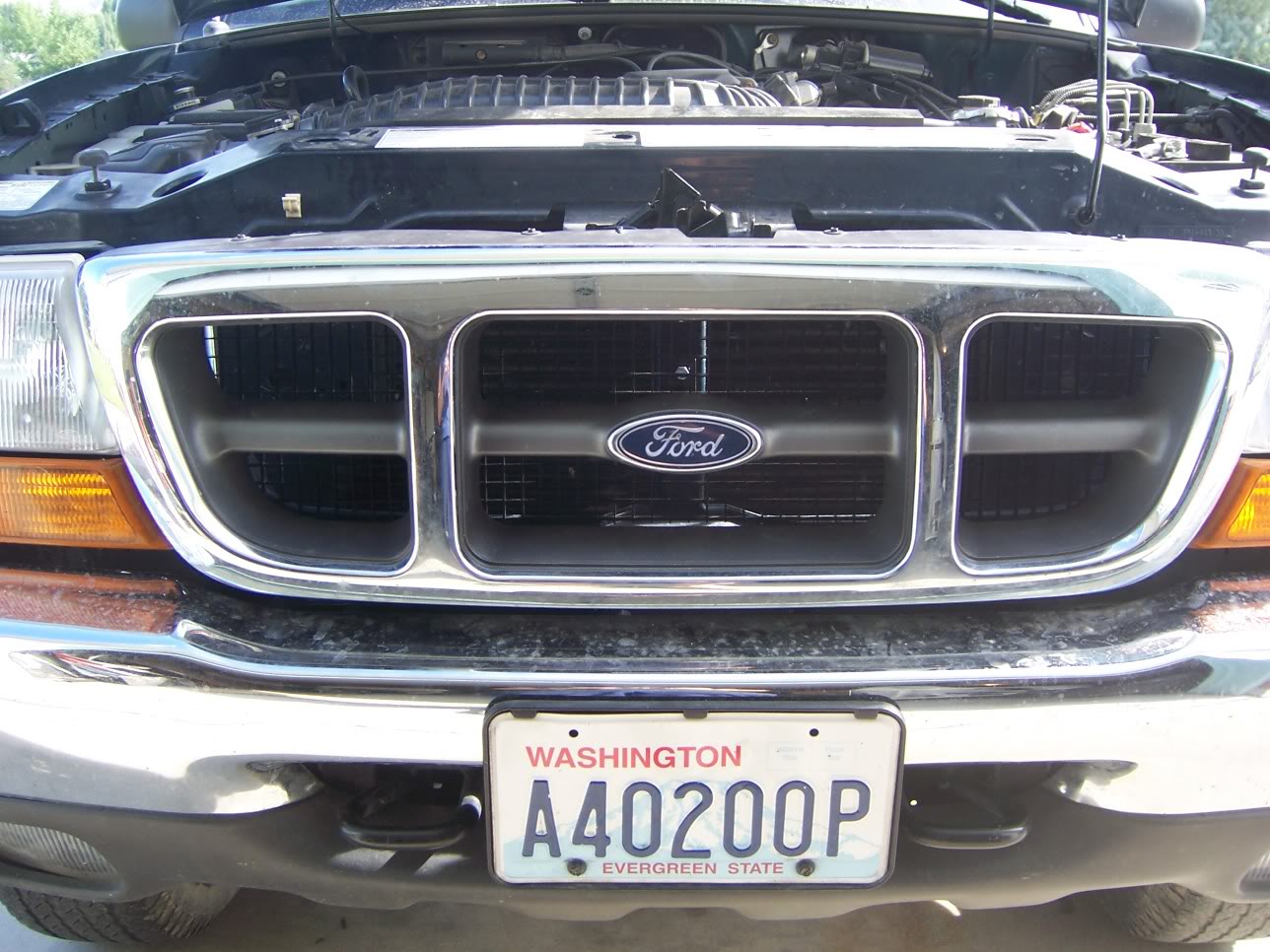

after mounting:
Name:  100_1372.jpg
Views: 37
Size:  167.0 KB
Name:  100_1370.jpg
Views: 38
Size:  191.7 KB
