How to: Install new carpeting in your truck

Here is how to install a new carpet on a 2002 extended cab

Tools needed:
A box cutter with a pack of new razor blades
A piece of white chalk
A ratchet
Assorted torx heads for the ratchet
Assorted nutdrivers
A trim panel removal tool (optional)
A flathead screwdriver

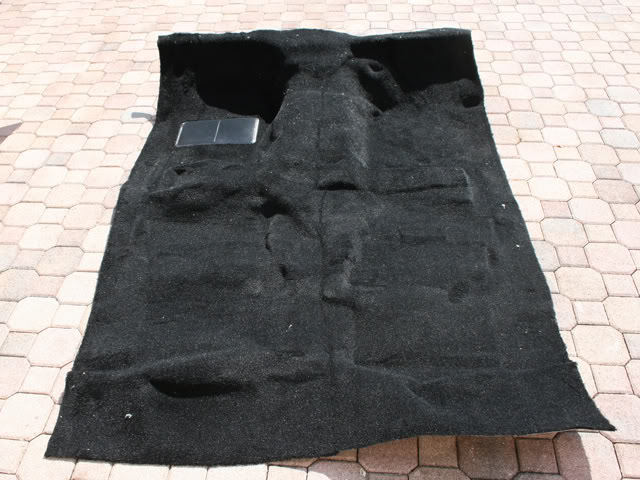

Name:  01.jpg
Views: 83
Size:  80.5 KB
First thing you are going to want to do is throw the new carpet out in the sun to help some of the folds go away from being in the box it was shipped to you in. The amount of time it takes to pull out the old interior will be enough time for the carpet to get warm enough.

Name:  02.jpg
Views: 68
Size:  55.4 KB
Here is the interior, the front seats as well as most of the trim will have to be removed.

Name:  03.jpg
Views: 62
Size:  58.5 KB

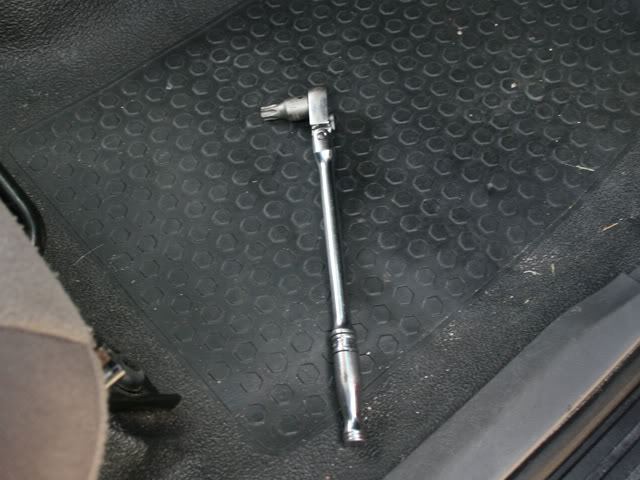

The seats require a T55 Torx to remove.

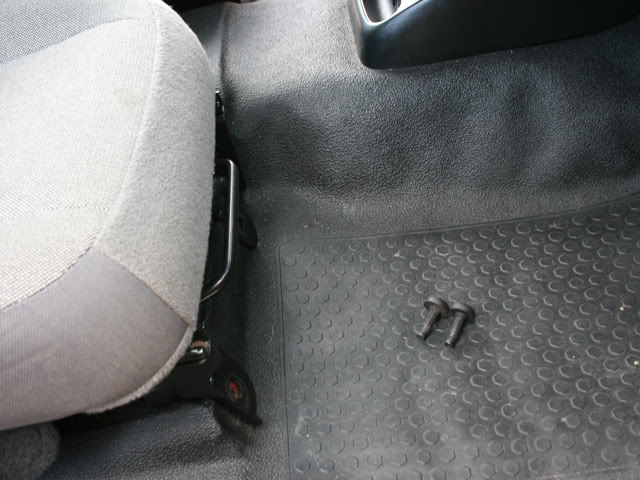

Name:  04.jpg
Views: 60
Size:  72.9 KB
Slide the seat all the way back and remove the front two bolts.

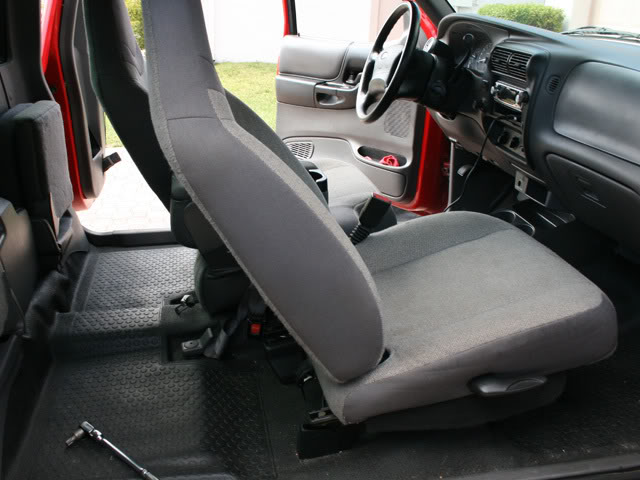

Name:  05.jpg
Views: 76
Size:  58.0 KB
Slide the seat all the way forward, then pull off the two plastic tirm pieces from the tracks and remove the rear two bolts. They are not very tight, but are somewhat long and the threads are pretty fine so they will take a little while to remove by hand. After I removed the first two it took longer then I wanted so as you can see traded the hand wrench for an air tool.

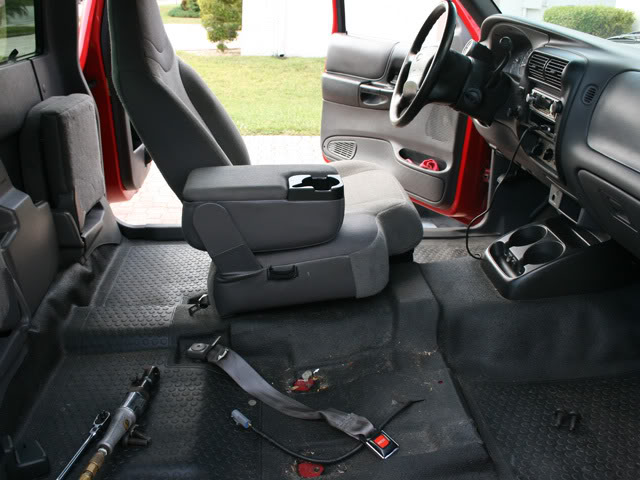

Name:  06.jpg
Views: 61
Size:  65.2 KB
There is a small plug under the seat that will have to be unplugged. After you do this you can pull the seat out.

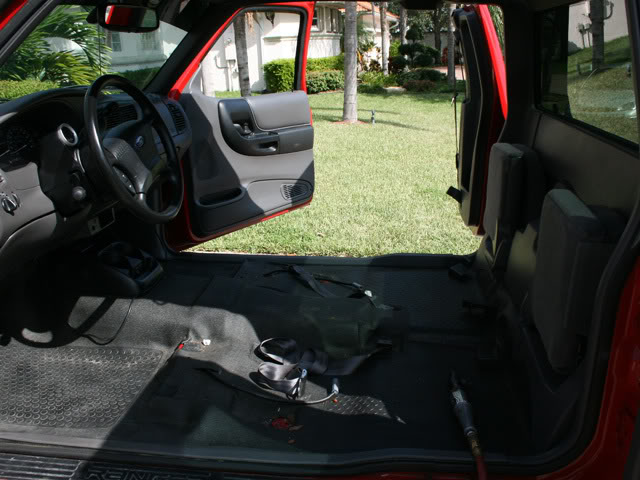

Name:  07.jpg
Views: 65
Size:  70.0 KB
Repeat with drivers side seat.

Name:  08.jpg
Views: 59
Size:  79.2 KB
These will also have to come out, they are the seatbelts for the center seat.

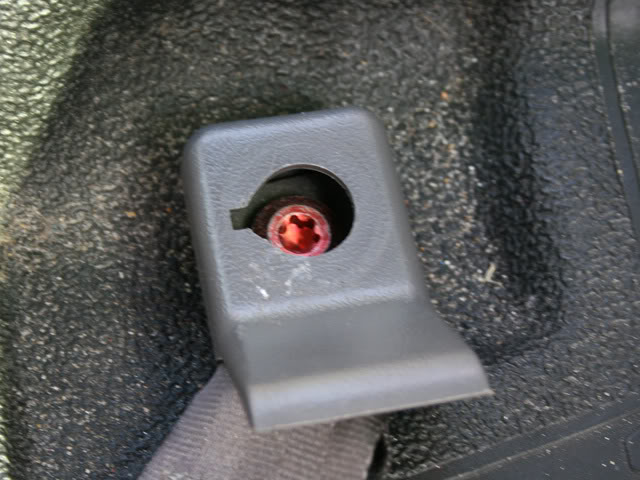

Name:  09.jpg
Views: 60
Size:  64.9 KB
Pop off the covers to reveal another Torx head bolt. These will require a T50.

Name:  10.jpg
Views: 55
Size:  70.6 KB

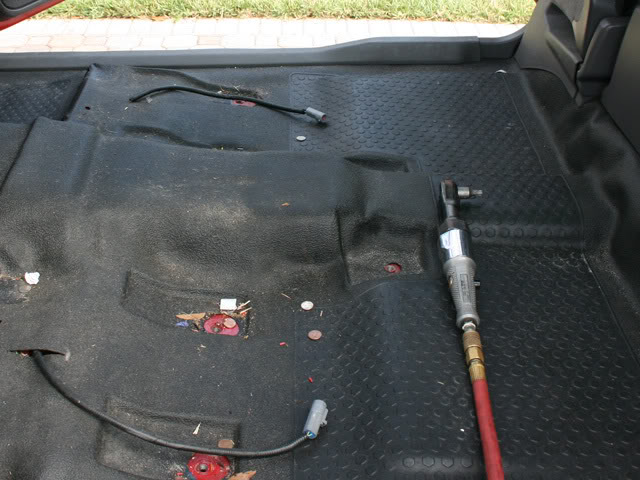

Remove them.

Name:  11.jpg
Views: 68
Size:  61.6 KB

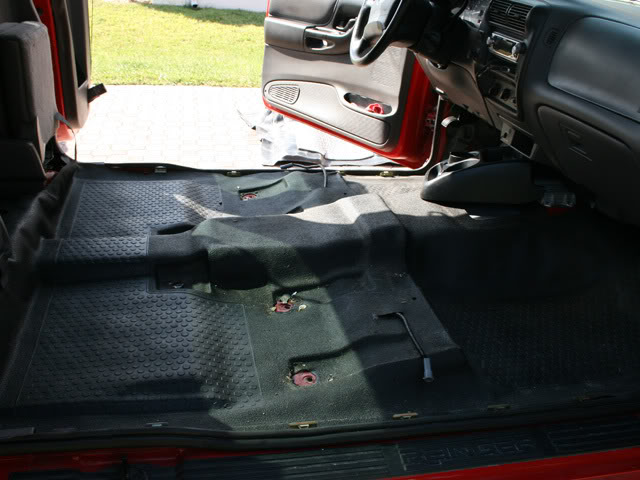

Start taking off the trim, take your time and don't just rip it all out since you will have to install it again. The base underneath the cupholder must also be unscrewed.

Name:  12.jpg
Views: 61
Size:  59.5 KB
The bottle jack and other tools will have to be taken out and the piece of metal they are mounted on must be unscrewed.

Name:  13.jpg
Views: 59
Size:  72.4 KB

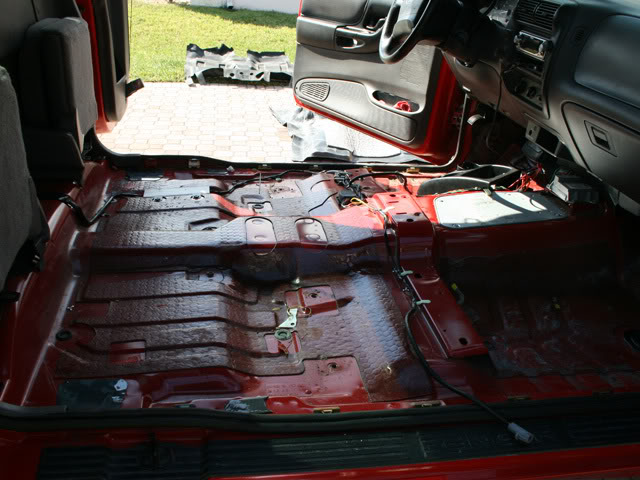

Pull out the old carpet and set it aside, do not cut it up or throw it away just yet.

Name:  14.jpg
Views: 58
Size:  64.7 KB

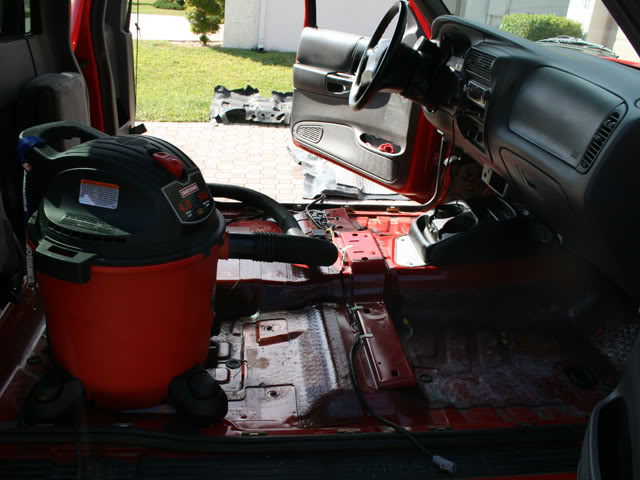

Now is a good time to vacuum out the floor.

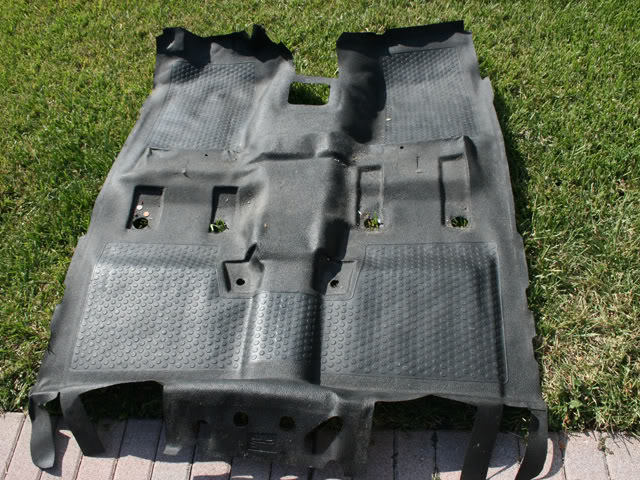

Name:  15.jpg
Views: 60
Size:  113.5 KB
Here is the old flooring, as you can see it has plenty of cutouts unlike the new carpet.

Name:  16.jpg
Views: 59
Size:  92.1 KB
You will need to take the old flooring and place it on top of the new carpet and then trace the edges and holes after lining it all up. Use regular white chalk to trace with. You can see I did not trace the cutouts for the drivers side rear seat, that is because I am removing it from the truck. DO NOT CUT ANYTHING YET!


Put the new carpet in and start cutting from the front to the back of the cab. You can see the new carpet is both wider and longer then it needs to be.

Name:  18.jpg
Views: 54
Size:  54.3 KB

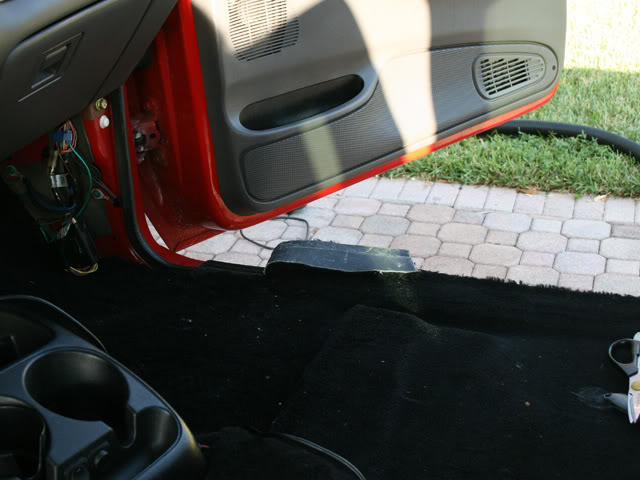

The sides need to be cut also.

Name:  19.jpg
Views: 58
Size:  54.8 KB

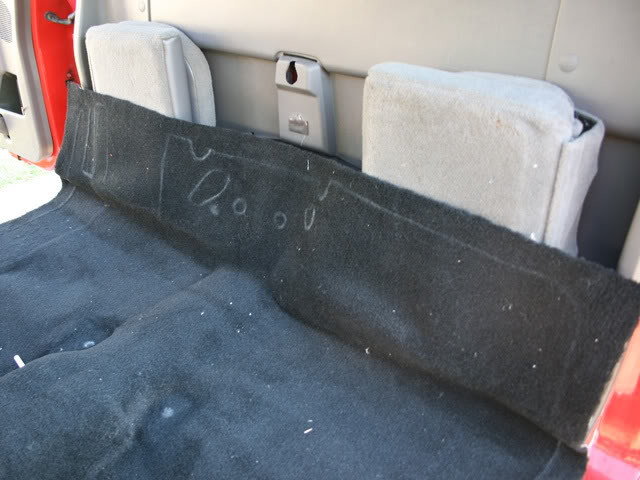

You will have to do a lot of trimming on the rear, take you time and remember you can always remove carpet if it is still too long.

Name:  20.jpg
Views: 130
Size:  62.0 KB
Cut your holes as well as slits for the wires now. Double check that the markings you have line up with the holes before you make any cuts. You can see I am also test fitting the trim in this picture.

Name:  21.jpg
Views: 58
Size:  56.7 KB
Bolt the seats back in and put all the time back on. I noticed that there was blue Loctite on the bolts for the seats when I removed them, so it would be a good idea to put some new blue Loctite on when you are putting the seats back in.

Name:  22.jpg
Views: 57
Size:  50.1 KB
You can see I also chose not to cut the holes for the center seat belt. No one sits there and I plan on putting a center console in the truck anyway.

Name:  23.jpg
Views: 491
Size:  50.8 KB
I was very happy that the carpet is not precut, this allowed me to delete a rear jump seat and not have any paint showing like you would if the carpet was cut like the factory carpet.

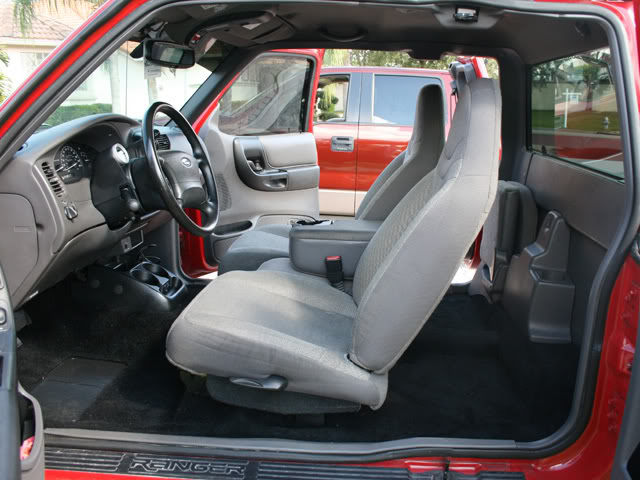

Name:  24.jpg
Views: 67
Size:  70.1 KB
Here is how it looks all put back together. OEM quality without a doubt.


This carpet came from http://www.stockinteriors.com/ and is available in many different colors as well as two different plushness's, neon colors, and will two different backing options.

CLICK HERE FOR REGULAR CAB CARPETS

CLICK HERE FOR EXTENDED CAB CARPETS

Last edited by Taylor; 11-20-2011 at 05:27 PM.
Reply With Quote
  #2
Old 11-11-2008
jrpro130's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2005
Location: Florida
Posts: 5,057
Looks good. I bet it's quieter now as well correct? Why did you not go with OEM precut?
Reply With Quote
  #3
Old 11-11-2008
korey89's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
N/p Zack

Yeah, definitely a little quieter inside now as well as you dont feel the heat through the floor from the cats as much. I have the upgraded thicker backing on mine so I'm sure that helps too. I didn't want the OEM because I wanted to get rid of that rear seat without it looking horrible and a few other little things I did differently then OEM. Plus this stuff is OEM quality or better.

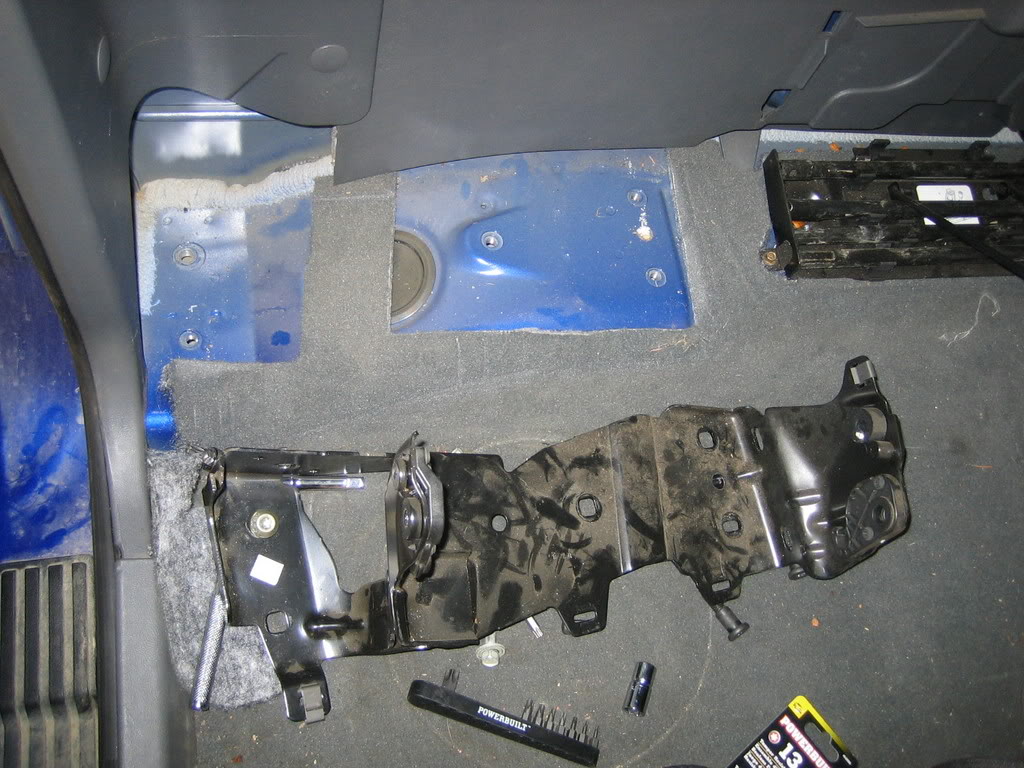

This is what OEM precut would have looked like without the rear seat,
Name:  Picture027.jpg
Views: 56
Size:  159.5 KB
