CB info/ PIC request.

Alright well I am looking at getting a CB in my truck for offroad/onroad use. And i am wondering what everyone recommends for a CB radio.

I am looking at a Cobra 29 LTD 40 Channel CB for 69.99 brand new.

Is this a good deal?

also where is everyone mounting them in their trucks?

And where would i mount mine?

I have an 03 FX4 lvl II with twin sticks and a the bucket seats.
Reply With Quote
  #2
Old 10-30-2008
jaycheetwood's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: Ogden, Utah
Posts: 2,218
Oh and i am also looking for recommendations on an antenna.
Reply With Quote
  #3
Old 10-30-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
https://www.ranger-forums.com/forum2...ad.php?t=64958

https://www.ranger-forums.com/forum2...ad.php?t=56028


Theres other threads...but i can't seem to find the ones i'm looking for. I think a couple guys with twin sticks mounted their big cb behind the center console...out of the way...and a decent location. I really like my cb's roof location myself.
Reply With Quote
  #4
Old 10-30-2008
lifted_Mazda01's Avatar
Member

Join Date: Aug 2008
Location: Davie, FLA
Posts: 685

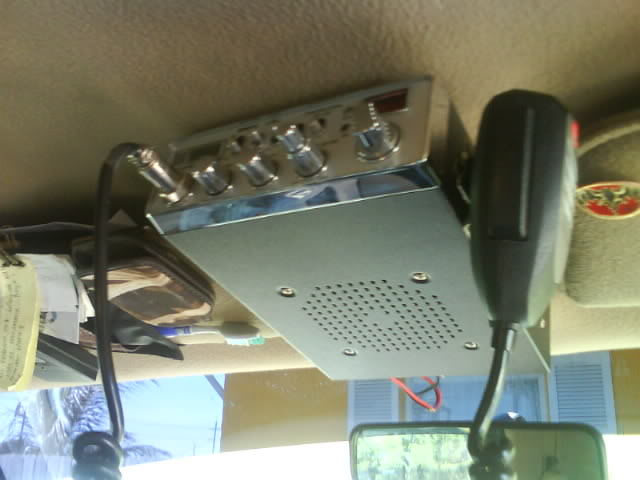

x2 with fx4wannabe mine is on the roof with twins
Name:  Picture058.jpg
Views: 2
Size:  33.4 KB
Name:  Picture059.jpg
Views: 1
Size:  37.5 KB
Name:  Picture062.jpg
Views: 1
Size:  43.3 KB
Name:  Picture046.jpg
Views: 1
Size:  15.4 KB
i dont have twin "firestix" they are the same thing just half the price and not fiberglass coated, meaning they bend and sway alot further without breaking
Reply With Quote
  #5
Old 10-30-2008
Hanks Rangers's Avatar
Member

Join Date: Sep 2008
Location: Sandpoint, ID
Posts: 821

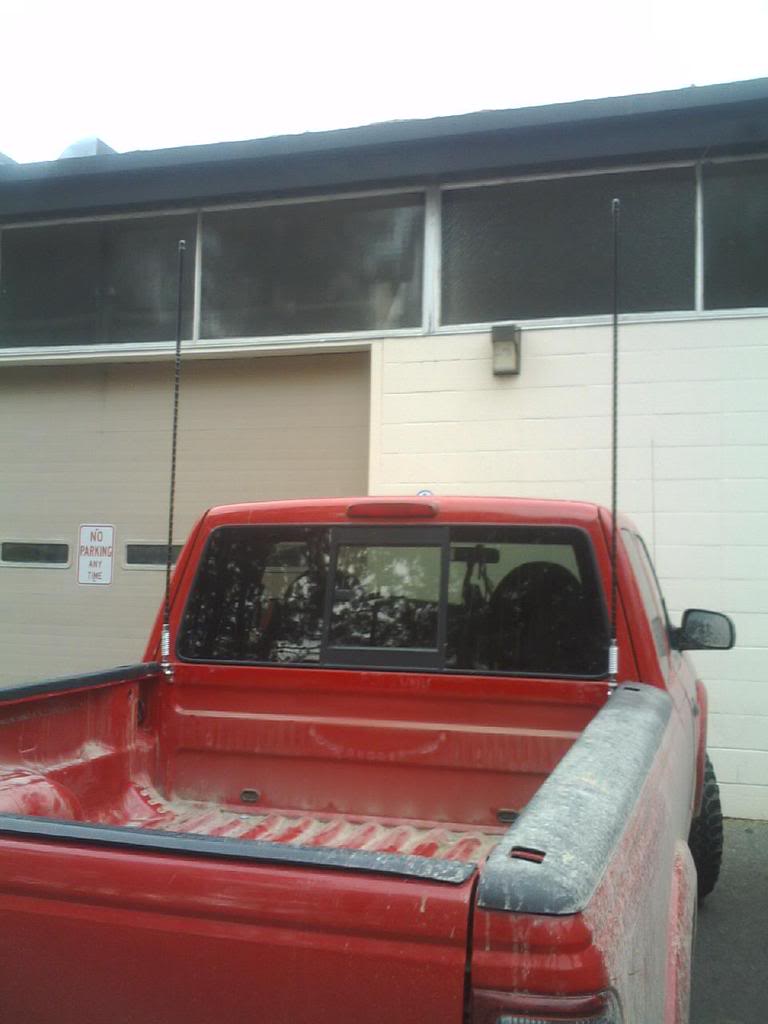

have yet to put the cb in but the whips are on
Name:  CID__1009081249.jpg
Views: 1
Size:  62.5 KB
Reply With Quote
  #6
Old 10-30-2008
crooked02edge's Avatar
Member

Join Date: Jul 2005
Location: Montevallo, AL
Posts: 175
I have a cobra 29 ltd classic. I've had it since '03. I ran it when I drove a truck. Mine cost me $89 or $99 then, so yours is a good price. As far as an antenna, I've got a wilson magnetic mount(lil wil). When I need it, I put it up top and run the cable thru the sliding window. When I'm done, I take it down. On mounting, I took out my ashtray and moved my pass. airbag switch. I used an adjusable mounting bracket and bolted it in. You would be able to see where you could bolt it in. By using an adjustable bracket, you'll be able to line up the hole as well as have the correct width for the cb. Somebody on here put it where I did but used a non adjusting bracket and zip ties to mount the bracket. I had 3 bolts that luckily fit, so it's not going anywhere. I'll post pics of the bracket mounted and how the cb looks mounted tomorrow.
Reply With Quote
  #7
Old 10-30-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
oh yes...i recognize the mic flying in your face...we are twins. lol.
Reply With Quote
  #8
Old 10-31-2008
RangerJustin's Avatar
Member
iTrader: (1)

Join Date: Feb 2005
Location: SoCal
Posts: 4,428
I use to have the Cobra DX IV due to size, but I wanted something more compact but still have the PA function so I went with the Cobra 76 XTR, just don't care for the bright blue color, other than that it works perfectly!
Reply With Quote
  #9
Old 10-31-2008
jaycheetwood's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: Ogden, Utah
Posts: 2,218
Yeah well i like the idea of the roof mount. but i am also wondering if i can put it in my center console that way its hidden and out of the way.

What is an okay length for a cb antenna?

And yeah i get all cobra products at cost.
Reply With Quote
  #10
Old 10-31-2008
BlackStallion's Avatar
Member

Join Date: Aug 2008
Location: Pittsburgh,Pa
Posts: 100

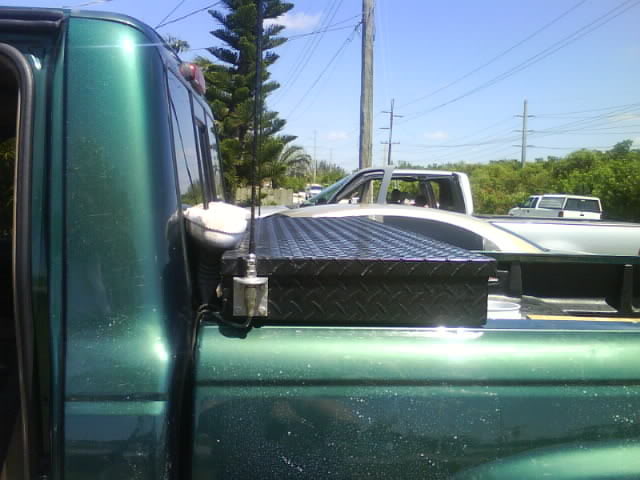

I mounted mine on the side of my toolbox too, good place to mount especially since you dont have to drill any holes in your truck...OUCH!
Plus a normal antenna wire is just long enough to travel from the toolbox, under the truck, inside the cab, and under your kick guard to the cb.
I mounted my cb first on the ceiling too, but after hitting one too many holes she was always getting shaken loose, nothing too secure up their to hold it tight really.
I moved the cb's mounting spot to down under the dash pretty much above gas petal, i know sounds like a tight spot but its perfect when your driving.
....Just an idea, worked for me...?!!!
Reply With Quote
  #11
Old 10-31-2008
jaycheetwood's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: Ogden, Utah
Posts: 2,218
Explain on running the wire into the truck... like running it all the way into the engine bay and then in?
Reply With Quote
  #12
Old 10-31-2008
RangerJustin's Avatar
Member
iTrader: (1)

Join Date: Feb 2005
Location: SoCal
Posts: 4,428
I ran it through the firewall right behind the ebrake pedal then across the frame up into the tail light area into the bed for the coax and then power to the fuse block and ground in the bay right next to the fuse block where there is already a ground bolt

4ft. whip seems to be the norm to get.
Reply With Quote
  #13
Old 10-31-2008
jaycheetwood's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: Ogden, Utah
Posts: 2,218
Alright sounds good ill have to see how much i get them for i like the idea i can get this all for cost right now.

When i go to install i will sure be asking everyone for some help since i am new to the experience.
Reply With Quote
  #14
Old 10-31-2008
RangerJustin's Avatar
Member
iTrader: (1)

Join Date: Feb 2005
Location: SoCal
Posts: 4,428
I was lucky to have someone show me the first time around, so the second time I did it myself and it was super easy. Just need to crimp on two connectors and unscrew a bolt for the ground and a nut for the power. hardest part was getting the wire run since it was a somewhat tight area.
Reply With Quote
  #15
Old 10-31-2008
jaycheetwood's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: Ogden, Utah
Posts: 2,218
Did it come with enough wire or am i gonna have to prepare to add more wire??

Did you just run it off your battery?

Or is it wired to turn on when the key does like the radio?
Reply With Quote
  #16
Old 10-31-2008
RangerJustin's Avatar
Member
iTrader: (1)

Join Date: Feb 2005
Location: SoCal
Posts: 4,428
Should have plenty of wire.

On the front of the fuse block in the engine bay there are two screws, they are both power, I just took the nut off slid the connector over and put the nut back on. I can turn it on with the truck on or off. You can wire it to the radio if you want to do it that way, but this way I can use my PA without having to turn my truck on.
Reply With Quote
  #17
Old 10-31-2008
jaycheetwood's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: Ogden, Utah
Posts: 2,218
Do you have a picture of the engine bay mounting?
Reply With Quote
  #18
Old 10-31-2008
RangerJustin's Avatar
Member
iTrader: (1)

Join Date: Feb 2005
Location: SoCal
Posts: 4,428
No I don't and I cannot find any good images on google search to show you. My truck is not with me so can't take a pic either...
Reply With Quote
  #19
Old 10-31-2008
jaycheetwood's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: Ogden, Utah
Posts: 2,218
Its okay.. i have no choice but to forgive you.. and spare your family
Reply With Quote
  #20
Old 10-31-2008
mossyoak03's Avatar
Member
iTrader: (1)

Join Date: Oct 2006
Location: Virginia Beach, VA
Posts: 193
mine goes straight to my battery when offroading and hunting purposes
Reply With Quote
  #21
Old 10-31-2008
jaycheetwood's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: Ogden, Utah
Posts: 2,218
So just ran another wire off my battery like i am my amp?? is that too much draw with the amp as well?
Reply With Quote
  #22
Old 10-31-2008
mossyoak03's Avatar
Member
iTrader: (1)

Join Date: Oct 2006
Location: Virginia Beach, VA
Posts: 193
i don't know haven't installed my amp yet will have it soon tho just waiting for it to be shipped to me
Reply With Quote
  #23
Old 10-31-2008
jaycheetwood's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: Ogden, Utah
Posts: 2,218
haha alright well you will have to let me know.
Reply With Quote
  #24
Old 10-31-2008
Hanks Rangers's Avatar
Member

Join Date: Sep 2008
Location: Sandpoint, ID
Posts: 821
mine has 4', 3' wouldn't be bad either
Reply With Quote
  #25
Old 10-31-2008
enraged_hunter's Avatar
Member

Join Date: Mar 2007
Location: Pittsburgh, Pa
Posts: 728
i have had no problems with my 102" whip
Reply With Quote
