Confused on sport trac gauges

Ok I've been reading other posts but still not clear.
I have a 2000 4x4 I want sport trac gauges.
What years are exact match ?? All lights and wires no removing of needles
Just unplug old and plug in new
HELP !!
Reply With Quote
  #2
Old 04-10-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Just unplug old and plug in new

i think it is 99-2001 explorers
2000-2002 sport tracs?

other then that just look at them on ebay. if they looks like yours but are white then they will work.
Reply With Quote
  #3
Old 04-10-2007
cbarber4's Avatar
Member
Thread Starter

Join Date: Apr 2007
Location: Rome NY
Posts: 24
thank you
Reply With Quote
  #4
Old 04-10-2007
xp1ik99's Avatar
Member
iTrader: (5)

Join Date: Feb 2006
Location: Lexington Park, MD
Posts: 3,230
you can adjust the mileage cant you??
Reply With Quote
  #5
Old 04-10-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
if you want, or just swap the readout and speedo from the old one to the new one.

requires removal of speedo needle tho, then you have to make sure you get it back on correctly
Reply With Quote
  #6
Old 04-10-2007
Hitch's Avatar
Member

Join Date: Nov 2006
Location: OH
Posts: 401
the main difference that i can tell is that the fuel reset and door ajar are switched. other than that, plug and play
Reply With Quote
  #7
Old 04-10-2007
LowMaz's Avatar
Member

Join Date: Feb 2007
Location: Sterling/ Amherst, MA
Posts: 788
and wtf is the fuel reset for?
Reply With Quote
  #8
Old 04-11-2007
xp1ik99's Avatar
Member
iTrader: (5)

Join Date: Feb 2006
Location: Lexington Park, MD
Posts: 3,230
sounds harder than it may be worth......f
Reply With Quote
  #9
Old 04-11-2007
Member

Join Date: Apr 2005
Location: Shelbyville, Kentucky
Posts: 1,101
Quote:
Originally Posted by jgibbs
and wtf is the fuel reset for?

for the fuel inertia switch...when it gets tripped...

and the swap is terribly easy...all i did was buy the cluster, remove the gauge faces (plastic backing and all) and swap them into my housing while still using all the electronics from my cluster assembly...
Reply With Quote
  #10
Old 04-14-2007
AuthPineApple's Avatar
Member

Join Date: Jan 2006
Location: Santa Monica, CA
Posts: 420
Yeah, the swap is seemless unless you wanna do anything special. I also have an 00 ranger and got the sport trac guages from a 2003. I ended up putting my original odometer because the one I gt was at like 30K miles and my truck had 140K miles and was takin way to lon to roll those numbers. You can get fancy though and put in different color LEDs instead of the stock green, but requires a bit more work and patience.
Reply With Quote
  #11
Old 04-14-2007
Member

Join Date: Jan 2006
Location: Richmond, Va
Posts: 295
Quote:
Originally Posted by Tow Truck Chuck
the main difference that i can tell is that the fuel reset and door ajar are switched. other than that, plug and play
I put either a 2001 or 2002 (don't remember which) cluster in mine, and all the lights were correct. I know some people have mentioned the theft light didn't work with some swaps either.
Reply With Quote
  #12
Old 04-14-2007
crawly1025's Avatar
Member

Join Date: Jul 2005
Location: Steubenville Ohio
Posts: 1,361
Mine worked perfectly. It came out of an Explorer Sport. Plugged it in and that was it.

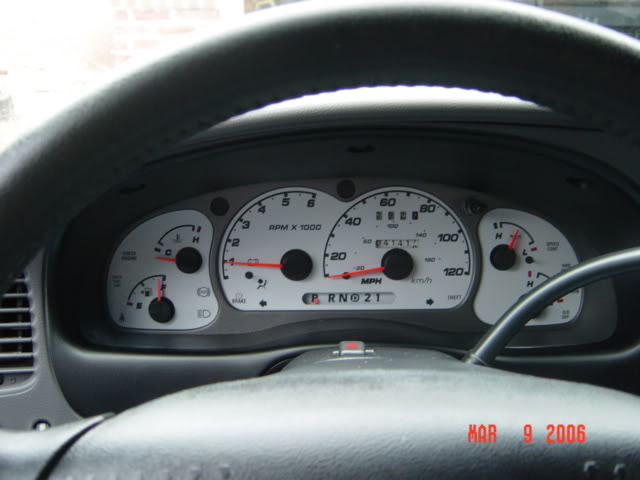

Name:  2.jpg
Views: 5
Size:  33.0 KB

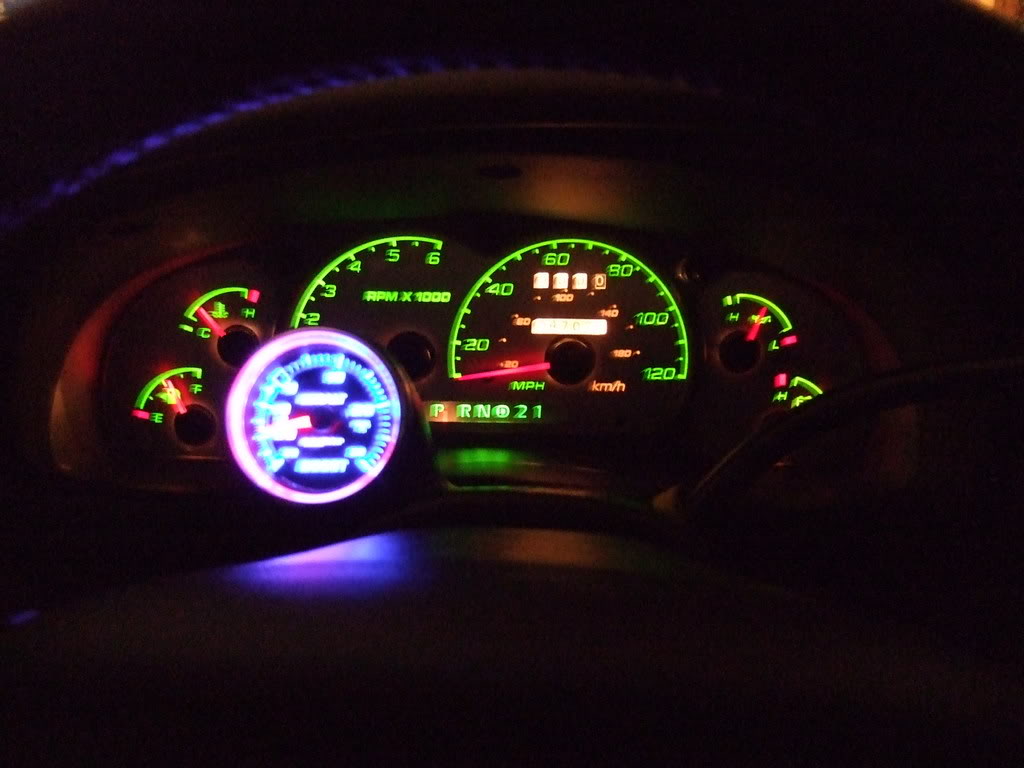

Name:  80.jpg
Views: 4
Size:  72.0 KB
Reply With Quote
  #13
Old 07-02-2007
Lord Of War's Avatar
Member
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
Those look great guys. Shawn I noticed how bright yours is and was wondering if you put in a new light?
Reply With Quote
  #14
Old 07-23-2007
huskerpower02's Avatar
Member

Join Date: Jun 2006
Location: -----
Posts: 128
Sorry for bringing up a somewhat old thread but in order to get the stock one out do you just unscrew those torx bolts holding it in around the cluster?

And then for the explorer sport one I'd be putting in, I can use the stock wiring of my ranger correct?

This is what I'm looking at, everything seem okay?

http://cgi.ebay.com/ebaymotors/Ford-...QQcmdZViewItem
Reply With Quote
  #15
Old 07-23-2007
03RangerInROC's Avatar
Member

Join Date: Feb 2006
Location: rochester, ny
Posts: 530
i took the old milage out of my old ones amd put tht one in my bew one...its a pain in butt to adjust the miliage
Reply With Quote
  #16
Old 07-23-2007
fuzz's Avatar
Member

Join Date: Jan 2005
Location: Eglin AFB, FL
Posts: 257
Quote:
Originally Posted by huskerpower02
Sorry for bringing up a somewhat old thread but in order to get the stock one out do you just unscrew those torx bolts holding it in around the cluster?

And then for the explorer sport one I'd be putting in, I can use the stock wiring of my ranger correct?

This is what I'm looking at, everything seem okay?

http://cgi.ebay.com/ebaymotors/Ford-...QQcmdZViewItem
Yea. You should be able to unplugg the old cluster and plugg the new one in. I put a sport cluster in my 98 XL without tach and it works fine. It was just plug and play.
Reply With Quote
