Explorer cluster.

I am wanting to buy an explorer cluster to swap into my Ranger. The explorer cluster has more miles then my Ranger does so is there a way to change the odometer so it reads right?
Reply With Quote
  #2
Old 10-26-2008
Lord Of War's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
Bump please. I need to know asap.
Reply With Quote
  #3
Old 10-26-2008
TheManInBlack's Avatar
Member

Join Date: Mar 2005
Location: Lillington, NC
Posts: 304
absolutely its a pain but in can be done i did it with mine
Reply With Quote
  #4
Old 10-27-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
ABSOLUTELY!

You could A: swap your current black odometer to the new cluster. OR B: roll the white explorer odometer to the proper reading.


I've been really really lazy on making a how-to for this for people. Pretty much, you give the cluster an autopsy, two outer gauges pop out then the inner gauge pops off. Do the Y-wire trick with a AA battery so you can calibrate it correctly later, then pull the needle off using a fork or a knife. now that the needle is off, there's 3 screws that take a 1/4" to remove the odometer mechanism. Twist the motor off, then the odometer roll kinda pops out. space the ring gear away from the lettering, now you've got room to 'roll the odometer'.


Sorry....i know.....it's all one big old sentance. Give me a day, and i'll get a proper how-to done. And if all else fails, i've got another expo cluster coming, i could just do it for you and we trade tach/speedo gauges. lol. There was a guy charging $50 to do it! rediculous.
Reply With Quote
  #5
Old 10-27-2008
Lord Of War's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
Dave and Shane, that is exactly what I wanted to hear.

I think I am going to just swap covers. My cluster works great right now so I think swaping covers is probably the easist thing to do.

Shane I appreciate the offer to trade clusters. That still might be an option. Like you said if you could get that "how to" up that would be awsome.

Thanks,

Jake
Reply With Quote
  #6
Old 10-27-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
swap covers or swap odometers? If you swap JUST covers, you'll need to pull ALL needles and recalibrate them all. I'm doing pics right meow.
Reply With Quote
  #7
Old 10-27-2008
Lord Of War's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
I guess I meant swap odometers. That would be the easiest, right?
Reply With Quote
  #8
Old 10-27-2008
Melt's Avatar
Member
iTrader: (1)

Join Date: Apr 2008
Location: Denver, CO
Posts: 3,392
yup did it back in the day on my friends dx civic we put a cluster out of an lx on it (so he could have a tach) and just swaped the odos no prob.
Reply With Quote
  #9
Old 10-28-2008
TheManInBlack's Avatar
Member

Join Date: Mar 2005
Location: Lillington, NC
Posts: 304
Quote:
Originally Posted by Fx4wannabe01 View Post
I'm doing pics right meow.
WTF you been watchin Mr.Rogers neighborhood lately
Reply With Quote
  #10
Old 10-28-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Thats a super troopers reference lol
Reply With Quote
  #11
Old 10-28-2008
Lord Of War's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
Yeah, when you get that "how to" done I would love to read it.
Reply With Quote
  #12
Old 10-29-2008
Melt's Avatar
Member
iTrader: (1)

Join Date: Apr 2008
Location: Denver, CO
Posts: 3,392
http://www.superhonda.com/forum/f94/...-420kb-274853/

shows how to swap the odos on a civic cluster i cant imagine a ranger would be much different
Reply With Quote
  #13
Old 10-30-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Better late than never right?


Here ya go Jake...

https://www.ranger-forums.com/forum2....php?p=1102338
Reply With Quote
  #14
Old 10-30-2008
Lord Of War's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
Perfect Shane. I think I am going to just swap my odometer. Its looks alot easier.
Reply With Quote
  #15
Old 10-30-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Yeah..and imo.....White faces w/ black letters and black odometer w/ black clear cover looks alot better than the white odometer that's stock on those expo white faced clusters. Actually....doing this how-to, convinced me to swap my white odometer to my old stock black one!

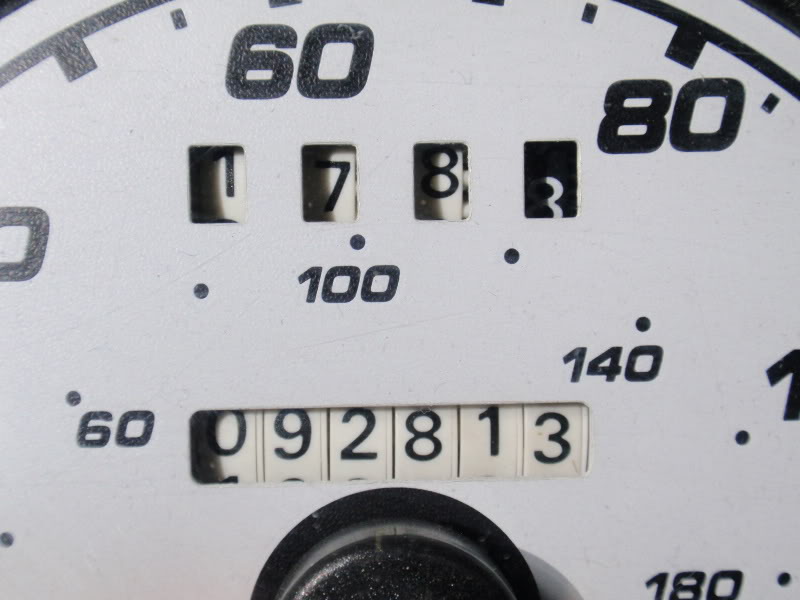

Name:  PA290065.jpg
Views: 2
Size:  59.6 KB

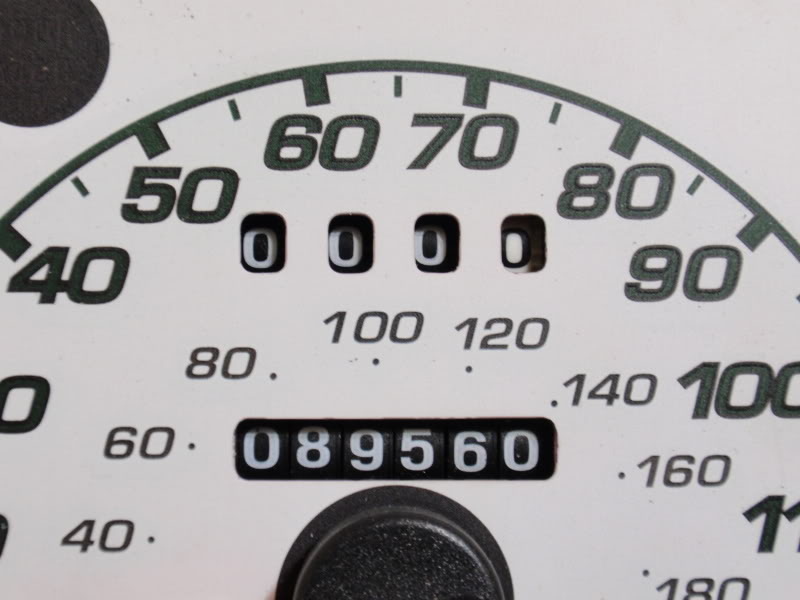

Name:  PA290006.jpg
Views: 1
Size:  60.1 KB
Reply With Quote
  #16
Old 10-30-2008
XeRo's Avatar
Join Date: Feb 2008
Location: Here, Now...Ohio
Posts: 0
If you put the explorer cluster in your ranger. Before you do so swap the temp motors out. You will read freaking HOT with the explorer motor. Happened to me, took longer to take apart the dash than it did to pull the clusters apart and swap the temp gauge motors.
Reply With Quote
  #17
Old 10-30-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I didn't have that issue....still dont.
Reply With Quote
  #18
Old 10-30-2008
XeRo's Avatar
Join Date: Feb 2008
Location: Here, Now...Ohio
Posts: 0
really? I did....maybe it's cause I got an 01 cluster for my 95 then.....
Reply With Quote
  #19
Old 10-30-2008
Casper98's Avatar
Member
iTrader: (1)

Join Date: Jun 2007
Location: Gresham OR
Posts: 1,789
I think that's for 97 and earlier, I didnt have that problem either
Reply With Quote
  #20
Old 11-13-2008
Lord Of War's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
I got the cluster in the mail. I am gonna do the install on friday.

Shane, I will probably have some questions for you so I will be in touch.
Reply With Quote
  #21
Old 11-13-2008
Mr. Special's Avatar
Member

Join Date: May 2005
Location: Irvine, CA
Posts: 3,411
Quote:
Originally Posted by Fx4wannabe01 View Post
Yeah..and imo.....White faces w/ black letters and black odometer w/ black clear cover looks alot better than the white odometer that's stock on those expo white faced clusters. Actually....doing this how-to, convinced me to swap my white odometer to my old stock black one!

Couldnt have said it better.

Just swap your original one in with the explorer gauges, looks much better and you will save ALOT of frustration!
Reply With Quote
  #22
Old 11-13-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by Lord Of War View Post
I got the cluster in the mail. I am gonna do the install on friday.

Shane, I will probably have some questions for you so I will be in touch.
Heck yes buddy! replying to you pm here in a min...
Reply With Quote
  #23
Old 11-14-2008
Lord Of War's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
I completed the install today and was very suprised at how easy it was. The "how to" that Shane provided were essential to my success.

When I calibrated my speedo mine only went up to 21mph as compared to 70 in the write up.

Overall I am very happy with how it turned out. For a mod that only cost me $40 I am pretty happy with it.

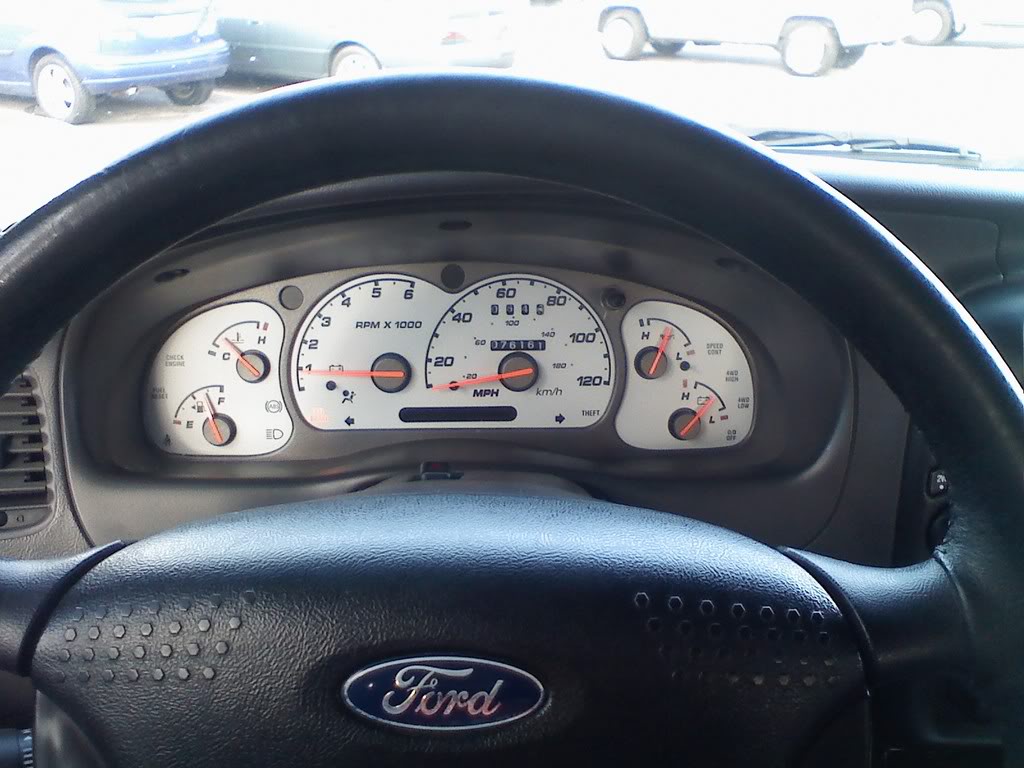

Pics of the new cluster and one random one of my truck at my burn building.

Name:  newcluster.jpg
Views: 1
Size:  108.7 KB
Name:  Rigatburnbuilding.jpg
Views: 1
Size:  40.5 KB
Reply With Quote
  #24
Old 11-15-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
HELL YEAH!!! Thanks again for another shane plug. lol.
Reply With Quote
  #25
Old 11-16-2008
wyldechild's Avatar
Member

Join Date: Jun 2007
Location: Denver, Colorado
Posts: 1,952
Looking good Jake. I like the one by your burn building.
