The explorer console w/ inverter mod

Finally found a nice Explorer console, but the hole in the back was driving me nuts.

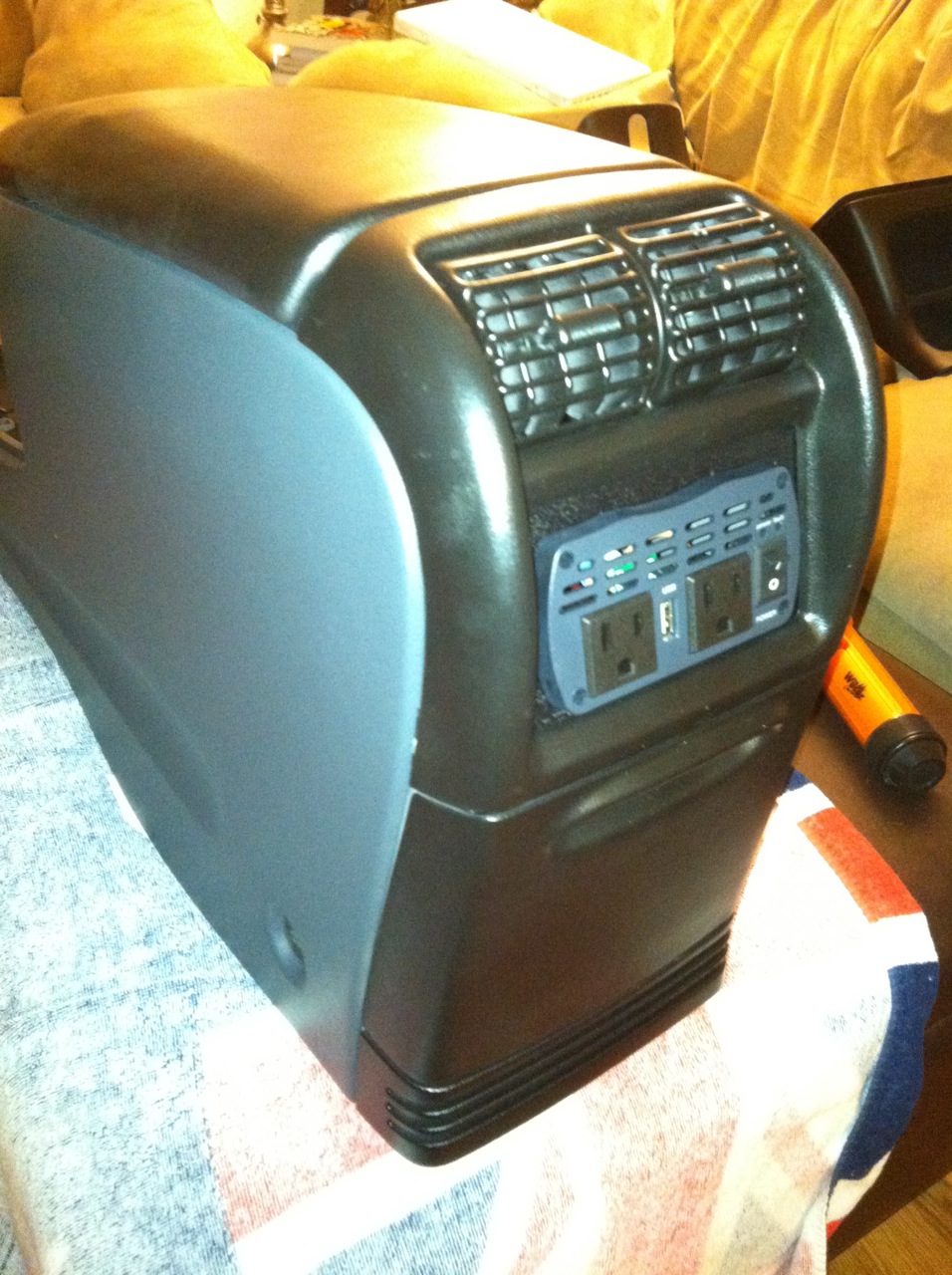

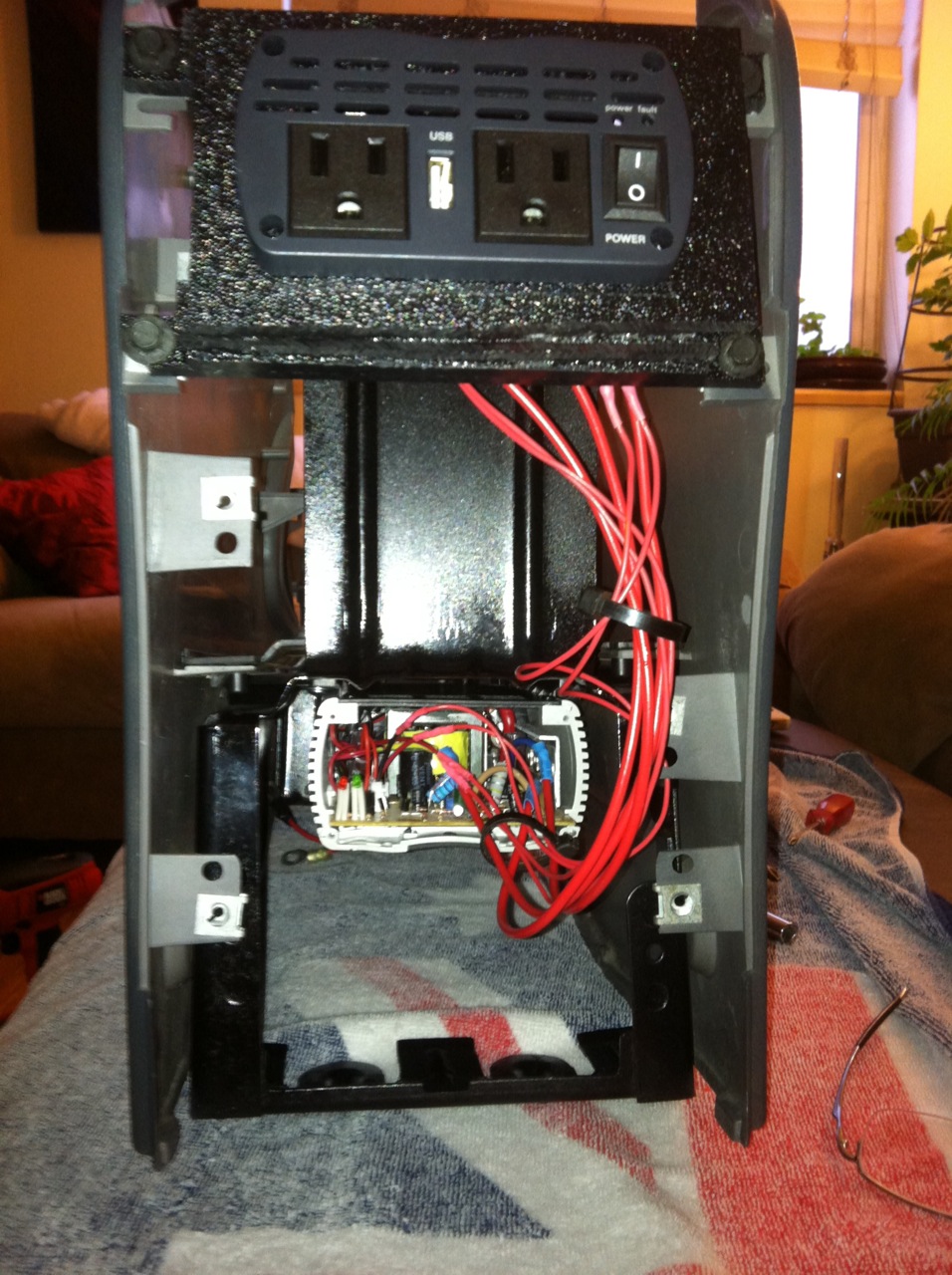

This is a Cobra 480w inverter, mounted where the rear blower motor was. I just removed the end plate and extended the wires. It is set in a piece of ABS plastic bolted in place of the rear A/C control panel.

That gives me:
2 original 12v outlets
1 new 12v on the side of the console
2 110v outlets on the inverter
1 USB outlet on the inverter
Attached Thumbnails
The explorer console w/ inverter mod-img_0249.jpg   The explorer console w/ inverter mod-img_0255.jpg   The explorer console w/ inverter mod-img_0252.jpg
Reply With Quote
  #2
Old 06-21-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Great idea... nice work!
Reply With Quote
  #3
Old 06-22-2012
mthomp1's Avatar
Member

Join Date: Nov 2011
Location: North Louisiana
Posts: 330
Looks great, and good idea!
Reply With Quote
  #4
Old 06-22-2012
biketheozarks's Avatar
biketheozarks

Join Date: Nov 2011
Location: Northwest Arkansas
Posts: 205
very nice!
Reply With Quote
  #5
Old 06-22-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Sweet! You should make a how to for it.
Reply With Quote
  #6
Old 06-22-2012
blue_oval's Avatar
Member

Join Date: Feb 2008
Location: Worcester MA
Posts: 366
Cool idea
Reply With Quote
  #7
Old 06-24-2012
Ranger Smith's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Phoenix
Posts: 366
Thanks all.

Quote:
Originally Posted by 98liftedranger View Post
Sweet! You should make a how to for it.
I don't really have much else to add for a how-to. I ran 6 gauge wire to the battery with a 50 amp fuse, thats about all there is to it.
Reply With Quote
  #8
Old 06-24-2012
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,778
Great idea.
What have you plugged in ?
Reply With Quote
  #9
Old 06-24-2012
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
That's a cool idea. I like. Nice job.
Reply With Quote
  #10
Old 06-24-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Very clean!
i like it man. I might even do this.
Reply With Quote
  #11
Old 06-24-2012
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Very cool
Reply With Quote
  #12
Old 06-24-2012
Ranger Smith's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Phoenix
Posts: 366
Quote:
Originally Posted by Scrambler82 View Post
Great idea.
What have you plugged in ?
I grabbed a blender out of the kitchen to test it cause thats what was closest, Margaritas on the tailgate baby!
Reply With Quote
  #13
Old 06-24-2012
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
Nice dude, I plan on doing this myself
Reply With Quote
  #14
Old 06-25-2012
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,778
Quote:
Originally Posted by Ranger Smith View Post
I grabbed a blender out of the kitchen to test it cause thats what was closest,
SSSSWWWEEEETTT !

Nice !

Quote:
Originally Posted by Ranger Smith View Post
Margaritas on the tailgate baby!
A Mudslide please, frozen.
Reply With Quote
  #15
Old 06-25-2012
Member

Join Date: Jun 2012
Location: Maryland
Posts: 1
perhaps a how to
Reply With Quote
  #16
Old 06-25-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Quote:
Originally Posted by Ranger Smith View Post
I don't really have much else to add for a how-to. I ran 6 gauge wire to the battery with a 50 amp fuse, thats about all there is to it.
Since you missed it, I'll help you out. If I had buckets/console I would swap mine for one of those.
Reply With Quote
  #17
Old 06-25-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
sweet. I may do this later this week to have something functional instead of useless ac controls
Reply With Quote
  #18
Old 06-27-2012
mrmrrck's Avatar
Member
iTrader: (1)

Join Date: Feb 2008
Location: Dover, TN
Posts: 115
Nice idea. Gotta do this project. It will come in very handy.
Reply With Quote
  #19
Old 06-27-2012
buggman's Avatar
Member
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
Sweet mod man!

Now I have another project to look forward to after the dual battery mod.
Reply With Quote
  #20
Old 06-27-2012
Ranger Smith's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Phoenix
Posts: 366
Now I just need something less girly than tissues to put in the tissue holder, shop rags maybe? The buggman switch panel looks good but I don't need the switches for anything.
Reply With Quote
  #21
Old 06-27-2012
buggman's Avatar
Member
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
Beeches love da sweeches
