F-150 Column Gauge pod in a Ranger.....

got this last week....it is for a '97 F-150......had to do some trimming to get it to fit properly, but it aint bad.....i need to paint it grey like the other pieces....
Reply With Quote
  #2
Old 02-25-2007
Member

Join Date: Nov 2005
Location: Aberdeen and Salisbury MD
Posts: 1,840
very nice man. what gauge ya got in there?
Reply With Quote
  #3
Old 02-25-2007
lifted97ranger's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
probably a fuel level gauge.........if i can get it to work with a Ranger's fuel ohm reading.......if not then i am going to take it off and not have it there at all....
Reply With Quote
  #4
Old 02-25-2007
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
kick *** so now we know a mustang one works for the manual trucks and the f-150 works for the auto's
Reply With Quote
  #5
Old 02-25-2007
lifted97ranger's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
yepper!
Reply With Quote
  #6
Old 02-25-2007
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
where exacly did you trim just for reference
Reply With Quote
  #7
Old 02-25-2007
lifted97ranger's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
the red line is were i cut.......i also had to do a little trimming out of the shifter hole.....it was a bit smaller than the Ranger's trim piece so it wouldn't fit correctly......

the 1st picture, the piece behind the red line had to be cut off....it wouldn't allow the column to tilt all the way up....

in the second picure of the shifter, the red line was curved behind that, and when the wheel was tilted down, it would hit the dash and not allow it to go all the way down....
Reply With Quote
  #8
Old 02-25-2007
04lvl2's Avatar
RF Veteran

Join Date: Jun 2004
Location: Palm Bay, FL
Posts: 5,600
Was there s rubber peice under the cluster bezel? I just removed it on mine and it worked fine without cutting any off the back. I also have the mustang one so it may be different.
Reply With Quote
  #9
Old 02-25-2007
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Very cool Nice Maurice
Reply With Quote
  #10
Old 02-25-2007
lifted97ranger's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Quote:
Originally Posted by 04lvl2
Was there s rubber peice under the cluster bezel? I just removed it on mine and it worked fine without cutting any off the back. I also have the mustang one so it may be different.
no there wasn't any rubber piece under my cluster bezel......
Reply With Quote
  #11
Old 02-25-2007
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
that might have been added on the newer rangers maybe... i dont think my buddy's 1995 had it eather on his adjustable collum
Reply With Quote
  #12
Old 02-25-2007
lifted97ranger's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
my mom's '97 Explorer doesn't have it either......don't know why they would have added it........probably just another unnecassary part....for some idiot in the union to have a rediuclas paying job....
Reply With Quote
  #13
Old 02-25-2007
casfz1's Avatar
Member

Join Date: Aug 2005
Location: southgate, mi
Posts: 1,989
very nice. I might have to order one. I want to add one more gauge but don't like the look of a dual gauge pod.
Reply With Quote
  #14
Old 02-25-2007
crawly1025's Avatar
Member

Join Date: Jul 2005
Location: Steubenville Ohio
Posts: 1,361

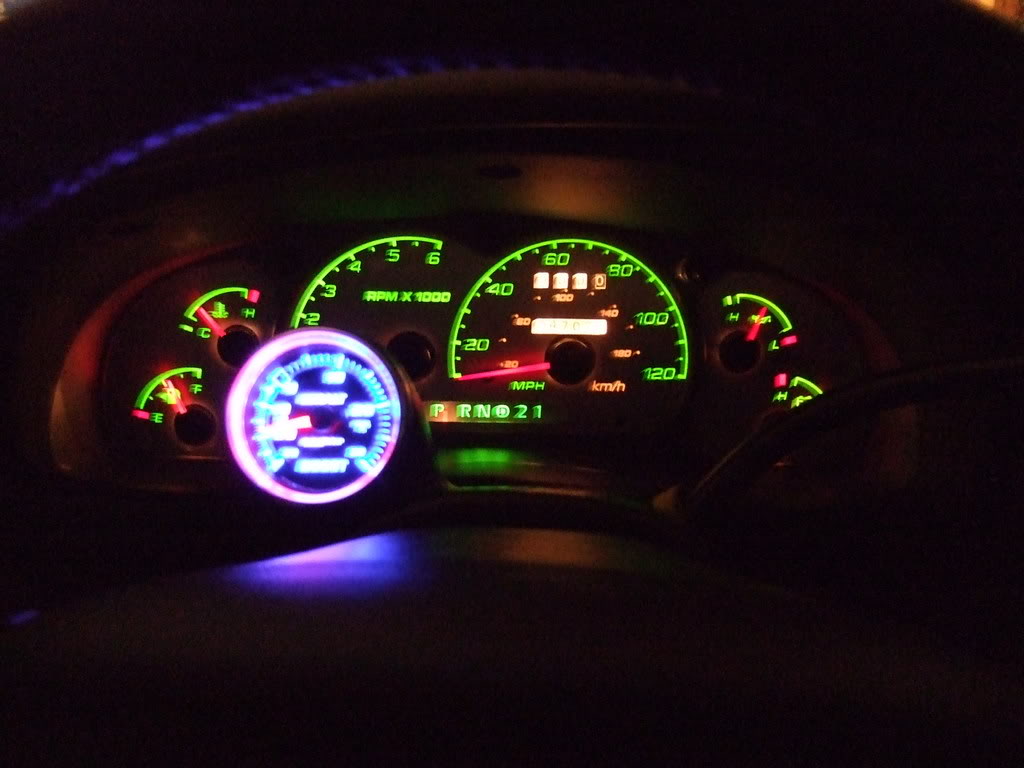

I installed the same thing but didn't do the trimming part. I probably should have but it seems to still fit very well. The steering wheel doesn't get tilted much anyways so i really wasn't too concerned about it. Here's some shots of mine installed.

Name:  80.jpg
Views: 3
Size:  72.0 KB
Reply With Quote
  #15
Old 02-25-2007
lifted97ranger's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
nice!!^^^^ i tilt my steering wheel all the time....up when i get out and down when i get in......
Reply With Quote
  #16
Old 02-25-2007
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
^^ most of us dont have to get the latter out to get in and out eather lol
Reply With Quote
  #17
Old 02-25-2007
lifted97ranger's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
yea well.............what can i say....
Reply With Quote
  #18
Old 02-25-2007
crawly1025's Avatar
Member

Join Date: Jul 2005
Location: Steubenville Ohio
Posts: 1,361
lol I bet you'rs fits a little more snug though. I didn't get a chance to put the plugs in yet, it was dark and late....er early lol
Reply With Quote
  #19
Old 02-25-2007
lifted97ranger's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
yea i pulled mine down pretty good to put the pins in.......

FYI: drill a hole 1 drill a 11/64" hole instead of what the directions say....the pins will hold better.....you will have to trim the pins on the inside of the column plastic....
Reply With Quote
  #20
Old 02-25-2007
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
looks good man..have to look into this..

so you got dual pillars also?

or just steering and 3 gunna be in bezel?
Reply With Quote
  #21
Old 02-25-2007
casfz1's Avatar
Member

Join Date: Aug 2005
Location: southgate, mi
Posts: 1,989
do you happen to know the part # ?
Reply With Quote
  #22
Old 02-25-2007
lifted97ranger's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
when everything is said and done i will have the steering gauge, dual pillar gauges and the 3 in the bezel....
Reply With Quote
  #23
Old 02-25-2007
lifted97ranger's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Quote:
Originally Posted by casfz1
do you happen to know the part # ?
Summit Part #: ATM-15004

Auto Meter Part#: 15004
Reply With Quote
  #24
Old 02-25-2007
casfz1's Avatar
Member

Join Date: Aug 2005
Location: southgate, mi
Posts: 1,989
thanks
Reply With Quote
  #25
Old 02-25-2007
r0ng5's Avatar
Member
iTrader: (1)

Join Date: Jun 2004
Location: LA, CA
Posts: 2,575
this is going to be exactly what I needed. I was gonna do a 2 gauge pod, but i only really needed one gauge. Good going maurice!
