Fiberglassed Radio Bezel

Ok, I know someone on here has an aftermarket radio fiberglassed into the radio bezel. Any pics? I'd like to learn how to do this.
Reply With Quote
  #2
Old 08-26-2006
RockysFord's Avatar
Member

Join Date: May 2005
Location: Columbus Ohio
Posts: 2,782
you mean fiberglass the installation kit to the bezel?

Wouldnt be that hard, just rough up the bezel, put some fiberbondo on, sand it and your good...

Dont have any pics though

Rocky
Reply With Quote
  #3
Old 08-26-2006
crawly1025's Avatar
Member
Thread Starter

Join Date: Jul 2005
Location: Steubenville Ohio
Posts: 1,361
how would you cover the hole for the pocket?
Reply With Quote
  #4
Old 08-26-2006
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
You can use fiberglass clothe/weave to cover the hole.

Use fiberglass bondo to fill most of what you need, but use the regular bondo to really smooth things out. It's pretty simple. The member you're thinking of is rangerboyFX4 I think. He's got a black FX4 and changed the interior from tan to black, right?
Reply With Quote
  #5
Old 08-26-2006
RockysFord's Avatar
Member

Join Date: May 2005
Location: Columbus Ohio
Posts: 2,782
What hole are you talking about? The whole radio piece? I wouldnt do the whole thing...I would go from the backside and put fiberbondo on the backside to hold it where you want it....then flip it back over and put fiberbondo around the hole....ahh, unless your talking about the "SLOT" under the radio..I think i could cut something to fit in there and fiberbondo over it.....i hate using fiberglass / weave.. it sucks Fiberbondo is the ****...when it drives its hard as a rock.....

Rocky
Reply With Quote
  #6
Old 08-26-2006
Member

Join Date: Apr 2005
Location: leesbur, va
Posts: 66
here is my radio bezel, i think this is what he is looking for:

I just put some fabric over the hole and fiberglassed it and put some bondo where it looked wavy. I also shaved the cigarette lighter because I dont smoke and thought it looked better.
Reply With Quote
  #7
Old 08-26-2006
KARPE's Avatar
Member

Join Date: Apr 2005
Location: Valrico, Fl 33594
Posts: 4,748
if you look up different places and come across a term called "kitty hair " that's just the fiberglass bondo mixture. just thought I'd throw that out there, cuz it confoozed me for a while
Reply With Quote
  #8
Old 08-26-2006
Member

Join Date: Dec 2005
Location: Ft Hood, TX
Posts: 1,779

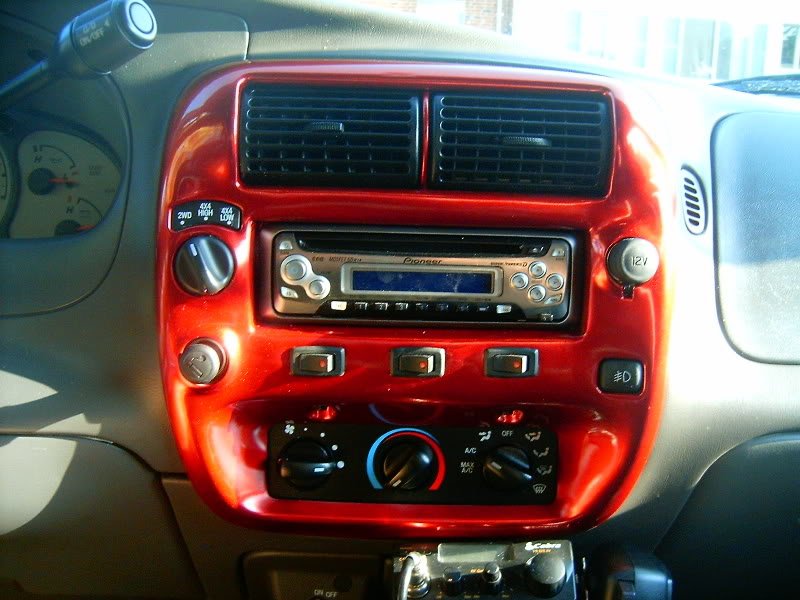

something like this too. check your pms.
Name:  HPIM0608.jpg
Views: 3
Size:  87.5 KB
Reply With Quote
  #9
Old 08-26-2006
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
that does look good.....i am going to do that and use that spot for my LED's to indicate that my efan is on and indicate that my strobe lights are on!
Reply With Quote
  #10
Old 08-26-2006
Member

Join Date: Dec 2005
Location: Ft Hood, TX
Posts: 1,779
i thought you were selling it?
Reply With Quote
  #11
Old 08-26-2006
quest51210
Unregistered User

Posts: n/a
NO! fiberglass is a poor choice to bond plastic since, FIBERGLASS DOES NOT BOND TO PLASTIC!!!!!! i have said it a million times. you need Duramix 40/40 or Dominion Seal plastic epoxy to bond the kit to the dash opening. then you sand the epoxy down, high build primer, wetsand, paint and then clear. this method is not only correct, but it knocks install time and cost in half. PM me if you want specifics.
Reply With Quote
  #12
Old 08-26-2006
Audiojunkie's Avatar
Member

Join Date: Aug 2006
Location: Brunswick Maine
Posts: 45
Quote:
Originally Posted by quest51210
NO! fiberglass is a poor choice to bond plastic since, FIBERGLASS DOES NOT BOND TO PLASTIC!!!!!! i have said it a million times. you need Duramix 40/40 or Dominion Seal plastic epoxy to bond the kit to the dash opening. then you sand the epoxy down, high build primer, wetsand, paint and then clear. this method is not only correct, but it knocks install time and cost in half. PM me if you want specifics.
I'm with stupid..

Mobile Dynamics 101.
Reply With Quote
  #13
Old 08-27-2006
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Quote:
Originally Posted by RangerBoy03FX4
i thought you were selling it?
i will if someone has the money in hand, but i haven't had any offers so i will do little things here and there for something to do in my spare time
Reply With Quote
  #14
Old 08-27-2006
l2en's Avatar
Member

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
Quote:
Originally Posted by RangerBoy03FX4
something like this too. check your pms.

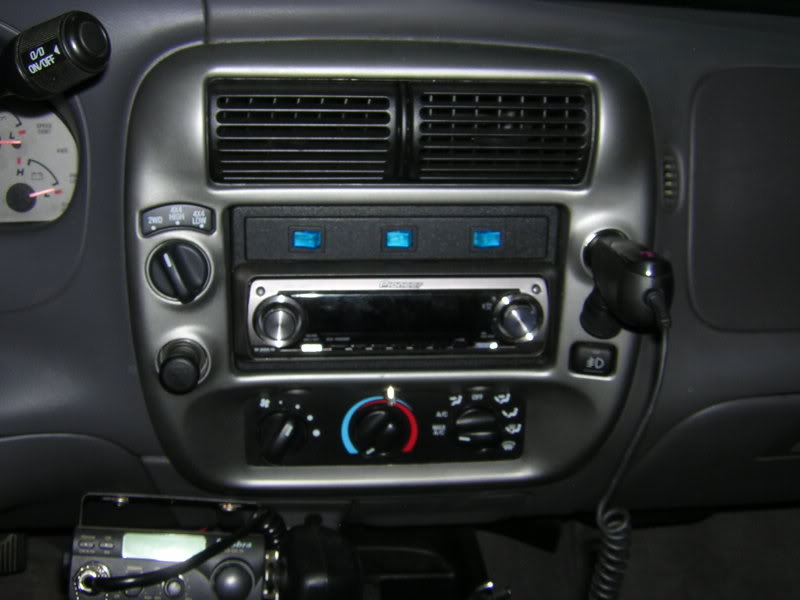

I likey!!! Looks like a more professional version of my bezel...
Name:  DSCN1556.jpg
Views: 3
Size:  48.9 KB

edit: nice cb btw, i never notice that! lol wanna buy a nicer pioneer deck? =]
Reply With Quote
  #15
Old 08-27-2006
quest51210
Unregistered User

Posts: n/a
Quote:
Originally Posted by Audiojunkie
I'm with stupid..

Mobile Dynamics 101.
thanks boss.
Reply With Quote
  #16
Old 08-27-2006
Member

Join Date: Dec 2005
Location: Ft Hood, TX
Posts: 1,779
Quote:
Originally Posted by l2en
lol wanna buy a nicer pioneer deck? =]
id love to but this one aint broke yet. unless you wanna drive up to michigan and break it then yes ill buy it. lol.
