  #26
Old 02-02-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
^^you have some more of those laying around Andy?
Reply With Quote
  #27
Old 02-02-2007
ranger's Avatar
Member

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
i have those in my ranger
Reply With Quote
  #28
Old 02-03-2007
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Quote:
Originally Posted by lifted97ranger
^^you have some more of those laying around Andy?
no, but i was just saying i will go back and look. i know there was another 03 there. maybe 2. but i'll go back and check asap. right now id freeze taking it out. -40 windchill would cut right through me
Reply With Quote
  #29
Old 02-03-2007
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
Quote:
Originally Posted by rwenzing
Those are factory XLT gauges, 2003 only. I have the same ones in my avatar but the flash makes them look white.
Are those the same ones as in my Level II Bob? They look similar. I thought Andy's might have been sport trac gauges or something at first.
Reply With Quote
  #30
Old 02-03-2007
Member

Join Date: Mar 2006
Location: Mesa, Arizona
Posts: 886
How do you change the color of the LEDs? Mine are green and I would really like to change them to blue
Reply With Quote
  #31
Old 02-03-2007
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
yeah Kyle they are prolly just like yer stock ones

www.superbrightleds.com get the 194 wedge based leds. you can get them in other colors as well. you have to shave the green/white coating off the back of the gauges to make it clear behind the lettering. then just pop out the 6 bulbs and replace them with the leds.

there are a few how-to's on here about the swap.
Reply With Quote
  #32
Old 02-03-2007
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Quote:
Originally Posted by Gearhead61
Are those the same ones as in my Level II Bob? They look similar. I thought Andy's might have been sport trac gauges or something at first.
I believe that they are just like yours or mine or any other 03 XLT.
Reply With Quote
  #33
Old 02-03-2007
Member

Join Date: Mar 2006
Location: Mesa, Arizona
Posts: 886
Ok I looked at that site and found the



WLED 1-LED bulb
12VDC 1-LED Wedge Base Bulb (194/168 type)with Wide Viewing Angle
Available in White, Blue, Green and UV-BlackLight LED

Are these the ones you have? Also, if so have you switched out the LEDs behind the rest of the gages (ie A/C controls and such?)
Reply With Quote
  #34
Old 02-04-2007
FMD's Avatar
FMD FMD is offline
Member
iTrader: (1)

Join Date: Aug 2005
Location: Amherst NY
Posts: 3,811
im actually in the process of changing my gauges... maybe this week ill get over to D's and he can help me rip my dash apart. I bought an 04 cluster like mine, black, and painted that lip on the new one i bought silver.... like in the lvl2's now i just gotta install it.
Reply With Quote
  #35
Old 02-04-2007
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Quote:
Originally Posted by IR0NS1N
Ok I looked at that site and found the



WLED 1-LED bulb
12VDC 1-LED Wedge Base Bulb (194/168 type)with Wide Viewing Angle
Available in White, Blue, Green and UV-BlackLight LED

Are these the ones you have? Also, if so have you switched out the LEDs behind the rest of the gages (ie A/C controls and such?)
yeah those are the ones
Reply With Quote
  #36
Old 02-04-2007
Member

Join Date: Feb 2005
Location: Edmonton, Alberta
Posts: 1,027
yea i like the 03 look..BUT id rather have black with our writing..to get aftermarket ones is a pain in the ****..ive looked at a few companys but where the lights ( example 4x4 light ) theres a square cut out instead of the writing..stupid if you ask me..
Reply With Quote
  #37
Old 02-05-2007
l2en's Avatar
Member

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
Quote:
Originally Posted by rwenzing
Those are factory XLT gauges, 2003 only. I have the same ones in my avatar but the flash makes them look white.
lol i was trying to figure out which ones he swapped for a minute. I had the silver ones in this LII and my old fx4, both 03's.
Reply With Quote
  #38
Old 02-09-2007
Member

Join Date: Jan 2007
Location: Meriden, CT
Posts: 11
how did u get the class off to get into there? I wanna swap too but i dont wanna mess anything up, knowing me i will lol
Reply With Quote
  #39
Old 02-09-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
it is held on with little screws....
Reply With Quote
  #40
Old 02-09-2007
Silver's Avatar
Member

Join Date: Jun 2006
Location: edenton,nc
Posts: 2,708
i see im not the only one swaping gauges this week

daddonkey027.jpg?t=1171035018

exept i was able to use the expo speedo,after correcting the milage, and i will use my old trim piece as well
Reply With Quote
  #41
Old 02-09-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
sweet!
Reply With Quote
  #42
Old 02-09-2007
Member

Join Date: Jan 2007
Location: Meriden, CT
Posts: 11
so its not that difficult of a project
Reply With Quote
  #43
Old 02-09-2007
crawly1025's Avatar
Member

Join Date: Jul 2005
Location: Steubenville Ohio
Posts: 1,361
Hey those look familiar!

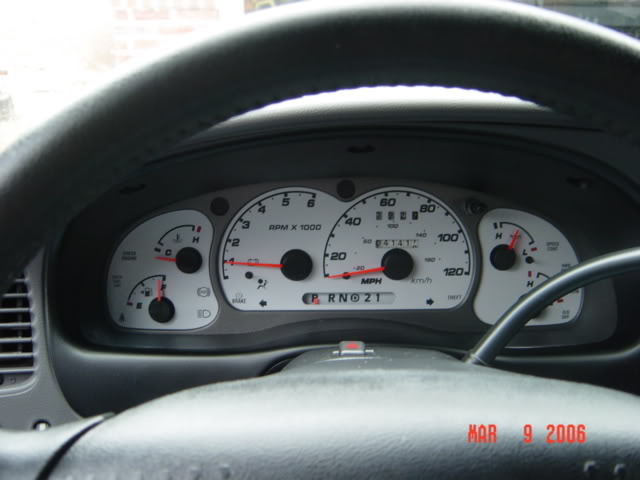

Name:  2.jpg
Views: 0
Size:  33.0 KB

I like em, they're really clean looking. Good job BTW, looks awesome.
Reply With Quote
  #44
Old 02-09-2007
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
not at all. no real risk of breaking anything at all. it all just unscrews. the guage faces pop off with some work sometimes. helps alot if they are warm or heated up. if its freezing out, they stick bad and can tear (i know this lol)

I used two spoons to pry off the needles, works great. and all you have to do after is put the needles back the way they were in the right positions. and re-calibrate yer speedo by driving next to someone going like 30mph and pop the needle on and yer set. thats what i did anyways. and then just finish screwing it all back together, and yer done.
Reply With Quote
  #45
Old 02-09-2007
crawly1025's Avatar
Member

Join Date: Jul 2005
Location: Steubenville Ohio
Posts: 1,361
Thanks for the LED link Andy. I've been wanting to do the color change for awhile but I'm a little worred about popping off the gauge needles. I tried to do that on my 97 and totally fubared the gauges. Is there any better way to do it?
Reply With Quote
  #46
Old 02-09-2007
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
no prob man..i love the blue lit gauges. i just posted above using two spoons to pry up on either side works great.
Reply With Quote
  #47
Old 02-09-2007
crawly1025's Avatar
Member

Join Date: Jul 2005
Location: Steubenville Ohio
Posts: 1,361
Man, I'm so not sure about prying off the needles again. that first time really made me gun-shy about the whole thing
Reply With Quote
  #48
Old 02-09-2007
Silver's Avatar
Member

Join Date: Jun 2006
Location: edenton,nc
Posts: 2,708
Quote:
Originally Posted by INT3RC3PTOR
no prob man..i love the blue lit gauges. i just posted above using two spoons to pry up on either side works great.

LOL i used a fork
Reply With Quote
  #49
Old 02-09-2007
crawly1025's Avatar
Member

Join Date: Jul 2005
Location: Steubenville Ohio
Posts: 1,361
i tried a fork too, and it really screwed up the little pin the needle goes on. i tried putting it back on and it was jumping all over the place after i hooked it back up. i just don;t know if im willing to try that with the white gauges.
Reply With Quote
  #50
Old 02-09-2007
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
hmm idk. mine is perfectly fine. just go slow and use TWO spoons, and pry evenly. nothn should go wrong
Reply With Quote
